Omron P7SA-14F-ND-PU DC24 — Socket for G7SA Relays
SKU: P7SA-14F-ND-PU DC24USD 14.50

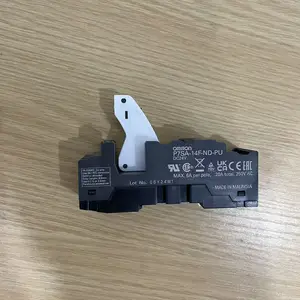

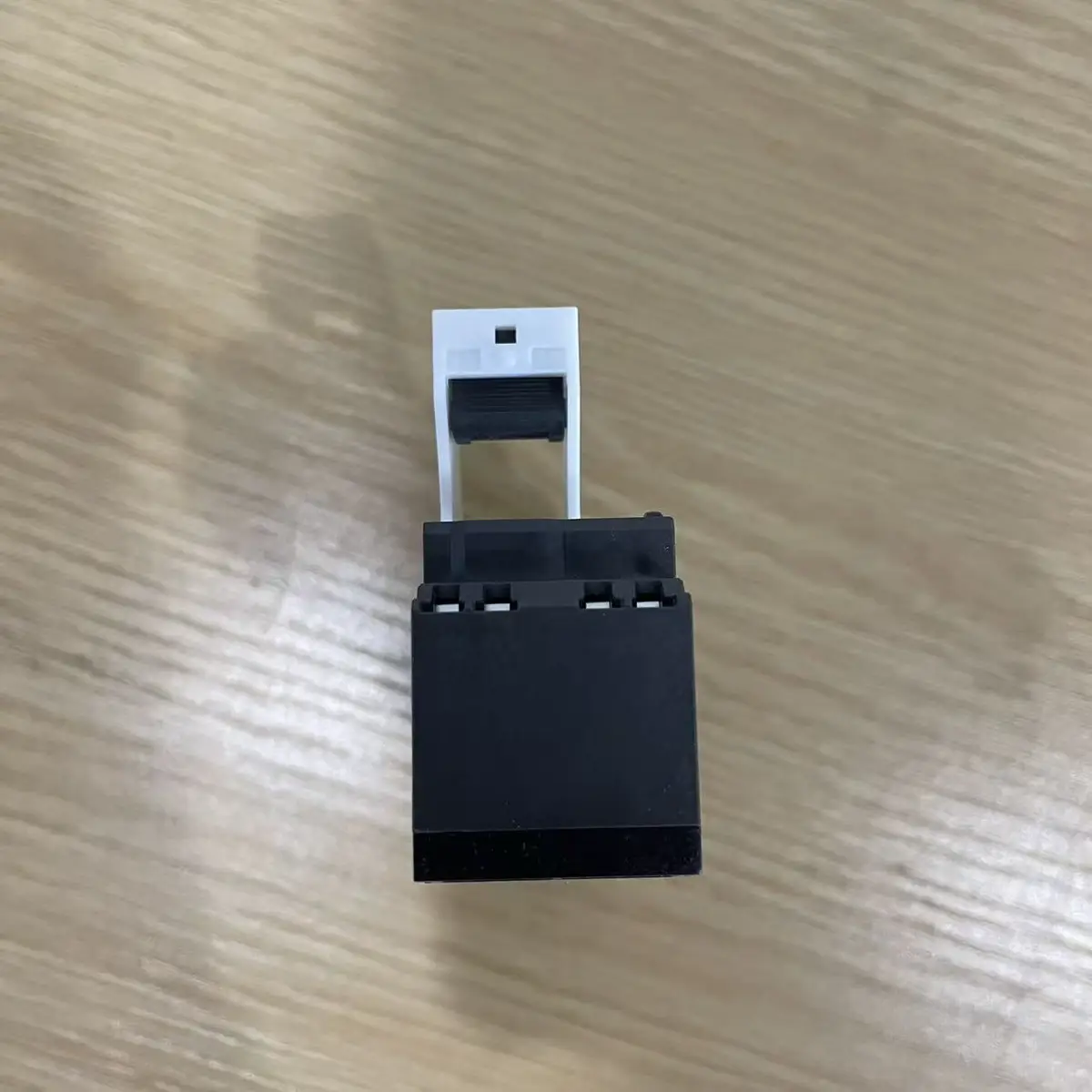

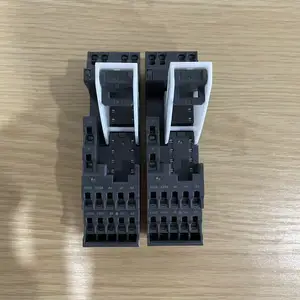

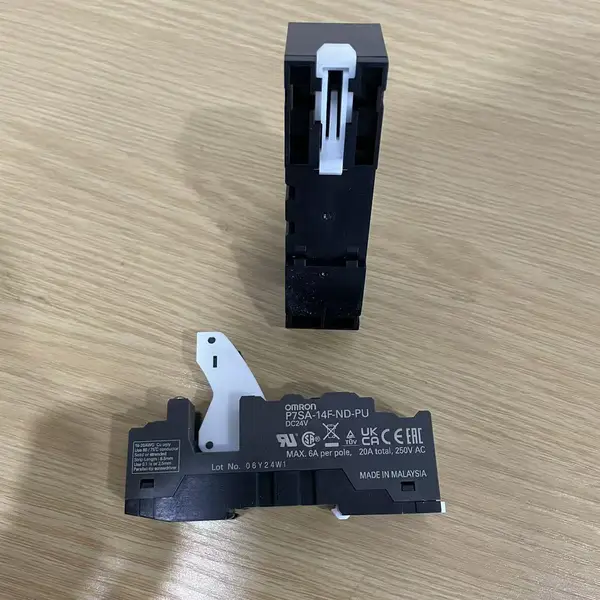

Front-mounting 14-pin Push-In Plus socket for Omron G7SA forcibly-guided 6-pole safety relays, with built-in LED indicator and diode for 24 VDC coils.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The P7SA-14F-ND-PU DC24 is the front-mounting Push-In Plus socket for Omron's G7SA family of forcibly-guided safety relays in the 6-pole (14-terminal) configuration. It is the dedicated base for a G7SA-2A2B, G7SA-3A1B, G7SA-5A1B, G7SA-4A2B, or G7SA-3A3B relay, and the -ND suffix means the socket ships with a built-in operation-indicator LED and surge-absorbing diode wired across the coil terminals. Use this socket wherever a G7SA relay needs to be plug-in replaceable on the DIN rail rather than soldered to a PCB.
How this socket differs from siblings
The 14-pin count tells you this is for 6-pole G7SA relays, not 4-pole. The narrower 10-pin P7SA-10F-ND-PU DC24 (22.5 mm wide) takes the 4-pole G7SA-3A1B / G7SA-2A2B; the 14-pin P7SA-14F-ND-PU DC24 (27.7 mm wide) takes 6-pole variants and exposes two extra terminals for the additional NO or NC contact. If you need screw terminals instead of Push-In Plus, order the P7SA-14F-ND DC24 (no -PU). If the relay must be soldered to a PCB through the panel, use the back-mounting P7SA-14P with PCB pins.
Wiring and mechanical notes

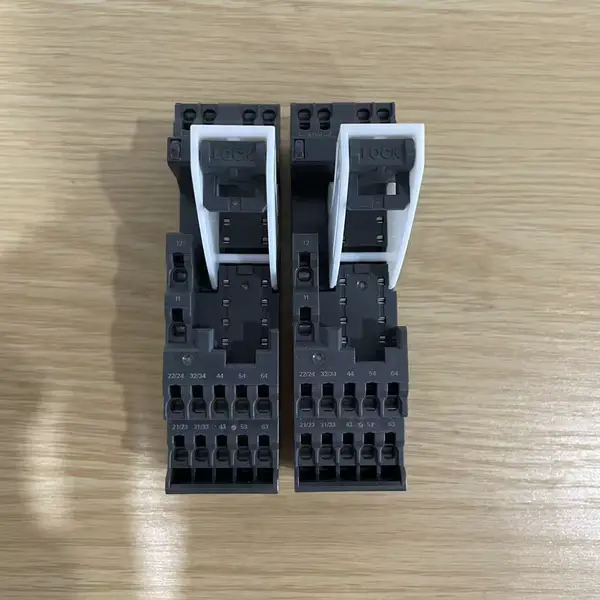

Push-In Plus terminals accept solid wire, stranded wire, or wire with ferrule — strip length 8.5 mm, use 0.1 to 2.5 mm² (16 to 20 AWG Cu). Insert the wire directly; no screwdriver is required, though a parallel-tip screwdriver can release a conductor if you need to re-wire. The 24 VDC coil of the G7SA relay is fed across terminals A1 (+) and A2 (-) of the socket; the LED indicator wired to these terminals lights when the coil is energised.
Application in a safety circuit
In a typical Cat 4 / PL e guard door circuit, a safety controller (such as a G9SP, NX-SL3300, or G9SE) drives two channels into the coil of a G7SA-2A2B or G7SA-5A1B that sits on this P7SA-14F-ND-PU socket; the NO contacts feed the contactor coils and the NC contacts loop back as EDM feedback. Because the relay is forcibly-guided, a weld on one contact mechanically prevents the opposite contact from closing — the diagnostic loop in the safety controller can detect the fault and stop the machine.
Key Features
- For G7SA 6-pole forcibly-guided safety relays
- Push-In Plus terminals accept 0.1–2.5 mm² wire without a screwdriver
- Built-in operation-indicator LED and surge-absorbing diode for 24 VDC coil
- Front-mounting on DIN rail or panel surface, 27.7 × 104 × 65.5 mm
- Holds relay securely under vibration; release lever for fast replacement

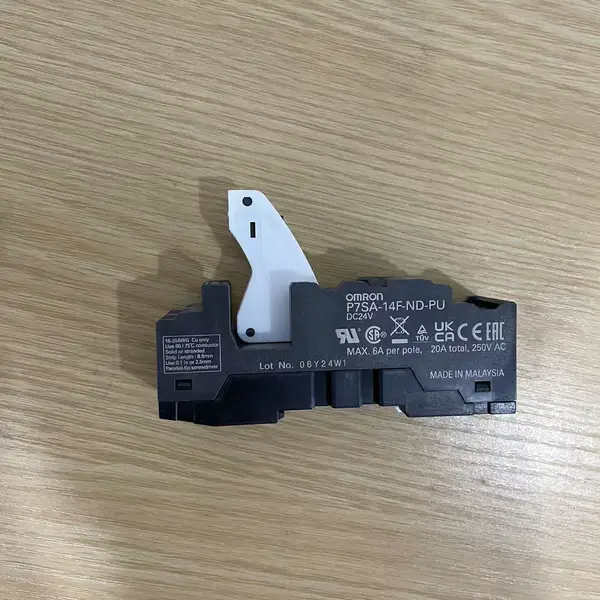

- Rated 6 A per pole, 20 A total, 250 V AC across the contact terminals
- cULus, TÜV, CE, and EAC certified for global machinery panels
- SKU: P7SA-14F-ND-PU DC24
- Series: P7SA
- Voltage: 24 VDC
Best-Fit Applications
- Plug-in base for G7SA-5A1B / G7SA-4A2B safety relays in robot cell guard-door circuits
- DIN-rail mounting of safety output relays next to NX-SL3300 safety controllers
- Serviceable socket in emergency-stop circuits where relay replacement must be tool-free
- Push-In Plus termination for high-vibration packaging lines where screw terminals would loosen
Buying Checklist
- Use this exact socket when the design calls for a 6-pole G7SA with an LED indicator and 24 VDC coil
- Confirm G7SA pole count before ordering — 4-pole relays fit the 10-pin P7SA-10F-ND-PU, not this 14-pin socket
- For non-Push-In Plus wiring, order the screw-terminal variant P7SA-14F-ND DC24
- Order G7SA relays separately — the socket ships without the relay module
- Pair with XW5S-P2.5-4RD short bars if multiple sockets share a common feed terminal
- Standard DIN-rail socket pitch allows clean panel layout even with mixed 4-pole and 6-pole relays
Technical Specifications
| Model | P7SA-14F-ND-PU DC24 |
|---|---|
| Series | P7SA |
| Type | Front-mounting relay socket |
| Applicable Relay | G7SA 6-pole (forcibly-guided contacts) |
| Compatible Relays | G7SA-2A2B, G7SA-3A1B, G7SA-5A1B, G7SA-4A2B, G7SA-3A3B |
| Number of Terminals | 14 |
| Terminal Type | Push-In Plus (screwless) |
| Wire Range | 0.1 to 2.5 mm² (16–20 AWG Cu), 8.5 mm strip |
| Coil Voltage | 24 VDC |
| Mounting | DIN rail or panel surface |
| Dimensions (W×H×D) | 27.7 × 104 × 65.5 mm |
| Certifications | cULus, CSA, TÜV, CE, EAC |
| Operating Temperature | −25 to +55 °C |
Resources & Downloads
FAQ for P7SA-14F-ND-PU DC24
Which G7SA relays fit the P7SA-14F-ND-PU DC24?
All 6-pole (14-terminal) variants of the G7SA family: G7SA-2A2B (DPST-NO + DPST-NC), G7SA-3A1B (3PST-NO + SPST-NC), G7SA-5A1B (5PST-NO + SPST-NC), G7SA-4A2B (4PST-NO + DPST-NC), and G7SA-3A3B (3PST-NO + 3PST-NC). All accept 12, 18, 21, 24, 48, and 110 VDC coils. The 4-pole G7SA relays (G7SA-2A2B, G7SA-3A1B) do fit both 10-pin and 14-pin sockets, but the 6-pole variants only fit the 14-pin socket.
What is the difference between P7SA-14F-ND-PU and P7SA-14F-ND?
The -PU suffix indicates Push-In Plus screwless terminals; the plain -ND ends with screw terminals. Both have the 24 VDC LED indicator and built-in diode. Push-In Plus reduces wiring time by about 60% compared to screw terminals and resists vibration-induced loosening, but you need ferrules or solid wire for the best connection.
How do I read the LED indicator on this socket?
The LED is wired in parallel with the coil (terminals A1 / A2 on the relay, exposed as the top two terminals of the socket). When the safety controller energises the coil at 24 VDC, the LED illuminates; when the coil drops out — either by E-stop, guard-door open, or controller shutdown — the LED extinguishes. If the LED stays on when the controller commands drop-out, the relay contacts are welded and the relay must be replaced.
Is this socket certified for use in functional-safety circuits?
The P7SA socket itself carries cULus, CSA, TÜV, CE, and EAC marks for industrial machinery. Functional-safety certification (Cat 4 / PL e per ISO 13849-1, SIL3 per IEC 61508) belongs to the G7SA relay sitting in the socket and the surrounding safety circuit; the socket is the wiring interface, not the safety component. Designs targeting PL e must use a G7SA with forcibly-guided contacts, a certified safety controller, and dual-channel wiring.
