Omron R88M-K40030T-S2 — G5 Servo Motor, 400 W, Brake
SKU: R88M-K40030T-S2USD 178.00

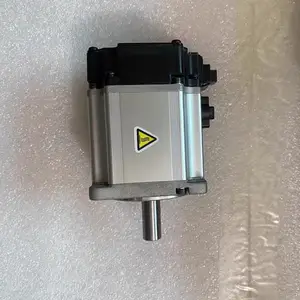

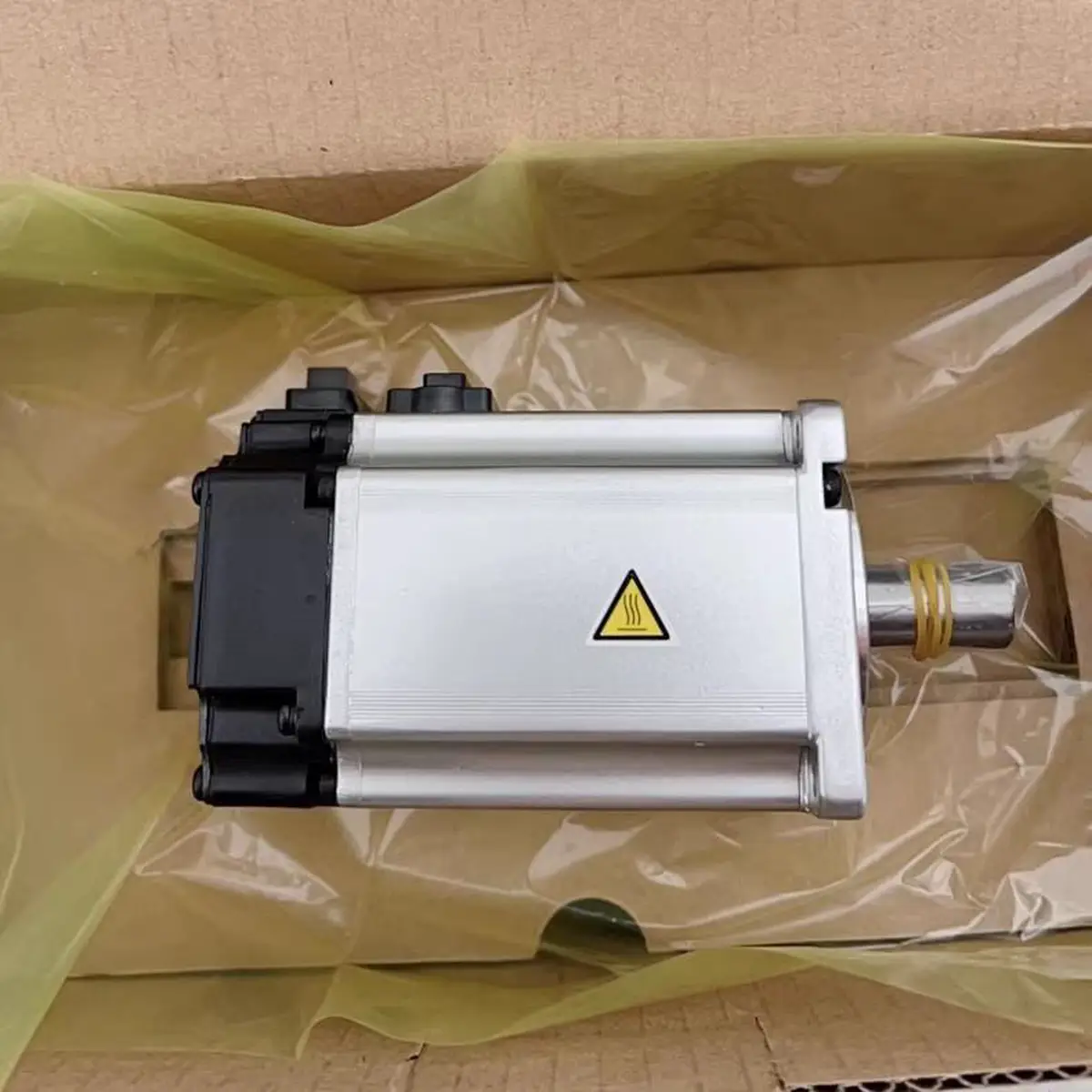

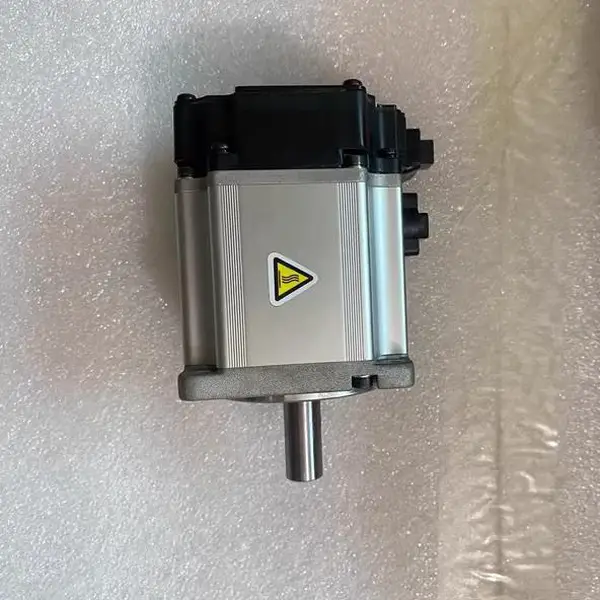

Omron R88M-K40030T-S2 G5 AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, brake + key, absolute encoder. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron R88M-K40030T-S2 is a 400 W Accurax G5 AC servo motor from the R88M-K series, manufactured by Omron Corporation. Hengyixin Automation ships this drive from Xiamen with the matching motor or PSU pairing recommended in the related products row below.

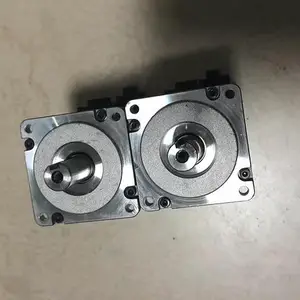

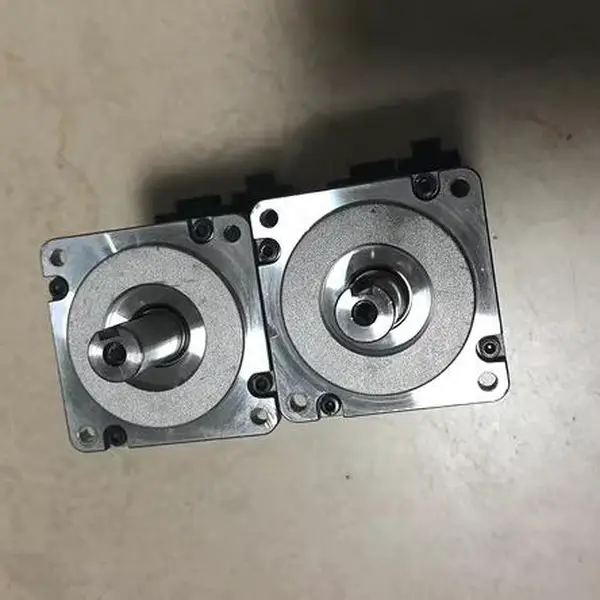

The motor delivers 400 W at 3000 rpm rated speed (6000 rpm max) with 1.3 Nm rated torque and 3.8 Nm peak torque. The 17-bit absolute encoder with battery backup needs no homing routine on power-up. The T suffix means the motor has a brake, an oil seal, a key shaft, and a shaft tap. The flange is 60 mm square and the shaft is 14 mm diameter.
The motor pairs with the R88D-KN04H-ECT-Z (EtherCAT), R88D-KN04H-ML2 (Mechatrolink II), or R88D-KT04H-Z (analog / pulse) G5 servo drive. Use the R88A-CAKA power cable and R88A-CRKA encoder cable. The motor is IP65 and weighs about 1.2 kg. For a no-brake variant with the same 400 W class, pick the R88M-K40030H-S2.
Key Features
- Accurax G5 AC servo motor, 400 W at 200 VAC, 3000 rpm rated
- 17-bit absolute encoder with battery backup, no homing on power-up
- T suffix = brake + oil seal + key shaft + shaft tap
- Pairs with R88D-KN04H-ECT, R88D-KN04H-ML2 or R88D-KT04H drive
- SKU: R88M-K40030T-S2
- Series: Omron Accurax G5-series AC servo motor
- Voltage: 200 VAC
Best-Fit Applications
- Vertical Z-axis on a packaging machine where the brake holds the load at power-off and the absolute encoder drops the homing routine
- Indexing conveyor where the key shaft couples to the gearbox and the oil seal keeps the gearbox oil out of the motor windings
- Spare drop-in for an existing G5 panel where the previous R88M-K40030T motor failed and the cabinet needs to keep the brake + key + oil seal
Buying Checklist
- Pick the R88M-K40030T-S2 for a 400 W G5 motor with brake, oil seal, key shaft and 17-bit absolute encoder.
- Pick the R88M-K40030H-S2 instead when the cabinet does not need the brake.
- Pick the R88M-K40030H-S2-Z instead when the cell needs a smooth shaft with absolute encoder but no brake.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron Accurax G5-series AC servo motor |
| Model / SKU | R88M-K40030T-S2 |
| Rated Output | 400 W (0.4 kW) |
| Rated / Max Speed | 3000 rpm rated; 6000 rpm max |
| Rated / Peak Torque | 1.3 Nm rated; 3.8 Nm peak |
| Supply Voltage | 200 VAC class (single-phase 200 to 240 VAC on the drive side) |
| Encoder | 17-bit absolute with battery backup |
| Brake / Oil Seal | Yes / Yes (T suffix) |
| Shaft | Key shaft with tap, 14 mm diameter |
| Compatible Drives | R88D-KN04H-ECT (EtherCAT), R88D-KN04H-ML2 (Mechatrolink II), R88D-KT04H (analog / pulse) |
| Dimensions / Weight | 60 mm flange; 1.2 to 1.35 kg; IP65 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for R88M-K40030T-S2
What does the T suffix mean on the R88M-K40030T-S2?
T marks the G5 motor as having a brake, an oil seal, a key shaft and a shaft tap. The brake is a 24 VDC spring-set / electromagnetic-release brake used to hold the load when the drive is off.
Which drive pairs with the R88M-K40030T-S2?
Three G5 drives match: the R88D-KN04H-ECT (EtherCAT) for Sysmac NJ / NX control, the R88D-KN04H-ML2 (Mechatrolink II) for CJ2 / CS1 control, and the R88D-KT04H (analog / pulse) for stand-alone or CP1 / CP2E control.
Does the R88M-K40030T-S2 need a homing routine?
No. The 17-bit absolute encoder with battery backup remembers the shaft position across power cycles, so the absolute position is valid at every power-up without a homing move. Replace the encoder battery every 3 years or when the drive reports a low-battery warning.
