Omron WLD2-Q — WL Limit Switch, Roller Lever, IP67
SKU: WLD2-QUSD 17.50
WL-series limit switch, adjustable roller lever, 1NC/1NO slow-action, G1/2 conduit, IP67. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron WLD2-Q is a general-purpose limit switch from the WL family It is manufactured by Omron Corporation. Hengyixin Automation ships this limit switch from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.

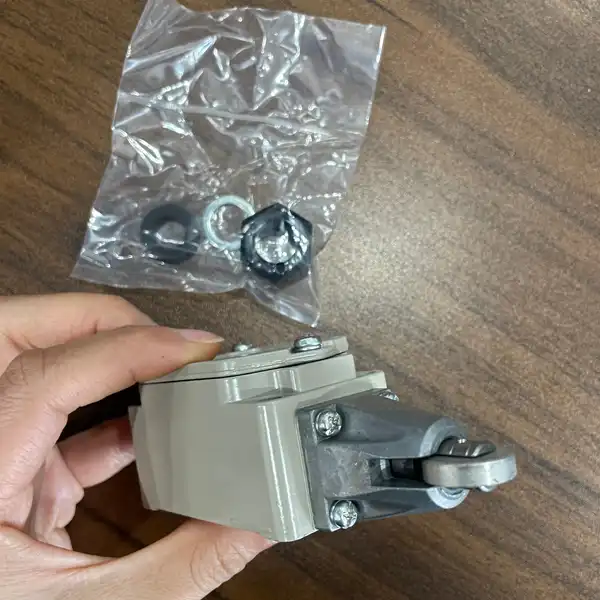

The switch has an adjustable roller lever on a metal lever with a resin roller. Form-lock keeps the roller fixed to the lever during impact.
For a side-mount rotary actuator on the WL body, use the WLCA12-LD-N. Key specs: Contact Form 1NC / 1NO, slow-action; Actuator Adjustable roller lever, form-lock (metal lever, resin roller); Rated Load 10 A at 250 VAC resistive, 0.5 A per EN 60947-5-1; Mechanical Life 15 million operations min; Electrical Life 750,000 operations min at rated load; Operating Speed 1 mm/s to 1 m/s; Operating Frequency 120 ops/min mechanical, 30 ops/min electrical; Connection G1/2 conduit, screw terminal block.
Key Features
- WL-series limit switch, adjustable roller lever, form-lock
- 1NC / 1NO slow-action contacts, 10 A at 250 VAC resistive
- G1/2 conduit, IP67 sealed, mechanical life 15 million ops
- Dielectric 2200 VAC, -10 to +80 degC, UL / CSA / CCC / TUV
- SKU: WLD2-Q
- Series: Omron WL-series general-purpose limit switch
Best-Fit Applications
- End-of-stroke feedback on a packaging machine gate where the adjustable roller lever matches the existing cam profile without machining
- Travel-limit feedback on a conveyor diverter where the 10 A contact handles the interlock relay directly
- Spare replacement on a legacy conveyor where the original WL-series limit switch dropped out and the WLD2-Q fits the same bracket and conduit
Buying Checklist
- Pick the WLD2-Q for a WL-series limit switch with adjustable roller lever, 1NC / 1NO slow-action contacts and IP67 sealing.
- Pick the WLCA12-2N-N instead when the panel needs the standard snap-action roller lever on the same WL body.
- Pick the D4N-112G instead when the application needs a plastic-body safety limit switch with direct-opening NC contact.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron WL-series general-purpose limit switch |
| Model / SKU | WLD2-Q |
| Contact Form | 1NC / 1NO, slow-action |
| Actuator | Adjustable roller lever, form-lock (metal lever, resin roller) |
| Rated Load | 10 A at 250 VAC resistive, 0.5 A per EN 60947-5-1 |
| Mechanical Life | 15 million operations min |
| Electrical Life | 750,000 operations min at rated load |
| Operating Speed | 1 mm/s to 1 m/s |
| Operating Frequency | 120 ops/min mechanical, 30 ops/min electrical |
| Connection | G1/2 conduit, screw terminal block |
| Protection / Standards | IP67; UL, CSA, TUV (EN 60947-5-1), CCC |
FAQ for WLD2-Q
Is the WLD2-Q a safety switch?
No. The WLD2-Q is a general-purpose limit switch with 1NC / 1NO slow-action. For safety-rated door or guard monitoring with direct-opening NC, use the D4N-112G or D4NS-1AF family.
What does the -Q suffix mean?
Q marks the conduit opening size and orientation. Q = G1/2 side conduit. WLCA2-Q and WLCA12-Q on the same family share the snap-action body.
Can the WLD2-Q lever be repositioned?
Yes. The roller lever can be rotated around the shaft to any angle within the lever's travel range. Loosen the lever clamp screw, rotate, and re-tighten.
What is the difference between slow-action and snap-action on the WL family?
Snap-action (WLCA) trips at a fixed travel regardless of speed; it has a single-pole double-throw (SPDT) contact. Slow-action (WLD) trips with the lever position and uses 1NC / 1NO with a different contact sequence. Use snap-action for limit and use slow-action for force feedback.
