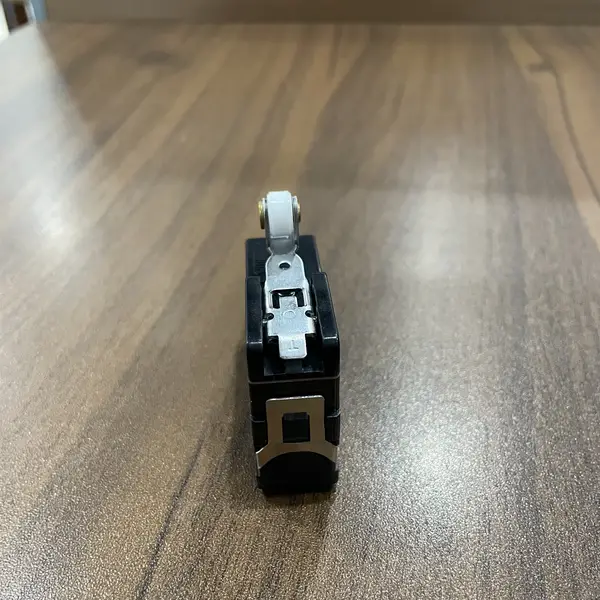

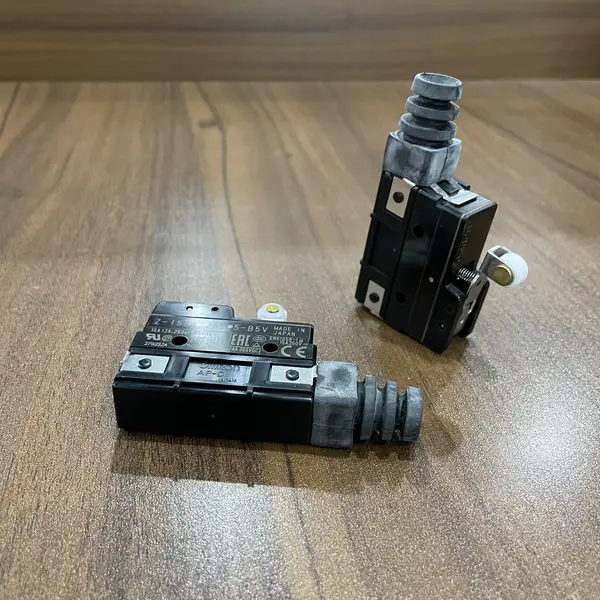

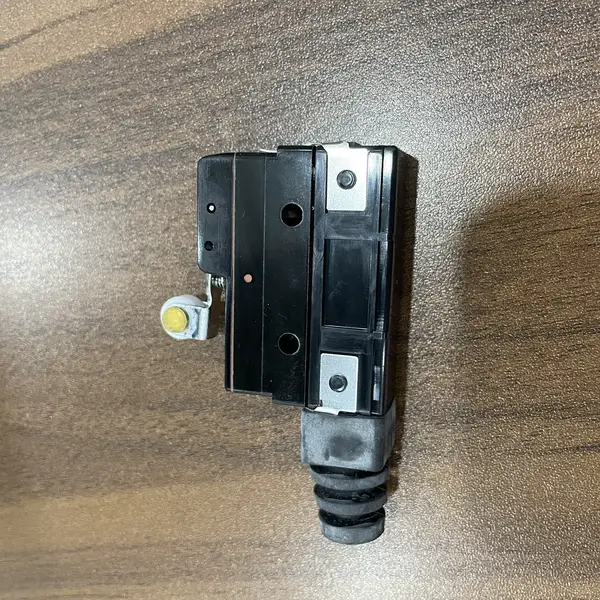

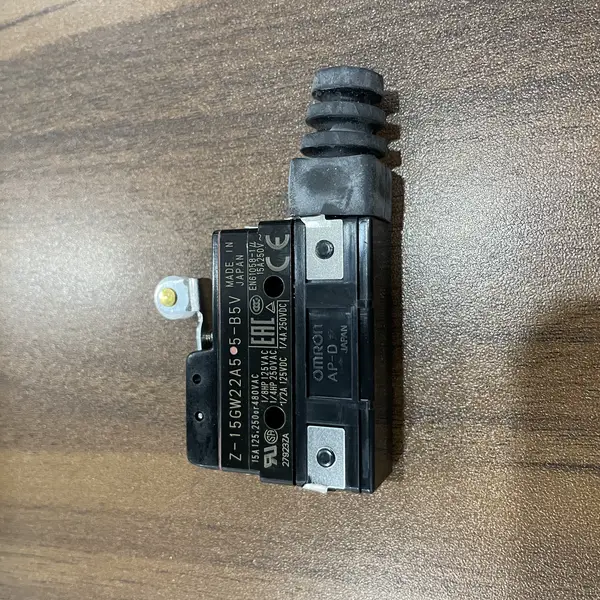

Omron Z-15GW22A55-B5V — Basic Switch, 15 A, Roller Lever
SKU: Z-15GW22A55-B5VUSD 11.00
Omron Z-15GW22A55-B5V general-purpose basic switch, short hinge roller lever, SPDT 15 A, drip-proof, screw terminal with cover. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron Z-15GW22A55-B5V is a general-purpose basic switch from the Z-15 family, manufactured by Omron Corporation. Hengyixin Automation ships this switch from our Xiamen warehouse with a 30-day DOA return window.
The switch has a single-pole double-throw (SPDT) contact with a 0.5 mm gap and silver rivet contacts. It switches 15 A at 125 or 250 VAC resistive. The actuator is a short hinge roller lever. Screw terminals sit under a drip-proof terminal cover.
The plastic housing carries IP62 (drip-proof) protection. Mechanical life is 10 million operations and electrical life is 500,000 operations at the rated load. Operating force is 1.96 N and the unit runs from -15 to 80 degC. The body is 49.2 x 17.45 x 23.9 mm and weighs about 56 g. For the standard hinge roller lever without the terminal cover, pick the Z-15GW22-B. For a panel-mount plain-hinge roller lever, use the Z-15GW2-B.
Key Features
- Z-15 general-purpose basic switch, SPDT (Form C), 0.5 mm contact gap
- 15 A at 125 / 250 VAC resistive, 15 A at 14 VDC
- Short hinge roller lever, 1.96 N operating force
- Drip-proof terminal cover, IP62, 10 million mech operations
- SKU: Z-15GW22A55-B5V
- Series: Omron Z-15-series general-purpose basic switch
Best-Fit Applications
- Door-interlock switch on a machine guard where the short roller lever trips when the door closes and the 15 A rating handles the interlock relay
- Limit switch on a vending machine where the basic switch signals the door position to the controller without a custom bracket
- Spare replacement on a legacy panel where the original basic switch failed and the Z-15GW22A55-B5V drops onto the same mounting holes and wiring terminals
Buying Checklist
- Pick the Z-15GW22A55-B5V for a 15 A SPDT basic switch with a short hinge roller lever and a drip-proof terminal cover.
- Pick the Z-15GW22-B instead when the panel does not need the drip-proof terminal cover.
- Pick the Z-15GW2-B instead when the application needs a plain-hinge roller lever on the same Z-15 body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron Z-15-series general-purpose basic switch |
| Model / SKU | Z-15GW22A55-B5V |
| Contact Form | SPDT (Form C), 0.5 mm contact gap |
| Contact Material | Silver rivet |
| Rated Current (AC) | 15 A at 125 / 250 VAC resistive; 15 A at 480 VAC |
| Rated Current (DC) | 15 A at 14 VDC; 6 A at 30 VDC; 0.5 A at 125 VDC |
| Actuator | Short hinge roller lever, 9.5 mm dia. stainless steel, plastic roller |
| Operating Force | 1.96 N max |
| Mechanical Life | 10 million operations min |
| Electrical Life | 500,000 operations min at rated load |
| Protection / Terminal | IP62 drip-proof; screw terminal with terminal cover |
FAQ for Z-15GW22A55-B5V
What does the -B5V suffix mean?
B5 = drip-proof terminal cover. V = silver rivet contact (standard load). Earlier naming schemes use B5V and A55 for the same options on different label generations.
Can the Z-15GW22A55-B5V switch 30 VDC?
Yes. The switch handles 15 A at 8 VDC, 15 A at 14 VDC, 6 A at 30 VDC, 0.5 A at 125 VDC and 0.25 A at 250 VDC. The current rating drops as voltage rises because the DC arc is harder to break.
Is the Z-15GW22A55-B5V rated for outdoor use?
No. The drip-proof IP62 rating covers falling water drops but not jets or submersion. For outdoor use, choose a sealed switch such as the D2VW or the Z-15G with a -B7 enclosure.
