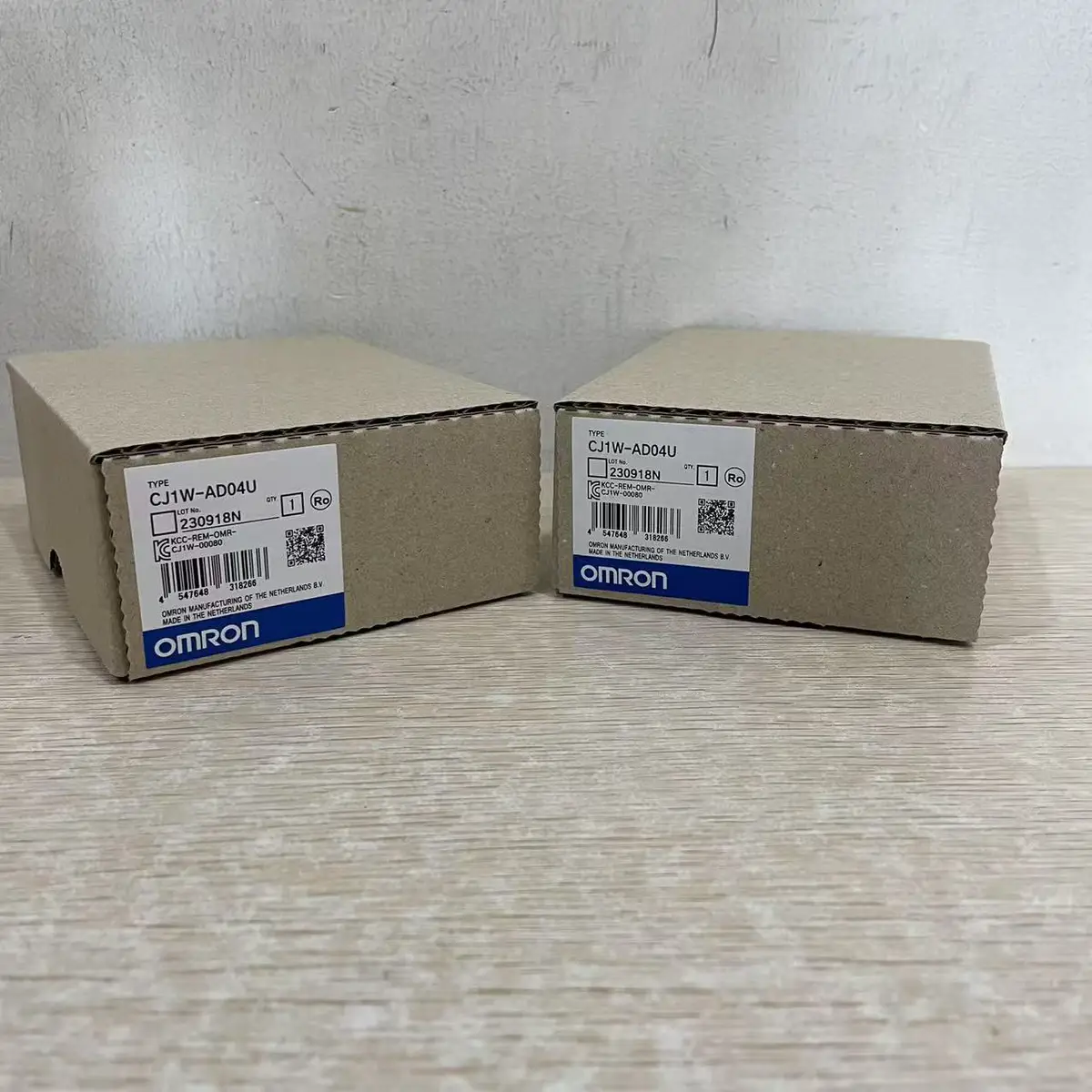

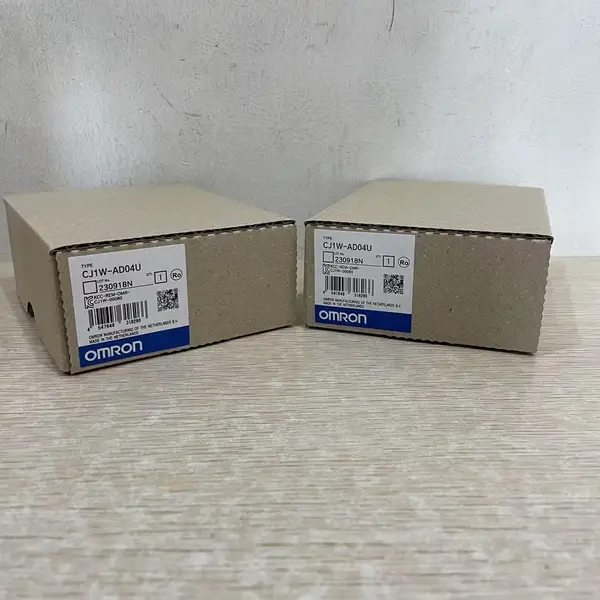

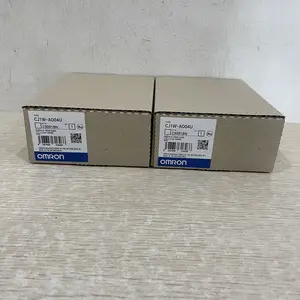

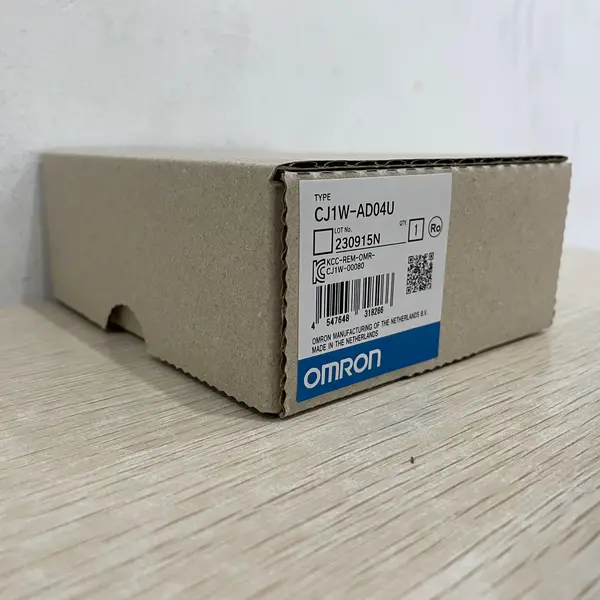

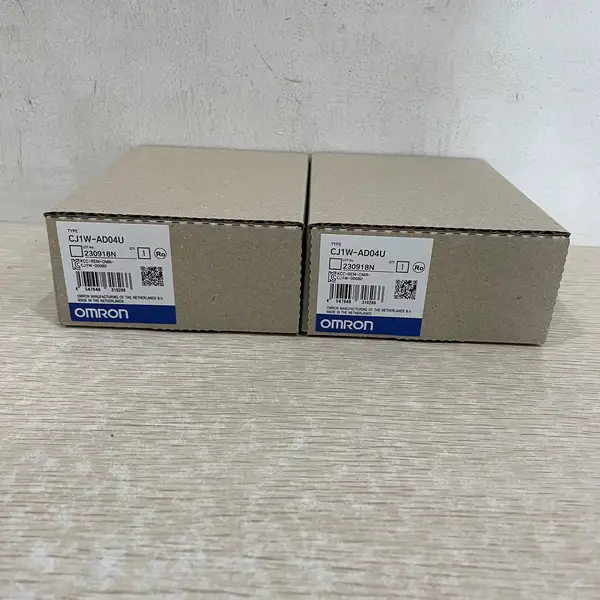

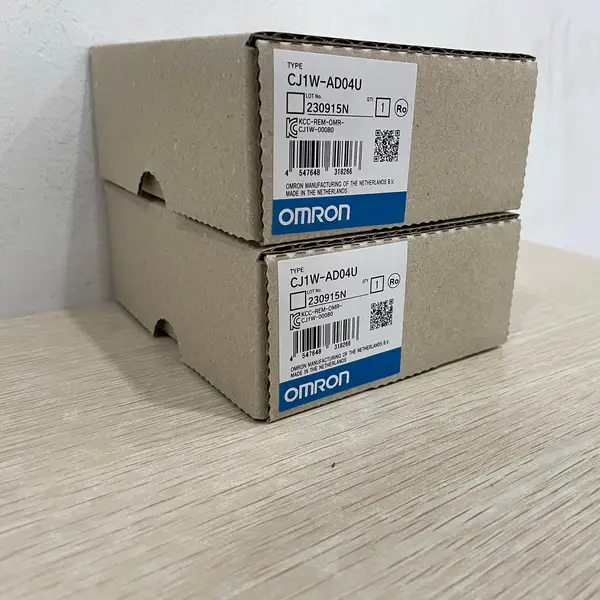

Omron CJ1W-AD04U — 4-Ch Universal Analog Input Unit
SKU: CJ1W-AD04UUSD 160.00
4-point analog input unit for CJ-series PLCs. Voltage or current per channel, +/-10 V / 4-20 mA, 1/8000 resolution.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1W-AD04U is a 4-channel analog input unit for CJ-series PLCs. Each channel is set independently to a voltage range (1-5 V, 0-5 V, 0-10 V, or +/-10 V) or to 4-20 mA current, so a single unit can read four different transmitters at once. A/D conversion runs at 1/8000 full-scale resolution with a 250 us per-point conversion rate, or at 1/4000 with a 1 ms rate when the faster scan is not needed. It is the standard pick when a CJ rack needs a few analog inputs from panel-mounted transmitters (pressure, level, flow, temperature) without adding a high-density 8-point or 16-point module.
Where it fits in the CJ1W analog family
The CJ1W analog input family is split by channel count and feature set. CJ1W-AD081-V1 is the 8-point high-density unit. CJ1W-AD041-V1 is the 4-point unit with the full feature set: disconnection detection, peak hold, averaging, and offset / gain scaling. CJ1W-AD04U is the 4-point unit for installations that only need basic voltage / current reading. For thermocouple or Pt100 inputs, step up to the CJ1W-TC001 / TC002 / TC104 family. For high-resolution isolated inputs, use the CJ1W-PDC15.
Before ordering
Confirm each transmitter signal falls into one of the supported ranges (1-5 V, 0-5 V, 0-10 V, +/-10 V, or 4-20 mA). Plan the CJ rack slot: the CJ1W-AD04U occupies one slot on a 31 mm slim pitch, taking 5 V at ~0.42 A from the backplane. Wire each channel with shielded twisted pair, grounded at the panel side only, and route at least 100 mm away from power wiring. Set the per-channel range with the DIP switch on the front face before applying any input voltage.
Key Features
- CJ1W 4-channel analog input unit for CJ-series PLCs
- Universal inputs: 1-5 V / 0-5 V / 0-10 V / +/-10 V / 4-20 mA
- Per-channel independent range selection
- 1/8000 full-scale resolution (or 1/4000)
- 250 us / 1 ms per-point conversion time selectable
- Voltage accuracy +/-0.2 %, current accuracy +/-0.4 % FS
- 31 mm slim width, removable terminal block
- 0.42 A at 5 VDC from the CJ backplane
- Operates on CJ1M / CJ2M / CJ2H CPUs with CX-Programmer setup
- SKU: CJ1W-AD04U
- Series: CJ1W process analog input
- I/O: 1 I/O
Best-Fit Applications
- Reading 4-20 mA pressure or level transmitters on a tank skid
- Voltage feedback from a temperature transmitter on a heating loop
- Light analog I/O block on a CJ1M-CPU22 retrofit panel
- Small water-treatment panel with pH and conductivity probes
- Auxiliary analog inputs beside a higher-density CJ1W-AD081-V1 unit
Buying Checklist
- Confirm each transmitter signal is one of the supported voltage / current ranges.
- Choose CJ1W-AD081-V1 when more than 4 channels or full feature set is required.
- Choose CJ1W-TC001 / TC002 when thermocouple type K / J inputs are needed.
- Choose CJ1W-TC102 for Pt100 RTD inputs with cold-junction compensation.
- Confirm a free CJ rack slot and ~0.42 A at 5 V from the backplane for this unit.
- Verify shielded twisted pair is used for analog wiring, grounded at the panel side only.
Technical Specifications
| Series | CJ1W process analog input |
|---|---|
| Channels | 4 points, independently set |
| Input Ranges | 1-5 V, 0-5 V, 0-10 V, +/-10 V, 4-20 mA |
| Resolution | 1/8000 (or 1/4000) full scale |
| Conversion Time | 250 us (or 1 ms) per point |
| Accuracy | Voltage +/-0.2 % FS / Current +/-0.4 % FS |
| Connection | Removable terminal block, M3 screws |
| Width | 31 mm slim |
| Power Consumption | ~0.42 A at 5 VDC from the CJ backplane |
| Operating Temperature | 0 to 55 degC |
| Mounting | CJ-series backplane (CPU rack or expansion rack) |
| Programming | CX-Programmer (with IORD / IOWR instructions) |
Resources & Downloads
FAQ for CJ1W-AD04U
What is the difference between CJ1W-AD04U and CJ1W-AD041-V1?
Both are 4-point analog input units for CJ racks and accept the same voltage and current ranges. The AD041-V1 adds the full feature set: disconnection detection, peak hold, averaging, and offset / gain scaling per channel. The AD04U is the lower-cost 4-point sibling for installations that only need a basic voltage / current read into the CPU.
Can the CJ1W-AD04U read 4-20 mA and voltage on the same unit?
Yes. Each of the 4 channels takes an independent range setting, so channels 1 and 2 can be 4-20 mA while channels 3 and 4 are 0-10 V. Use the front DIP switches to set the range per channel before powering the unit.
Does this unit work with a CJ1M CPU?
Yes. The CJ1W-AD04U mounts on any CJ-series rack — CPU rack or expansion rack — and communicates with any CJ1, CJ1M, CJ2M, or CJ2H CPU through standard I/O read / write instructions. For an NJ-series controller, use an NJ system that mounts CJ-series expansion racks through the CJ1W-IC101 I/O control unit.
