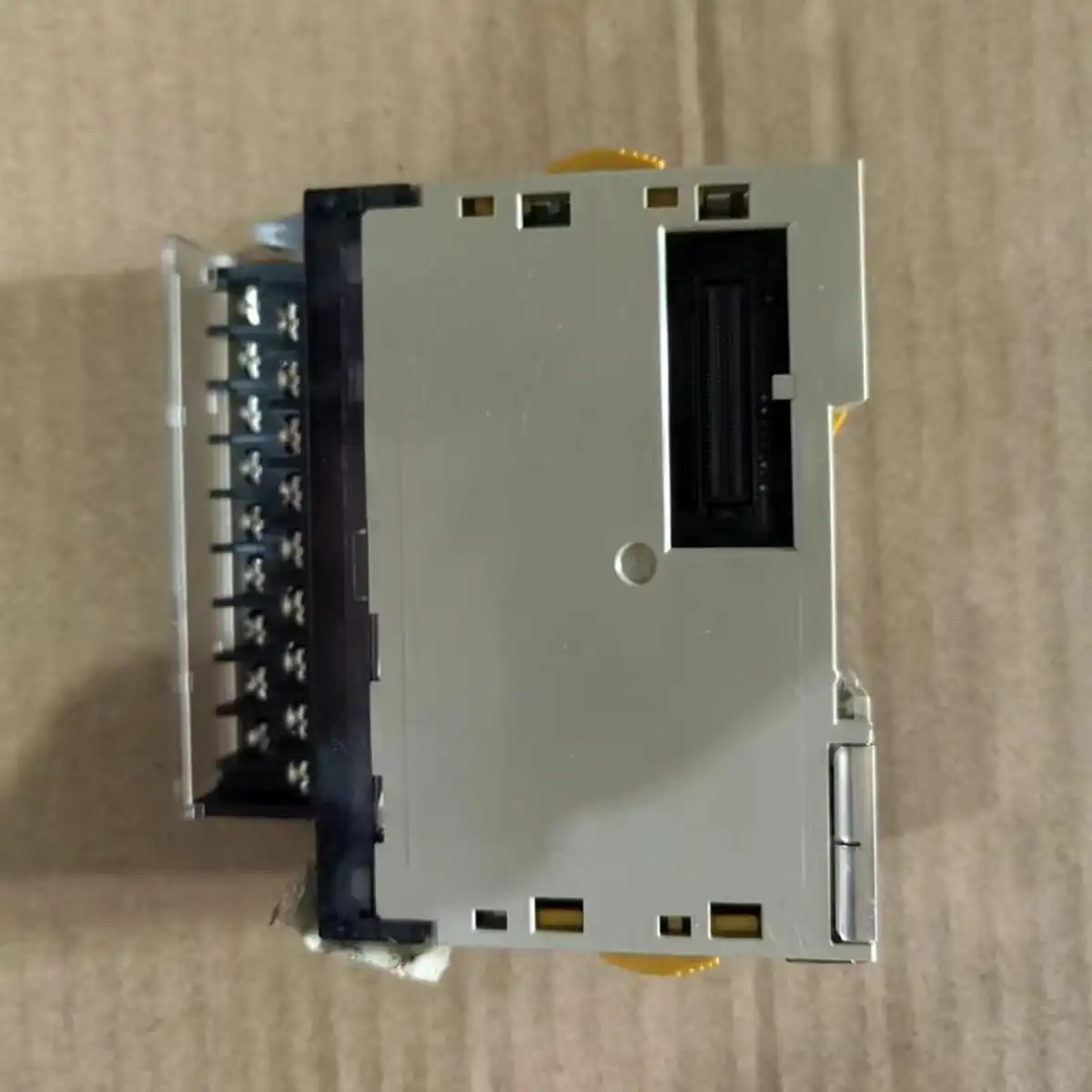

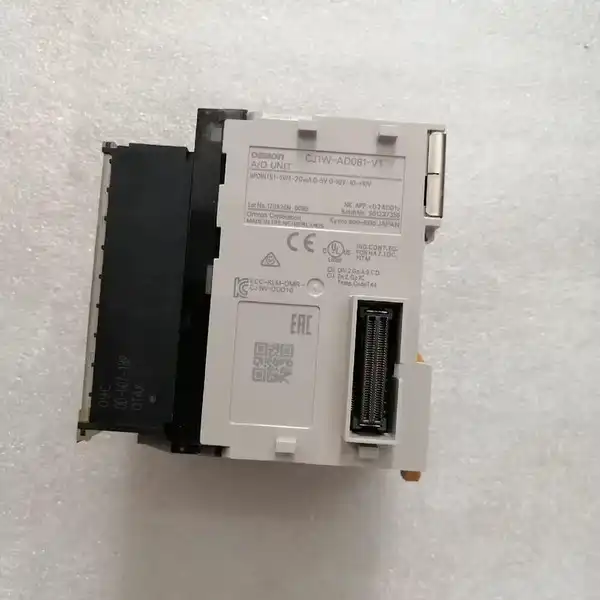

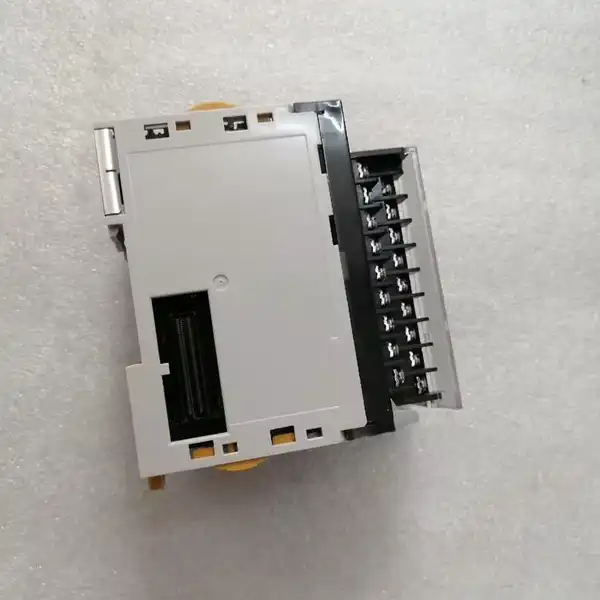

Omron CJ1W-AD081-V1 — 8-Ch Analog Input, CJ Rack
SKU: CJ1W-AD081-V1USD 115.00
CJ-series 8-channel analog input, 1/8000 resolution, 250 us per point, 1-5 V / 0-10 V / -10 to 10 V / 4-20 mA.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1W-AD081-V1 is an 8-channel analog input unit for the CJ-series PLC rack, used with CJ1, CJ1M, CJ2, and NJ-series CPUs that accept CJ1W expansion. Each channel has its own signal range, settable individually from 1-5 V, 0-5 V, 0-10 V, -10 to +10 V, or 4-20 mA, with a resolution of 1/8000 (selectable to 1/4000). Conversion runs at 250 microseconds per point. Voltage channels read to plus or minus 0.2 % of full scale; current channels to plus or minus 0.4 %. The unit fits a standard CJ1W slot, draws 580 mA from the 5 V rack supply, and lands on a detachable 18-point terminal block. It is the right pick for eight or fewer analog field signals on a CJ rack, such as pressure, temperature (with a transmitter), flow, or level.
Why 8 channels instead of 4
The CJ1W-AD041-V1 covers 4 analog inputs at the same 1/8000 resolution, while the CJ1W-AD081-V1 doubles that to 8 channels on the same 31 mm wide slice. For machines that need eight or fewer points, the AD081 saves the second slot and one set of terminal blocks. For higher-speed work, the CJ1W-AD042 offers a 20 microsecond direct conversion, but at 4 channels and a different resolution setting.
Scaling and wiring
Each channel can be scaled in the CPU memory to engineering units (bar, deg C, L/min), and the detachable terminal block makes signal re-wiring fast on commissioning day. For 4-20 mA loops, fit a 250 ohm resistor across the input terminals to convert to 1-5 V if the PLC expects a voltage signal. Use shielded twisted-pair cable and ground the shield at the panel end only.
Before ordering
Confirm the rack has a free slot to the right of the CPU. The AD081-V1 draws 580 mA from the 5 VDC rack supply, so check the CJ1W-PA202 / PA205R rating. For 4-20 mA current loops, decide between wiring the input as current (default) or converting to 1-5 V with an external resistor. Pair with CX-Programmer for scaling and CX-Integrator for the NJ-series equivalent.
Key Features
- 8 analog inputs on a single 31 mm CJ1W slice
- Individual signal range per channel: 1-5 V, 0-5 V, 0-10 V, +/-10 V, 4-20 mA
- 1/8000 resolution (selectable to 1/4000)
- 250 us conversion time per point
- Plus or minus 0.2 % voltage, plus or minus 0.4 % current accuracy
- Disconnect detection, peak hold, and averaging built in
- Detachable 18-point terminal block, 580 mA at 5 VDC
- SKU: CJ1W-AD081-V1
- Series: CJ1W high-function I/O unit
Best-Fit Applications
- Pressure transmitter scan on a hydraulic or pneumatic press
- Tank level reading on a process skid with 4-20 mA level probes
- Flow metering on a water-treatment skid with up to eight flow signals
- Temperature scan with 4-20 mA temperature transmitters on an oven
- Bench-test stands where each channel needs a different signal range
Buying Checklist
- Choose CJ1W-AD081-V1 for 8 channels and 1/8000 resolution on a CJ rack.
- Choose CJ1W-AD041-V1 for 4 channels at the same resolution.
- Choose CJ1W-AD042 for 20 us direct conversion when speed matters most.
- Choose CJ1W-DA041 to send 4 analog outputs back to valves or drives.
- Confirm the rack has a free slot and the PSU can spare 580 mA at 5 VDC.
- Allow for a 250 ohm resistor on each 4-20 mA loop if converting to voltage.
Technical Specifications
| Series | CJ1W high-function I/O unit |
|---|---|
| Function | Analog input, 8 channels |
| Signal Ranges | 1-5 V, 0-5 V, 0-10 V, -10 to +10 V, 4-20 mA (per channel) |
| Resolution | 1/8000 (selectable to 1/4000) |
| Conversion Time | 250 us per point (1 ms / point settable) |
| Accuracy (Voltage) | Plus or minus 0.2 % of full scale |
| Accuracy (Current) | Plus or minus 0.4 % of full scale |
| Functions | Disconnect detection, peak hold, averaging, scaling |
| Connection | Detachable 18-point terminal block (M3 screws) |
| Internal Current Draw | 580 mA max. at 5 VDC |
| Dimensions (W x H x D) | 31 x 90 x 65 mm |
| Compatible CPUs | CJ1, CJ1M, CJ2 (any CJ-series CPU) |
Resources & Downloads
FAQ for CJ1W-AD081-V1
Can the CJ1W-AD081-V1 mix voltage and current inputs?
Yes. Each of the eight channels has its own signal range setting in the CPU memory, so you can run four channels at 4-20 mA and four at 0-10 V on the same module. The wiring differs per channel but the scaling is independent.
What is the difference between CJ1W-AD081-V1 and CJ1W-AD041-V1?
Both are CJ-series analog input modules at the same 1/8000 resolution. The AD081-V1 carries 8 channels on a single 31 mm slice, while the AD041-V1 carries 4. Pick AD081-V1 when you need eight or fewer channels; pick AD041-V1 when four is enough and you want spare CPU capacity for faster conversion.
Does the CJ1W-AD081-V1 work on a CJ2 CPU?
Yes. CJ1W I/O modules are supported on CJ1, CJ1M, CJ2, and NJ-series racks (with CJ1W adapter). The AD081-V1 is registered as a special I/O unit in CX-Programmer or Sysmac Studio, and the scaling is handled in the CPU memory just like any CJ1W slice.
