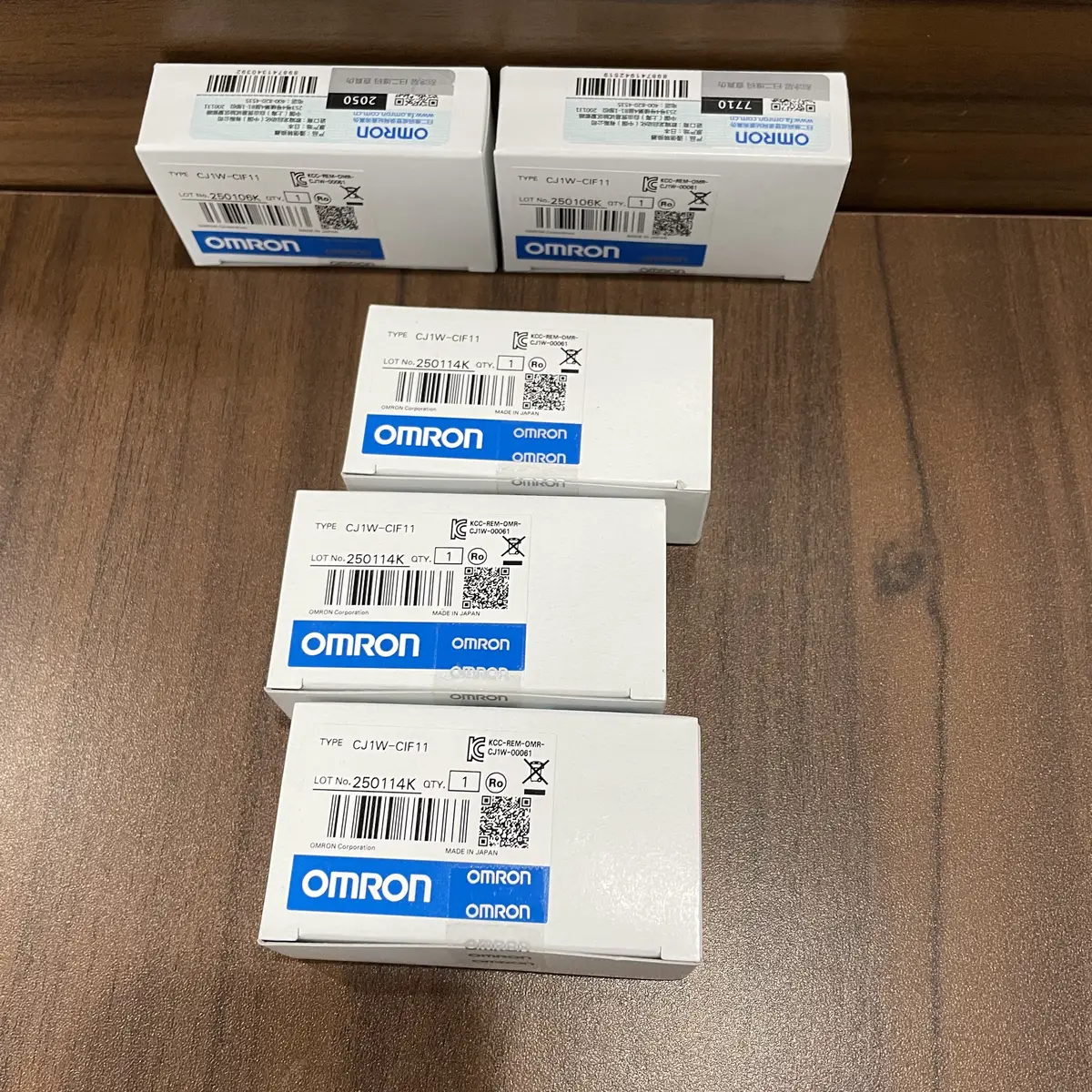

Omron CJ1W-CIF11 — RS-232C to RS-422A / RS-485 Converter
SKU: CJ1W-CIF11USD 56.00
RS-232C D-Sub 9-pin to RS-422A / RS-485 terminal-block converter pigtail for CS/CJ CPUs and SCU RS-232C ports, 500 m, no supply needed.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1W-CIF11 is a small RS-232C to RS-422A / RS-485 converter pigtail for the SYSMAC CS/CJ series. Plug the captive D-Sub 9-pin head into any built-in RS-232C port on a CS/CJ CPU (CJ1H, CJ1M, CJ2H, CJ2M peripheral port or built-in RS-232C) or onto the RS-232C port of a CJ1W-SCU21-V1 / CJ1W-SCU41-V1 serial communication unit, and break out a 5-pin RS-422A or RS-485 terminal block on the output end. The converter runs up to 500 m of cable and sets 4-wire RS-422A full duplex, 4-wire RS-485 half duplex, or 2-wire RS-485 half duplex from a DIP switch on the converter body.
Why an external converter and not a slot card?
The CJ1W-CIF11 hangs off an existing RS-232C port -- it is NOT an option board that slots into the CPU. The CPU option-board slot on the CJ front face is consumed by other cards (RS-232C option board, analog I/O option board); an open RS-232C port elsewhere is the typical pickup point. The CIF11 is the right answer when the user already has an RS-232C port and needs RS-422A 1:N -- not when a slot-board is desired. For an RS-422A / RS-485 OPTION BOARD (slot-mount on CP1L / CP1H), pick the CP1W-CIF11 (the model number is similar but the form factor is different). For an isolated RS-485 option board on a CP1L / CP1H, pick the CP1W-CIF12 (note: the CP-series isolated board is a different model from the CJ1W-CIF11).
4-wire vs 2-wire DIP switch
A DIP switch on the converter body selects between 4-wire RS-422A full duplex (the typical 1:N multidrop pick), 4-wire RS-485 half duplex, and 2-wire RS-485 half duplex. Set the terminating resistor (220 ohm on / off) on the two end nodes of a multidrop chain. The converter is powered from the DTR / RTS handshake lines on the host RS-232C port -- no external 5 / 24 VDC supply is needed.
Before ordering
Confirm the host CPU has a spare RS-232C port (the CJ1M-CPU12 has one built-in, the CJ1W-SCU21-V1 has two). For 1:N multidrop wiring across multiple NS / NB HMIs or Modbus-RTU slaves, the CIF11 plus a single RS-232C port turns the host into a 1:N drop on the wire. Order one CIF11 per CPU / SCU RS-232C port converted -- the CIF11 is a passive adapter and cannot be daisy-chained.
Key Features
- RS-232C D-Sub 9-pin to RS-422A / RS-485 terminal-block converter pigtail
- Hangs off an existing RS-232C port -- no CPU option-board slot consumed, no external power supply
- 5-pin terminal block output: SDA / SDB / RDA / RDB / SHIELD
- RS-422A 4-wire full duplex OR RS-485 4-wire / 2-wire half duplex selected on the DIP switch
- Up to 500 m RS-422A / RS-485 cable run (4-wire full duplex or 2-wire half duplex)
- Built-in 220 ohm terminating resistor on / off switchable at the two end nodes
- Powered from the DTR / RTS handshake lines on the host RS-232C port -- no separate 5 or 24 VDC supply
- Compatible with CS/CJ CPU built-in RS-232C ports and CJ1W-SCU21-V1 / SCU41-V1 RS-232C ports
- Compatible with CS1W-SCU21-V1 RS-232C ports on the CS1H / CS1G backplane
- CE / RoHS approved; MADE IN JAPAN
- Distinguishing feature vs CP1W-CIF11 option board: the CJ1W-CIF11 is a converter pigtail, the CP1W-CIF11 is an option slot card
- Distinguishing feature vs CP1W-CIF12 isolated board: the CP1W-CIF12 is an isolated RS-485 option card for CP1L/CP1H slot mounting
- SKU: CJ1W-CIF11
- Series: SYSMAC option RS-232C to RS-422A / RS-485 converter
- I/O: 232 I/O
Best-Fit Applications
- 1:N multidrop RS-422A link from one CJ1M-CPU12 built-in RS-232C port to two or three NS / NB HMIs on the shop floor
- Convert the RS-232C port of a CJ1W-SCU21-V1 to RS-422A 1:N when the SCU@2 high-speed type is not needed
- Extend a third-party Modbus-RTU slave network from the CPU RS-232C port over a 500 m RS-485 cable run to a remote sensor / inverter cluster
- Bridge an older CS1H peripheral port (RS-232C) to a modern RS-485 Modbus-RTU multi-drop without rewiring the field
- Pick the NT-AL001 instead when a panel-mount converter with a status LED on the front face is preferred; the CIF11 is a captive pigtail with no field-mount option
Buying Checklist
- Pick CJ1W-CIF11 to convert one RS-232C D-Sub 9-pin port on a CS/CJ CPU or SCU to RS-422A / RS-485 1:N on the field side at up to 500 m.
- Pick CP1W-CIF11 instead for an RS-422A / RS-485 OPTION BOARD that slots into a CP1L / CP1H option board position (different model, different form factor).
- Pick CP1W-CIF12 instead for an isolated RS-485 OPTION BOARD on a CP1L / CP1H slot position when high-noise immunity is required.
- Pick the NT-AL001 instead for a panel-mount RS-422A / RS-485 link adapter with a status LED and a screw-terminal block on both ends.
- Confirm the host CPU has a free RS-232C port before ordering -- the CJ1W-CIF11 hangs off an existing port, it does not create a new one.
- Set the DIP switch to RS-422A for a 1:N multidrop HMI chain, or to 2-wire RS-485 for a Modbus-RTU multi-drop; 4-wire RS-485 is rare in the field.
Technical Specifications
| Series | SYSMAC option RS-232C to RS-422A / RS-485 converter |
|---|---|
| Model | CJ1W-CIF11 (RS-232C D-Sub 9-pin to 5-pin terminal block) |
| Function | RS-232C point-to-point to RS-422A / RS-485 multidrop converter pigtail |
| Input End | RS-232C D-Sub 9-pin male connector (plugs INTO the host port) |
| Output End | 5-pin removable terminal block: SDA / SDB / RDA / RDB / SHIELD |
| Modes | 4-wire RS-422A full duplex / 4-wire RS-485 half duplex / 2-wire RS-485 half duplex |
| Mode Selection | DIP switch on the converter body |
| Cable Distance | Up to 500 m RS-422A / RS-485 cable run |
| Terminating Resistor | 220 ohm, on / off switchable at the end nodes |
| Power | Powered from the host RS-232C DTR / RTS lines (no external supply) |
| Compatibility | CS1H / CS1G / CJ1H / CJ1M / CJ2H / CJ2M CPUs (built-in RS-232C or peripheral port); CJ1W-SCU21-V1 / SCU41-V1 RS-232C ports; CS1W-SCU21-V1 RS-232C ports |
| Approvals / Origin | CE / RoHS; MADE IN JAPAN |
Resources & Downloads
FAQ for CJ1W-CIF11
Is the CJ1W-CIF11 an option board that slots into the CJ CPU?
No. The CJ1W-CIF11 is a converter pigtail -- it has a captive D-Sub 9-pin head that plugs into an existing RS-232C port, and a 5-pin terminal block on the other end. It does not consume the CPU option-board slot. Pick the CP1W-CIF11 when an RS-422A / RS-485 OPTION BOARD is needed -- that is a different model designed for a CP1L / CP1H option board slot.
What RS-232C ports does the CJ1W-CIF11 work with?
Any built-in RS-232C D-Sub 9-pin port on a CS1H / CS1G / CJ1H / CJ1M / CJ2H / CJ2M CPU, the peripheral port of the same CPUs (the CJ1M / CJ2M peripheral port runs RS-232C at the higher baud rates), or the RS-232C port of a CJ1W-SCU21-V1 / CJ1W-SCU41-V1 / CS1W-SCU21-V1 serial communication unit. The CIF11 cannot be used with a USB port, a peripheral-only port that has been reconfigured for tool bus, or the option-board RS-232C slot on the CJ CPU when the slot is already populated with another card.
Does the CJ1W-CIF11 need an external power supply?
No. The CIF11 draws its operating power from the DTR and RTS handshake lines on the host RS-232C port -- no separate 5 or 24 VDC supply is needed and no power terminals are present on the output terminal block. The handshake lines must be enabled in the host serial-port settings (CX-Programmer / Sysmac Studio serial-port mode selection); if the host sets the port in 'no handshake' mode the converter may not power up.
Can the CJ1W-CIF11 drive two or three RS-422A multidrop drops?
Yes. Set the DIP switch on the converter body to 4-wire RS-422A full duplex, set the terminating resistor ON at the two end nodes (typically the host end and the furthest slave), and wire the SDA / SDB / RDA / RDB terminals to the matching terminals on each slave in parallel. Maximum cable run is 500 m total, and the baud rate is the same as the host RS-232C port (up to 38.4 kbps on the CJ1W-SCU21-V1 / SCU41-V1, up to 115.2 kbps on the SCU@2 high-speed type). For more than 32 drops, switch to a true RS-422A star-distribution scheme with multiple port repeaters.
