Omron CP1W-CIF11 — small slot-mount option board sitting on a wooden surface, showing the green PCB with the 5-pin Phoenix-style removable terminal block on the right edge, the Omron / CP1W-CIF11 silkscreen label on the PCB, and the row of gold-plated edge connector pins on the bottom edge that plug into the CP1L / CP1H CPU option-board slot

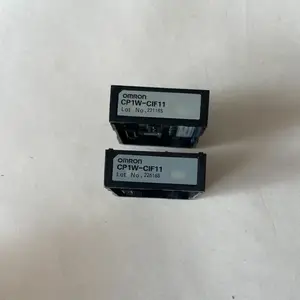

Omron CP1W-CIF11 — RS 422A/485 Option Board

SKU: CP1W-CIF11

USD 13.00

RS-422A/485 option board for CP1L/CP1H. Half-duplex 50 m, Modbus-RTU. In stock, datasheet, China shipping.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron CP1W-CIF11 is an RS-422A/485 option board for the CP1L and CP1H PLC families It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

Slot-mount RS-422A/485 option board for CP1L and CP1H PLCs Half-duplex, 50 m max cable, 5-pin Phoenix-style terminal block

Configuration runs in CX-Programmer under the CX-One suite.

Key Features

  • Slot-mount RS-422A/485 option board for CP1L and CP1H PLCs
  • Half-duplex, 50 m max cable, 5-pin Phoenix-style terminal block
  • Supports Host Link, Modbus-RTU master and slave, NT Link 1:1 + 1:N, Serial Gateway, Peripheral bus
  • Not compatible with the CP1E family (CP1E has no option-board slot)
  • SKU: CP1W-CIF11
  • Series: Omron CP1W option board family

Best-Fit Applications

  • Modbus-RTU master polling of a 6-inverter HVAC fan array on a CP1L-EM30DT-D, picking up drive status and fault codes into the CIO area every 200 ms
  • NT Link 1:N wiring between a CP1H-X40DR-A and three NS5-TQ10B-V2 HMIs on a filling line (one HMI per operator station)
  • Spare replacement on a packaging machine retrofitted with a CP1L-M40DR-A that has already used its built-in RS-232C for the touch-panel HMI

Buying Checklist

  • Pick the CP1W-CIF11 for a non-isolated RS-422A/485 option board on a CP1L or CP1H CPU.
  • Pick the CP1W-CIF12-V1 instead when the cabinet needs an isolated RS-485 option board.
  • Pick the CJ1W-CIF11 instead when the existing RS-232C port needs a captive-cable converter to RS-422A/485.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron CP1W option board family
Model / SKU CP1W-CIF11
Function RS-422A/485 slot-mount serial option board (one port)
Compatible CPUs CP1L-L, CP1L-M, CP1L-EL, CP1L-EM, CP1H-X, CP1H-Y (NOT CP1E)
Slot Location Option Board Slot 1 or Slot 2 on the CPU top face
Communication Method Half-duplex RS-422A or RS-485 (DIP-switch selectable)
Connector 5-pin removable Phoenix-style MC1.5/5-ST-3.5 terminal block
Max Cable Run 50 m total
Isolation None; for isolation use CP1W-CIF12-V1
Supported Protocols Host Link (SYSMAC WAY), Modbus-RTU master + slave, NT Link 1:1 + 1:N, Serial Gateway, Peripheral bus
Termination Built-in 220 ohm resistor, on/off via on-board DIP switch

FAQ for CP1W-CIF11

What is the Omron CP1W-CIF11 used for?
The Omron CP1W-CIF11 adds one RS-422A or RS-485 serial port to a CP1L or CP1H PLC. Common uses are Modbus-RTU master or slave polling of inverters and smart meters, NT Link 1:N wiring to NS / NB HMIs, Host Link (SYSMAC WAY) communication with legacy Omron devices, and Serial Gateway mode for non-Omron serial equipment.
CP1W-CIF11 vs CP1W-CIF12-V1 — what is the difference?
Both are RS-485 option boards for CP1L / CP1H PLCs in the same form factor. The CP1W-CIF11 is the non-isolated standard board; the CP1W-CIF12-V1 is the isolated board. Pick the CIF12-V1 when the field wiring has long cable runs, sits on a different ground potential, or the cabinet needs to pass a high-voltage isolation test. The CIF11 is the lowest-cost pick for short cabinet-to-machine wiring where both ends share a ground.
Does the CP1W-CIF11 work with CP1E?
No. The CP1E family has no option-board slot, so the CP1W-CIF11 cannot be installed on a CP1E-N, CP1E-S, or CP1E-E CPU. The CIF11 fits the CP1L-L, CP1L-M, CP1L-EL, CP1L-EM, CP1H-X, and CP1H-Y families only.
What is the maximum cable length for CP1W-CIF11?
50 m total from the option board to the far end of the RS-422A / RS-485 trunk, per the Omron spec page at ia.omron.com/products/family/3142. For longer runs add an external RS-485 repeater, or switch to EtherNet/IP or EtherCAT as the field bus.
How do I configure the CP1W-CIF11 in CX-Programmer?
Open CX-Programmer, go to PLC Setup > Serial Port 1 or Serial Port 2 (depending on which slot the CIF11 occupies), and pick the host link or Modbus-RTU mode. The DIP switch on the board selects 4-wire RS-422A vs 2-wire RS-485 and the termination resistor -- set both before powering the CPU.
