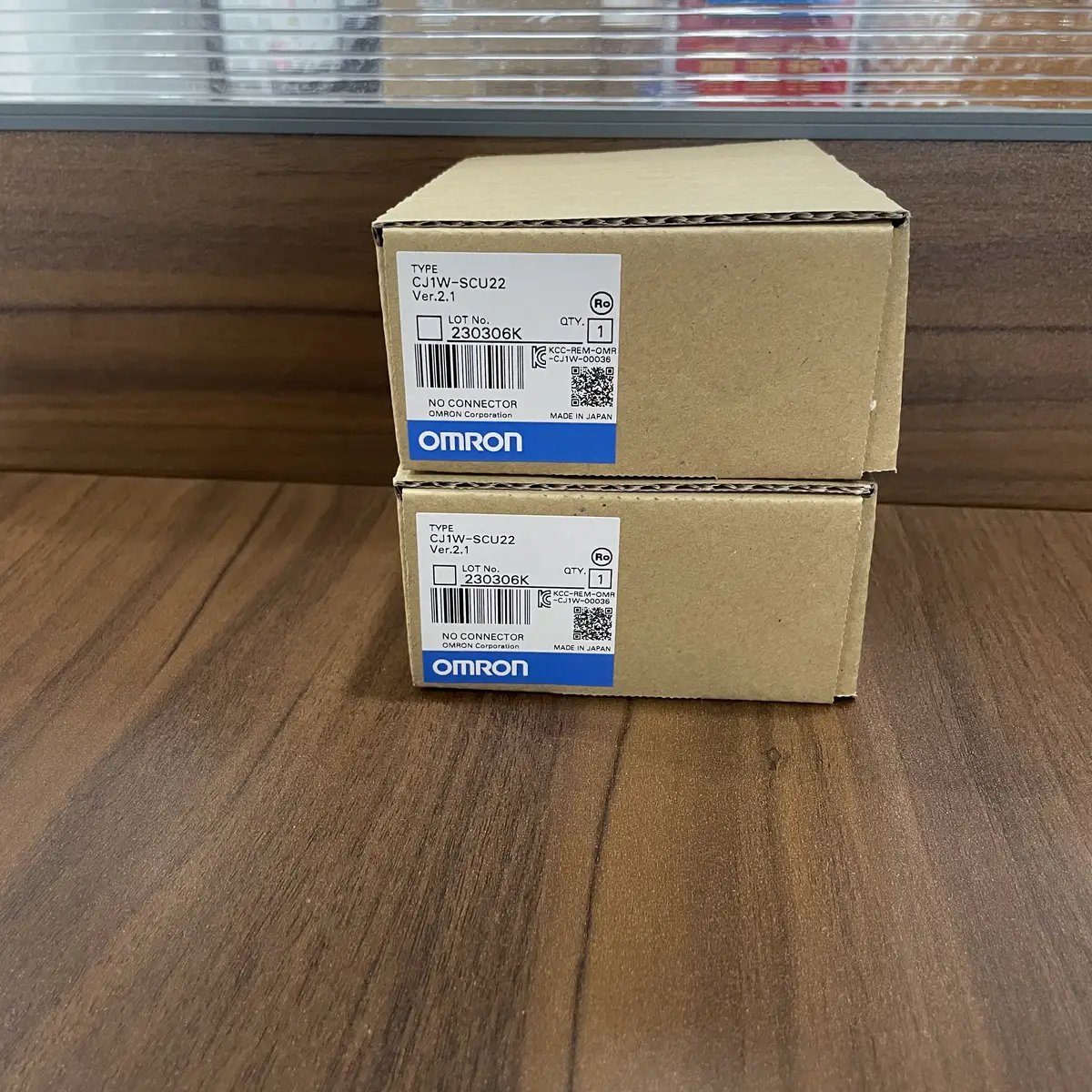

Omron CJ1W-SCU22 — CJ High-Speed Serial, 2 x RS-232C
SKU: CJ1W-SCU22USD 170.00
CJ-series SCU@2 high-speed serial unit with two RS-232C ports, 5 VDC backplane, up to 230.4 kbps, host link / NT link / Modbus-RTU slave.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1W-SCU22 is the CJ-series high-speed (SCU@2) CPU-bus serial communication unit with two RS-232C ports. Pick the SCU22 when a CJ cabinet has two RS-232C devices that need a faster link than the standard 38.4 kbps ceiling -- the SCU@2 family extends each port up to 230.4 kbps and gives faster CPU-side data transfer. The unit slots into any CPU-bus position on the CJ1 / CJ2 rack, pulls 0.28 A from the 5 VDC backplane (no external supply), and runs both ports independently with separate protocols.
SCU@2 high-speed vs SCU-V1 standard-speed
The SCU22 / SCU32 / SCU42 family is the @2 high-speed type -- 230.4 kbps on each port and faster CPU-side hand-off. The SCU-V1 family (SCU21-V1, SCU31-V1, SCU41-V1) tops out at 38.4 kbps. If 57.6 / 115.2 / 230.4 kbps is needed, pick the SCU@2 type. The SCU32 is the 2x RS-422A / 485 sibling; the SCU42 is the mixed-port sibling.
Per-port protocols
On a CJ system, each port sets independently to protocol macro, Host Link (SYSWAY for CX-Programmer upload or a SYSWAY master), NT Link 1:N for an NS / NB HMI panel, serial gateway (auto FINS / Host Link / Modbus-RTU conversion), no-protocol (raw byte send / receive), or Modbus-RTU slave. The SCU is only a Modbus-RTU SLAVE, not a master. The serial gateway is the typical pick when a third-party sensor / inverter needs to land on the CPU as FINS. On an NJ CPU the per-port list drops Host Link and NT Link.
Before ordering
Confirm the CJ rack has a free CPU-bus unit slot. Up to 16 SCUs / 32 serial ports per system. The SCU22 is NOT hot-swappable; mount or replace with the CJ rack powered off. For long-distance RS-422A / RS-485 1:N, attach the NT-AL001 RS-232C to RS-422A link adapter to a port (each NT-AL001 adds 0.15 A to the draw).
Key Features
- CJ-series SCU@2 HIGH-SPEED serial communication unit with TWO RS-232C ports on D-Sub 9-pin connectors
- Up to 230.4 kbps per port in SCU@2 high-speed mode (the standard SCU2x-V1 family tops out at 38.4 kbps)
- Two independent RS-232C point-to-point links up to 15 m cable run
- Each port sets independently: protocol macro, host link, NT link (1:N), serial gateway, no-protocol, Modbus-RTU slave
- 5 VDC 0.28 A from the CJ backplane -- no separate power supply required (each NT-AL001 adapter on a port adds 0.15 A)
- Modbus-RTU acts as SLAVE only -- the SCU does not act as a Modbus-RTU master
- RS-422A / RS-485 1:N multidrop via the NT-AL001 link adapter on each RS-232C port (the SCU22 has no RS-422A port built in)
- COMM1 / COMM2 + RUN / ERC front-panel LEDs
- Up to 16 SCUs per CJ rack, up to 32 serial ports per system
- Mounts in any CJ CPU-bus unit slot (CJ1M / CJ1H / CJ2H / CJ2M / NJ CPU racks)
- Pair with the NT-AL001 RS-232C to RS-422A / RS-485 link adapter for 1:N multidrop
- Not hot-swappable -- mount or replace with the CJ rack powered off
- Distinguishing feature vs SCU21-V1: SCU22 is the @2 high-speed 230.4 kbps sibling; SCU21-V1 is 38.4 kbps standard
- SKU: CJ1W-SCU22
- Series: CJ-series CPU Bus Serial Communication Unit, SCU@2 high-speed type
Best-Fit Applications
- Two RS-232C devices on one CJ CPU where one or both need a faster link than 38.4 kbps (e.g. 115.2 kbps serial-label printer or 230.4 kbps barcode reader)
- High-speed serial gateway from a third-party Modbus-RTU inverter / temperature controller to a CJ1 CPU as FINS
- Two Host Link master ports for connecting to older C-series or C200H PLCs on a migration retrofit at 57.6 kbps or 115.2 kbps
- Pick the SCU-V1 standard-speed family instead (SCU21-V1 / SCU31-V1 / SCU41-V1) when 38.4 kbps is enough -- the SCU@2 commands a price premium
- Pick the SCU32 instead when the two high-speed ports need to be RS-422A / RS-485 instead of RS-232C (long-distance multidrop at 230.4 kbps)
Buying Checklist
- Pick CJ1W-SCU22 for two RS-232C ports on a CJ CPU bus at up to 230.4 kbps per port with 0.28 A backplane draw.
- Pick CJ1W-SCU21-V1 instead when 38.4 kbps is enough on a standard-speed 2x RS-232C port build.
- Pick CJ1W-SCU32 instead for two RS-422A / RS-485 ports at 230.4 kbps (long-distance multidrop).
- Pick CJ1W-SCU42 instead for one RS-232C + one RS-422A / RS-485 mixed-port high-speed build.
- Pick the NT-AL001 link adapter to convert an RS-232C port on the SCU22 to RS-422A for 1:N multidrop (adds 0.15 A per adapter).
- Confirm the CJ rack has a free CPU-bus unit slot and that the CJ1W-PA205R / PD025 PSU can carry the SCU stack.
Technical Specifications
| Series | CJ-series CPU Bus Serial Communication Unit, SCU@2 high-speed type |
|---|---|
| Model | CJ1W-SCU22 (two RS-232C ports, high-speed) |
| Port 1 / Port 2 | RS-232C, D-Sub 9-pin connector |
| Modes | Full duplex RS-232C, point-to-point |
| Communication Speed | 1,200 to 230,400 bps (SCU@2 high-speed); standard 38,400 bps on the SCU-V1 sibling |
| Cable Distance | RS-232C 15 m; RS-422A / RS-485 500 m via NT-AL001 adapter on each port |
| Power | 0.28 A from 5 VDC CJ backplane (+0.15 A per NT-AL001 adapter fitted) |
| Protocols per Port (CJ mode) | Protocol macro, host link, NT link 1:N, serial gateway, no-protocol, Modbus-RTU slave |
| Modbus Role | SLAVE only (the SCU does not act as a Modbus-RTU master) |
| Mounting | One CJ CPU-bus unit slot, DIN-rail |
| System Capacity | Up to 16 SCUs per CJ rack, up to 32 serial ports per system |
| Approvals / Origin | UC1 / N / L / CE; MADE IN JAPAN |
Resources & Downloads
FAQ for CJ1W-SCU22
What is the difference between CJ1W-SCU22 and CJ1W-SCU21-V1?
The SCU22 is the SCU@2 HIGH-SPEED type with an RS-232C top speed of 230.4 kbps per port. The SCU21-V1 is the STANDARD-speed type with a top speed of 38.4 kbps per port. Both carry two RS-232C ports on D-Sub 9-pin connectors and pull 0.28 A from the 5 VDC CJ backplane. Both run the same per-port protocol set. Pick the SCU22 when a device needs more than 38.4 kbps (a high-speed serial-label printer, a vision system, a barcode reader with image-data output) or when a panel wants the faster CPU-side data transfer of the @2 family. Pick the SCU21-V1 when 38.4 kbps is enough -- it is the cheaper and more common pick for Modbus-RTU slaves and Host Link masters.
What protocols does each SCU port support?
On a CJ1 / CJ2 system, each port can independently run protocol macro (a sequence of predefined send / receive messages), host link (SYSWAY-compatible, for CX-Programmer upload or a third-party SYSWAY master), NT link 1:N (for an NS / NB HMI on the same rack), serial gateway (auto FINS / Host Link / Modbus-RTU conversion), no-protocol (raw byte send / receive), or Modbus-RTU slave (the SCU acts only as a slave, not as a master). On an NJ-series CPU the per-port list drops to protocol macro, serial gateway, no-protocol and Modbus-RTU slave -- host link and NT link are not supported on the NJ via the SCU.
Can the SCU22 be a Modbus-RTU master?
No. The SCU22 Modbus-RTU mode is slave only. The SCU does not act as a Modbus-RTU master to third-party slaves. For a Modbus-RTU master port on the CJ CPU, use the CJ1W-SCU42 mixed-port sibling (with the Modbus-RTU master on the RS-422A / RS-485 port) or fit a CP1W-CIF12 isolated RS-485 option board to a CP-series CPU option-board slot. The Modbus-RTU slave is the typical pick when a third-party sensor / inverter / power meter needs to land on the CPU as FINS via the serial-gateway mode.
Is the CJ1W-SCU22 hot-swappable?
No. Like every other CJ CPU-bus unit, the SCU22 must be mounted or replaced with the CJ rack powered off. Hot-swapping a CPU-bus unit on a live rack can corrupt the cyclic I/O refresh and trip the CPU into a fatal error. Confirm the rack is powered off before fitting the SCU22. For communications modules that need to ride a live rack -- typically networking -- move to a CJ-series Ethernet or EtherNet/IP option that supports the planned handling on a per-customer basis.
