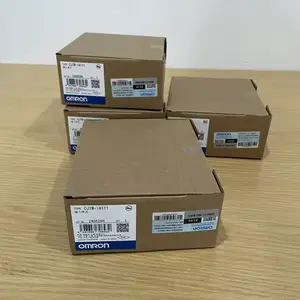

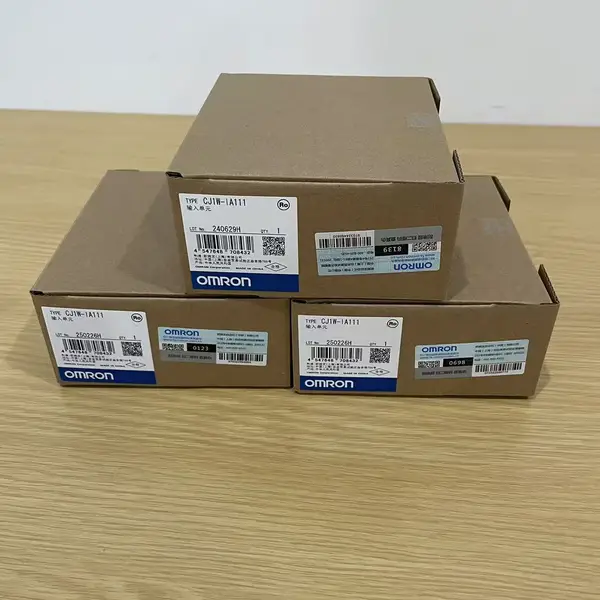

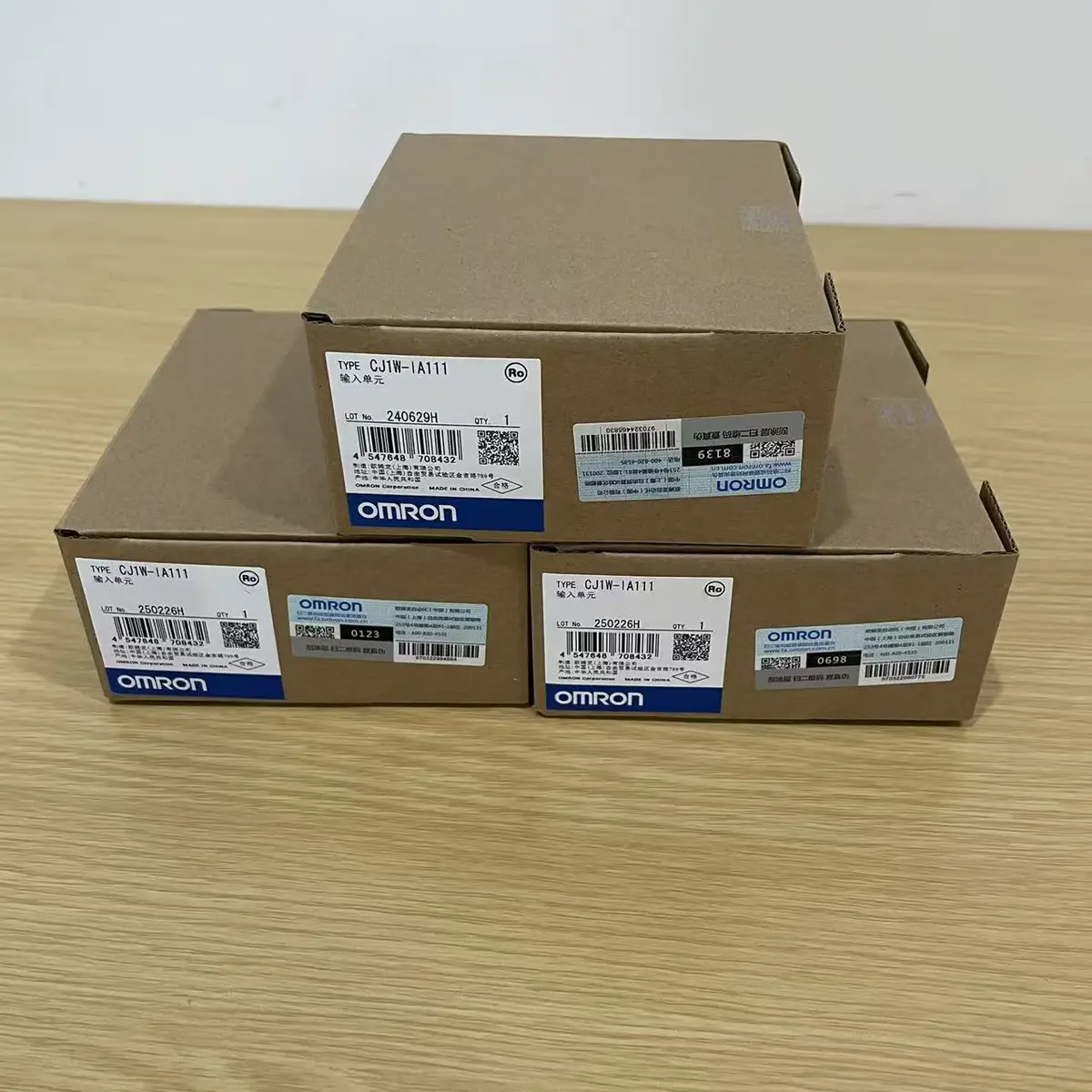

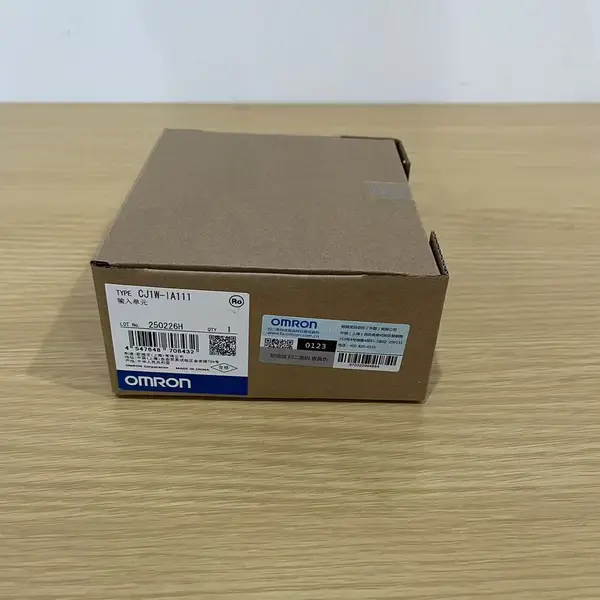

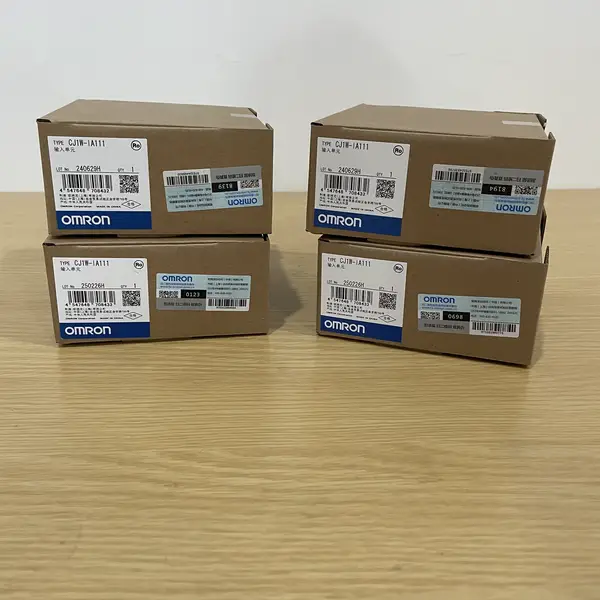

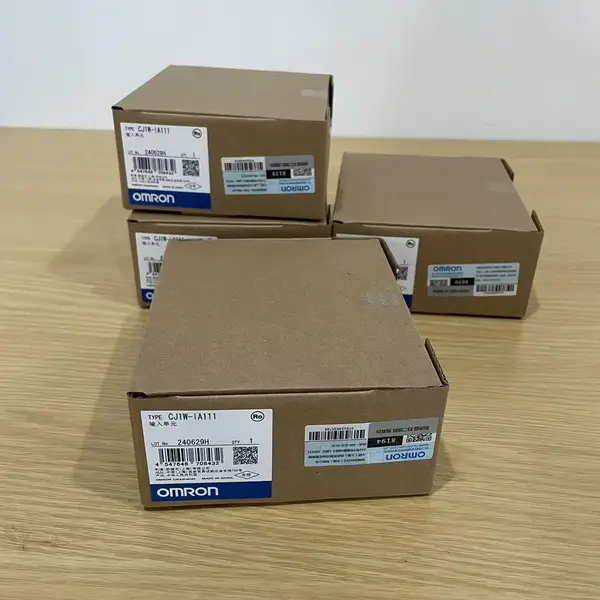

Omron CJ1W-IA111 — retail carton on a wood counter showing the blue OMRON band, the TYPE CJ1W-IA111 line, the INPUT UNIT 16 POINTS role line, the QTY 1 marking and the MADE IN JAPAN origin

Omron CJ1W-IA111 — 16-Point 100-120 VAC Input, CJ1

SKU: CJ1W-IA111

USD 88.00

Omron CJ1W-IA111 CJ1 16-point 100-120 VAC digital input module, M3 screw terminal, 18 ms ON / 48 ms OFF. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron CJ1W-IA111 is a 16-point AC digital input module for CJ1, CJ2 and NJ-series PLCs, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's CJ-series I/O Adapter Unit documentation.

Each input reads 100 to 120 VAC at 50 or 60 Hz, with an allowed range of 85 to 132 VAC and 7 mA typical at 100 VAC. ON threshold is 70 VAC at 4 mA, OFF threshold is 20 VAC at 2 mA. Response is 18 ms ON and 48 ms OFF, with a selectable filter from 0 to 32 ms.

All 16 points share one common with 100% simultaneous ON allowed. The removable M3 screw block makes wiring and swap-out simple. The unit sits on the CJ CPU Bus or Expansion Rack. For 24 VDC inputs on the same CJ1 form factor, pick the CJ1W-ID211. For interrupt inputs on the same 16-point body, use the CJ1W-IC101.

Key Features

  • CJ1 basic I/O 16-point AC digital input module, 100-120 VAC rated
  • 18 ms ON / 48 ms OFF response, digital filter 0 to 32 ms selectable
  • 16 points per common, 100% simultaneous ON, removable M3 screw block
  • Dielectric strength 2,000 VAC, internal current 90 mA at 5 VDC
  • SKU: CJ1W-IA111
  • Series: Omron CJ1W-series CJ I/O Bus basic I/O unit
  • Voltage: 100 TO 120 VAC

Best-Fit Applications

  • AC contactor auxiliary feedback on a motor control centre where 16 points track pump and fan run status without interposing relays
  • 120 VAC limit switch wiring on a stamping press where the adjustable filter debounces the heavy mechanical contacts in the vibration
  • Building management panel where 16 lighting-circuit status inputs share one common and the 2,000 VAC dielectric isolates the PLC from the mains

Buying Checklist

  • Pick the CJ1W-IA111 for 16 points of 100-120 VAC input on a CJ1, CJ2 or NJ CPU rack with a removable M3 screw terminal block.
  • Pick the CJ1W-ID211 instead when the field devices switch 24 VDC on the same CJ1 rack form factor.
  • Pick the CJ1W-IC101 instead when the application needs 16 interrupt inputs on the same CJ1 form factor.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron CJ1W-series CJ I/O Bus basic I/O unit
Model / SKU CJ1W-IA111
I/O System CJ CPU Bus or CJ Expansion Rack
Input Type AC voltage, 16 points
Rated Input Voltage 100 to 120 VAC, 50/60 Hz
Operating Voltage Range 85 to 132 VAC
Input Current 7 mA typical at 100 VAC 50 Hz
Input Impedance 14.5 kOhm at 50 Hz; 12 kOhm at 60 Hz
ON / OFF Threshold ON >= 70 VAC / 4 mA; OFF <= 20 VAC / 2 mA
Response Time 18 ms ON / 48 ms OFF; filter 0 to 32 ms
Dimensions / Weight 31 (W) x 90 (H) x 89 mm per the Omron CJ1W family datasheet; per-model sources give 65-66.5 mm body depth - verify against panel depth before ordering; 119 g

Manufacturer documentation

Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.

FAQ for CJ1W-IA111

Does the CJ1W-IA111 read 24 VDC signals?
No. The IA111 is an AC input module rated 100-120 VAC. For 24 VDC inputs on the same 16-point body, use the CJ1W-ID211. For 12 VDC inputs, use the CJ1W-ID111.
What response time setting should I use?
The default 8 ms setting works for clean contact-closure signals. For mechanical limit switches in a high-vibration press, set the filter to 16 or 32 ms to debounce the contacts. For electronic sensor inputs, 0 or 0.5 ms gives the fastest response.
Can the CJ1W-IA111 fit on a CJ2 CPU?
Yes. The module sits on the CJ CPU Bus and is compatible with CJ1M, CJ2H, CJ2M, CS1 and NJ-series CPU racks. Use a CJ1W-PA202 or CJ1W-PA205R power supply on the rack.
How many CJ1W-IA111 modules can one CPU control?
Up to 3 units per CJ1W-IC101 I/O Control Unit on a CJ-series Expansion Rack, and as many as the rack physical slots allow on a CJ CPU Rack. Each module uses 1 word (16 bits) of CIO area.
