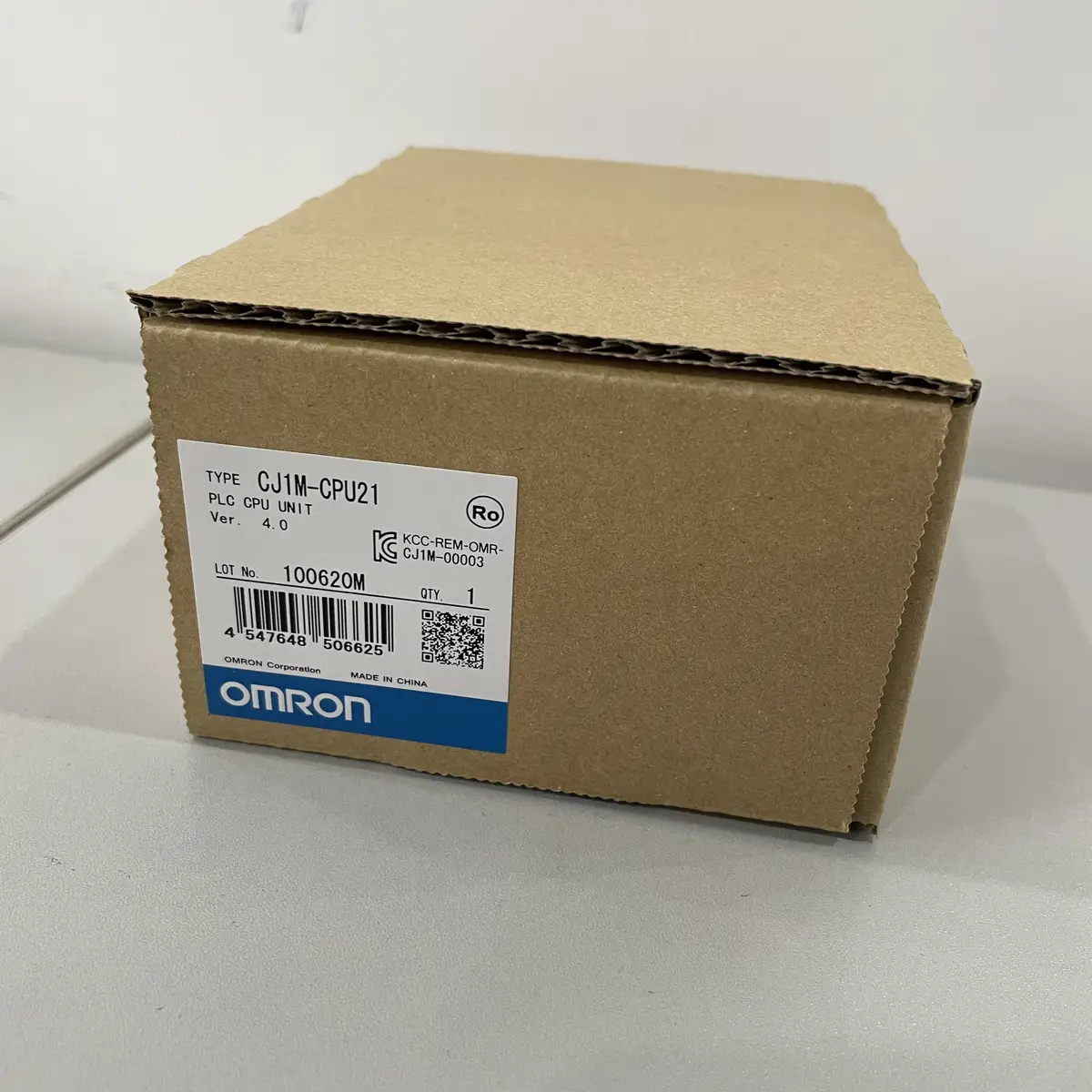

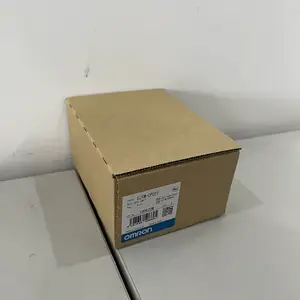

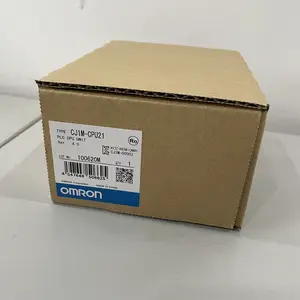

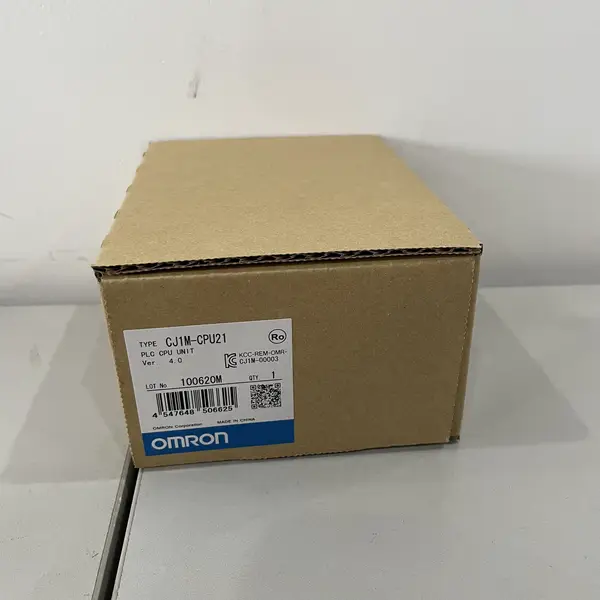

Omron CJ1M-CPU21 — CJ1M CPU, 5K Steps, Built-in I/O
SKU: CJ1M-CPU21USD 180.00
CJ1M CPU with built-in 10-in / 6-out I/O, 5K-step program, 32K DM, RS-232C + peripheral. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1M-CPU21 is a CJ1M-series CPU with built-in I/O for compact machines It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
Data memory is 32K words of DM (no extended EM). The CPU addresses up to 160 local I/O across 10 mountable units with no expansion rack.
For a current-production replacement with EtherNet/IP, pick the CJ2M-CPU31. Key specs: Program Capacity 5K steps; Data Memory 32K words (DM only, no EM); LD Execution Time 0.1 us (basic instruction); Local I/O / Mountable Units 160 points / 10 units (no expansion rack); Built-in I/O 10 inputs + 6 outputs (2 pulse 100 kHz, 1 PWM, 3 solid-state); Communication Ports Peripheral port + RS-232C (DB-9); Current Consumption 5 VDC, 0.64 A; Programming Software CX-Programmer (CX-One).
Key Features
- CJ1M CPU with 5K-step program and 32K-word data memory (DM only, no EM)
- Built-in 10 inputs and 6 outputs on the face: 2 pulse, 1 PWM, 3 solid-state
- 160 I/O points max, 10 mountable units, no expansion rack, 0.1 us LD execution
- Peripheral port and RS-232C, 5 V 0.64 A, 90 x 48.75 x 83.6 mm, CX-Programmer, CF slot
- SKU: CJ1M-CPU21
- Series: Omron CJ1M-series CPU Unit (with built-in I/O)
- I/O: 160 points
Best-Fit Applications
- Compact packaging line where the cabinet needs the CPU and a few local I/O on one DIN-rail segment and no expansion rack
- Stepper-driven indexing machine using the two 100 kHz pulse outputs on the face to drive a stepper without an extra card
- Spare CPU drop-in for an existing CJ1M rack where the program fits in 5K steps and the RS-232C port runs the touch-panel HMI
Buying Checklist
- Pick the CJ1M-CPU21 for a CJ1M CPU with built-in 10-in / 6-out I/O and no expansion rack.
- Pick the CJ1M-CPU11 instead when the program fits in 5K steps and no built-in I/O is needed.
- Pick the CJ2M-CPU31 instead when the line needs a current-production replacement with built-in EtherNet/IP.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CJ1M-series CPU Unit (with built-in I/O) |
| Model / SKU | CJ1M-CPU21 |
| Program Capacity | 5K steps |
| Data Memory | 32K words (DM only, no EM) |
| LD Execution Time | 0.1 us (basic instruction) |
| Local I/O / Mountable Units | 160 points / 10 units (no expansion rack) |
| Built-in I/O | 10 inputs + 6 outputs (2 pulse 100 kHz, 1 PWM, 3 solid-state) |
| Communication Ports | Peripheral port + RS-232C (DB-9) |
| Current Consumption | 5 VDC, 0.64 A |
| Programming Software | CX-Programmer (CX-One) |
| Dimensions / Weight | 90 (H) x 48.75 (W) x 83.6 (D) mm |
FAQ for CJ1M-CPU21
Does the CJ1M-CPU21 have DeviceNet?
No. The CJ1M-CPU21 face plate has the peripheral port and one RS-232C port. DeviceNet is on the CJ1M-CPU21-ETN variant; the plain CPU21 has no built-in field bus.
What connector does the built-in I/O use?
A MIL 40-pin connector on the bottom of the unit. The connector is not included; Omron sells a range of MIL-to-terminal-block cables and connector-terminal conversion units separately.
Is the CJ1M-CPU21 still in production?
No. The CJ1M-CPU2x line was discontinued in March 2021 and is now sold as a spare. For a current-production equivalent with EtherNet/IP, use the CJ2M-CPU31.
