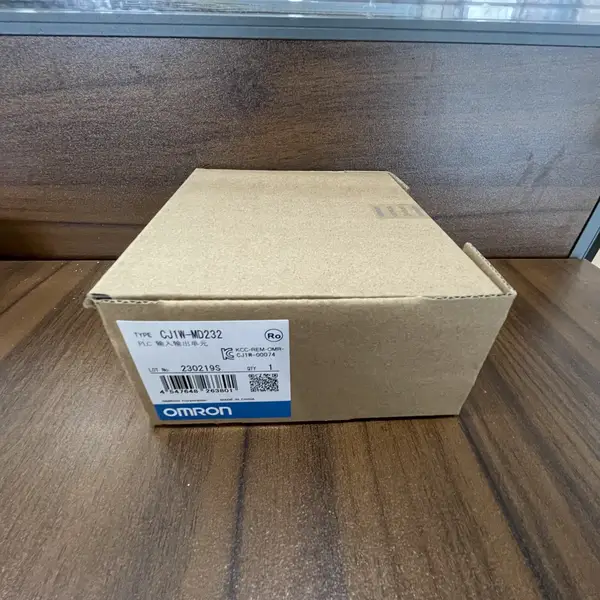

Omron CJ1W-MD232 in its shipping carton with the type label, Omron logo, and slim 31 mm module profile visible

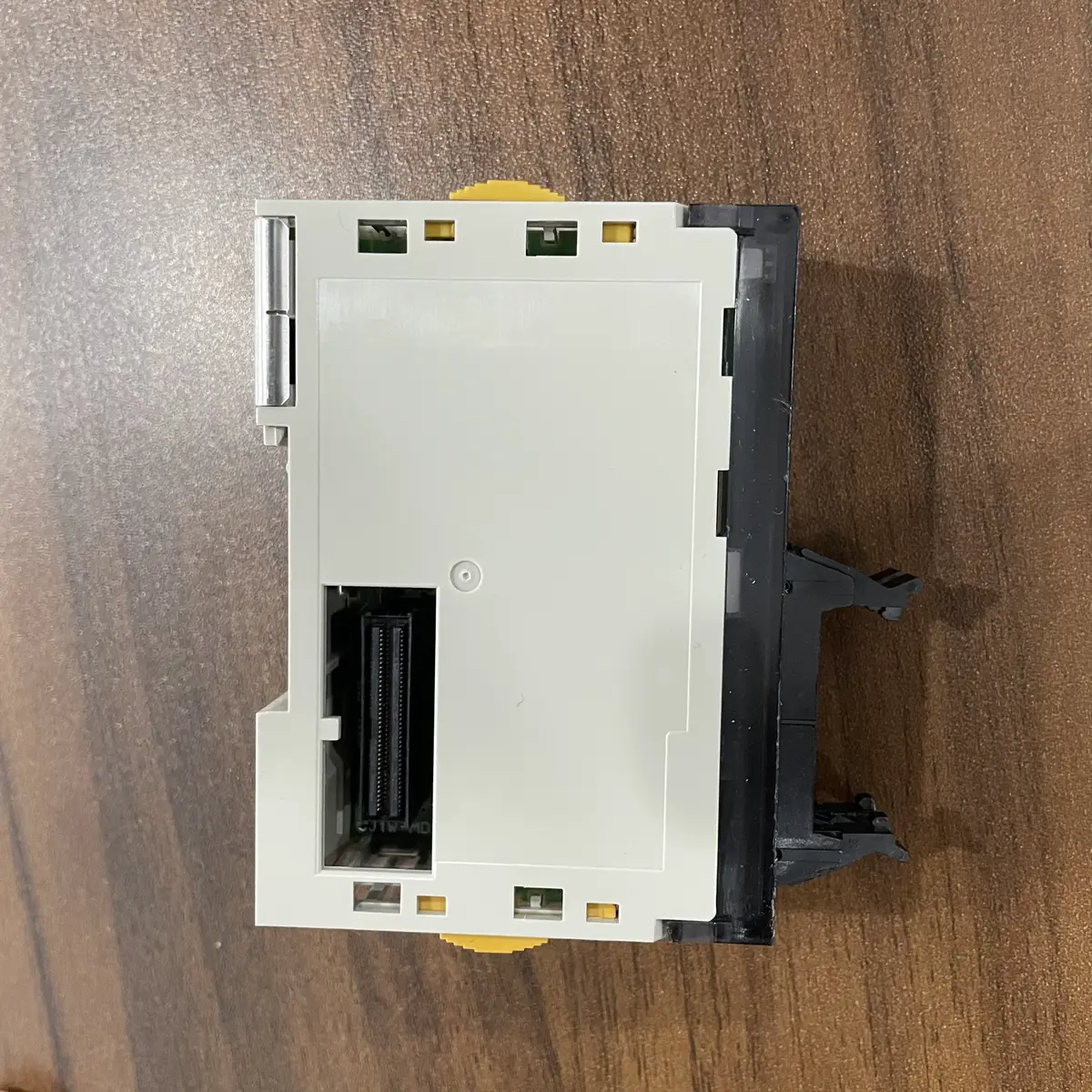

Omron CJ1W-MD232 — 16-In/16-Out Mixed I/O, PNP, MIL

SKU: CJ1W-MD232

USD 142.00

CJ-series 16 DC inputs + 16 PNP sourcing outputs in one slim 31 mm slot. 0.5 A/point, MIL connector, short-circuit alarm.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

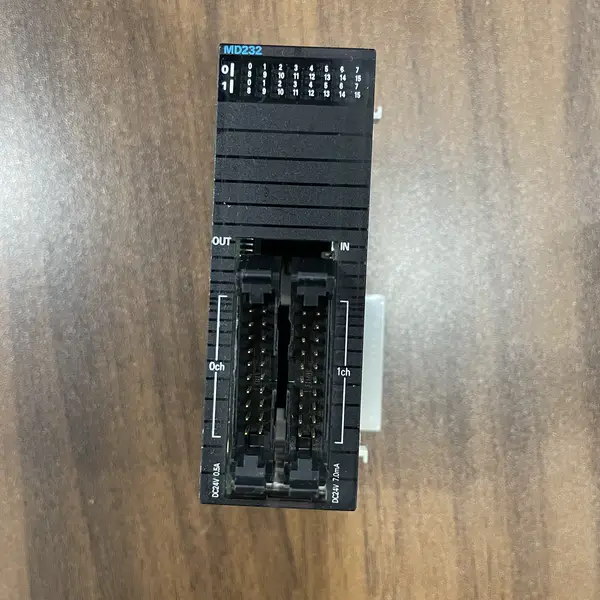

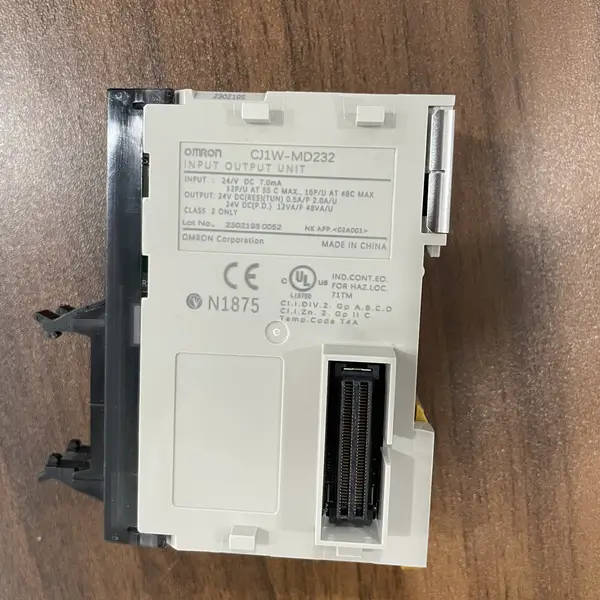

The Omron CJ1W-MD232 puts 16 DC inputs and 16 PNP (sourcing) transistor outputs on a single 31 mm slim slot for CJ-series PLCs. Each input reads 24 VDC at 7 mA; each output switches up to 0.5 A from a 12-24 VDC source. Total output budget is 2 A per module — plan the 24 VDC supply for the worst case of all 16 outputs ON. The MIL connector on the front face takes a separate wiring harness.

When a mixed module is the right pick

A mixed I/O module is the natural fit for a small station where you need a handful of inputs and a handful of outputs in one slot — typical on packaging skids, OEM option panels, and retrofits where the rack is already full. If you need a dense input bank or a dense output bank, a dedicated 32- or 64-point module is cheaper per point and easier to wire.

PNP sourcing vs NPN sinking

The MD232 sources positive voltage to the load — the right match for modern European wiring and for PNP sensors feeding the inputs. If your field devices expect a negative common, pick CJ1W-MD231 (NPN sink) instead. The two modules use the same MIL pinout logic but the polarity is not interchangeable.

Before ordering

The MIL connector needs a separate wiring harness (XW2Z-series or equivalent) — the module ships without one. The MIL version also has per-point short-circuit detection that flags a bad output in the CJ CPU without dropping the rest of the bank. The unit draws 130 mA at 5 VDC from the CJ backplane.

Key Features

  • 16 DC inputs (24 VDC, 7 mA) and 16 PNP sourcing outputs in one module
  • 0.5 A per output point, 2 A per module maximum
  • Slim 31 mm slot — half the width of a 64-point module
  • MIL connector with per-point short-circuit detection and alarm
  • I/O addresses as 2 words (1 word in, 1 word out)
  • ON/OFF response time adjustable from 0 to 32 ms in the CPU settings
  • 130 mA internal current draw from the CJ backplane at 5 VDC
  • SKU: CJ1W-MD232
  • Series: CJ1W I/O unit for CJ-series PLCs
  • Voltage: 24 VDC
  • I/O: 16 I/O

Best-Fit Applications

  • Small station with a handful of sensor inputs and valve outputs on a CJ rack
  • OEM option panel where input and output count change between machine variants
  • Retrofit adding a couple of inputs and a couple of outputs to a full rack
  • Carton sealer station on a packaging line driving one heater and a few sensors
  • Utility skid combining level switches, pressure switches, and a couple of relay coils

Buying Checklist

  • Choose CJ1W-MD232 for 16-in/16-out PNP sourcing on a single slim 31 mm slot; pick CJ1W-MD231 if you need NPN sinking instead.
  • Plan a 24 VDC supply rated for the worst case of 16 outputs ON at 0.5 A — that is 2 A per module.
  • Order an XW2Z-series MIL wiring harness separately; the module ships without one.
  • Pick a 32- or 64-point dedicated input or output module if you only need I/O on one side — it is cheaper per point.
  • Use the per-point short-circuit alarm to catch a stuck relay coil or miswired output before it drops the rest of the bank.

Technical Specifications

Model CJ1W-MD232
Series CJ1W I/O unit for CJ-series PLCs
Module Type Mixed digital I/O (DC input + transistor output)
Input Points 16 DC inputs, 1 common
Output Points 16 PNP (sourcing) outputs, 1 common
Input Voltage / Current 24 VDC, 7 mA per point
Output Load Voltage 12 to 24 VDC
Max Load Current 0.5 A per point, 2 A per unit
Connection MIL connector, harness sold separately
I/O Words 2 (1 input word + 1 output word)
Protection Per-point short-circuit detection with alarm output
Internal Current Draw 130 mA at 5 VDC (from backplane)
Operating Temperature 0 to +55 °C

FAQ for CJ1W-MD232

What is the difference between CJ1W-MD232 and CJ1W-MD231?
MD232 is PNP sourcing (outputs source positive voltage to the load) and MD231 is NPN sinking (outputs switch the load to 0 V). Both are 16-in/16-out MIL-connector modules in the same slim 31 mm slot — pick the one that matches your panel's wiring convention.
Does the CJ1W-MD232 detect a short circuit on each output?
Yes. The MIL-connector MD232 has per-point short-circuit detection and a unit-level alarm flag that the CJ CPU can read. A shorted output is shut down individually and does not drop the rest of the bank.
What wiring harness does the CJ1W-MD232 need?
An Omron XW2Z-series MIL-connector wiring harness, or any third-party equivalent wired to a 40-pin MIL plug on the module side. The harness is sold separately — the module ships without one.
Can I mix MD232 (PNP) and MD231 (NPN) on the same CJ rack?
Yes. The two modules are pin-compatible in the I/O address map and can sit on the same rack. Just be sure your field devices and PLC input scan match the polarity of each module — they are not interchangeable on the same wiring harness.
