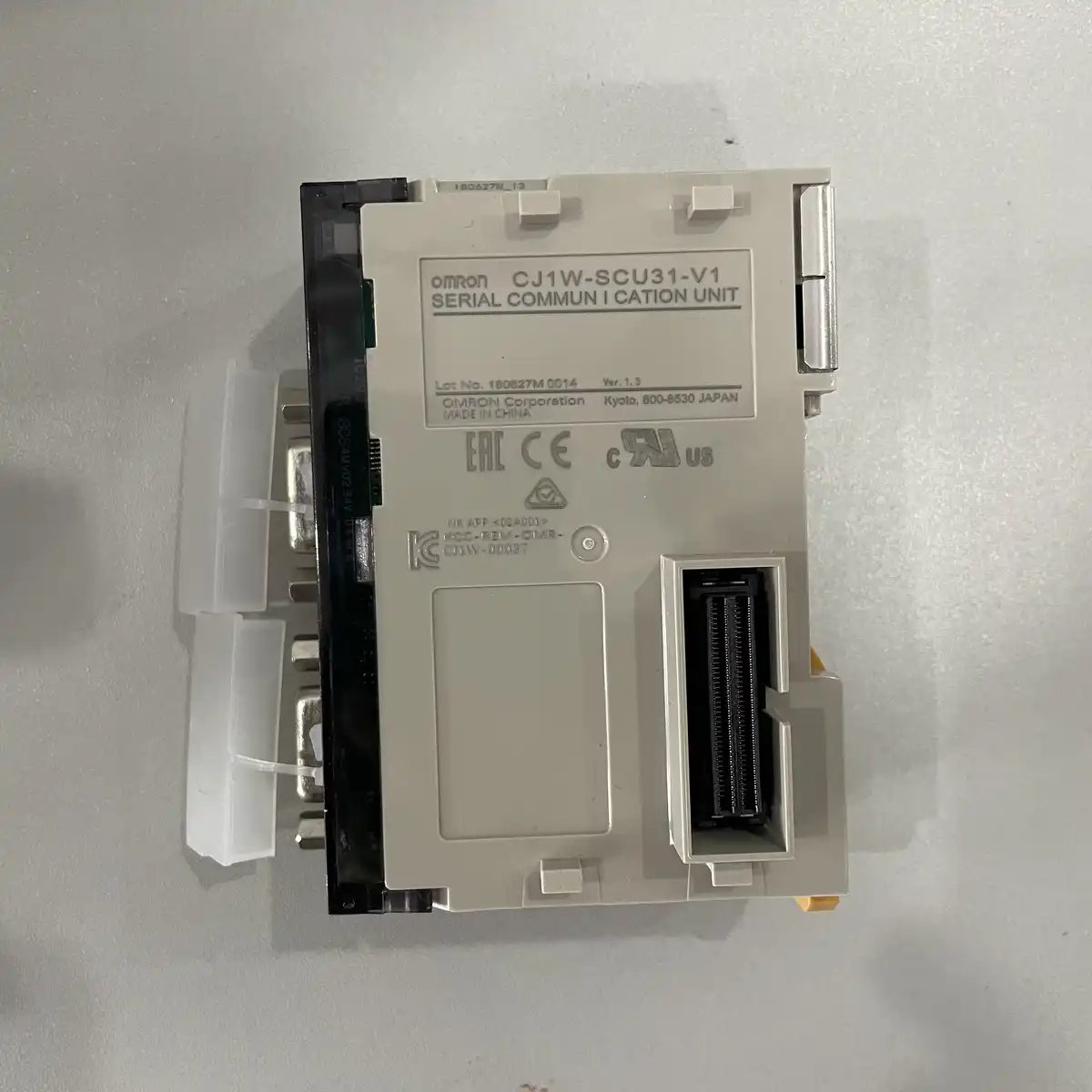

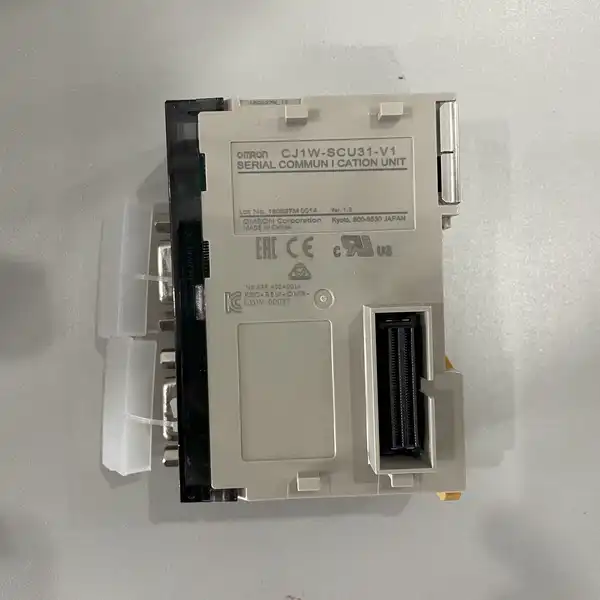

Omron CJ1W-SCU31-V1 — front view of the slim black CJ-series CPU bus module showing the OMRON wordmark, the CJ1W-SCU31-V1 type label, the COMM1/COMM2/RUN/ERC front-panel LEDs, and the two 5-pin RS-422A/RS-485 removable terminal blocks on the lower face

Omron CJ1W-SCU31-V1 — CJ Serial Unit, 2 x RS-422A/485

SKU: CJ1W-SCU31-V1

USD 195.00

CJ-series CPU-bus serial communication unit with two RS-422A/RS-485 ports, 5 VDC backplane powered, host link / NT link / Modbus-RTU slave.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron CJ1W-SCU31-V1 is the CJ-series CPU bus serial communication unit with two RS-422A / RS-485 ports. Each port connects to a field device, RS-422A multidrop chain, or RS-485 half-duplex network up to 500 m cable run, and each port can run a different protocol independently. The unit pulls 0.38 A from the 5 VDC CJ backplane -- no separate power supply -- and slots into any CPU bus unit position on the CJ rack. Pick the SCU31-V1 when the cabinet needs two long-distance RS-422A ports (for example, a Modbus RTU remote and an NT-LINK HMI on the same chassis).

SCU vs SCU@2 high-speed

The SCU3x-V1 is the standard-speed type at up to 38.4 kbps. The SCU@2 (SCU22 / SCU32 / SCU42) is the high-speed type that adds 115.2 kbps / 230.4 kbps on RS-232C and 230.4 kbps on RS-422A / RS-485 plus the NT-AL001 RS-232C/RS-422A link adapter for 1:N communication. Pick the SCU@2 when a 38.4 kbps ceiling is too slow for the device or the CJ1W-CIF11 adapter is needed. For a mixed-port panel, pick the SCU41-V1 (1 RS-232C + 1 RS-422A / RS-485 at 0.38 A).

Per-port protocols

Each of the two ports can be set independently to protocol macro (a sequence of predefined messages), Host Link (SYSWAY-compatible master / slave for CX-Programmer upload), NT Link 1:N (for an NS / NB HMI on the SCU port), serial gateway (auto FX FINS / Host Link / Modbus-RTU translation), no-protocol (raw byte send / receive), or Modbus-RTU slave (the unit acts only as a slave). The serial gateway mode is the typical pick when a third-party Modbus-RTU sensor needs to land on a CJ1 / NJ CPU as FINS.

Before ordering

Confirm the CJ rack has a free CPU bus unit slot (each SCU occupies one CPU-bus unit position). Up to 16 CPU-bus units sit on one CJ rack, so up to 16 SCUs and 32 serial ports per system. The RS-422A / RS-485 port uses a 5-pin removable terminal block on the front face -- the SCU31-V1 does NOT have a D-Sub connector. For RS-232C, pick the SCU21-V1. For 1:N RS-422A on a CJ1W-CIF11 adapter, pick the SCU41-V1 mixed-port sibling or the SCU@2 high-speed type.

Key Features

  • CJ-series CPU bus serial communication unit with TWO RS-422A / RS-485 ports on the front face
  • 5-pin removable terminal block per port (no D-Sub on the SCU31-V1)
  • RS-422A full-duplex 1:N multidrop or RS-485 half-duplex, up to 500 m cable run
  • Each port sets independently: protocol macro, host link, NT link (1:N), serial gateway, no-protocol, Modbus-RTU slave
  • 5 VDC 0.38 A from the CJ backplane -- no separate power supply required
  • Standard-speed communications at 1,200 to 38,400 bps (the SCU@2 high-speed type adds 115.2 / 230.4 kbps)
  • Up to 16 SCUs per CJ rack, up to 32 serial ports system-wide
  • COMM1 / COMM2 + RUN / ERC front-panel LEDs and per-port TX / RX indicator
  • Mounts in any CJ CPU-bus unit slot (CJ1M / CJ1H / CJ2H / CJ2M CPU racks)
  • Pair with the CJ1W-CIF11 adapter when the RS-232C port on a SCU21-V1 needs to extend to RS-422A 1:N
  • Distinguishing feature vs SCU41-V1: SCU31-V1 has two RS-422A/485 ports, SCU41-V1 has one RS-232C + one RS-422A/485
  • SKU: CJ1W-SCU31-V1
  • Series: CJ-series CPU Bus Serial Communication Unit

Best-Fit Applications

  • Two-port multidrop RS-422A HMI link to an NS / NB series touch panel at 500 m cabinet distance
  • Modbus-RTU slave gateway from a third-party inverter / temperature controller / power meter to a CJ1 CPU via the SCU serial-gateway mode
  • Long-distance field wiring on a C200H-to-CJ1 migration where the existing RS-422A wiring must be reused
  • Pair with a second SCU31-V1 for an eight-port multidrop RS-422A HMI fan-out on a large machine
  • Pick the SCU@2 high-speed sibling (SCU22 / SCU32 / SCU42) when 38.4 kbps is too slow for the device or the CJ1W-CIF11 adapter is needed

Buying Checklist

  • Pick CJ1W-SCU31-V1 for a CJ CPU-bus serial unit with two RS-422A / RS-485 ports at 0.38 A from the 5 VDC backplane.
  • Pick CJ1W-SCU21-V1 instead for two RS-232C ports (D-Sub 9-pin) when the field device is short-distance RS-232C.
  • Pick CJ1W-SCU41-V1 instead when one RS-232C and one RS-422A / RS-485 port are both needed on a mixed-port panel.
  • Pick CJ1W-SCU32 (SCU@2 high-speed) instead when 38.4 kbps is too slow or 230.4 kbps RS-422A is needed.
  • Pick CJ1W-CIF11 instead to convert an RS-232C port on a SCU21-V1 to RS-422A for 1:N communication.
  • Confirm the CJ rack has a free CPU-bus unit slot (up to 16 CPU-bus units per CJ1 / CJ2 CPU rack).

Technical Specifications

Series CJ-series CPU Bus Serial Communication Unit
Model CJ1W-SCU31-V1 (two RS-422A / RS-485 ports)
Port 1 / Port 2 RS-422A / RS-485, 5-pin removable terminal block
Modes RS-422A full-duplex or RS-485 half-duplex
Communication Speed 1,200 / 2,400 / 4,800 / 9,600 / 19,200 / 38,400 bps
Cable Distance 500 m maximum RS-422A / RS-485 total run
Power 0.38 A from 5 VDC CJ backplane (no external supply)
Protocols per Port (CJ mode) Protocol macro, host link, NT link 1:N, serial gateway, no-protocol, Modbus-RTU slave
Mounting One CJ CPU-bus unit slot, DIN-rail
System Capacity Up to 16 SCUs per CJ rack, up to 32 serial ports per system

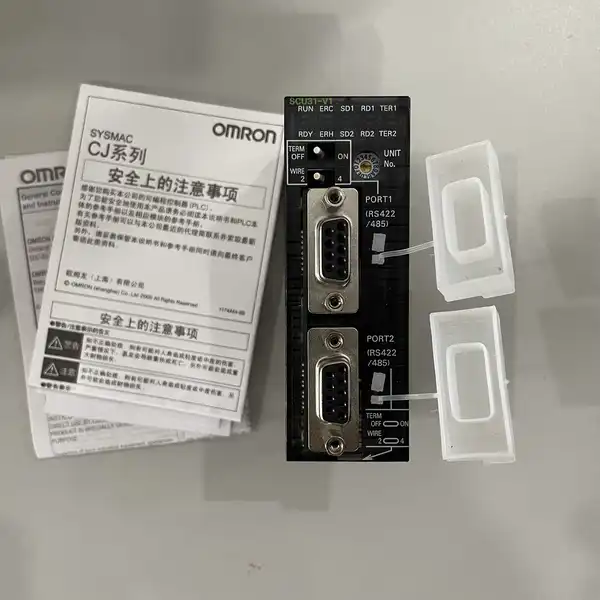

Front Face Two 5-pin RS-422A / RS-485 terminal blocks, COMM1 / COMM2 / RUN / ERC LEDs
Approvals UL / cULus (Class 1 Div 2) / CE / NK / Lloyd

FAQ for CJ1W-SCU31-V1

What is the difference between CJ1W-SCU31-V1 and CJ1W-SCU41-V1?
The SCU31-V1 has two RS-422A / RS-485 ports. The SCU41-V1 has one RS-232C port (D-Sub 9-pin) plus one RS-422A / RS-485 port (5-pin terminal block). Pick the SCU31-V1 for a long-distance RS-422A / RS-485 multidrop HMI link or a Modbus-RTU field network. Pick the SCU41-V1 when the panel needs one short-distance RS-232C device (a barcode scanner, a serial-label printer) and one long-distance RS-422A port. Both pull 0.38 A from the 5 VDC backplane and run the same per-port protocol set.
What protocols does each SCU port support?
On a CJ system, each port can independently run protocol macro (a sequence of predefined send / receive messages), host link (SYSWAY-compatible, for CX-Programmer upload or a third-party SYSWAY master), NT link 1:N (for an NS / NB HMI panel on the same rack), serial gateway (automatic FINS / Host Link / Modbus-RTU conversion), no-protocol (raw byte send / receive), or Modbus-RTU slave (the SCU only acts as a slave, not as a master). On an NJ system the per-port list drops to protocol macro, serial gateway, no-protocol, and Modbus-RTU slave -- host link and NT link are not supported on the NJ via the SCU.
How many SCU units can one CJ rack carry?
Up to 16 CPU-bus units on one CJ rack, and each SCU takes one CPU-bus slot, so up to 16 SCUs and 32 serial ports per CJ1 / CJ2 system. The limitation is the 16 CPU-bus-unit ceiling per rack, not the SCU count itself. For a larger system, add a CJ1W-IC101 I/O control unit and an expansion rack, which raises the CPU-bus-unit ceiling to 32 per system. Each SCU draws 0.38 A from the 5 VDC backplane, so on a fully-loaded 16-SCU rack the backplane draw tops out around 6 A -- pick the CJ1W-PD025 PSU at 5.0 A on the 5 VDC rail.
Can the SCU31-V1 run at 115.2 or 230.4 kbps?
No. The SCU31-V1 is the standard-speed type with a top speed of 38.4 kbps on each port. For 115.2 kbps (RS-232C) or 230.4 kbps (RS-422A / RS-485) pick the SCU@2 high-speed type: the SCU22 (2 x RS-232C), the SCU32 (2 x RS-422A / RS-485), or the SCU42 (1 x RS-232C + 1 x RS-422A / RS-485). The SCU@2 also supports the CJ1W-CIF11 RS-232C to RS-422A adapter for 1:N NT link (the SCU31-V1 does not). Confirm the field device actually needs more than 38.4 kbps before paying the SCU@2 premium -- most Modbus-RTU slaves happily run at 19.2 kbps.
