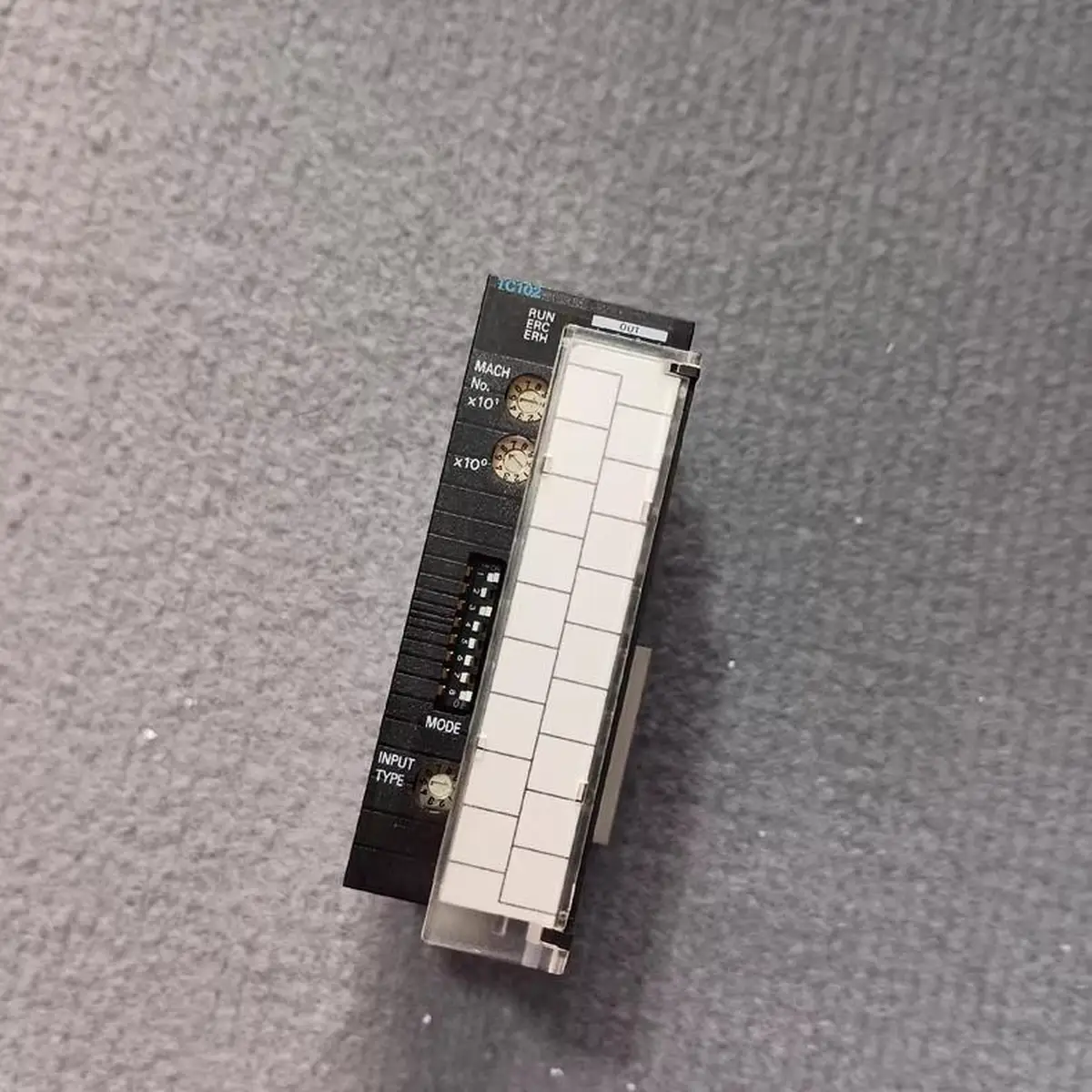

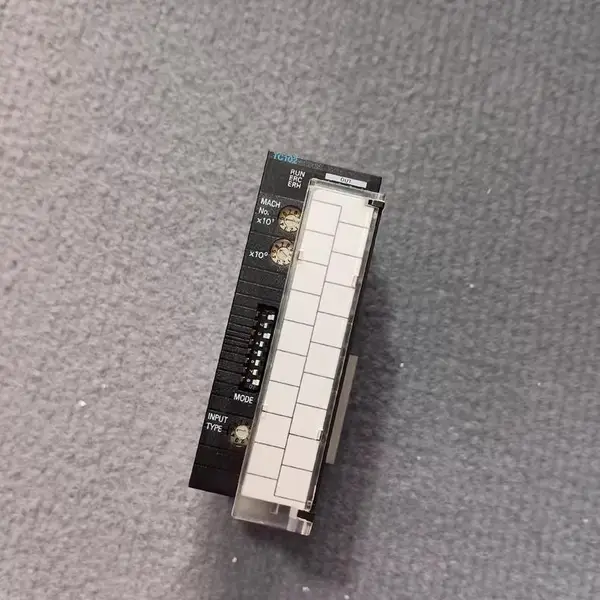

Omron CJ1W-TC102 — front view of the 4-loop RTD unit showing the Omron model label, the four green input channel LEDs, the four red output channel LEDs and the removable M3 screw terminal block

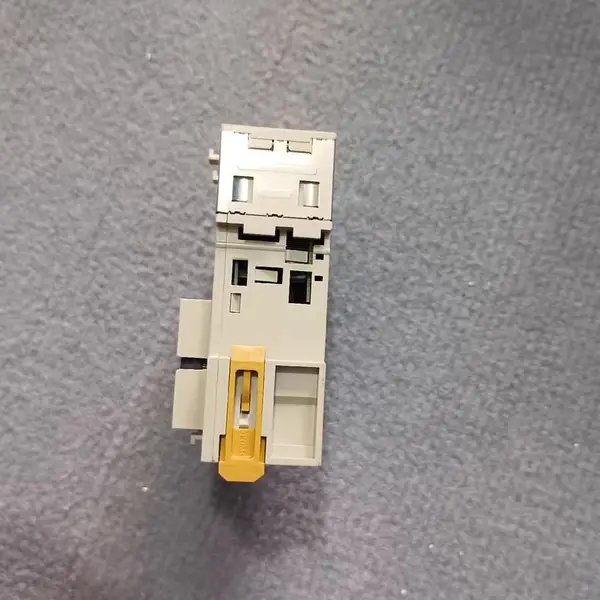

Omron CJ1W-TC102 — 4-Loop RTD Input, PNP, CJ1

SKU: CJ1W-TC102

USD 155.00

Omron CJ1W-TC102 CJ1 4-loop Pt100/JPt100 RTD input, PNP pulse output, PID + auto-tune, 24 VDC. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron CJ1W-TC102 is a 4-loop temperature control unit for CJ-series PLCs, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. All specs verified against the CJ1W-TC___ datasheet W396 at industrial.omron.eu.

Each loop takes a Pt100 or JPt100 RTD probe. The unit runs ON/OFF or 2-degree-of-freedom PID with auto-tune. Four PNP voltage-pulse outputs switch up to 100 mA at 24 VDC for solid-state relays or small contactors.

Sampling is 500 ms per loop and RUN / STOP is set from the CPU. Indication accuracy is +/- 0.3% of the reading or +/- 1 degC plus 1 digit. The 31 x 90 x 89 mm body clips onto a CJ1 or CJ2 rack and pulls 250 mA from the 5 V bus. For a thermocouple version, pick the CJ1W-TC002. For a 2-loop RTD unit, pick the CJ1W-TC001 instead.

Key Features

  • CJ1 Special I/O, 4-loop Pt100 / JPt100 RTD input unit
  • 4 PNP voltage-pulse outputs at 100 mA, 24 VDC
  • ON/OFF or 2-DOF PID with auto-tune, 500 ms sampling
  • 31 x 90 x 89 mm, 250 mA at 5 VDC, RUN / STOP from CPU
  • SKU: CJ1W-TC102
  • Series: Omron CJ1W-series Special I/O temperature control unit

Best-Fit Applications

  • Four-zone chilled-water loop in an HVAC plant where the RTD inputs hold each tank within 0.5 degC of setpoint and the PNP outputs drive SSRs
  • Food-process tank where the 4 RTD probes sit in CIP wash water and the PID auto-tune trims each loop on every recipe change
  • Spare drop-in for a CJ2M cell where the original CJ1W-TC102 RTD board failed and the CX-Programmer project loads the same Special I/O bits

Buying Checklist

  • Pick the CJ1W-TC102 for 4 Pt100 / JPt100 RTD loops with PNP pulse outputs on a CJ1 Special I/O slot.
  • Pick the CJ1W-TC001 instead when the panel needs a 2-loop RTD unit with the same electrical spec.
  • Pick the CJ1W-TC002 instead when the probes are thermocouples (R, S, K, J, T, L, B) on the same Special I/O footprint.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron CJ1W-series Special I/O temperature control unit
Model / SKU CJ1W-TC102
I/O System CJ CPU Bus or CJ Expansion Rack (Special I/O)
Number of Loops 4
Temperature Sensor Pt100 / JPt100 RTD
Control Outputs 4 PNP voltage pulse, 100 mA at 24 VDC max
Control Method ON/OFF or 2-DOF PID with auto-tune
Sampling Period 500 ms
Indication Accuracy +/- 0.3% of PV or +/- 1 degC, plus 1 digit
Internal Current 250 mA max at 5 VDC
Dimensions (W x H x D) 31 × 90 × 89 mm; 200 g

Manufacturer documentation

Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.

FAQ for CJ1W-TC102

Does the CJ1W-TC102 take thermocouple inputs?
No. The TC102 is Pt100 / JPt100 RTD only. For thermocouple inputs on the same 4-loop body, use the CJ1W-TC002.
What PLC programs the CJ1W-TC102?
CX-Programmer under the CX-One suite. Set points, RUN / STOP, AT and alarm values are written from the CPU; PV, SP and status come back in the Special I/O area (CIO 2000 to CIO 2959).
How is the CJ1W-TC102 different from a CP1W-TS003?
The CP1W-TS003 is a CP-series temperature sensor unit that converts temperature to a 16-bit value with no PID. The CJ1W-TC102 runs full PID control and auto-tune, and needs a CJ CPU rack.
