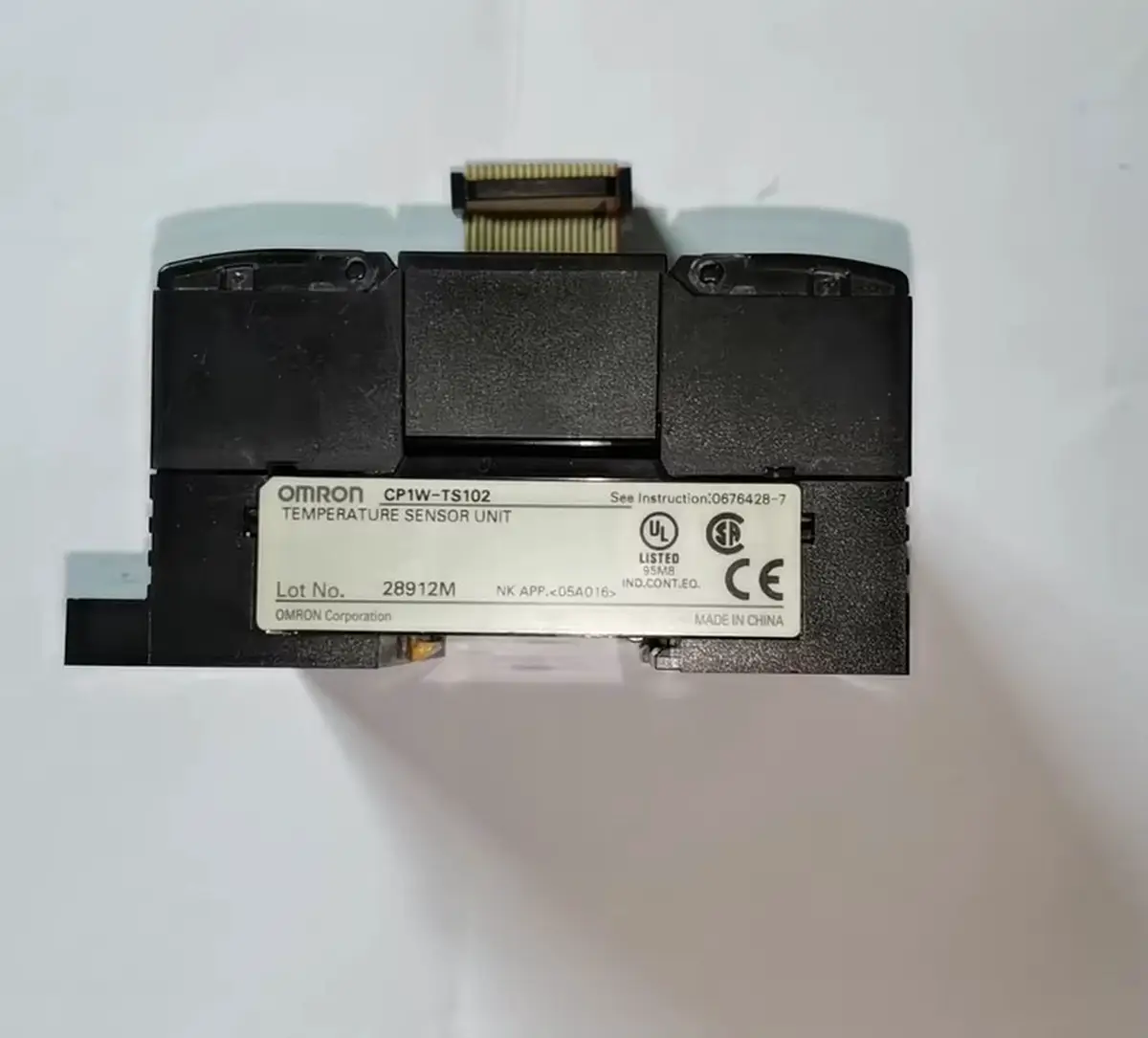

Omron CP1W-TS102 — CP1W 4-Ch RTD Input, Pt100 / JPt100
SKU: CP1W-TS102USD 88.00
CP1W 4-channel Pt100 / JPt100 RTD input, 12-bit, 250 ms / 4 points. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1W-TS102 is a 4-channel RTD temperature input expansion unit for the CP1E, CP1L and CP1H PLC families It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The unit reads four Pt100 or JPt100 platinum resistance sensors and stores each as a 16-bit binary value (4-digit hexadecimal) in the allocated input words. All four inputs must use the same sensor type and the same input range.
For a 2-channel thermocouple (J or K) unit, pick the CP1W-TS001. Key specs: Input Channels 4 RTD inputs (all four same sensor type and range); Sensor Type Pt100 or JPt100 platinum resistance thermometer; Measurement Range -200.0 to 650.0 degC (-300.0 to 1200.0 degF); Resolution 12-bit (0.1 degC, or 0.01 degC in 2-decimal mode); Conversion Time 250 ms for 2 or 4 input points; Accuracy +/- 0.5 percent of indicated value or +/- 1 degC, whichever is larger, +/- 1 digit; Output Data 16-bit binary (4-digit hexadecimal) in the allocated input words; Power 5 VDC 54 mA from backplane + 24 VDC 73 mA external.
Key Features
- CP1W 4-channel RTD input for Pt100 or JPt100 sensors (all four use the same type and range)
- 12-bit resolution, 250 ms conversion for 2 or 4 points, -200.0 to 650.0 degC range
- 5 V 54 mA from backplane + 24 VDC 73 mA, 86 x 90 x 50 mm, 250 g
- Compatible with CP1E, CP1L and CP1H CPUs; 16-bit binary (4-digit hex) output in the input words
- SKU: CP1W-TS102
- Series: Omron CP1W-series Temperature Sensor Unit
Best-Fit Applications
- Multi-zone oven on a CP1L-M40DR-A where the four heating zones each carry a Pt100 and need closed-loop control
- Cold-storage room with a CP1E-N40DR-A where four Pt100 sensors monitor the return air, supply air, defrost line and product probe
- Spare drop-in for an existing CP1W analog chain where the previous CP1W-TS102 failed and the field wiring is Pt100
Buying Checklist
- Pick the CP1W-TS102 for a 4-channel Pt100 / JPt100 RTD input on a CP1E, CP1L or CP1H CPU.
- Pick the CP1W-TS101 instead when only 2 RTD channels are needed and the slot can be saved.
- Pick the CP1W-TS001 instead when the field sensors are J or K thermocouples, not Pt100.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP1W-series Temperature Sensor Unit |
| Model / SKU | CP1W-TS102 |
| Input Channels | 4 RTD inputs (all four same sensor type and range) |
| Sensor Type | Pt100 or JPt100 platinum resistance thermometer |
| Measurement Range | -200.0 to 650.0 degC (-300.0 to 1200.0 degF) |
| Resolution | 12-bit (0.1 degC, or 0.01 degC in 2-decimal mode) |
| Conversion Time | 250 ms for 2 or 4 input points |
| Accuracy | +/- 0.5 percent of indicated value or +/- 1 degC, whichever is larger, +/- 1 digit |
| Output Data | 16-bit binary (4-digit hexadecimal) in the allocated input words |
| Power | 5 VDC 54 mA from backplane + 24 VDC 73 mA external |
| Dimensions (W x H x D) | 86 × 90 × 50 mm; 250 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP1W-TS102
Is the CP1W-TS102 a thermocouple input?
No. The CP1W-TS102 reads Pt100 and JPt100 RTDs, not thermocouples. For J or K thermocouples, use the CP1W-TS001 (2-channel) or CP1W-TS002 (4-channel).
How many sensors can the CP1W-TS102 read?
Four. All four inputs must use the same sensor type (Pt100 or JPt100) and the same input range. Mixing types or ranges on one unit is not supported.
How accurate is the CP1W-TS102?
+/- 0.5 percent of the indicated value or +/- 1 degC, whichever is larger, +/- 1 digit. The 12-bit resolution is 0.1 degC in normal mode and 0.01 degC in 2-decimal mode.
Can the CP1W-TS102 mix Pt100 and JPt100 on the same unit?
No. All four inputs must use the same sensor type. Set the rotary switch on the side of the unit to Pt100 or JPt100 before turning the CPU on; the selection applies to all four channels.
