Part of the Omron CJ-Series PLCs series — see the full model table, lifecycle status and replacement parts.

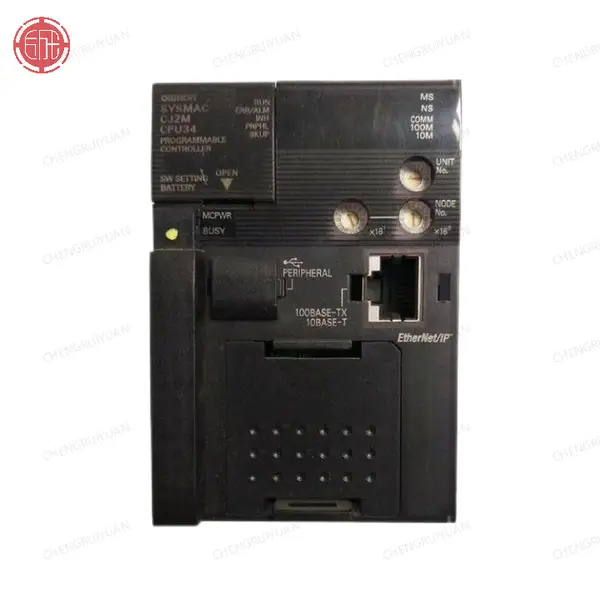

Omron CJ2M-CPU34 — front view of the CJ2M CPU3x showing the Omron model label, the RUN / ERROR / INH LED indicators, the seven-segment display, the USB Type-B programming port and the EtherNet/IP RJ45 port along the lower face

Omron CJ2M-CPU34 — CJ2M CPU, 30K Steps, EtherNet/IP

SKU: CJ2M-CPU34

USD 340.00

Omron CJ2M-CPU34 CJ2M CPU with built-in EtherNet/IP, 30K-step program, 64K data memory, option board slot. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron CJ2M-CPU34 is the third step in the CJ2M CPU3x lineup, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

Program capacity is 30K steps plus 20K steps of function-block memory. Data memory is 64K words, split as 32K words DM plus 32K words EM in one bank. The CPU addresses up to 2560 local I/O across 40 mountable units and three expansion racks. Basic LD instruction execution is 0.04 microseconds. Built-in ports are EtherNet/IP and USB, plus an option board slot for CP1W-CIF01 (RS-232C) or CP1W-CIF11 / CP1W-CIF12-V1 (RS-422A/485).

Current draw is 5 V at 0.7 A. The unit is 90 x 62 x 84.5 mm and weighs 190 g. Programming runs in CX-Programmer. For the same 30K steps without EtherNet/IP, pick the CJ2M-CPU14. For more program, pick the CJ2M-CPU35 (60K steps). Add a CJ2M-MD211 for high-speed counter and pulse outputs.

Key Features

  • CJ2M CPU3x with 30K-step program plus 20K-step function-block memory
  • 64K-word data memory (DM 32K + EM 32K x 1 bank), 0.04 us LD instruction execution
  • Built-in EtherNet/IP and USB ports; option board slot for CP1W-CIF01 / CIF11 / CIF12-V1
  • 2560 I/O points across 40 units and 3 expansion racks, 5 V 0.7 A, 90 x 62 x 84.5 mm, 190 g
  • SKU: CJ2M-CPU34
  • Series: Omron CJ2M-series CPU Unit (CPU3x line, built-in EtherNet/IP)
  • I/O: 2560 points

Best-Fit Applications

  • Mid-size machine cell where the program has filled a CJ2M-CPU33 and the cabinet needs EtherNet/IP plus a CP1W-CIF11 option
  • Spare CPU drop-in for a CJ2M rack where the field bus is EtherNet/IP and the program is in the 20K to 30K range
  • Process cell with a CJ1W-PA205R power supply, a CJ1W-IC101 I/O control unit on the right, and three expansion racks

Buying Checklist

  • Pick the CJ2M-CPU34 for the third step in the CJ2M CPU3x line with 30K steps of program and built-in EtherNet/IP.
  • Pick the CJ2M-CPU32 instead when 10K steps of program is enough and the rest of the spec is the same.
  • Pick the CJ2M-CPU35 instead when 60K steps of program is needed and the cost difference is justified.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron CJ2M-series CPU Unit (CPU3x line, built-in EtherNet/IP)
Model / SKU CJ2M-CPU34
Program Capacity 30K steps + 20K steps function-block memory
Data Memory 64K words (DM 32K words + EM 32K words x 1 bank)
LD Execution Time 0.04 us (basic instruction)
Local I/O / Mountable Units 2560 points / 40 units / 3 expansion racks
Built-in Communication EtherNet/IP (RJ45) + USB; option board slot for CP1W-CIF01 / CIF11 / CIF12-V1
Current Consumption 5 VDC, 0.7 A
Compatible I/O Family CJ1W-series Basic I/O, Special I/O, and CPU Bus Units
Programming Software CX-Programmer (CX-One suite)
Dimensions / Weight 90 (H) x 62 (W) x 84.5 (D) mm; 190 g

FAQ for CJ2M-CPU34

What is the difference between CJ2M-CPU34 and CJ2M-CPU14?
Both have 30K steps of program. The CPU34 is on the CPU3x line with built-in EtherNet/IP and an option board slot. The CPU14 is on the CPU1x line with RS-232C + USB only and no option board slot.
How much program memory does the CJ2M-CPU34 have?
30K steps of program plus 20K steps of function-block memory for a total of 50K steps. The data memory side is 64K words.
Does the CJ2M-CPU34 support CJ1W expansion I/O?
Yes. Up to three CJ1W expansion racks via a CJ1W-IC101 I/O control unit on the CPU side and CJ1W-II101 interfaces on each expansion rack.
Which power supply pairs with the CJ2M-CPU34?
A CJ1W-PA202 (100-240 VAC, 14 W), CJ1W-PA205R (25 W with RUN output), CJ1W-PD022 (24 VDC, 19.6 W) or CJ1W-PD025 (24 VDC, 25 W).
