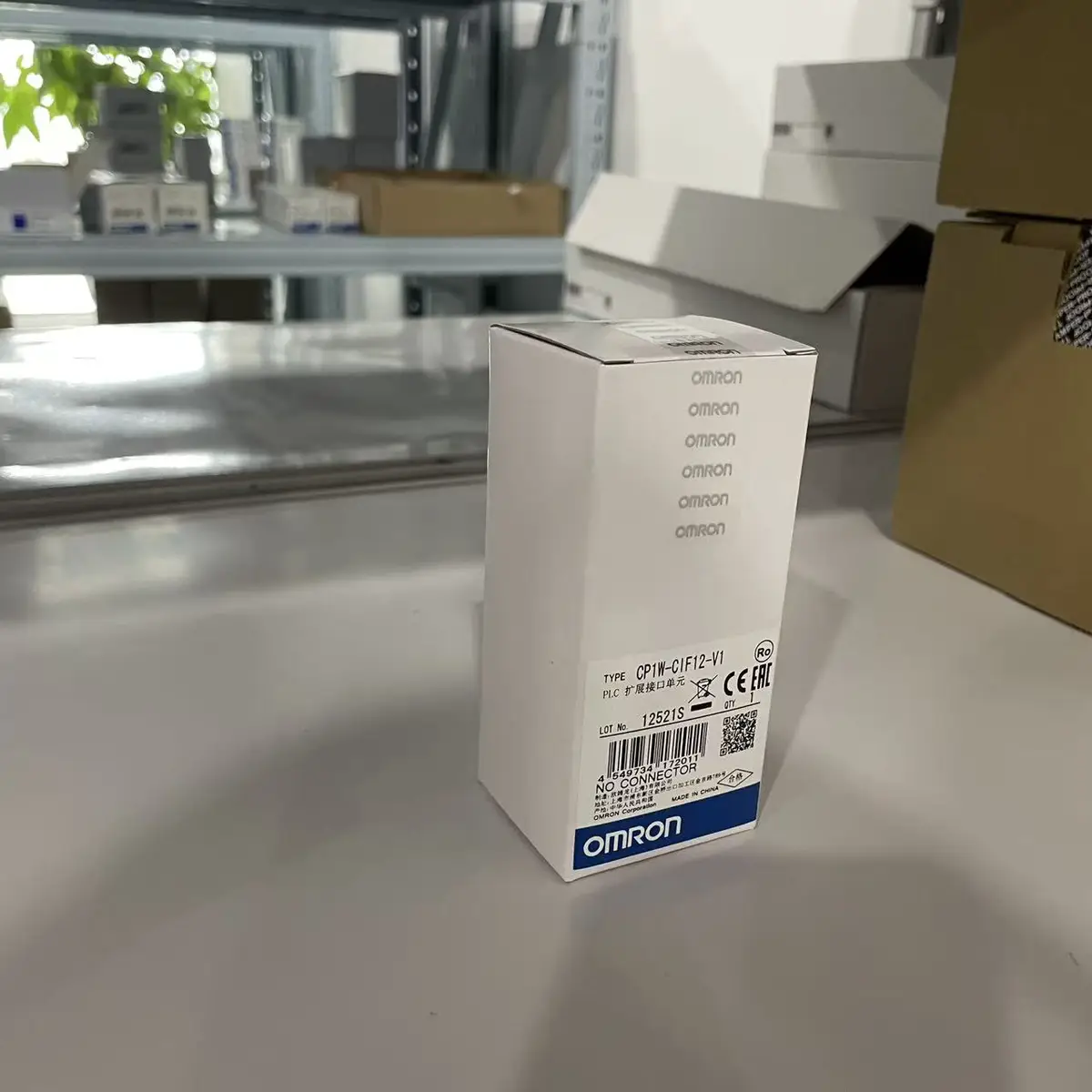

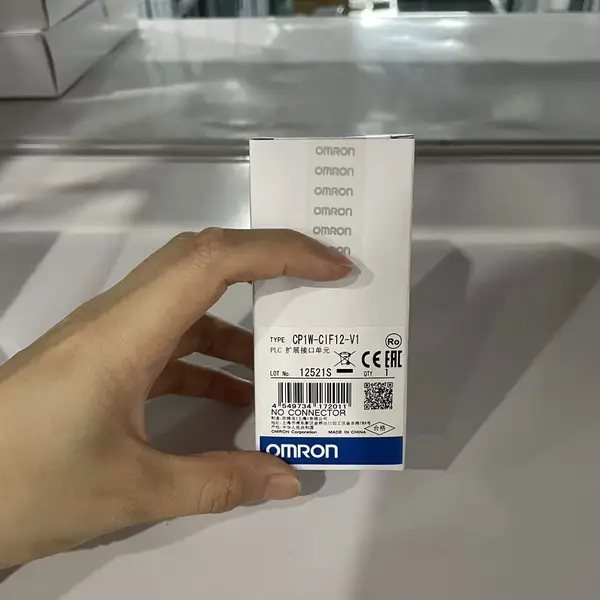

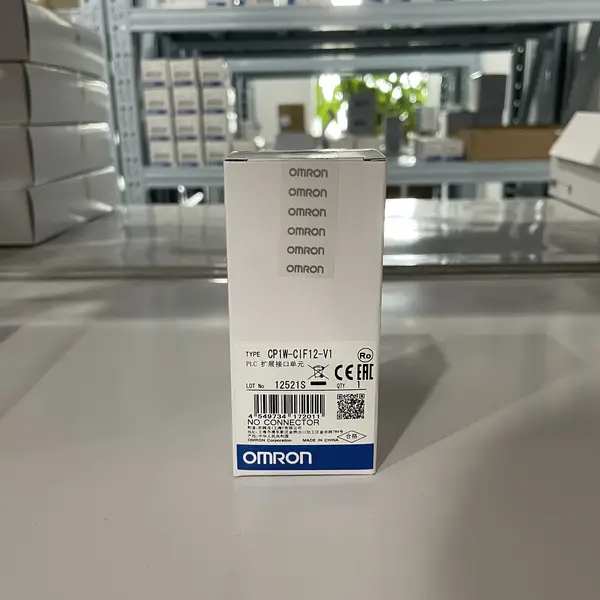

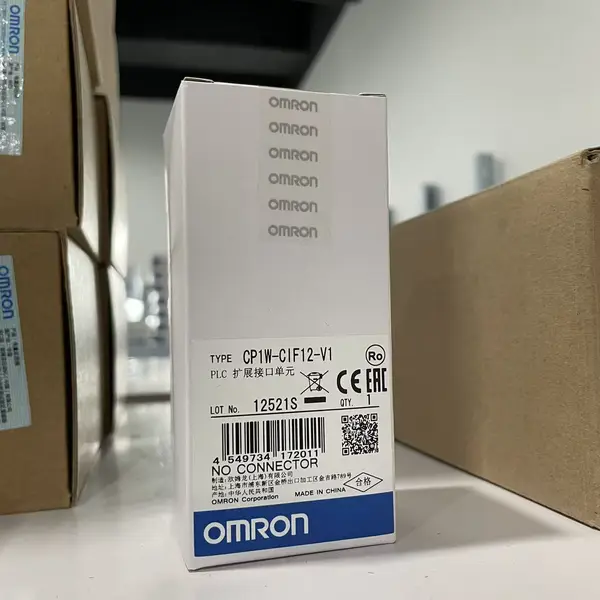

Omron CP1W-CIF12-V1 — Isolated RS-422A/485 Board
SKU: CP1W-CIF12-V1USD 28.00
Omron CP1W-CIF12-V1 adds one isolated serial port to a CP1L, CP1H or CP1E N-type PLC, with cable runs to 500 m.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1W-CIF12-V1 is an isolated RS-422A/485 serial option board for CP-series PLCs, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The board drops into the option slot on the CPU's top face and adds one RS-422A or RS-485 port. The port is electrically isolated from the PLC, which is what lets cable runs reach 500 m — the non-isolated CP1W-CIF11 stops at 50 m. Baud rates run from 1.2 to 115.2 kbps, and the board draws 0.04 A from the CPU's 5 V rail. Supported modes include Host Link, 1:N NT Link, Serial PLC Link, Modbus-RTU Easy Master, and no-protocol.
It fits CP1L, CP1H, CP2E N-type, and CP1E N30/N40/N60 and NA20 CPUs. It does not fit CP1E E-type, N14, N20 or the slim N30S/N40S/N60S units — those have no option slot. Pick the CP1W-CIF11 instead for short in-cabinet runs where isolation isn't needed.
Key Features
- Isolated RS-422A/485 option board for CP1L, CP1H, CP2E and CP1E N-type PLCs
- 500 m maximum cable run — ten times the non-isolated CP1W-CIF11
- One port, 1.2 to 115.2 kbps, draws 0.04 A from the CPU 5 V rail
- Will not fit CP1E E-type, N14, N20 or slim N30S/N40S/N60S CPUs (no option slot)
- SKU: CP1W-CIF12-V1
- Series: Omron CP1W option board family
Best-Fit Applications
- Modbus-RTU link from a CP1E-N30DR-A to a bank of pump inverters 300 m away across a water treatment site
- Serial PLC Link between two CP1L-EM30DT-D CPUs in separate cabinets where the shared 0 V would otherwise carry noise
- Retrofit on a CP1H-X40DR-A kiln line, replacing a CP1W-CIF11 whose 50 m limit was being exceeded
Buying Checklist
- Pick the CP1W-CIF12-V1 when the RS-422A/485 run is longer than 50 m or the two ends sit on different grounds.
- Pick the CP1W-CIF11 instead for a short non-isolated run inside one cabinet at lower cost.
- Pick the CJ1W-CIF11 instead to convert an existing RS-232C port to RS-422A/485 without using the option slot.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP1W option board family |
| Model / SKU | CP1W-CIF12-V1 |
| Function | Isolated RS-422A/485 serial option board (one port) |
| Compatible CPUs | CP1L, CP1H, CP2E N-type, CP1E N30/N40/N60 and NA20 |
| Not Compatible | CP1E E-type, N14, N20, N30S/N40S/N60S (no option slot) |
| Slot Location | Option board slot on the CPU top face |
| Isolation | Serial port isolated from the PLC internal circuit |
| Max Cable Run | 500 m |
| Baud Rate | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2 kbps |
| Supported Protocols | Host Link, 1:N NT Link, Serial PLC Link, Modbus-RTU Easy Master, no-protocol |
| Current Consumption | 0.04 A at 5 VDC (from the CPU) |
FAQ for CP1W-CIF12-V1
What is the Omron CP1W-CIF12-V1 used for?
It adds one isolated RS-422A or RS-485 port to a CP-series PLC. Typical jobs are Modbus-RTU polling of inverters and meters, Serial PLC Link between two CPUs, and 1:N NT Link to NS or NB touch panels.
CP1W-CIF12-V1 vs CP1W-CIF11 — what is the difference?
Isolation and cable length. The CIF12-V1 is isolated and rated for 500 m; the CIF11 is not isolated and stops at 50 m. The slot, the port count and the baud rates are the same. Pay for the CIF12-V1 when the cable leaves the cabinet.
Does the CP1W-CIF12-V1 work with CP1E?
Yes, on the N30, N40, N60 and NA20 CPUs, which have an option slot. It does not work on CP1E E-type, N14, N20 or the slim N30S/N40S/N60S units, because those have no option slot at all.
What is the maximum cable length for the CP1W-CIF12-V1?
500 m, per Omron's CP-series option board table. That is the total trunk length from the board to the far end of the RS-422A/485 line. For longer distances add a repeater or move the link to Ethernet.
