Omron CK3W-AX1515N — 4-Axis True DAC, NPN I/O
SKU: CK3W-AX1515NUSD 830.50
Omron CK3W-AX1515N CK3W 4-axis interface unit, True DAC analogue, NPN I/O, 4 channels per CK3M / CK5M rack. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CK3W-AX1515N is a 4-axis interface unit for the CK3M and CK5M Programmable Multi-Axis Controllers, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

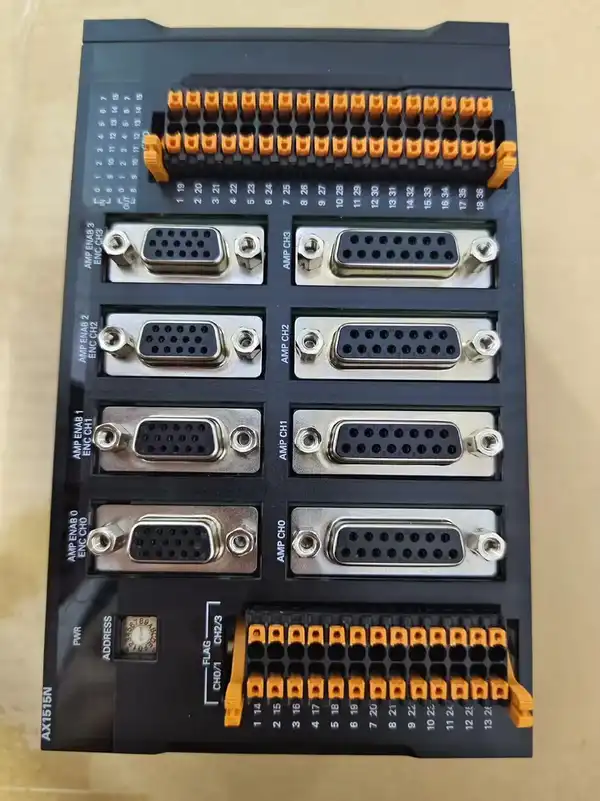

The unit provides four independent motion channels with True DAC analogue voltage output for commanding analogue-input servo drives. Each channel outputs two analogue points (DACA and DACB) plus a line-driver pulse stream up to 10 MHz. Encoder inputs accept 5 V differential line-receiver signals from quadrature, pulse, or serial encoders up to 10 MHz, with a 5 VDC 500 mA per-channel encoder power supply.
The unit carries 16 general-purpose NPN digital inputs and 16 NPN outputs for flags, limits, and amp enable, plus 4 dedicated flag inputs per channel (HOME, PLIM, NLIM, USER). Power consumption is 4.5 W on 5 VDC and 12.5 W on 24 VDC. The CK3W-AX1515P sibling swaps NPN for PNP digital I/O on the same True DAC stage. The CK3M-CPU111 is the matching controller.
Key Features
- CK3W 4-axis interface unit for CK3M / CK5M Programmable Multi-Axis Controllers, True DAC analogue voltage output
- 4 channels per unit, dual DAC outputs per channel (DACA + DACB), 10 MHz line-driver pulse stream for stepper drives
- 5 V differential line-receiver encoder inputs up to 10 MHz for quadrature, pulse, or serial encoders, 5 VDC 500 mA per channel
- 16 general-purpose NPN digital inputs, 16 NPN outputs, 4 dedicated flag inputs per channel (HOME, PLIM, NLIM, USER)
- SKU: CK3W-AX1515N
- Series: Omron CK3W axis interface unit on the CK3M / CK5M Programmable Multi-Axis Controller platform
- I/O: 16 I/O
Best-Fit Applications
- Multi-axis contouring on a CNC milling machine where True DAC analogue output drives analogue-input servo drives and avoids pulse-train quantisation noise
- High-speed web synchronisation on a slitter where the 4-axis module locks 3 slitting axes to the master encoder and reads NPN flags at 10 MHz
- Spare replacement on a CK3M motion rack where the existing axis module has failed and the existing CK3M-CPU111 must keep driving the same 4 servos
Buying Checklist
- Pick the CK3W-AX1515N for a 4-axis CK3W interface with True DAC analogue output and NPN flags on a CK3M / CK5M rack.
- Pick the CK3W-AX1515P instead when the cabinet needs PNP digital flags on the same 4-axis True DAC analogue stage.
- Pick the CK3W-PD048 instead when the rack needs an extra 48 W DIN-rail power supply to feed additional CK3W modules.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CK3W axis interface unit on the CK3M / CK5M Programmable Multi-Axis Controller platform |
| Model / SKU | CK3W-AX1515N |
| Channels | 4 axes per unit, address setting 0 to F |
| Analogue Output | True DAC, 2 points per channel (DACA, DACB); ±20 V differential, ±10 V single-ended to AGND |
| Pulse Output | Line driver, pulse + direction or phase-difference, 10 MHz max output frequency |
| Encoder Input | Digital quadrature A/B/C line-receiver up to 10 MHz, serial encoder supported, 5 VDC 500 mA per channel |
| Digital I/O | 16 general-purpose NPN inputs and 16 NPN outputs, plus 4 dedicated flag inputs per channel (HOME, PLIM, NLIM, USER), 1 EQU output per channel |
| Hall / Amp Enable | 4 Hall inputs per channel (U, V, W, T); 1 amp-enable output and 1 fault input per channel |
| Internal Common | NPN (the CK3W-AX1515P sibling is PNP on the same True DAC analogue stage) |
| Power / Dimensions | 5 VDC 4.5 W max, 24 VDC 12.5 W max; 90 (H) x 80 (D) x 130 (W) mm, 520 g max, DIN-rail mount |
| Standards / Environment | cULus, EN 61326, RCM, KC; 0 to 55 °C operating, 10 to 95 percent humidity (no condensation) |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CK3W-AX1515N
What is the Omron CK3W-AX1515N used for?
It is the CK3W 4-axis interface unit for the CK3M and CK5M Programmable Multi-Axis Controllers. It drives up to 4 servo or stepper axes with True DAC analogue or 10 MHz pulse commands and reads 5 V line-receiver encoders at 10 MHz on the same module.
CK3W-AX1515N vs CK3W-AX1515P - what is the difference?
Both are 4-axis interface units with True DAC analogue output. The N suffix is NPN digital I/O; the P suffix is PNP digital I/O. Pick the N for Japanese-style NPN flags and the P for European-style PNP flags. The analogue output stage is identical.
How many axes can the CK3W-AX1515N control?
Up to 4 axes per unit. Multiple CK3W-AX1515N modules chain on the same backplane to control more axes - the actual axis count depends on the CK3M or CK5M CPU's motion-cycle budget. The CK3M-CPU111 is the most common host for this unit.
Does the CK3W-AX1515N need a CK3M controller?
Yes. The CK3W-AX1515N is an axis interface module only and must live on the same backplane as a CK3M-CPU1_1 or CK5M-CPU1_1 controller. The controller runs the Power PMAC motion engine; the CK3W-AX1515N handles the analogue and pulse I/O to the drives.
