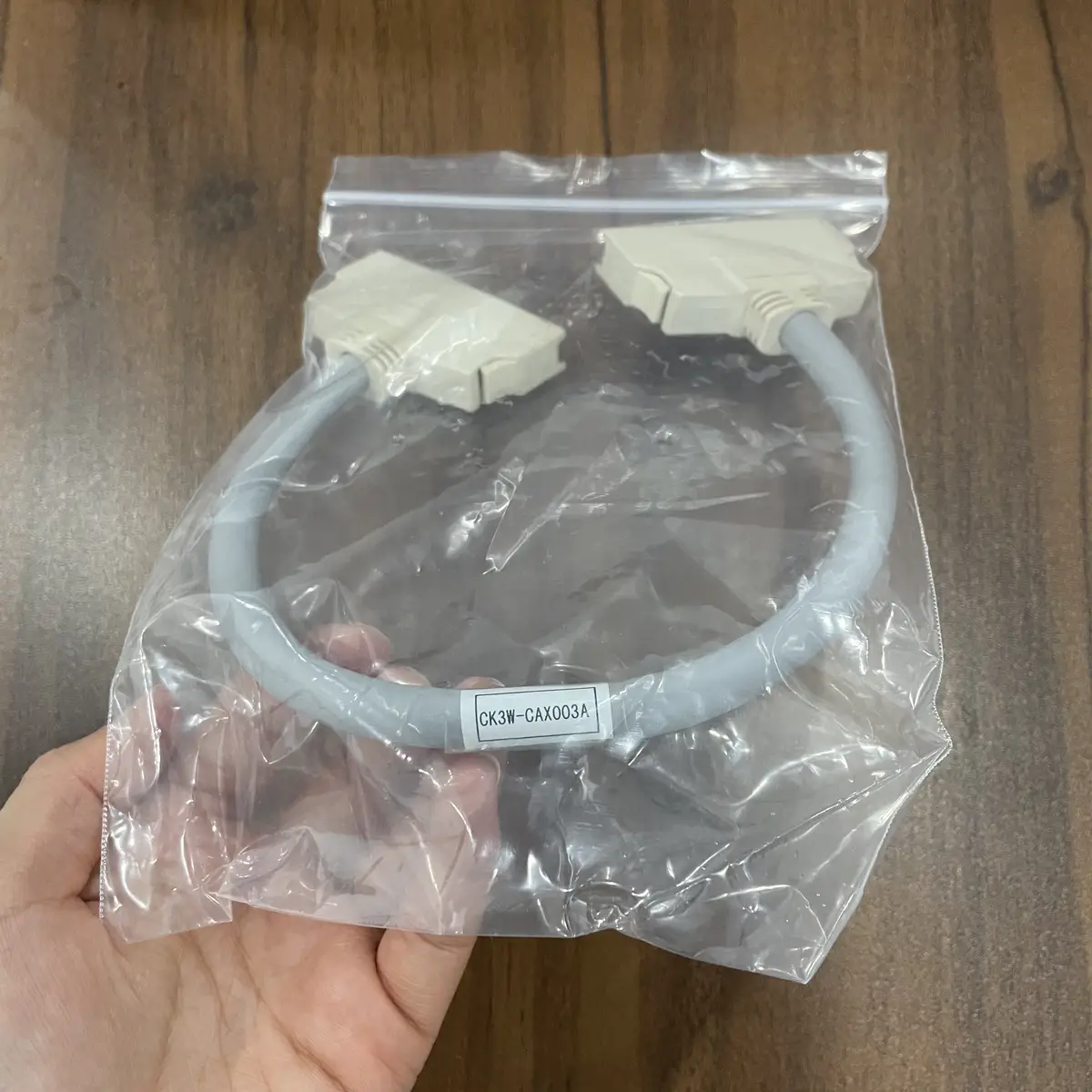

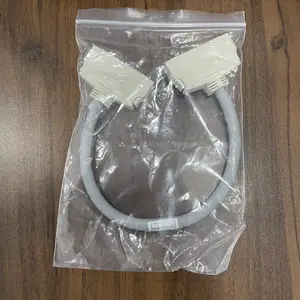

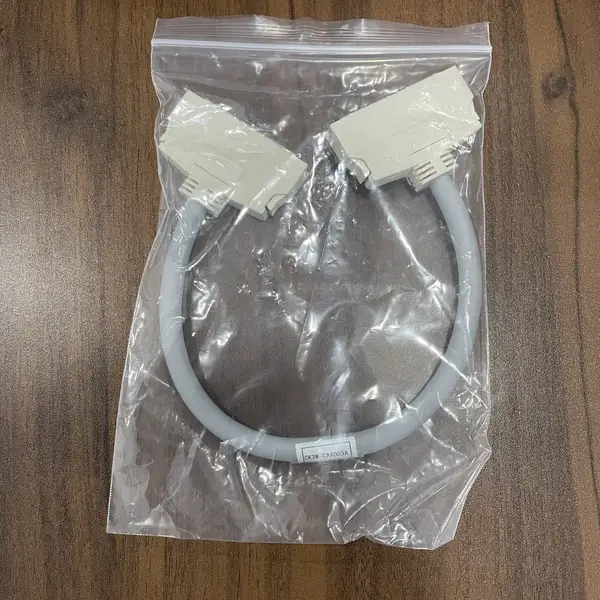

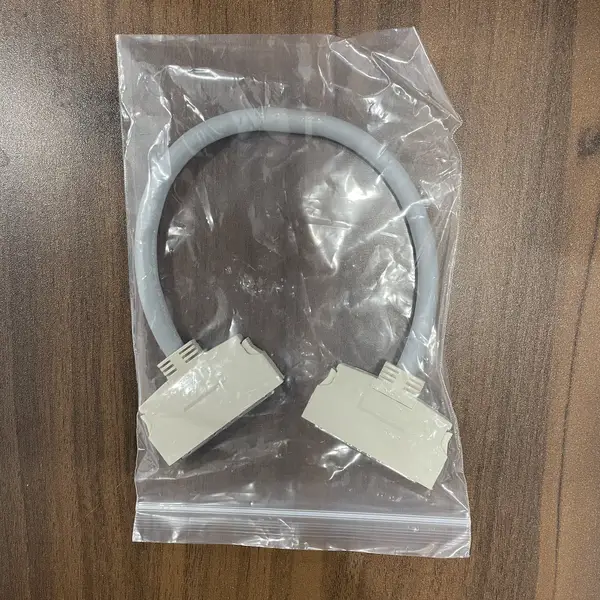

Omron CK3W-CAX003A — 0.3 m Expansion Cable
SKU: CK3W-CAX003AUSD 115.00
Omron CK3W-CAX003A CK3W expansion cable, 0.3 m, links a CK3W-EXM01 Master to a CK3W-EXS02 Slave. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

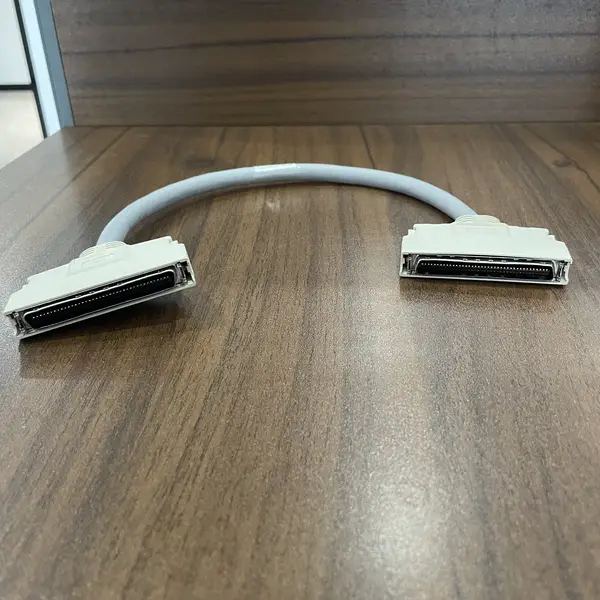

The Omron CK3W-CAX003A is the 0.3 m shielded expansion cable used to link a CK3W-EXM01 Expansion Master Unit to a CK3W-EXS02 Expansion Slave Unit on the second rack of a CK3M-series multi-axis controller, manufactured by Omron Corporation. Hengyixin Automation stocks this I/O expansion unit in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The cable carries the CK bus signal and the 5 VDC supply between the EXM01 and the EXS02, so no separate supply is needed at the slave end. Both ends use the same half-pitch 40-pin connector that drops into the side port of either module. Approximate weight is 150 g and minimum bend radius is 25 mm.
Use one CAX003A per EXS02 slave. The EXM01 supports one slave, which in turn hosts a second rack of CK3W-AX axis-interface and CK3W digital I/O modules. A 1 m variant is not offered - cabinet layouts beyond 0.3 m between racks need a different topology.
Key Features
- CK3W 0.3 m shielded expansion cable for CK3W-EXM01 / CK3W-EXS02 rack link
- Carries CK bus signal and 5 VDC bus power, no separate supply needed at the slave
- Half-pitch 40-pin connectors at both ends, 25 mm minimum bend radius
- Used one-per-EXS02 on the second rack of a CK3M multi-axis controller
- SKU: CK3W-CAX003A
- Series: CK3W expansion cable (CK3M-series multi-axis controller)
Best-Fit Applications
- Extending a CK3M-CPU111 multi-axis controller to a second rack of axis-interface and digital I/O units
- Linking a CK3M-CPU121 8-axis controller to one CK3W-EXS02 slave when the panel layout needs a second DIN row
- Spare replacement on a CK3M retrofit where the original expansion cable failed and the new unit drops onto the same 0.3 m run
Buying Checklist
- Choose the CK3W-CAX003A when the cabinet needs the standard 0.3 m run between a CK3W-EXM01 and a CK3W-EXS02.
- Choose a longer cable from another brand instead only when the rack spacing exceeds 0.3 m and the EXM01 layout allows it.
- Choose a second CK3W-EXM01 instead when the system needs two slaves or a longer total expansion distance than 0.3 m.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | CK3W expansion cable (CK3M-series multi-axis controller) |
| Model / SKU | CK3W-CAX003A |
| Function | Link a CK3W-EXM01 Expansion Master to a CK3W-EXS02 Expansion Slave |
| Cable Length | 0.3 m |
| Connector Type | Half-pitch 40-pin socket at both ends |
| Bus Carried | CK bus signal and 5 VDC bus power |
| Minimum Bend Radius | 25 mm |
| Cable Weight | Approx. 150 g |
| Operating Temperature | 0 to +55 C ambient |
| Humidity | 10 to 95 percent RH, non-condensing |
| Compatible Modules | CK3W-EXM01 (master) and CK3W-EXS02 (slave) only |
FAQ for CK3W-CAX003A
What does the CK3W-CAX003A connect?
It connects one CK3W-EXM01 Expansion Master to one CK3W-EXS02 Expansion Slave on a CK3M multi-axis controller. One cable per slave, because the EXM01 side has a single expansion port and does not support daisy-chaining multiple slaves on the same connector.
Is the CK3W-CAX003A longer than 0.3 m available?
No. Omron only ships the 0.3 m version. For longer rack spacing, move the EXM01 closer to the EXS02 rather than substitute a longer cable, because the CK bus is designed for a short fixed run between the two modules.
Does the CK3W-CAX003A need its own power supply?
No. The cable carries 5 VDC from the EXM01 bus to the EXS02, so the slave is bus-powered and no extra supply is needed at the slave end. The CK3W-PD048 system PSU on the first rack still feeds the EXM01.
Can the CK3W-CAX003A be used with NX102 or NJ controllers?
No. This cable is part of the CK3W expansion system and only fits the CK3W-EXM01 and CK3W-EXS02 modules. NX I/O uses the NX I/O Bus connector on the side of each slice, and NJ-series controllers use CJ1W I/O racks, which are not CAX003A-compatible.
