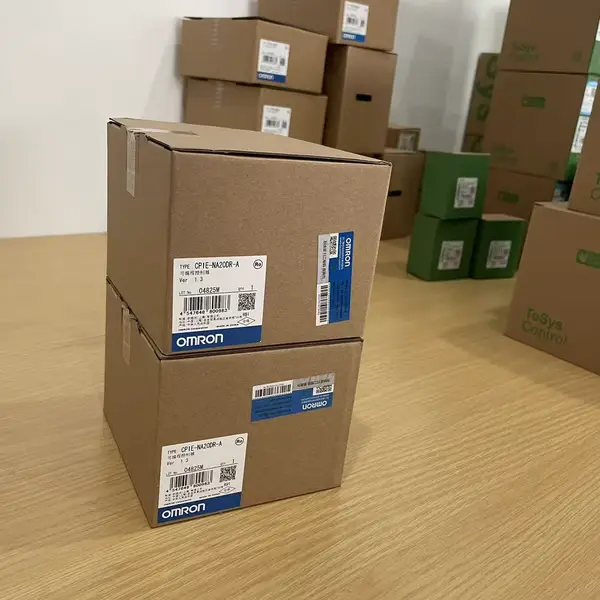

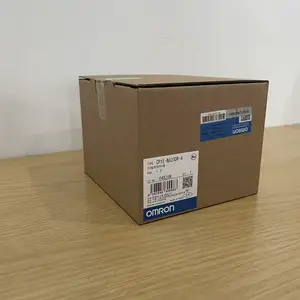

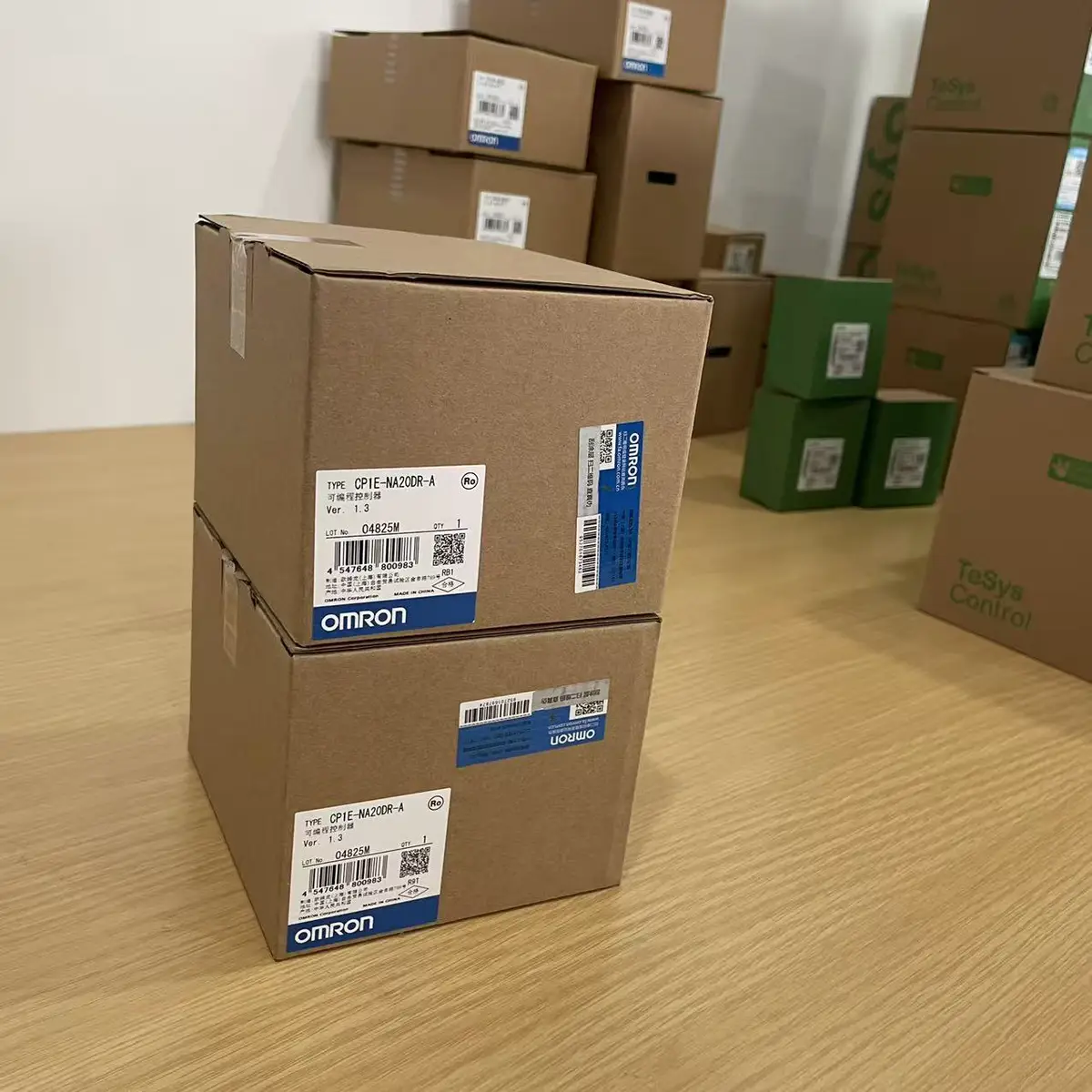

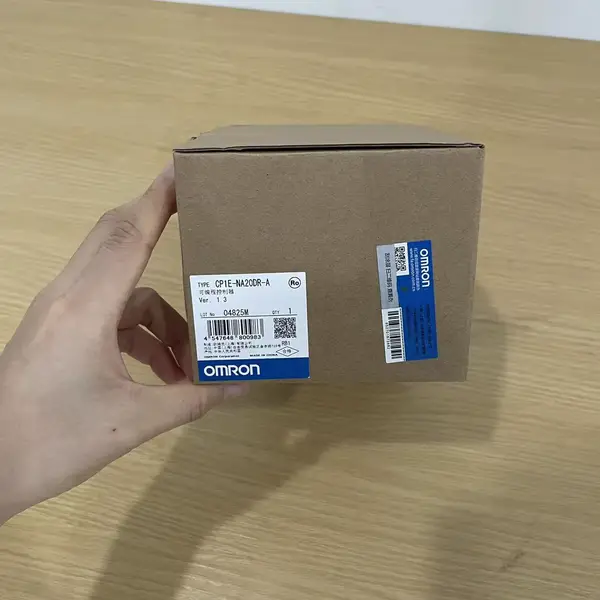

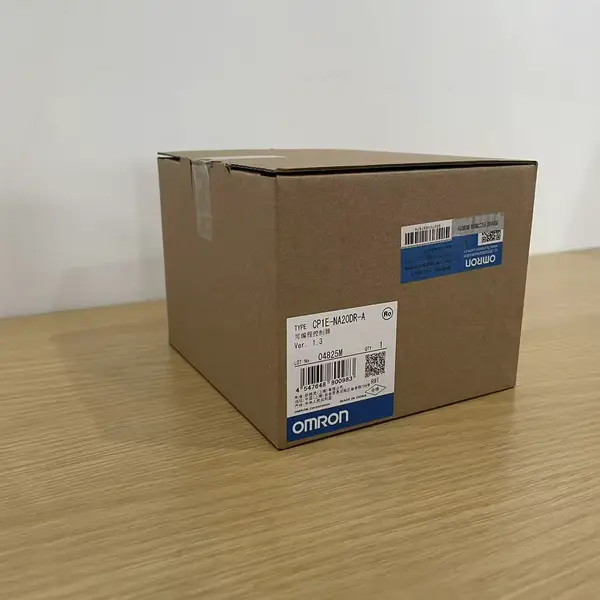

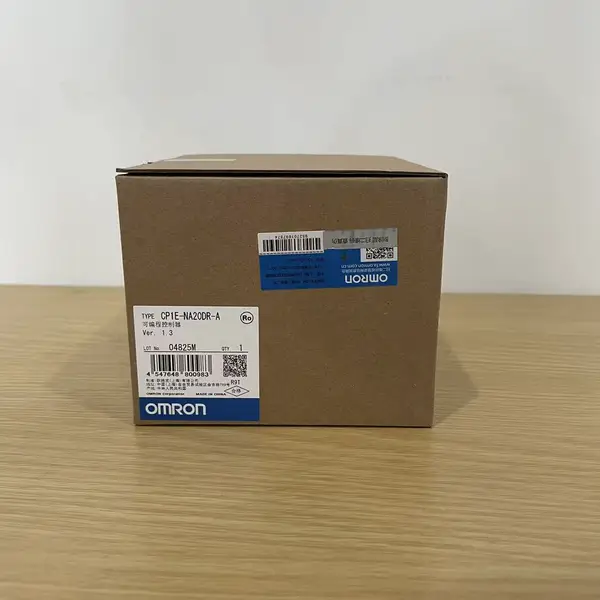

Omron CP1E-NA20DR-A — 20-I/O PLC with Analog, AC
SKU: CP1E-NA20DR-AUSD 170.00
Omron CP1E-NA20DR-A CP1E-NA PLC, 12 DC in / 8 relay out, 2 analog in / 1 analog out, AC supply. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1E-NA20DR-A is a CP1E-NA-series compact PLC with built-in analog I/O, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The CPU has 12 x 24 VDC inputs, 8 x SPST-NO relay outputs at 2 A, 2 built-in analog inputs (0-10 V or 0-20 mA), and 1 built-in analog output (0-10 V or 4-20 mA) at 1/6000 resolution. Power supply is 100 to 240 VAC. Program capacity 8K steps, data memory 8K words, real-time clock built in.
Serial ports are USB Type-B for CX-Programmer and RS-232C for an NS-series HMI. One CP1W option-board slot supports RS-422A / RS-485, RS-232C, or Ethernet. Expansion is up to 3 CP1W units for 140 total I/O. Dimensions 150 x 90 x 85 mm, 660 g. The CP1E-N30DR-A sibling is the 30-I/O version without analog; the CP1E-E20DR-A is the more economical CP1E-E sibling without analog and with a smaller program.
Key Features
- CP1E-NA-series compact PLC with 12 x 24 VDC inputs, 8 x SPST-NO relay outputs at 250 VAC / 2 A, plus 2 analog in / 1 analog out
- 100 to 240 VAC power supply at 50/60 Hz, 85 to 264 VAC operating, 0.30 A external 24 VDC auxiliary supply for sensor power
- 8K-step program capacity, 8K-word data memory, real-time clock, USB Type-B for CX-Programmer, RS-232C for NS-series HMI
- One CP1W option-board slot for RS-422A / RS-485, RS-232C, or Ethernet, expandable up to 3 CP1W units for 140 total I/O points
- SKU: CP1E-NA20DR-A
- Series: Omron CP1E-NA-series compact PLC with built-in analog I/O
- Voltage: 100 TO 240 VAC
- I/O: 2 I/O
Best-Fit Applications
- Standalone control of a parts-cleaning skid where 12 inputs read levels and the 8 relays drive pumps and valves
- Pump-sequencing panel for a water-treatment skid where the real-time clock alternates run-hours and the analog output drives a speed reference
- Spare replacement on a packaging line where the previous CP1E-N30DR-A is upgraded to add analog I/O without changing the wiring
Buying Checklist
- Pick the CP1E-NA20DR-A for a CP1E-NA compact PLC with 20 I/O, built-in analog inputs and output, and 100-240 VAC supply on the same body.
- Pick the CP1E-N30DR-A instead when the application only needs 30 digital I/O and does not need built-in analog I/O.
- Pick the CP1E-E20DR-A instead when the cabinet needs the more economical CP1E-E body without analog I/O and a smaller program.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP1E-NA-series compact PLC with built-in analog I/O |
| Model / SKU | CP1E-NA20DR-A |
| Power Supply | 100 to 240 VAC at 50/60 Hz, 85 to 264 VAC operating, 50 VA max at 100 VAC / 70 VA max at 240 VAC |
| Auxiliary Supply | Built-in 24 VDC external output at 0.30 A for sensor power |
| Digital Inputs | 12 DC inputs, 24 VDC sink/source, 6 configurable as 100 kHz high-speed counter inputs |
| Digital Outputs | 8 SPST-NO relay outputs, 250 VAC at 2 A resistive, 30 VDC at 2 A resistive |
| Analog I/O | 2 analog inputs (0-10 V or 0-20 mA, 1/6000 resolution), 1 analog output (0-10 V or 4-20 mA, 1/6000 resolution) |
| Memory | 8K steps program, 8K words data memory, real-time clock backed by replaceable CR2032 battery |
| Serial Ports | USB Type-B for CX-Programmer; RS-232C for NS-series HMI; one CP1W option-board slot for RS-422A / RS-485, RS-232C, or Ethernet |
| Expansion | Up to 3 CP1W expansion units (CP1W-AD, CP1W-DA, CP1W-MAD, CP1W-TS, CP1W-CIF, CP1W-16ER, CP1W-20EDR, CP1W-40EDR), 140 total I/O points |
| Dimensions / Environment | 150 (W) x 90 (H) x 85 (D) mm, approximately 660 g, IP20, 0 to +55 C operating, 35 mm DIN-rail mount |
FAQ for CP1E-NA20DR-A
What is the Omron CP1E-NA20DR-A used for?
It is the CP1E-NA-series compact PLC with 12 DC inputs, 8 relay outputs, 2 built-in analog inputs, and 1 built-in analog output on a 100-240 VAC supply. It is the typical drop-in for small standalone machines that already have AC mains and need both digital and analog I/O without adding a CP1W expansion unit.
CP1E-NA20DR-A vs CP1E-N30DR-A - what is the difference?
Both are CP1E-N-series compact PLCs with real-time clock, USB, and RS-232C. The NA20DR-A has 12 in / 8 out plus 2 analog in and 1 analog out at 1/6000 resolution. The N30DR-A has 18 in / 12 out, all digital, with no analog I/O. Pick the NA20DR-A when the cabinet reads analog sensors or drives an analog valve; pick the N30DR-A when the I/O is all digital.
Does the CP1E-NA20DR-A have Ethernet?
Not built in. The CP1E-NA20DR-A has USB Type-B for programming plus RS-232C for an NS-series HMI. Ethernet is available through the CP1W-CIF41 option board on the option-board slot. The CP1E-NA20DT-D and CP1W-CIF41 pair is the typical Ethernet drop-in for existing CP1E installs.
How many CP1W expansion units can the CP1E-NA20DR-A take?
Up to 3 CP1W expansion units, taking total I/O to 140 points. Common add-ons are the CP1W-AD041 (4 analog inputs), CP1W-DA041 (4 analog outputs), CP1W-TS001 (2 thermocouple inputs), CP1W-CIF11 (RS-422A / RS-485), and CP1W-40EDR (24 in / 16 relay out). The expansion units chain to the right of the CPU and are auto-detected by CX-Programmer.
Can the CP1E-NA20DR-A read a 4-20 mA pressure transmitter?
Yes. The 2 built-in analog inputs accept either 0-10 V or 0-20 mA, including 4-20 mA. Set the input range to 4-20 mA in the expansion / analog settings dialog in CX-Programmer and scale the raw value to engineering units. Resolution is 1/6000, or about 0.3 percent full scale.
