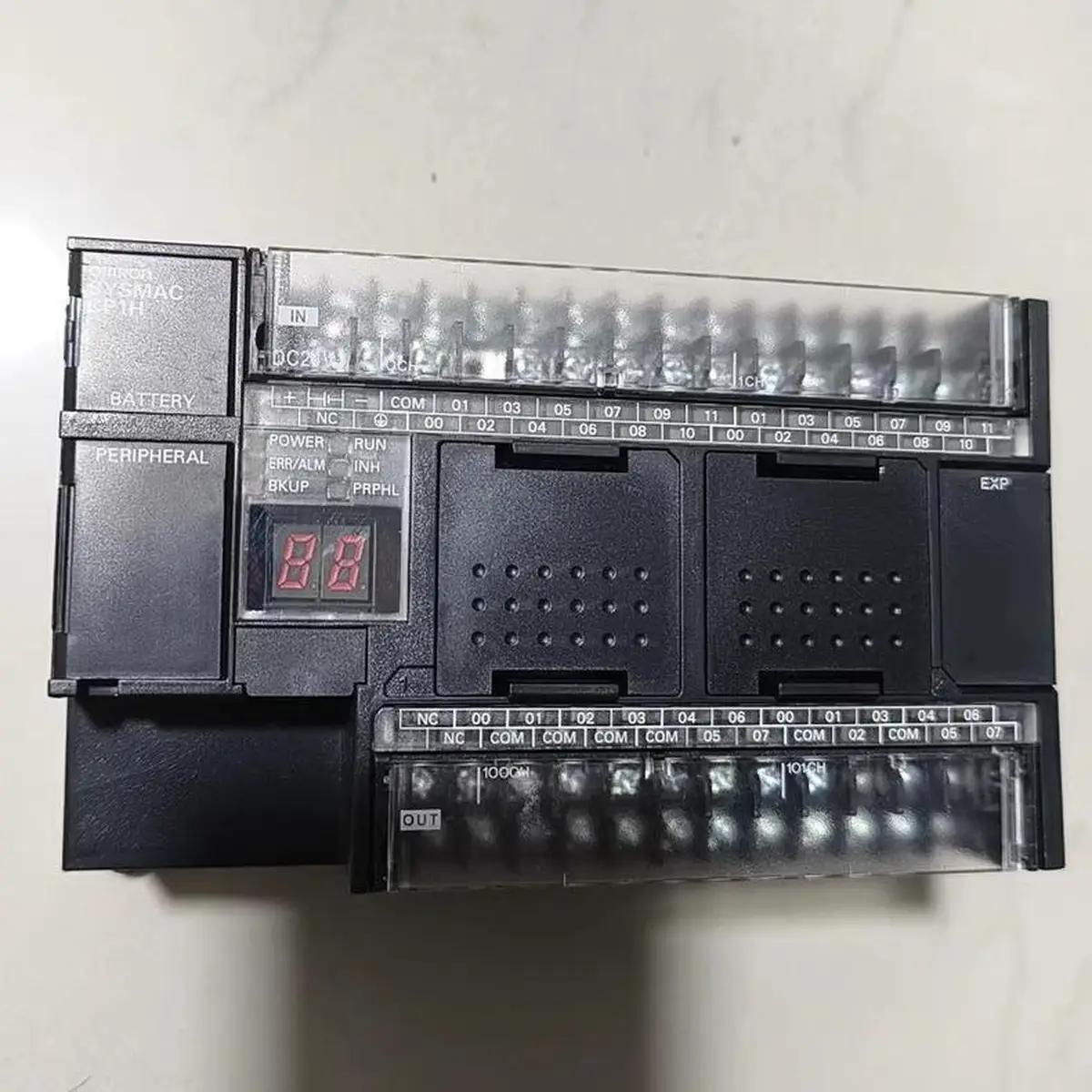

Omron CP1H-X40DT1-D — front view of the CP1H CPU showing the Omron model label, the 24 input terminals on the left, the 16 PNP sourcing transistor output terminals on the right, the USB Type-B programming port and the 24 VDC supply terminals on top

Omron CP1H-X40DT1-D — CP1H CPU, 40 I/O, 24 VDC, PNP

SKU: CP1H-X40DT1-D

USD 230.00

CP1H X40 CPU, 24 DC in / 16 PNP out, 24 VDC, 20K steps, 100 kHz HSC + pulse. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron CP1H-X40DT1-D is a 40-point X-type CPU unit from the CP1H compact PLC family It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

The unit ships with 24 digital inputs (24 VDC, PNP or NPN) and 16 PNP sourcing transistor outputs (0.3 A) on removable terminal blocks. Program capacity is 20K steps and data memory is 32K words.

For NPN sinking transistor outputs, pick the CP1H-X40DT-D. Key specs: Supply Voltage 24 VDC (operating range 20.4 to 26.4 VDC); Digital Inputs 24 x 24 VDC (PNP or NPN); 4 are 100 kHz high-speed counters; Digital Outputs 16 x PNP sourcing transistor, 0.3 A per point; 4 are 100 kHz pulse outputs; Program Capacity 20K steps; Data Memory 32K words; LD Execution Time 0.10 us per basic instruction; Communication Ports USB 2.0 programming + 2 option-board slots; Expansion Up to 7 CP1W expansion units + 2 CJ-series Special I/O via CP1W-EXT01; max 320 I/O.

Key Features

  • CP1H X-type 40-point CPU with 24 DC inputs and 16 PNP sourcing transistor outputs (0.3 A)
  • 20K steps program, 32K words data, 0.10 us LD execution, real-time clock
  • Built-in USB + 2 option-board slots, 4 x 100 kHz HSC + 4 x 100 kHz pulse outputs
  • 24 VDC supply, 7 CP1W expansion units + 2 CJ-series (via CP1W-EXT01), 320 I/O max
  • SKU: CP1H-X40DT1-D
  • Series: Omron CP1H-series X-type compact PLC
  • Voltage: 24 VDC

Best-Fit Applications

  • Multi-axis packaging machine where the four 100 kHz pulse outputs command stepper drives for the indexer and the wrapper flow
  • Existing CP1H cell spare CPU drop-in where the CX-Programmer project loads over USB and the I/O tag mapping stays the same
  • Migration from a CP1L-EM40DT1-D where the program needs the extra 4 axes of pulse output and the 7-slot CP1W expansion rack

Buying Checklist

  • Pick the CP1H-X40DT1-D for a 40-I/O CP1H X-type CPU with 24 VDC supply, PNP sourcing outputs and four 100 kHz HSC + pulse outputs.
  • Pick the CP1H-X40DT-D instead when the field wiring needs NPN sinking transistor outputs on the same 24 VDC body.
  • Pick the CP1H-X40DR-A instead when the cabinet needs relay outputs (2 A) on the same 24 VDC X-type form factor.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron CP1H-series X-type compact PLC
Model / SKU CP1H-X40DT1-D
Supply Voltage 24 VDC (operating range 20.4 to 26.4 VDC)
Digital Inputs 24 x 24 VDC (PNP or NPN); 4 are 100 kHz high-speed counters
Digital Outputs 16 x PNP sourcing transistor, 0.3 A per point; 4 are 100 kHz pulse outputs
Program Capacity 20K steps
Data Memory 32K words
LD Execution Time 0.10 us per basic instruction
Communication Ports USB 2.0 programming + 2 option-board slots
Expansion Up to 7 CP1W expansion units + 2 CJ-series Special I/O via CP1W-EXT01; max 320 I/O
Dimensions / Weight 150 (W) x 90 (H) x 85 (D) mm; 600 g

Manufacturer documentation

Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.

FAQ for CP1H-X40DT1-D

Does the CP1H-X40DT1-D have analog inputs?
No. The CP1H-X is the basic 20K-step CPU. For four analog inputs and two analog outputs on the same 40-I/O form factor, use the CP1H-XA40DR-A / XA40DT-D / XA40DT1-D. For line-driver pulse I/O up to 1 MHz, use the CP1H-Y20DT-D (20 I/O).
Can the CP1H-X40DT1-D host CJ-series Special I/O?
Yes. Add the CP1W-EXT01 CJ Unit Adapter on the expansion bus and the adapter accepts two CJ-series Special I/O or CPU Bus units. The combination extends the total I/O to 320 points and 56 analog channels with option boards.
What option boards does the CP1H-X40DT1-D take?
Two option-board slots take the CP1W-CIF01 (RS-232C), CP1W-CIF11 (RS-422A/485, non-isolated), CP1W-CIF12-V1 (RS-422A/485, isolated) or CP1W-CIF41 (Ethernet). Only one CP1W-CIF41 fits, in slot 1.
How is the CP1H-X40DT1-D different from the CP1H-XA40DT1-D?
The XA adds 4 analog inputs (0 to 10 V, 0 to 5 V, 4 to 20 mA, etc.) and 2 analog outputs on the same 40-I/O form factor. The X is digital-only. Both share the same 20K-step program and 32K-word data memory.
What is the maximum pulse output frequency on the CP1H-X40DT1-D?
100 kHz per axis, 4 axes. Outputs 0 and 1 are the fixed high-speed pair; outputs 2 and 3 share the high-speed counters with outputs 0 and 1 and drop to 30 kHz when used simultaneously.
