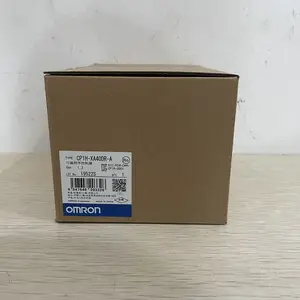

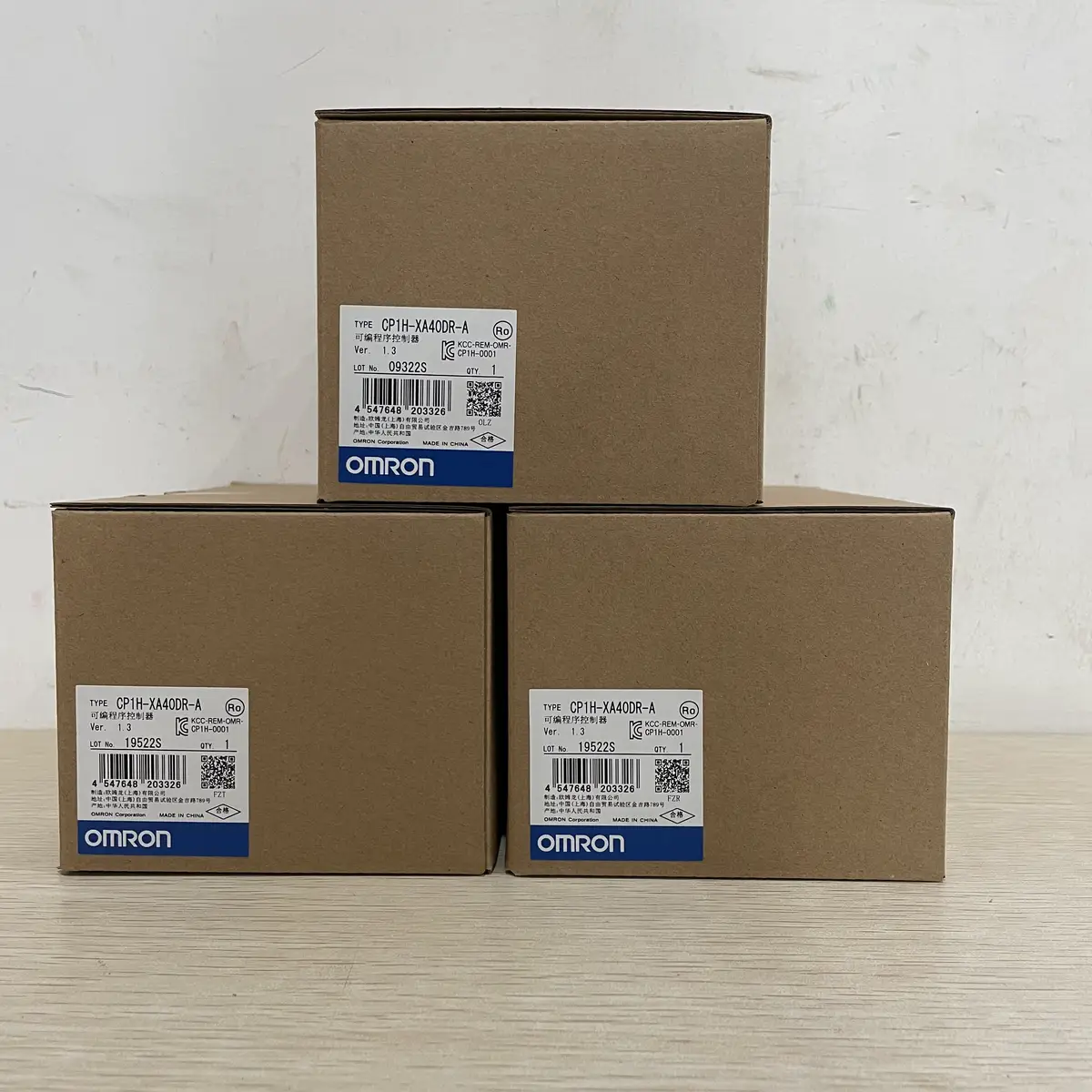

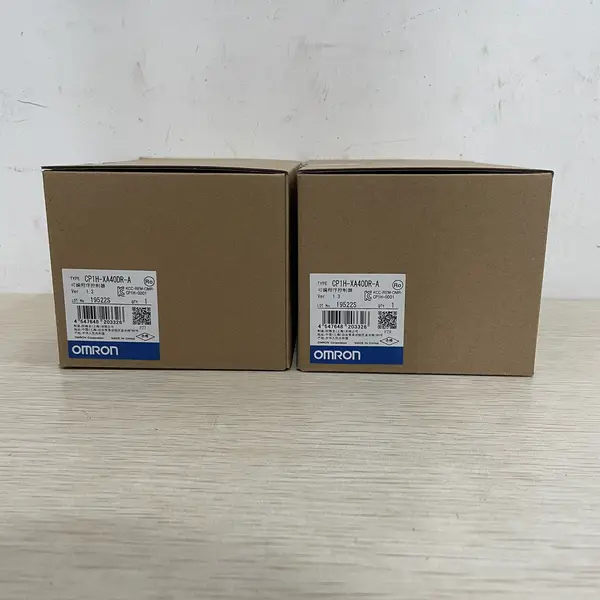

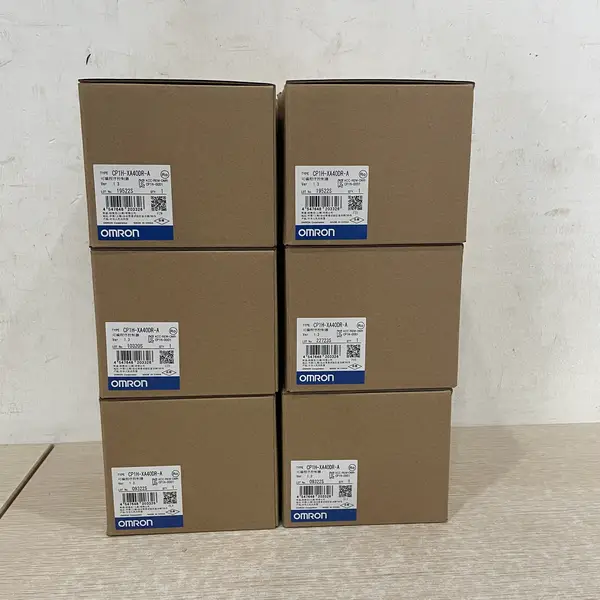

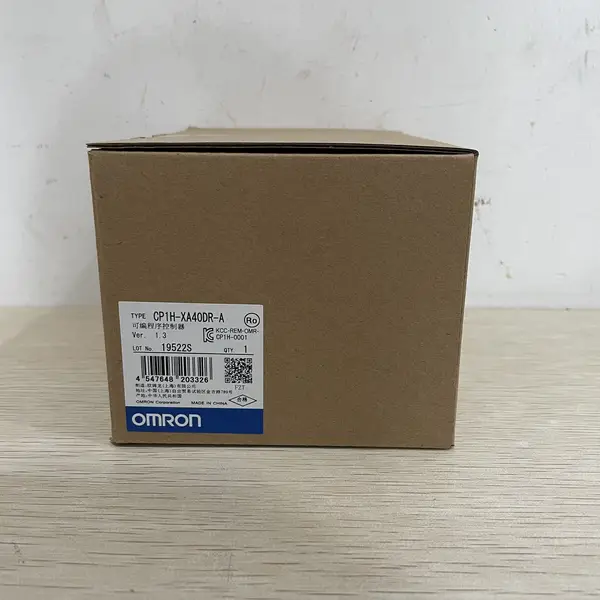

Omron CP1H-XA40DR-A — 40 I/O CPU, Built-in Analog
SKU: CP1H-XA40DR-AUSD 228.00
40-I/O compact PLC, 24 DC in, 16 relay out, 4 analog in, 2 analog out, 100-240 VAC. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1H-XA40DR-A is a CP1H XA-series compact PLC with 40 built-in I/O plus 4 analog inputs and 2 analog outputs It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. The unit runs on 100 to 240 VAC at 50/60 Hz and holds 20K steps of program plus 32K words of data memory. Basic instruction execution is 0.10 us. Up to seven CP1W expansion units extend the rack to 320 local I/O. Key specs: Supply Voltage 100 to 240 VAC, 50/60 Hz; Digital I/O 24 DC inputs (20 digital + 4 dual-mode); 16 outputs (14 relay 2 A + 2 analog); Analog I/O 4 inputs + 2 outputs, 1/6000 or 1/12000, -10 to +10 V or 0 to 20 mA; Program / Data Memory 20K steps program + 32K words data memory; Logic Execution 0.10 us LD basic instruction; battery-free memory backup; Communication USB programming port + 2 option-board slots (RS-232C, RS-422/485, Ethernet); Max Local I/O 320 points via 7 CP1W expansion units + CJ-series units via CP1W-EXT01; Auxiliary Output 24 VDC /.
Key Features
- CP1H XA-series compact PLC with 24 DC in, 16 relay out, plus 4 analog in and 2 analog out
- 20K steps program + 32K words data memory, 0.10 us LD execution
- 4 x 100 kHz high-speed counters and 8 interrupt inputs on the 24 DC inputs
- Two option-board slots for CP1W-CIF01 / CIF11 / CIF12-V1 / CIF41, USB programming
- SKU: CP1H-XA40DR-A
- Series: CP1H XA-series compact PLC with built-in analog I/O
- Voltage: 100 TO 240 VAC
- I/O: 24 I/O
Best-Fit Applications
- Retrofit of older C200H or CQM1H panels where the XA replaces a discrete CPU plus CP1W-ADB21 analog input board
- Process skid where the 4 AI and 2 AO replace a separate CP1W-MAD44 module and the 20K steps handle the batch recipe directly
- Small packaging line with mixed digital I/O and 4 analog inputs from pressure or level sensors on the same CPU
Buying Checklist
- Choose the CP1H-XA40DR-A when the panel needs both analog and digital I/O on one AC-powered 40-I/O CPU with 20K steps.
- Choose the CP1H-X40DR-A instead when no analog I/O is required and the cabinet already has a separate CP1W-AD042.
- Choose the CP1H-XA40DT-D instead when the supply is 24 VDC and the loads are NPN-transistor instead of relay.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | CP1H XA-series compact PLC with built-in analog I/O |
| Model / SKU | CP1H-XA40DR-A |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz |
| Digital I/O | 24 DC inputs (20 digital + 4 dual-mode); 16 outputs (14 relay 2 A + 2 analog) |
| Analog I/O | 4 inputs + 2 outputs, 1/6000 or 1/12000, -10 to +10 V or 0 to 20 mA |
| Program / Data Memory | 20K steps program + 32K words data memory |
| Logic Execution | 0.10 us LD basic instruction; battery-free memory backup |
| Communication | USB programming port + 2 option-board slots (RS-232C, RS-422/485, Ethernet) |
| Max Local I/O | 320 points via 7 CP1W expansion units + CJ-series units via CP1W-EXT01 |
| Auxiliary Output | 24 VDC / 300 mA built-in sensor supply |
| Dimensions / Weight | 150 x 90 x 85 mm, 750 g; 0 to 55 C operating |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP1H-XA40DR-A
What is the difference between CP1H-XA40DR-A and CP1H-X40DR-A?
Both are CP1H CPUs with 24 DC inputs, 16 outputs, 20K steps and 100 to 240 VAC supply. The XA adds 4 analog inputs and 2 analog outputs at 1/6000 or 1/12000 resolution on the same body. The X is digital only. Pick the XA when the cabinet needs analog and digital on one CPU; pick the X when analog I/O lives on a separate CP1W-AD042.
Does the CP1H-XA40DR-A have built-in Ethernet?
No - the built-in port is USB only for programming. To add Ethernet, fit the CP1W-CIF41 option board in one of the two option-board slots. For EtherNet/IP and tag-data links to NJ / NX controllers, the CIF41 provides the standard FINS / EtherNet/IP stack at 10/100 Mbps. EtherCAT is not supported on the CP1H.
How many CP1W expansion units can the CP1H-XA40DR-A host?
Up to seven CP1W expansion units plus two CJ-series Special I/O or CPU Bus units via the CP1W-EXT01 adapter. Total local I/O is up to 320 points. For most small machines, the seven CP1W slots are enough without the EXT01 adapter.
What programming software does the CP1H-XA40DR-A use?
CX-Programmer 6.1 or later, normally supplied as part of CX-One or CX-One Lite. The project uploads over the USB peripheral port using a standard USB-A to USB-B cable. The same CX-Programmer version supports the CP1L, CP1E and CP2E families on a single install.
