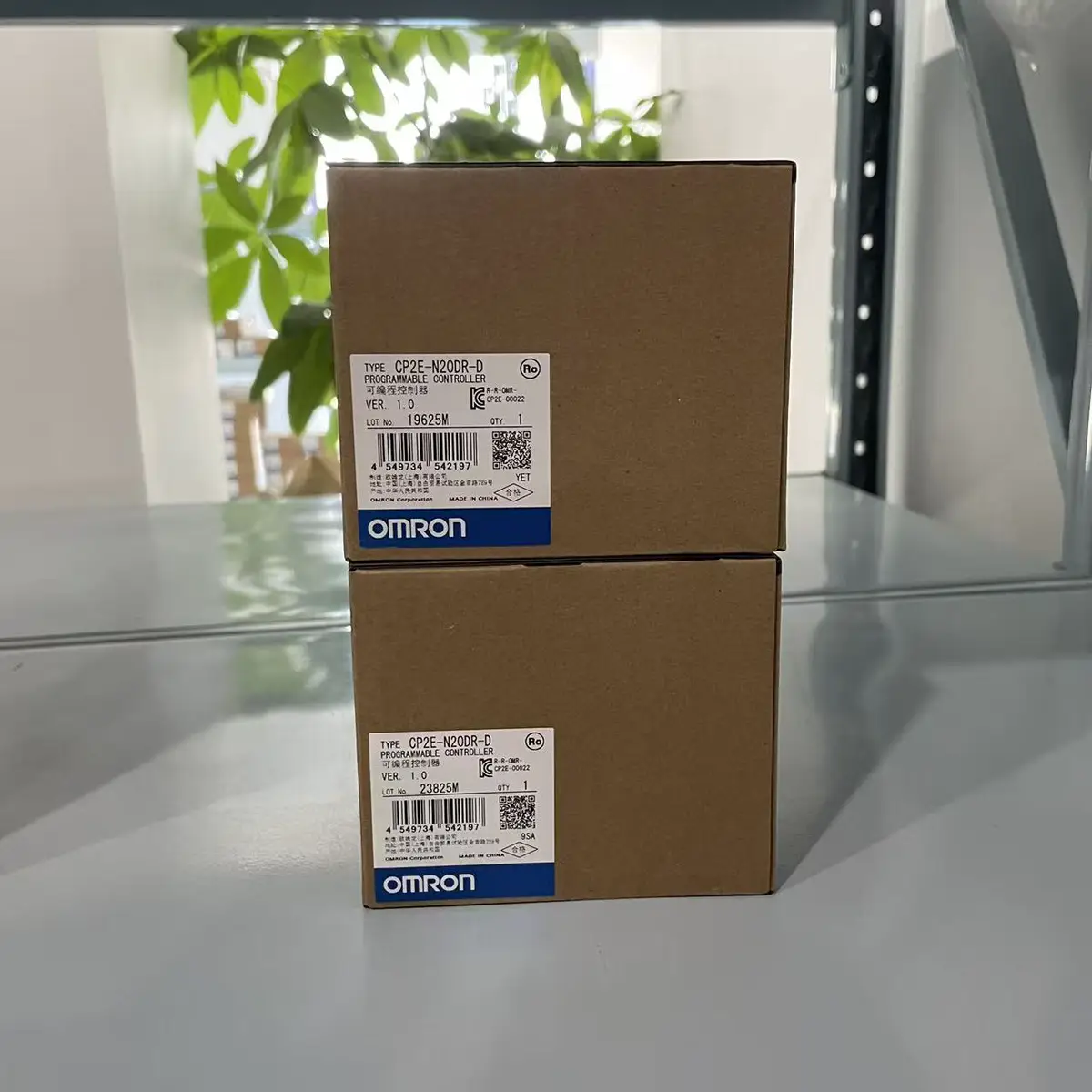

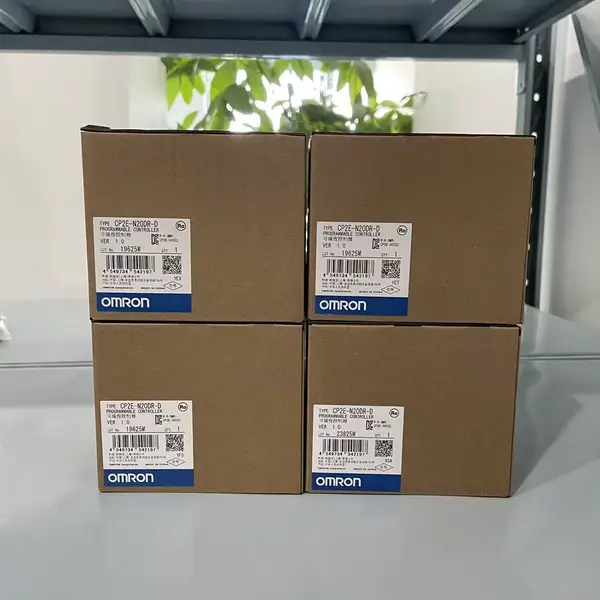

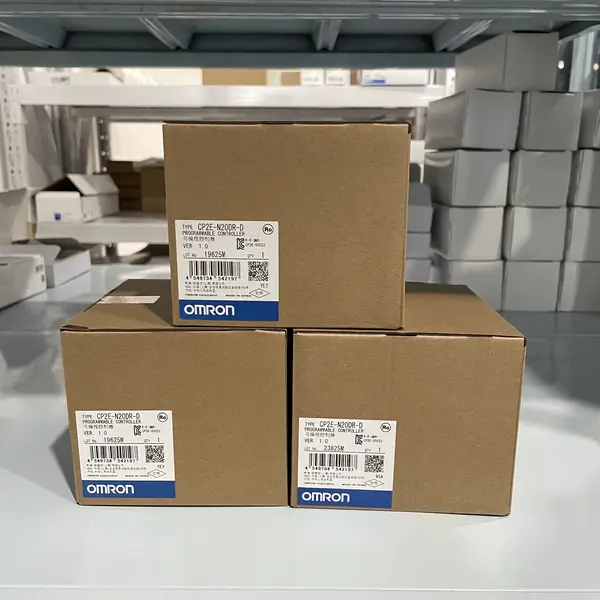

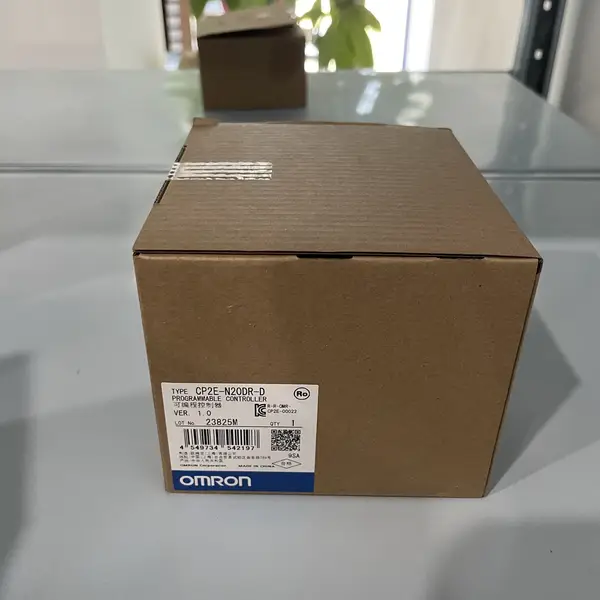

Omron CP2E-N20DR-D — Compact PLC, 12 DI / 8 DO Relay, 24 VDC
SKU: CP2E-N20DR-DUSD 84.00
CP2E Network compact PLC, 20 I/O (12 DC inputs + 8 relay outputs), 1 Ethernet port, 24 VDC, 10K steps program memory, no USB.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The CP2E-N20DR-D is the smallest member of the CP2E Network series — a 20-point compact PLC with 12 DC inputs, 8 relay outputs, 24 VDC supply, and a built-in Ethernet port. It suits small machines that need network communication (Modbus/TCP, FINS/TCP, or Host Link over Ethernet) without the cost of a CJ-series PLC. The relay outputs can switch up to 2 A at 250 VAC, so they drive small motor contactor coils directly without an interposing relay.
What you get out of the box
The CP2E-N20DR-D has 10K steps of program memory, 16K words of data memory, and one Ethernet port on the front face. There is no USB port on this SKU — programming goes through Ethernet with CX-Programmer. If you need USB on a Network-tier CPU, step up to the 30-point CP2E-N30DR-D. You can add a serial port via a CP2W-CIFD1 (RS-232C) or CP2W-CIFD2 (RS-422/485) option board, plus one CP1W expansion unit on the right side for up to 32 total I/O points. The DIN-rail mount fits a standard 86 × 90 mm panel footprint.
Family placement
The CP2E family has three tiers. The CP2E-N (Network) is the most capable — it adds Ethernet and (on N40/N60) 4-axis linear interpolation. The CP2E-S (Standard) drops Ethernet for lower cost. The CP2E-E (Essential) drops further for the lowest cost. Within the Network tier, sizes go N20, N30, N40, N60. Pick the N20DR-D (this SKU) for the smallest Ethernet PLC; pick larger sizes for more I/O or 4-axis interpolation.
Before ordering or installing
Confirm you have a Network-tier need — if Ethernet is not required, the CP2E-S20DR-D is cheaper. If a USB programming port is required, step up to the CP2E-N30DR-D. Plan one slot each for the optional CP2W serial or analog board on the front and one CP1W expansion unit on the right.
Key Features
- 20 I/O points: 12 DC inputs + 8 relay outputs
- Built-in 10/100 Base-TX Ethernet port
- 24 VDC supply
- 10K steps program memory
- No USB port — programming is via Ethernet
- Option board slot for serial or analog
- Up to 32 I/O with one CP1W expansion unit
- Operating temperature -20 to +60 °C
- Battery-free operation (optional CP2W-BAT02 backup)
- SKU: CP2E-N20DR-D
- Series: CP2E (Network tier)
- Voltage: 24 VDC
- I/O: 20 I/O
Best-Fit Applications
- Small packaging machine with Modbus/TCP SCADA
- Standalone temperature-control panel with NA5 HMI over Ethernet
- Pump or HVAC sub-panel slaved to an upstream CJ2M
- Cost-sensitive retrofit replacing a legacy E5CN controller
Buying Checklist
- Pick CP2E-N20DR-D for 20-pt Network DC PLC (this SKU)
- Pick CP2E-S20DR-D if Ethernet is not needed
- Pick CP2E-N30DR-D if USB programming is needed
- Pick CP2E-N60DT1-D for 60-pt PNP outputs
- Add CP2W-CIFD1 for RS-232C, CP2W-BAT02 for backup memory
Technical Specifications
| Model | CP2E-N20DR-D |
|---|---|
| Series | CP2E (Network tier) |
| I/O Points | 20 (12 DC inputs + 8 relay outputs) |
| Supply Voltage | 24 VDC |
| Ethernet | 1 × 10/100 Base-TX (Host Link / FINS/TCP / Modbus/TCP) |
| USB | None on this SKU |
| Serial Ports | None built-in (add CP2W-CIFD1 or CIFD2 option board) |
| Program Capacity | 10K steps |
| Expansion | 1 × CP1W unit on the right side, 1 × CP2W option board on the front |
| Battery Backup | Optional CP2W-BAT02 |
| Operating Temperature | -20 to +60 °C |
Resources & Downloads
FAQ for CP2E-N20DR-D
How many Ethernet ports does it have?
One. Although the Network tier typically suggests two, the N20 size ships with a single 10/100 Base-TX port. Larger CP2E-N sizes (N30, N40, N60) typically have two ports with an internal switch for panel daisy-chain. If a quote lists N20 as 'dual Ethernet', it is confusing N20 with N30.
Does it have a USB programming port?
No. Programming goes through Ethernet using CX-Programmer. If you need USB on a 20-point CP2E, there is no current option — step up to the 30-point CP2E-N30DR-D, which has a built-in peripheral USB 2.0 Type-B port. Or add a CP2W-CIFD1 RS-232C option board and program over serial Host Link at 115.2 kbps.
What expansion can I add?
Two slots total: one CP1W unit on the right (for example, CP1W-16ER for 16 extra relay outputs or CP1W-20EDR1 for 12 in / 8 out) for up to 32 total I/O, and one CP2W option board on the front (CP2W-CIFD1 for RS-232C, CP2W-CIFD2 for RS-422/485, or CP2W-AD/DA for analog). The analog option board and a CP1W analog unit cannot both be used at the same time.
What battery does it need?
None for basic operation. The program is stored in non-volatile memory, so a power cycle does not lose it. The optional CP2W-BAT02 backup battery is only needed to retain the DM area, retained CIO words, counter values, and real-time clock when the supply is removed. If you never need retained data, you can leave the battery slot empty.
