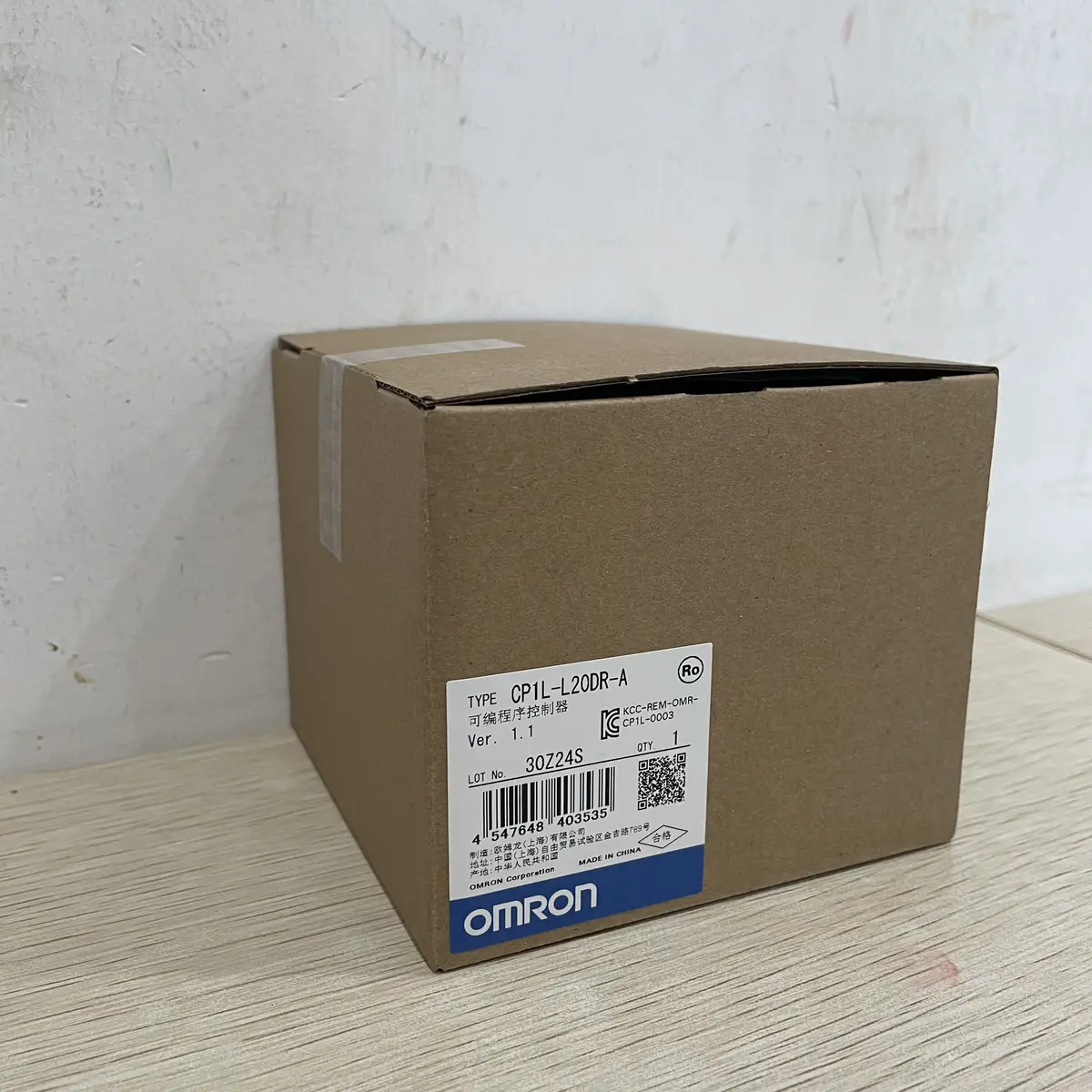

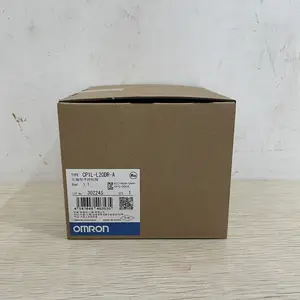

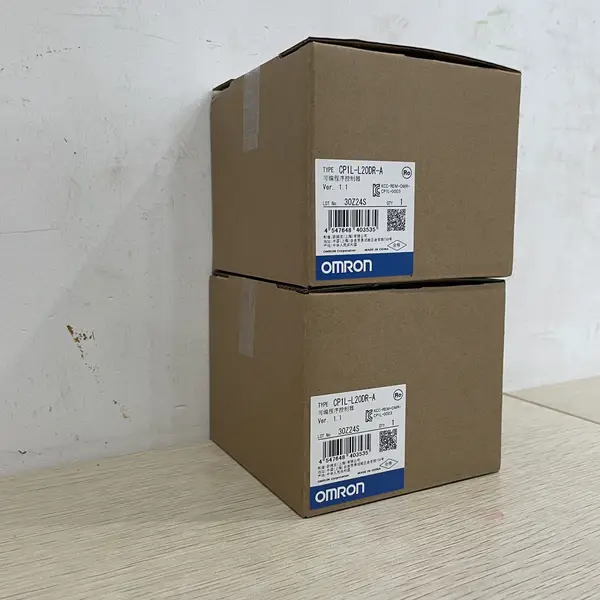

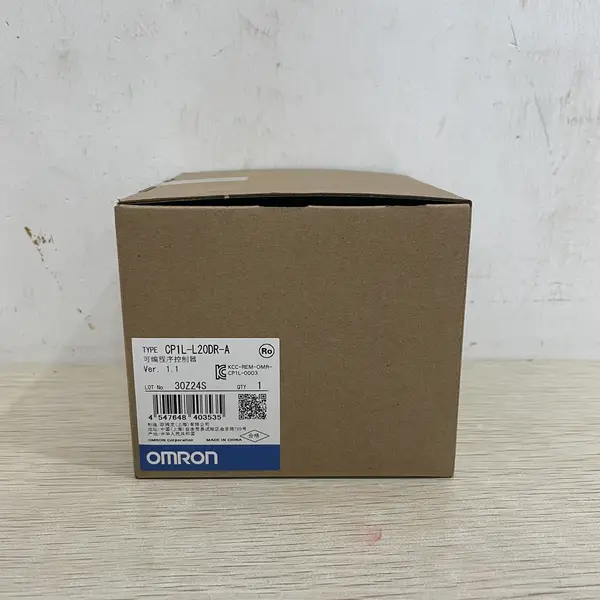

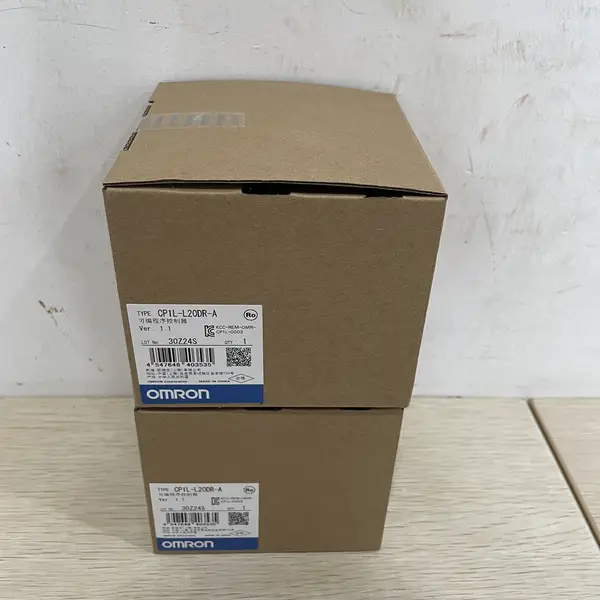

Omron CP1L-L20DR-A — CP1L CPU, 20 I/O, Relay, AC
SKU: CP1L-L20DR-AUSD 151.00
CP1L CPU, 12 in / 8 relay out, 100-240 VAC, 5K steps, USB + option slot. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1L-L20DR-A is an L-type basic CPU unit from the CP1L compact PLC family It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The unit ships with 12 digital inputs (24 VDC) and 8 relay outputs (2 A) on a 20-point terminal block. Program capacity is 5K steps and data memory is 10K words.
The body is 86 x 90 x 85 mm, IP20, DIN-rail mounted. Key specs: Supply Voltage 100 to 240 VAC, 50/60 Hz; Digital Inputs 12 x 24 VDC; 4 double as 100 kHz high-speed counters; Digital Outputs 8 x relay, 250 VAC 2 A resistive; Program Capacity 5K steps; Data Memory 10K words; LD Execution Time 0.55 us per basic instruction; Built-in Ports USB 2.0 B-type (programming); 1 option-board slot; Expansion / Aux Output 1 CP1W expansion unit (up to 60 I/O); 200 mA aux 24 VDC.
Key Features
- CP1L-L basic CPU with 12 digital inputs and 8 relay outputs (2 A)
- 5K steps program, 10K words data, 0.55 us LD execution, 100 kHz high-speed counter on 4 inputs
- Built-in USB plus option-board slot for RS-232C, RS-485 or Ethernet
- 100 to 240 VAC supply, real-time clock, 200 mA aux 24 VDC, 1 CP1W expansion unit
- SKU: CP1L-L20DR-A
- Series: Omron CP1L-series L-type compact PLC
- Voltage: 100 TO 240 VAC
Best-Fit Applications
- Compact machine controller where the 4 high-speed counter inputs read an E6B2-CWZ6C 2000P-R encoder and the 8 relays drive solenoid valves
- Standalone cell with an NB5Q-TW01B-V1 HMI over RS-232C where the option slot takes a CP1W-CIF01 board and the cabinet runs on AC supply
- Spare CPU drop-in for an existing CP1L cell where the previous CP1L-L20DR-A failed and the field wiring is AC supply with relay outputs
Buying Checklist
- Pick the CP1L-L20DR-A for a 20 I/O CP1L CPU with relay outputs and an AC supply.
- Pick the CP1L-L20DT-D instead when the panel needs 24 VDC supply and NPN transistor outputs instead of relays.
- Pick the CP2E-N20DR-A instead when the cabinet needs a current-production CPU with the same 20 I/O footprint.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP1L-series L-type compact PLC |
| Model / SKU | CP1L-L20DR-A |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz |
| Digital Inputs | 12 x 24 VDC; 4 double as 100 kHz high-speed counters |
| Digital Outputs | 8 x relay, 250 VAC 2 A resistive |
| Program Capacity | 5K steps |
| Data Memory | 10K words |
| LD Execution Time | 0.55 us per basic instruction |
| Built-in Ports | USB 2.0 B-type (programming); 1 option-board slot |
| Expansion / Aux Output | 1 CP1W expansion unit (up to 60 I/O); 200 mA aux 24 VDC |
| Dimensions (W x H x D) | 86 × 90 × 85 mm; approx. 380 g; IP20 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP1L-L20DR-A
When does production of the CP1L-L20DR-A end?
Omron has announced that production of the CP1L-L20DR-A is planned to end on 2027-03-31. Spare stock is sold through that date and the unit is supported after. For a current-production alternative, use the CP2E-N20DR-A.
What option boards fit the CP1L-L20DR-A?
The CP1L option slot takes one board at a time: CP1W-CIF01 (RS-232C), CP1W-CIF11 (RS-422A/485 non-isolated), CP1W-CIF12-V1 (RS-422A/485 isolated) or CP1W-CIF41 (Ethernet). The board plugs into the top of the CPU; no wiring changes are needed.
Can the CP1L-L20DR-A read a 100 kHz encoder?
Yes. Inputs 0, 1, 2 and 3 double as 100 kHz high-speed counters, so the L20 can read a 2000 P/R encoder such as the E6B2-CWZ6C 2000P-R at up to 3000 r/min without losing counts.
What replaces a failed CP1L-L20DR-A?
A second CP1L-L20DR-A with the same firmware is a direct drop-in. For a current-production alternative, the CP2E-N20DR-A matches the 20 I/O footprint and AC supply.
