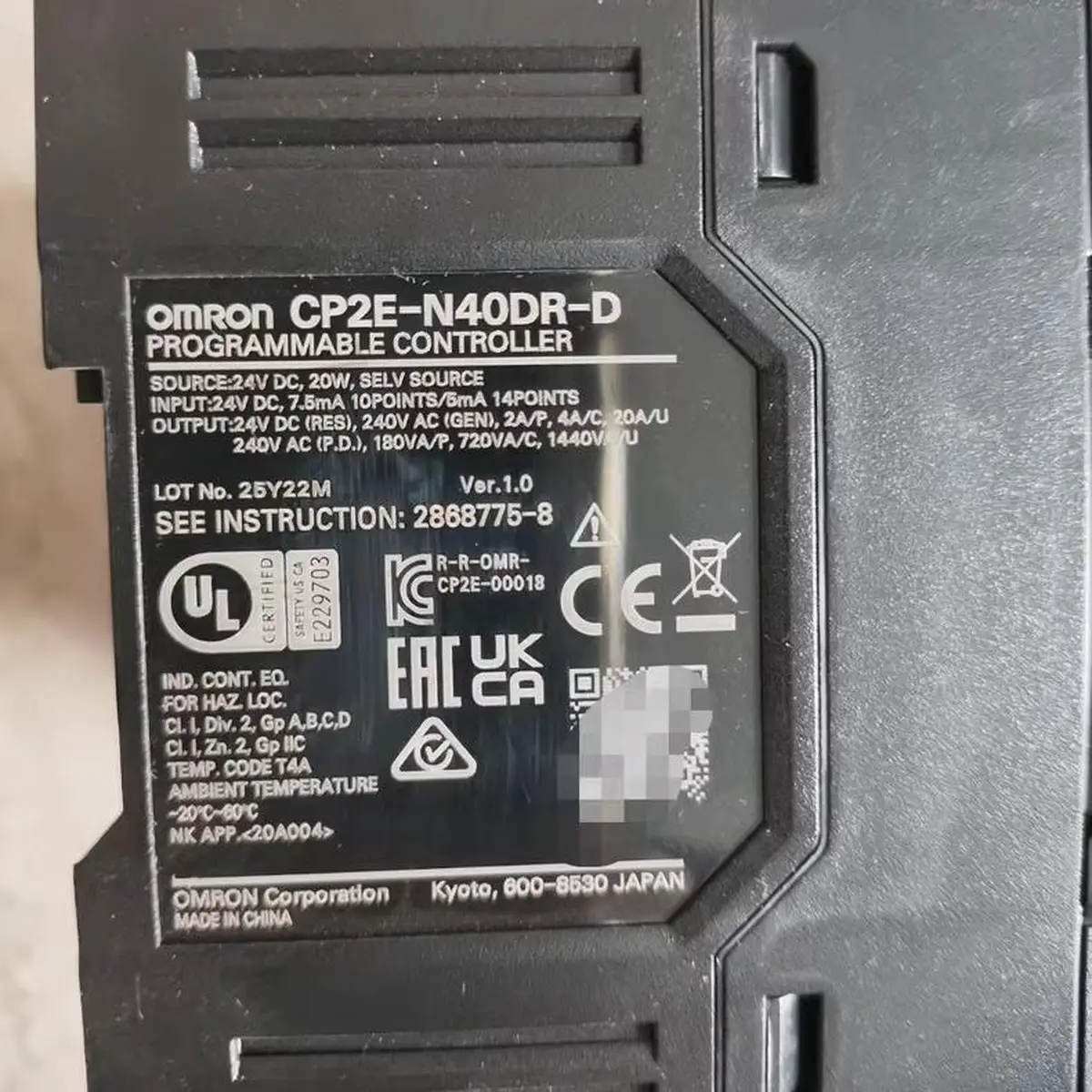

Omron CP2E-N40DR-D — 40-I/O PLC, Relay, Ethernet
SKU: CP2E-N40DR-DUSD 165.00
Omron CP2E-N40DR-D CP2E compact PLC, 24 inputs, 16 relay outputs, 24 VDC, dual Ethernet. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP2E-N40DR-D is a compact DC-powered PLC from the CP2E N-series, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The unit ships with 24 DC inputs and 16 relay outputs on a 24 VDC supply. Each relay switches up to 2 A per point and 4 A per common. Program capacity is 10 K steps plus 10 K steps of FB capacity, data memory 16 K words, logic execution 0.23 us. Two Ethernet sockets form a built-in switching hub - serial or USB needs an option board.
High-speed counters cover 100 kHz on three counters single-phase or 50 kHz on two counters differential. RS-232C and RS-485 come through a CP2W-CIFD2 or CP1W-CIF01 option board. Function block programming, real-time clock, optional CP2W-BAT02 battery backup. Up to three CP1W expansion units add 160 max local I/O. Operating range -20 to 60 C. For transistor outputs in the same body pick the CP2E-N40DT-D.
Key Features
- CP2E N-series compact PLC, 24 DC inputs / 16 relay outputs (2 A per point), 24 VDC supply (20.4 to 26.4 VDC)
- 10 K-step program, 16 K-word data memory, 0.23 us logic execution, function block programming
- 2 built-in 100BASE-TX Ethernet ports with switching hub (Auto-MDIX), FINS, Modbus/TCP, Socket
- 6 high-speed counters at 100 kHz single-phase, optional CP2W-BAT02 battery backup, -20 to 60 C operating
- SKU: CP2E-N40DR-D
- Series: Omron CP2E N-series compact PLC with Ethernet
- Voltage: 24 VDC
Best-Fit Applications
- Multi-vendor line where the dual Ethernet hub daisy-chains the CP2E to a SCADA and an HMI without an external switch
- HVAC pump-station PLC where 16 relay outputs switch contactors for 4 fans, 2 chillers, and 10 auxiliary signals
- Spare replacement on a packaging machine that needs more I/O than CP1L provides but does not warrant a CJ2M rack
Buying Checklist
- Pick the CP2E-N40DR-D for a 40-I/O DC-powered CP2E PLC with 16 relay outputs and 2 built-in Ethernet ports.
- Pick the CP2E-N40DT-D instead when the panel needs 16 sourcing transistor outputs rather than relays.
- Pick the CP2E-S40DR-D instead when the application needs a basic CPU without Ethernet.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP2E N-series compact PLC with Ethernet |
| Model / SKU | CP2E-N40DR-D |
| Power Supply | 24 VDC (20.4 to 26.4 VDC), 20 W max |
| Inputs / Outputs | 24 DC inputs / 16 relay outputs |
| Output Current | 2 A per point / 4 A per common (250 VAC / 24 VDC resistive) |
| Program Capacity | 10 K steps program + 10 K steps FB, 16 K-word data memory |
| Built-In Ports | 2 Ethernet 100BASE-TX / 10BASE-T switching hub (no USB / serial) |
| High-Speed Counters | 3 counters 100 kHz single-phase, 2 counters 50 kHz differential |
| Communication Option | CP2W-CIFD2 (RS-232C + RS-485) or CP1W-CIF01 / CP1W-CIF11 / CP1W-CIF12-V1 |
| Expansion | Up to 3 CP1W expansion units, 160 max I/O points |
| Dimensions / Weight | 150 (W) x 90 (H) x 80 (D) mm, 640 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP2E-N40DR-D
Does the CP2E-N40DR-D have built-in USB?
No. The CP2E-N40DR-D ships with 2 Ethernet ports and no USB or serial. Programming is done over Ethernet with CX-Programmer, or via a CP2W-CIFD2 option board (RS-232C + RS-485) when a serial port is required.
CP2E-N40DR-D vs CP2E-N40DT-D - what is the difference?
DR means 16 relay outputs (2 A per point, 250 VAC). DT means 16 sourcing transistor outputs (0.5 A per point, 24 VDC). Pick DR for switching AC contactors or mixed-voltage loads, and DT for direct-driving 24 VDC solenoids or relays.
What option board adds RS-485 to the CP2E-N40DR-D?
The CP2W-CIFD2 adds 1 RS-232C + 1 RS-485 port in a single board. CP1W-CIF11 and CP1W-CIF12-V1 from the CP1 series also fit in the CP2E option slot for RS-422A / RS-485 only.
What is the operating temperature of the CP2E-N40DR-D?
-20 to 60 C. This wider range than CP1L (0 to 55 C) makes the CP2E suitable for outdoor cabinets and unconditioned factory spaces. Storage -20 to 75 C.
