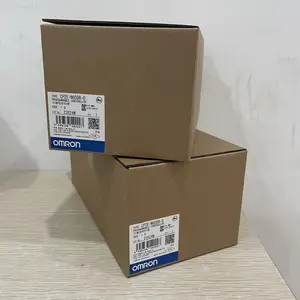

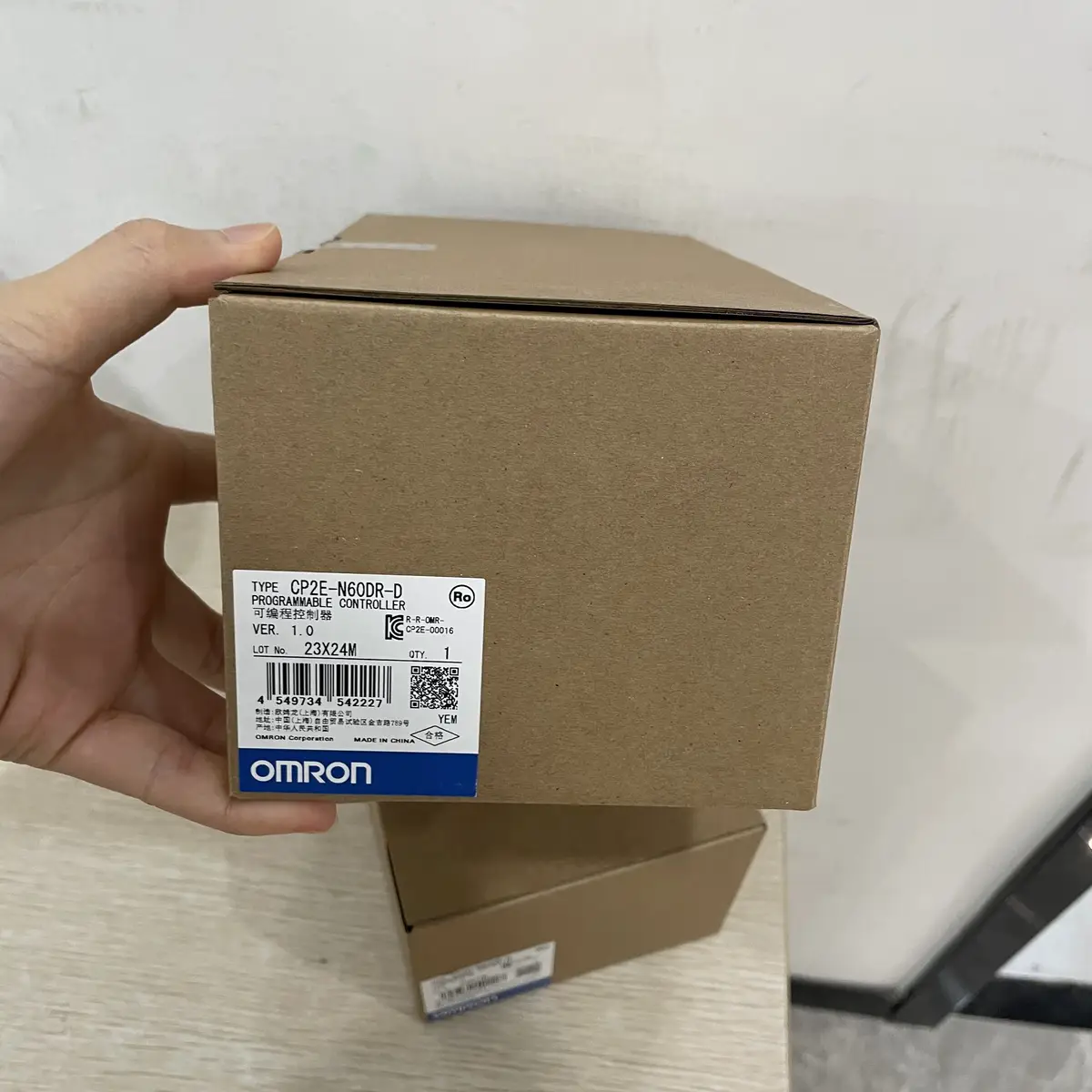

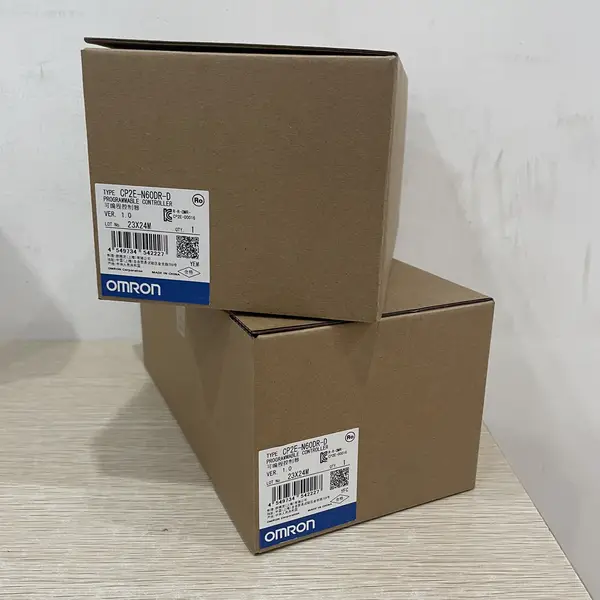

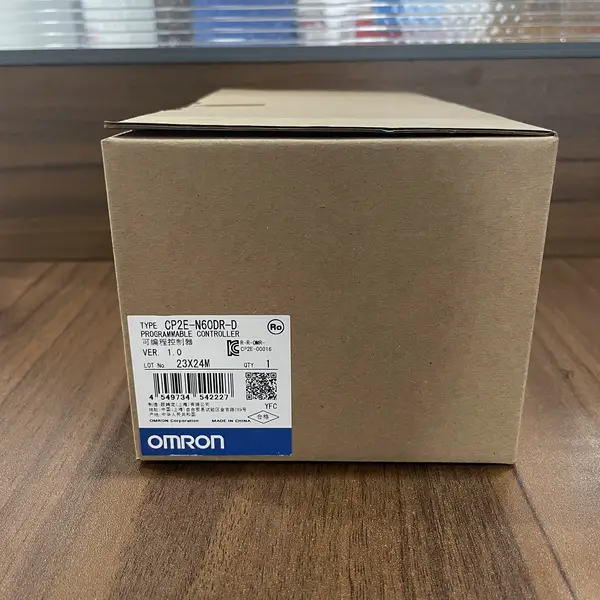

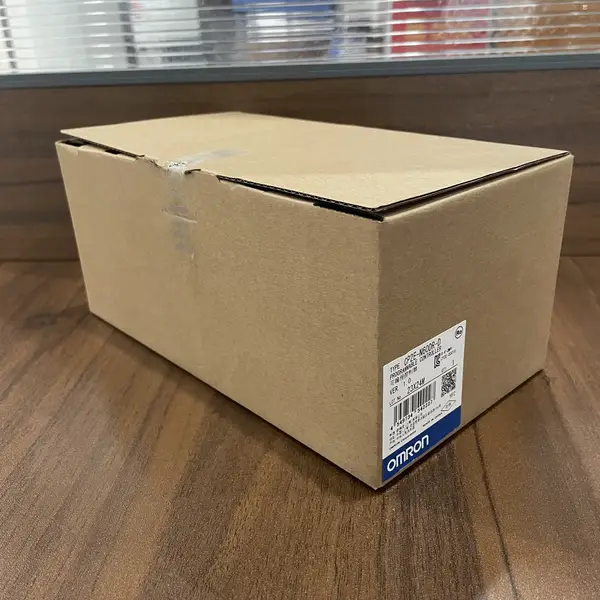

Omron CP2E-N60DR-D — CP2E CPU, 60 I/O, 24 VDC, Relay
SKU: CP2E-N60DR-DUSD 185.00
CP2E network CPU, 36 in / 24 relay out, 24 VDC, 2 Ethernet, 20K steps. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP2E-N60DR-D is a 60-point network-type CPU unit from the CP2E compact PLC family It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's CP2E dimensional table and product page.
The unit ships with 36 digital inputs (24 VDC, PNP or NPN) and 24 relay outputs (2 A) on removable terminal blocks. Program capacity is 20K steps and data memory is 16K words.
For 40 I/O on the same platform, pick the CP2E-N40DR-D. Key specs: Supply Voltage 24 VDC (operating range 20.4 to 26.4 VDC); Digital Inputs 36 x 24 VDC (PNP or NPN); 6 are 100 kHz high-speed counters; Digital Outputs 24 x relay, 250 VAC 2 A resistive; Program Capacity 20K steps (function-block capable); Data Memory 16K words; battery-free with optional CP2W-BAT02; LD Execution Time 0.23 us per basic instruction; Communication Ports 2 Ethernet TCP/IP; 2 option-board slots (CP2W-CIFD1 / D2 / D3); Expansion Up to 3 CP1W expansion units; max 180 I/O; max 32 analog channels with option boards.
Key Features
- CP2E network-type CPU with 36 DC inputs and 24 relay outputs (2 A)
- 20K steps program, 16K words data, 0.23 us LD execution, 6 high-speed counter inputs at 100 kHz
- 2 built-in Ethernet (TCP/IP) + 2 option-board slots for RS-232C or RS-485
- 24 VDC supply, 3 CP1W expansion units up to 180 I/O, battery-free backup with CP2W-BAT02
- SKU: CP2E-N60DR-D
- Series: Omron CP2E-series network-type compact PLC
- Voltage: 24 VDC
Best-Fit Applications
- Mid-size packaging line where the 60 I/O covers the machine and three CP1W units add 180 I/O
- Small process skid where the two Ethernet ports separate the plant and HMI networks cleanly
- Spare CPU drop-in for an existing CP2E cell where the CX-Programmer project loads over Ethernet
Buying Checklist
- Pick the CP2E-N60DR-D for a 60-point CP2E network CPU with 24 VDC supply, 2 Ethernet ports and 24 relay outputs.
- Pick the CP2E-N40DR-D instead when the cabinet needs 40 I/O on the same network-type platform.
- Pick the CP2E-S30DT-D instead when the cell needs an S-type 30-point CPU with transistor outputs and no Ethernet.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP2E-series network-type compact PLC |
| Model / SKU | CP2E-N60DR-D |
| Supply Voltage | 24 VDC (operating range 20.4 to 26.4 VDC) |
| Digital Inputs | 36 x 24 VDC (PNP or NPN); 6 are 100 kHz high-speed counters |
| Digital Outputs | 24 x relay, 250 VAC 2 A resistive |
| Program Capacity | 20K steps (function-block capable) |
| Data Memory | 16K words; battery-free with optional CP2W-BAT02 |
| LD Execution Time | 0.23 us per basic instruction |
| Communication Ports | 2 Ethernet TCP/IP; 2 option-board slots (CP2W-CIFD1 / D2 / D3) |
| Expansion | Up to 3 CP1W expansion units; max 180 I/O; max 32 analog channels with option boards |
| Dimensions (W x H x D) | 195 × 90 × 80 mm; 780 g; -20 to +60 degC |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP2E-N60DR-D
Does the CP2E-N60DR-D have RS-232C or RS-485?
Not built-in. The two option-board slots take CP2W-CIFD1 (2 RS-232C), CP2W-CIFD2 (1 RS-232C + 1 RS-485) or CP2W-CIFD3 (2 RS-485). The two built-in Ethernet ports handle TCP/IP and Modbus-TCP without an option board.
How much expansion does the CP2E-N60DR-D support?
Up to 3 CP1W expansion units for a maximum of 180 local I/O points and up to 32 analog channels with option boards. CP1W-ADB21 analog inputs and CP1W-DAB21V analog outputs plug into the option-board slot for analog I/O.
Does the CP2E-N60DR-D need a battery?
No. Memory backup is battery-free as standard. The optional CP2W-BAT02 battery adds retention for the real-time clock and retained variables in the event of a power loss.
