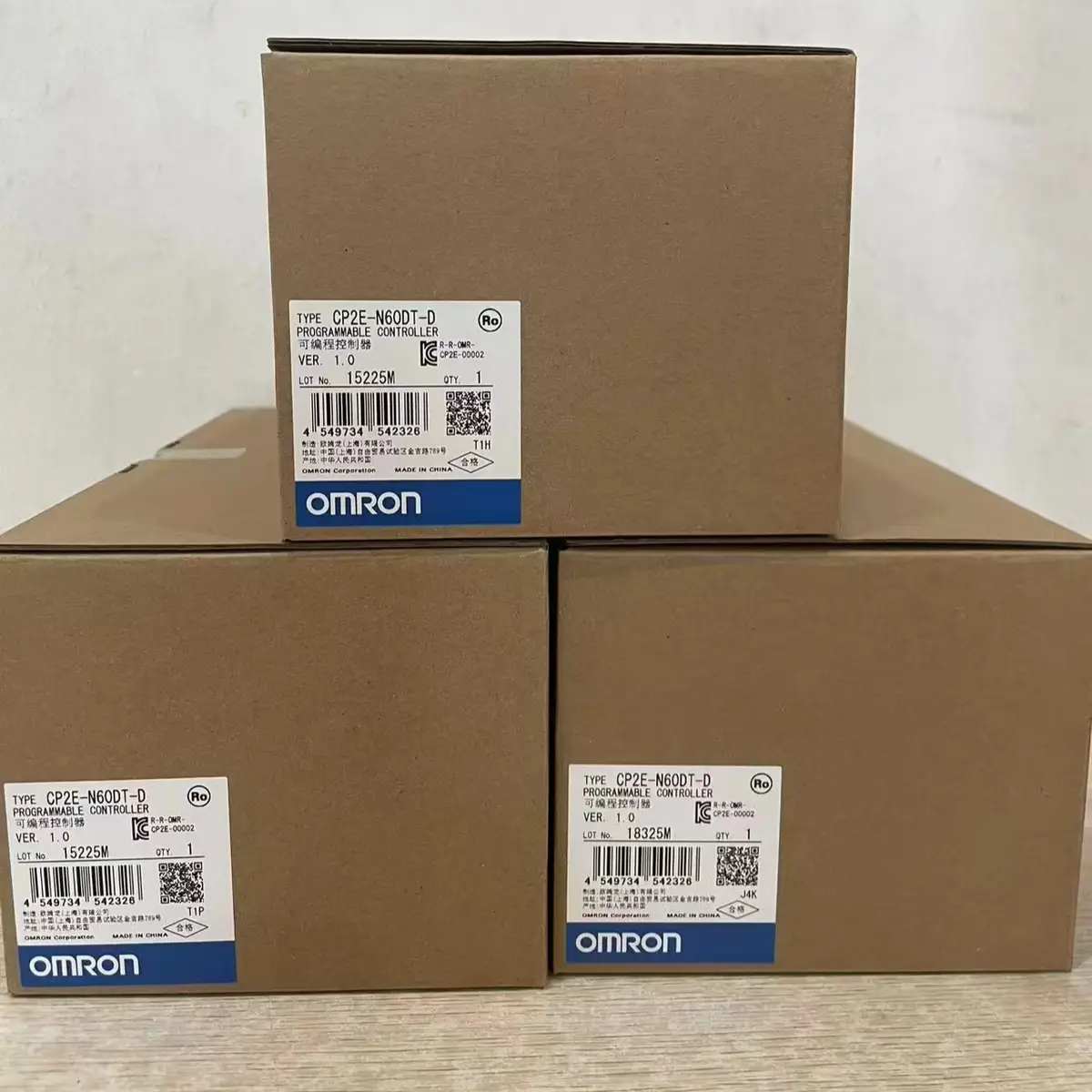

Omron CP2E-N60DT-D — 60 I/O PLC, NPN Outputs
SKU: CP2E-N60DT-DUSD 190.00
CP2E 60-pt compact PLC, 36 DC in / 24 NPN out, 20K steps + 16K words data, 24 VDC, dual Ethernet, no built-in serial.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP2E-N60DT-D is the 60-point network-type variant of the CP2E-series compact PLC. It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's CP2E dimensional table and product page.
It runs on 24 VDC, holds 20K steps of user program and 32K words of data memory, and executes basic ladder instructions in 0.7 microseconds. The unit carries 60 built-in I/O points without an expansion rack.
For PNP sourcing on the 60-point build, use CP2E-N60DT1-D; for AC-powered 60-point relay out, use CP2E-N60DR-A. Key specs: Model CP2E-N60DT-D; Supply Voltage 24 VDC, 20.4 to 26.4 VDC operating; Digital Inputs 36 DC inputs (6 x 100 kHz high-speed counters); Digital Outputs 24 NPN sinking transistor outputs, short-circuit protected; Program / Data Memory 20K steps + 16K words data, LD 0.23 us execution; Built-in Ports 2 x Ethernet TCP/IP only - Omron lists 0 USB, 0 RS-232 and 0 RS-485 ports built in; serial RS-232C/RS-422/RS-485 requires an option board; High-Speed Counters 6 inputs at 100 kHz (pulse+direction, up/down, 4x differential); Expansion Up to 3 CP1W expansion units + option boards, 180 local I/O points max; analogue option channels up to 32.
Key Features
- CP2E network-type compact PLC, 24 VDC supply, 60 built-in I/O points (36 DC in / 24 NPN out)
- 20K steps program + 16K words data (Omron lists 16 K words, not 32 K), LD 0.7 us execution, function-block programming
- Built-in RS-232C + RS-485 + USB slave, 3 CP1W expansion units, 192 local I/O max
- NPN sinking outputs - for PNP sourcing loads, pick CP2E-N60DT1-D instead
- SKU: CP2E-N60DT-D
- Series: CP2E network-type compact PLC
- Voltage: 24 VDC
Best-Fit Applications
- Retrofit of a CP1E-N60 application that needs the higher 20K program memory and serial ports.
- OEM skid with 4-axis pulse positioning using the 100 kHz pulse outputs.
- Conveyor sortation cell with RS-485 trunk to 4 inverter drives for status polling.
Buying Checklist
- Confirm the output polarity is NPN - for PNP sourcing loads, pick CP2E-N60DT1-D instead.
- Choose CP2E-S60DT-D for a basic-type CP2E without Ethernet / serial ports at lower cost.
- Choose CP2E-N60DR-A when the cabinet has AC mains and the load needs mechanical relay contacts.
Technical Specifications
| Model | CP2E-N60DT-D |
|---|---|
| Series | CP2E network-type compact PLC |
| Supply Voltage | 24 VDC, 20.4 to 26.4 VDC operating |
| Digital Inputs | 36 DC inputs (6 x 100 kHz high-speed counters) |
| Digital Outputs | 24 NPN sinking transistor outputs, short-circuit protected |
| Program / Data Memory | 20K steps + 16K words data, LD 0.23 us execution |
| Built-in Ports | 2 x Ethernet TCP/IP only - Omron lists 0 USB, 0 RS-232 and 0 RS-485 ports built in; serial RS-232C/RS-422/RS-485 requires an option board |
| High-Speed Counters | 6 inputs at 100 kHz (pulse+direction, up/down, 4x differential) |
| Expansion | Up to 3 CP1W expansion units + option boards, 180 local I/O points max; analogue option channels up to 32 |
| Memory Backup | Battery-free flash, real-time clock built-in |
| Programming | CX-Programmer 9.x or Sysmac Studio 1.40 and later |
| Dimensions (W x H x D) | 195 × 90 × 80 mm; 780 g; -20 to 60 C operating; built-in auxiliary 24 VDC output is 0 mA (none provided) |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP2E-N60DT-D
What does the -DT-D suffix on CP2E-N60DT-D mean?
DT = DC inputs + Transistor (NPN sinking) outputs. D = 24 VDC power supply. For PNP sourcing outputs, order CP2E-N60DT1-D instead; for relay outputs, order CP2E-N60DR-A on AC supply. The DT suffix is independent of the I/O count - any of the CP2E-N20 / N30 / N40 / N60 sizes can carry the DT suffix.
Does the CP2E-N60DT-D have built-in Ethernet?
No. The CP2E-N60DT-D has RS-232C + RS-485 + USB built-in, but no Ethernet port. For Ethernet you must step up to a CP2E-N30 / N40 / N60 variant that includes Ethernet, or add a CP2W-CIFD1 / D2 / D3 option board to a CP2E-N base unit.
Can I add CP1W expansion I/O to a CP2E-N60DT-D?
Yes - up to three CP1W expansion units and up to three CP1W option boards. Maximum local I/O is 192 points. Popular expansion picks are CP1W-16ER, CP1W-32ET1, CP1W-AD042, and CP1W-MAD44 for analog I/O. Verifying the expansion count in your specific project before ordering keeps the cabinet build within the maximum local I/O envelope.
What programming software does CP2E-N60DT-D use?
CX-Programmer 9.x as part of CX-One 4.x or later, or Sysmac Studio 1.40 and later. Older CX-One packages (3.x) do not include the CP2E device files - upgrade before commissioning the new ladder. The project uploads over USB or serial once the licence is in place; runtime is identical to the basic CP2E-S variants.
