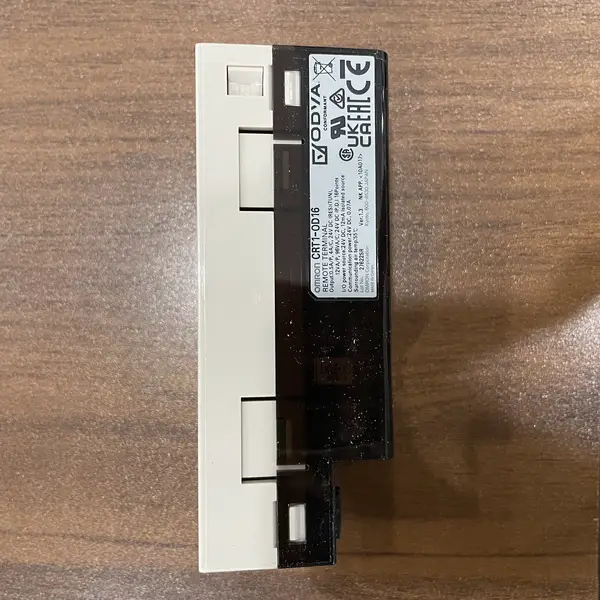

Omron CRT1-OD16 — CompoNet 16-Point NPN Output
SKU: CRT1-OD16USD 85.00
CompoNet output slave, 16 NPN outputs at 0.5 A, 24 VDC, screw terminals. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CRT1-OD16 is a CRT1-series CompoNet remote-terminal output slave with 16 NPN transistor outputs at 0.5 A each It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
Each output switches 0.5 A at 24 VDC +/- 15 percent, with a 4 A common rating and 0.5 ms ON / 1.5 ms OFF response. The slave draws 40 mA from the 24 VDC CompoNet comm supply.
The CRT1-ID16 is the matching 16-pt NPN input slave, and the DRT2-OD16-1 covers the same role on DeviceNet. Key specs: Communication Port CompoNet Slave; Output Type 16 x NPN open-collector transistor outputs; Output Current 0.5 A per point, 4 A per common (no internal short-circuit); Permitted Voltage 20.4 to 26.4 VDC at output terminals; Response Time ON 0.5 ms / OFF 1.5 ms max; Power Consumption 40 mA at 24 VDC from the CompoNet comm supply; Node Address Two rotary dials on the front, 0 to 63 (word mode) or 0 to 7 (multi-drop); Connection M3 screw terminals, 1-wire, 16 outputs.
Key Features
- CompoNet slave with 16 NPN transistor outputs at 0.5 A each, 24 VDC +/- 15 percent
- 0.5 ms ON / 1.5 ms OFF response, 4 A common rating, 40 mA comm-power draw

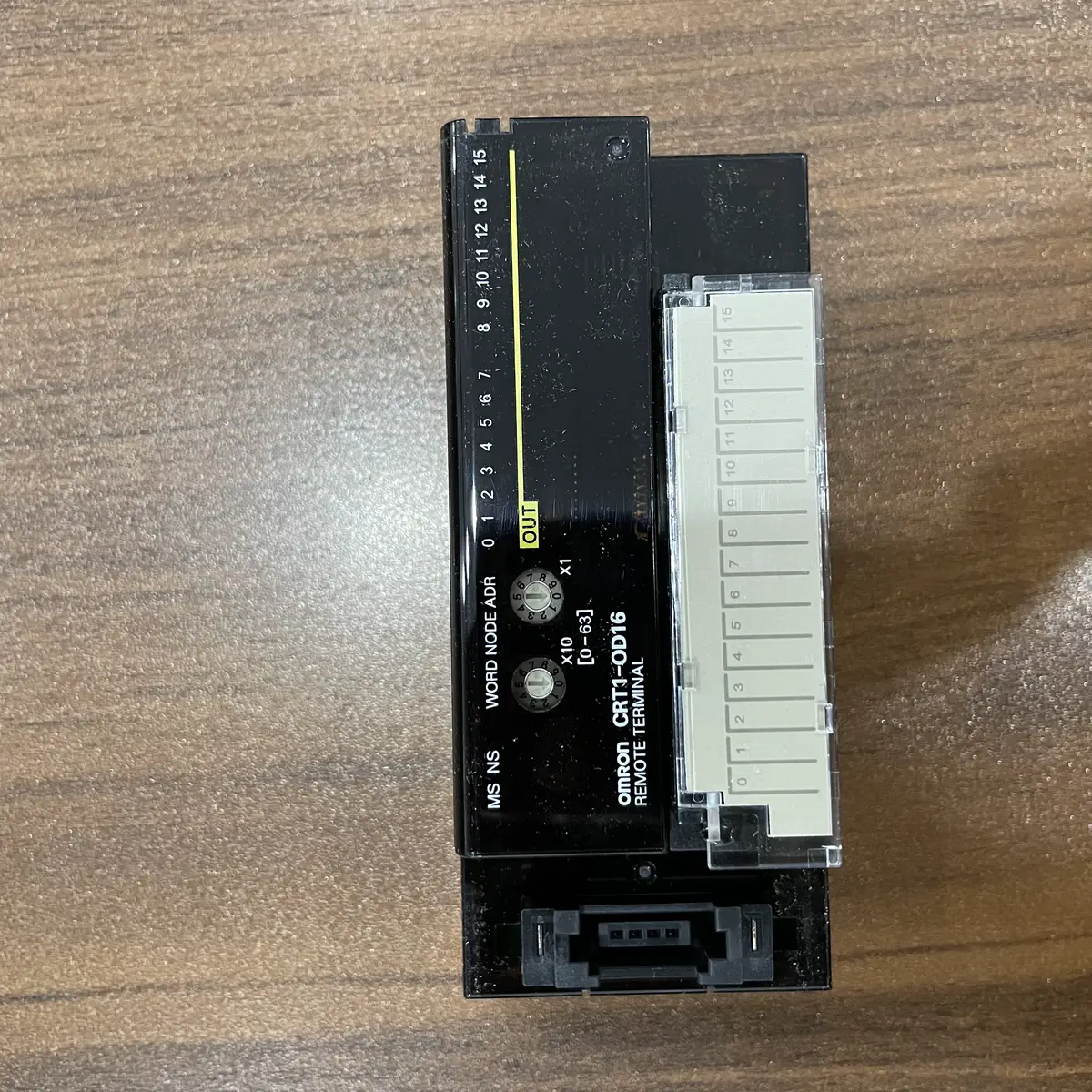

- Word-address rotary dials on the front, 0 to 15 status indicator window above the terminals

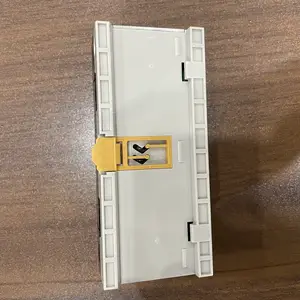

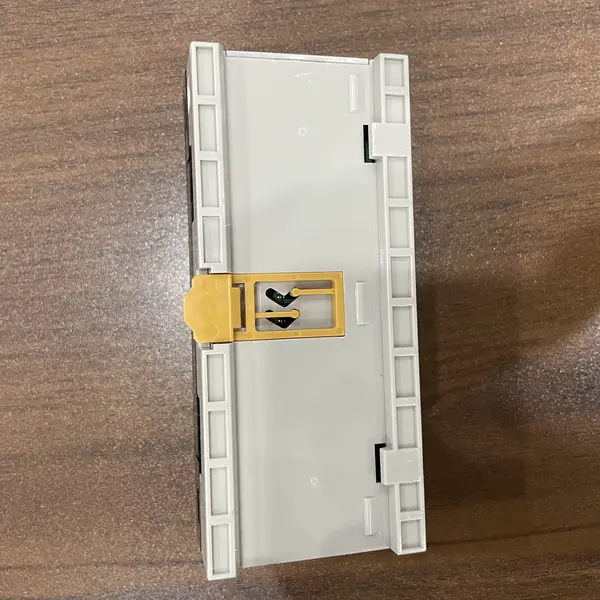

- DIN-rail mount, IP20, DCN4-TB4 screw-terminal connector on the side
- SKU: CRT1-OD16
- Series: CRT1 CompoNet remote-terminal slave
- Voltage: 20.4 TO 26.4 VDC
Best-Fit Applications
- Spare replacement for an end-of-life CRT1-OD16 on a 2010-era packaging line that still uses a CS1W-CRM21 CompoNet master on the CS1 PLC
- Remote I/O expansion on a CP1L-M40DR-D line where the main cabinet is full and a CompoNet sub-panel handles 16 outputs in the operator zone
- Distributed valve-bank control on a packaging machine where the CompoNet slave mounts inside the manifold cabinet next to the solenoids
Buying Checklist
- Choose the CRT1-OD16 when the existing PLC has a CompoNet master and the field wiring already expects a 16-pt NPN transistor output.
- Choose the CRT1-OD16-1 instead when the field wiring expects PNP sourcing outputs instead of NPN sinking.
- Choose the DRT2-OD16-1 instead when the field network is DeviceNet rather than CompoNet and the same 16-pt 0.5 A form factor fits.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | CRT1 CompoNet remote-terminal slave |
| Model / SKU | CRT1-OD16 |
| Communication Port | CompoNet Slave |
| Output Type | 16 x NPN open-collector transistor outputs |
| Output Current | 0.5 A per point, 4 A per common (no internal short-circuit) |
| Permitted Voltage | 20.4 to 26.4 VDC at output terminals |
| Response Time | ON 0.5 ms / OFF 1.5 ms max |
| Power Consumption | 40 mA at 24 VDC from the CompoNet comm supply |
| Node Address | Two rotary dials on the front, 0 to 63 (word mode) or 0 to 7 (multi-drop) |

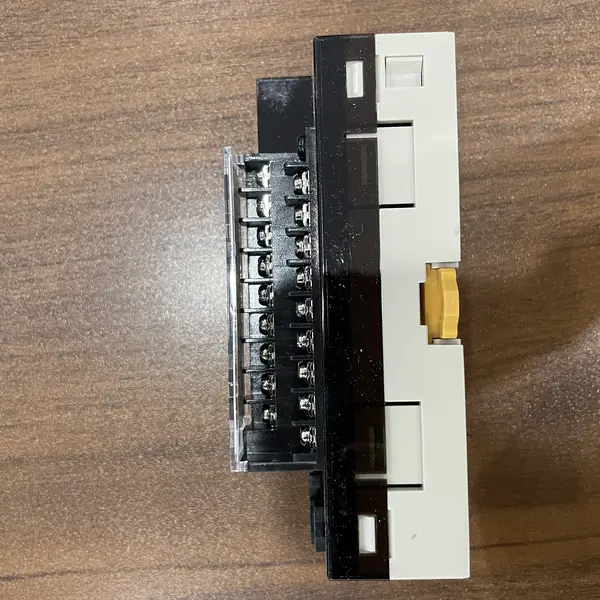

| Connection | M3 screw terminals, 1-wire, 16 outputs |
| Dimensions / Weight | 115 x 52 x 50 mm, 141 g, IP20 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CRT1-OD16
What network does the CRT1-OD16 use?
CompoNet. The CRT1-OD16 is a CompoNet slave and needs a CompoNet master on the host PLC. Common masters are the CS1W-CRM21 on a CS1 PLC, the CJ1W-CRM21 on a CJ-series PLC, and the built-in CompoNet port on some CP1H CPUs.
Is the CRT1-OD16 still in production?
The CRT1 family is on Omron's gradual end-of-life list. The CRT1-OD16 is still orderable today but lead times may grow. For new builds, prefer the DRT2-OD16-1 on DeviceNet or the NX-OD4256 and NX-OD5256 NX-series slices over EtherCAT instead of new CompoNet.
What is the maximum output current per point?
0.5 A per output, 4 A per common. Outputs are NPN open-collector transistors without internal short-circuit protection, so fit an external fuse on each output when driving an inductive DC load like a solenoid or a brake coil on the field side.
How is the CompoNet node address set?
Two rotary dials on the front, marked X1 (tens) and X10 (ones). Word mode covers 0 to 63; multi-drop mode covers 0 to 7. The dials are read at power-on only, so cycle power after any dial change and verify the address on the master configuration.
