Omron DRT2-OD16-1 — DeviceNet 16-PNP Output Slave
SKU: DRT2-OD16-1USD 75.00
Omron DRT2-OD16-1 Smart DeviceNet slave, 16 PNP outputs, 0.5 A, 24 VDC, screw terminal. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron DRT2-OD16-1 is a Smart DeviceNet digital output slave from the DRT2-series, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

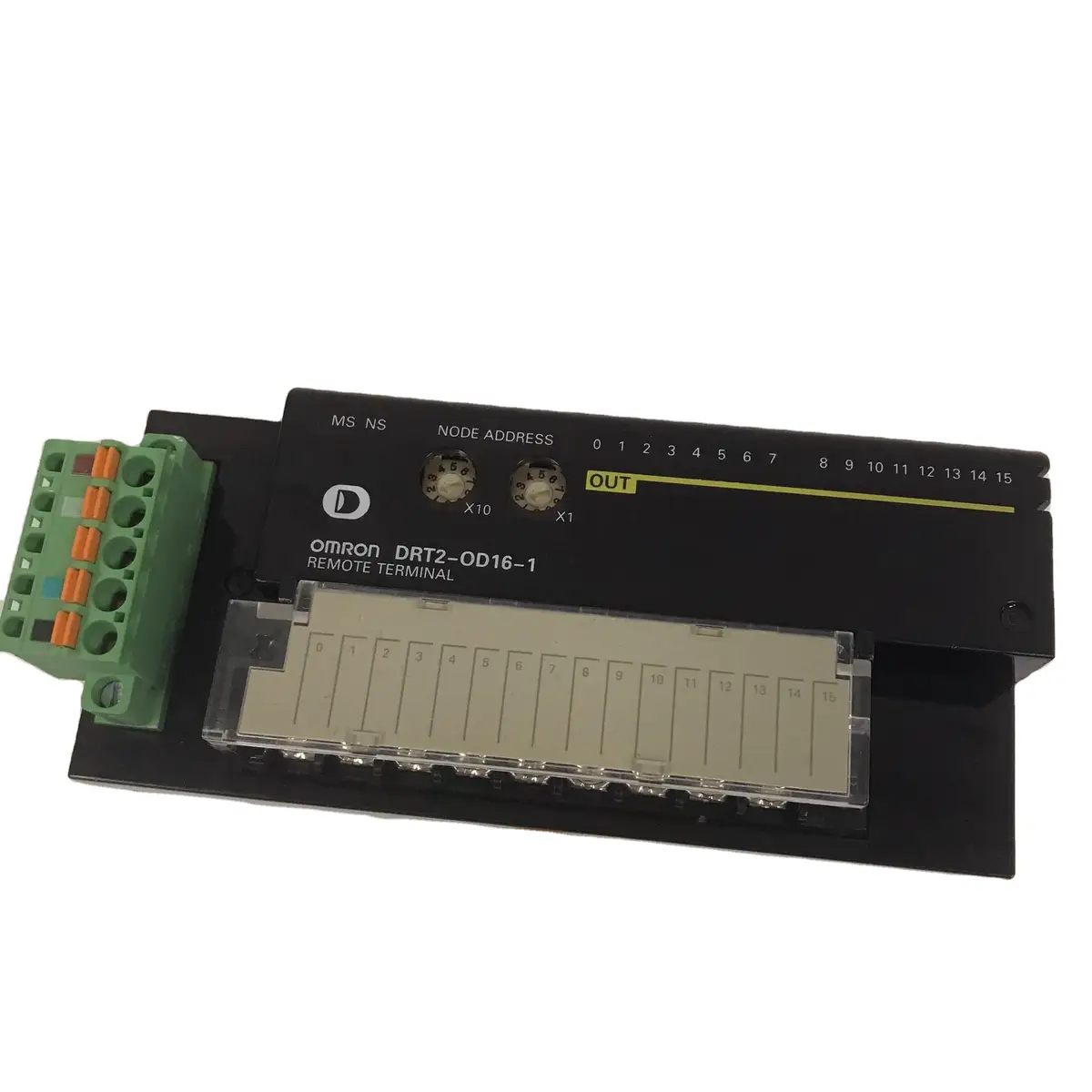

The unit puts 16 PNP sourcing transistor outputs on the network, each at 0.5 A at 24 VDC with permitted voltage 0 to 26.4 VDC. Outputs group eight per common with an 8.0 A common rating. ON response is 0.5 ms; OFF is 1.5 ms. The 1-wire connection lands on a detachable screw terminal. The DeviceNet Slave port connects on the standard 5-pin open-style connector.
Smart Slave diagnostics track supply voltage, I/O response time, operation counter, and on-time hours against user-defined limits. The housing is 115 x 50 x 49.7 mm, 200 g, IP20, DIN-rail mount. The DRT2-OD32ML sibling is the 32-pt PNP output on the MIL body; the DRT2-ROS16 is the 16-relay output at 3 A for AC loads; the DRT2-ID16S is the IP67 16-pt NPN Smart input.
Key Features
- DRT2-series Smart DeviceNet digital output slave, 16 PNP sourcing transistor outputs at 0.5 A per point, 24 VDC load
- 8 outputs per common, 8.0 A common rating, 0.5 ms ON / 1.5 ms OFF response, permitted output voltage 0 to 26.4 VDC
- Smart Slave diagnostics record power supply voltage, I/O response time, operation counter, and on-time hours against user-defined limits
- Detachable screw terminal block, 1-wire connection, 115 x 50 x 49.7 mm IP20 DIN-rail housing, 200 g, DeviceNet 5-pin connector
- SKU: DRT2-OD16-1
- Series: Omron DRT2-series Smart DeviceNet digital I/O slave
Best-Fit Applications
- Solenoid and stack-light control on a bottling line where 16 PNP outputs drive 24 VDC valves from a CJ1W-DRM21 DeviceNet drop
- Spare replacement on an automotive weld cell where the previous DRT2-OD16-1 failed and the new unit must keep the same DeviceNet node address
- Distributed I/O on a 4-station rotary table where the operation-counter feature tracks each station's cycle count and flags maintenance when over threshold
Buying Checklist
- Pick the DRT2-OD16-1 for a DeviceNet Smart Slave with 16 PNP sourcing outputs at 0.5 A on the DRT2-series with on-board operation counters.
- Pick the DRT2-OD16 instead when the same 16-point body is needed with NPN sinking outputs at 0.5 A instead of PNP sourcing.
- Pick the DRT2-ROS16 instead when the cabinet needs 16 mechanical relay outputs at 3 A for AC loads on the same DeviceNet body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron DRT2-series Smart DeviceNet digital I/O slave |
| Model / SKU | DRT2-OD16-1 |
| Network | DeviceNet Slave (master on the DRT2-series connects to CJ1, CS1, or NJ/NX CPU over DeviceNet) |
| Output Type | PNP sourcing transistor, 16 points, 0.5 A per point |
| Output Rating | Permitted voltage 0 to 26.4 VDC, 8 points per common, 8.0 A common rating, ON 0.5 ms / OFF 1.5 ms response |
| Connection | 1-wire detachable screw terminal block; DeviceNet 5-pin open-style connector for the network |
| Smart Functions | Power supply voltage monitor, I/O response time monitor, operation counter, total on-time tracker, user-defined alarm thresholds |
| Short-Circuit Protection | Not built in (use an external fuse or protector block) |
| Expansion | One XWT-OD16-1 expansion unit max (16 PNP outputs) on the right-side expansion connector |
| Dimensions (W x H x D) | 115 × 50 × 49.7 mm; 200 g |
| Mount / Protection | 35 mm DIN-rail mount, IP20 housing, cULus Class I Division 2 listed |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for DRT2-OD16-1
What is the Omron DRT2-OD16-1 used for?
It is the DRT2-series Smart DeviceNet digital output slave with 16 PNP sourcing transistor outputs at 0.5 A. It drops off a CJ1W-DRM21 or CS1W-DRM21 DeviceNet master on a CJ1 / CS1 PLC rack and drives 24 VDC solenoids, indicators, and small contactors on the machine. Smart Slave diagnostics track operation count, on-time hours, and response time.
DRT2-OD16-1 vs DRT2-OD16 - what is the difference?
Both are 16-point DeviceNet Smart Slaves on the same 115 x 50 x 49.7 mm body. The DRT2-OD16-1 has PNP sourcing outputs at 0.5 A; the DRT2-OD16 has NPN sinking outputs at 0.5 A. Pick the -1 for European-style PNP field wiring; pick the plain DRT2-OD16 for Japanese-style NPN field wiring.
Does the DRT2-OD16-1 need a separate power supply?
Yes. The DRT2-OD16-1 needs two supplies: the DeviceNet bus power from the network cable and a separate 24 VDC field power for the output loads. Both must be wired before the slave comes online; the Smart Slave power-supply voltage monitor alarms if either drops below the user-defined threshold.
What is the maximum number of outputs on a DRT2-OD16-1?
16 onboard plus 16 more on the XWT-OD16-1 expansion unit, for 32 PNP outputs at 0.5 A per drop. The expansion unit connects on the right side of the DRT2-OD16-1 and is mapped as a second node on the same DeviceNet address.
