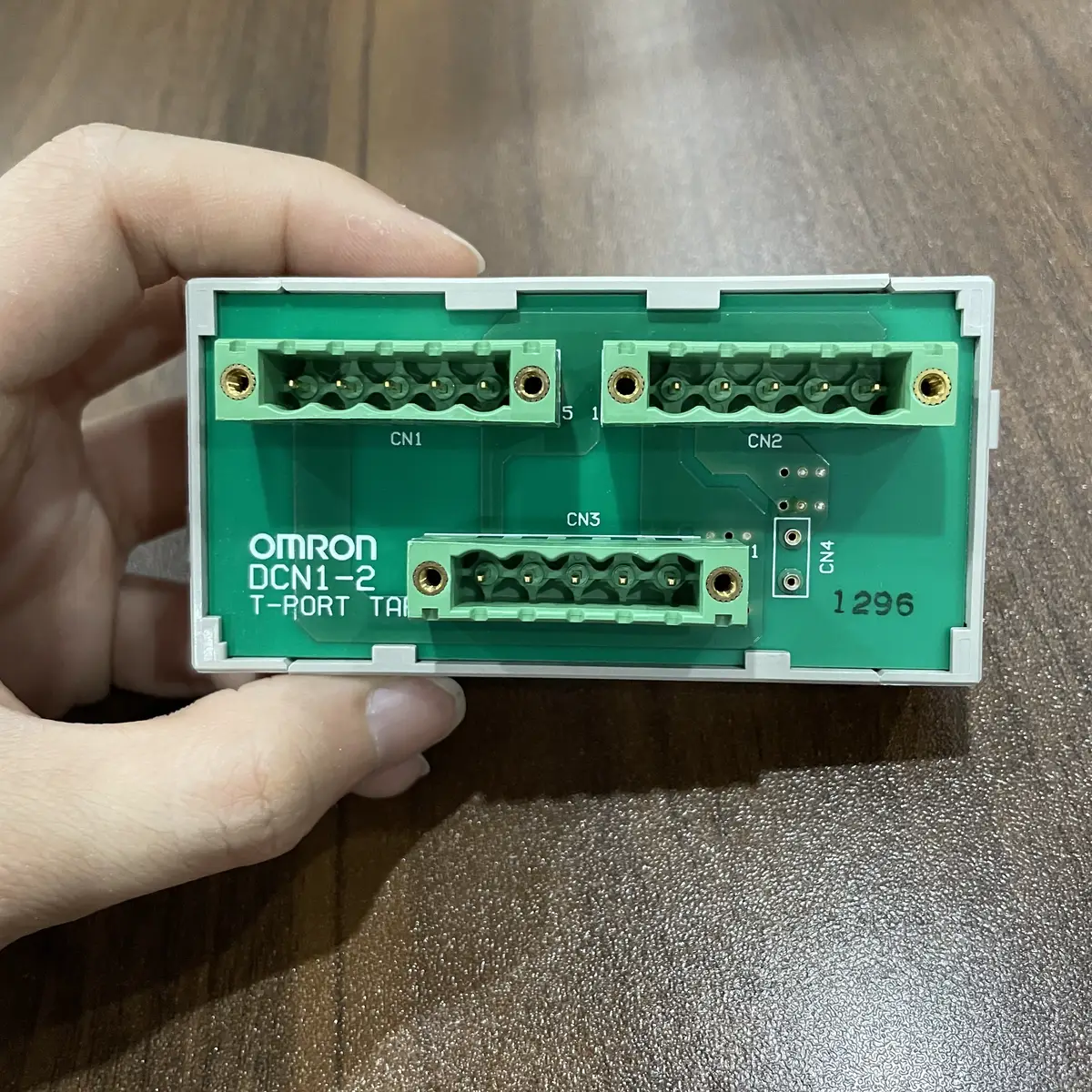

Omron DCN1-2R — DeviceNet T-Branch Tap, 1 Branch Line
SKU: DCN1-2RUSD 53.00
Omron DCN1-2R DeviceNet T-branch tap for 1 branch line, 3 orthogonal screw connectors, side cable entry. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron DCN1-2R is the DeviceNet T-branch tap connector for 1 branch line, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

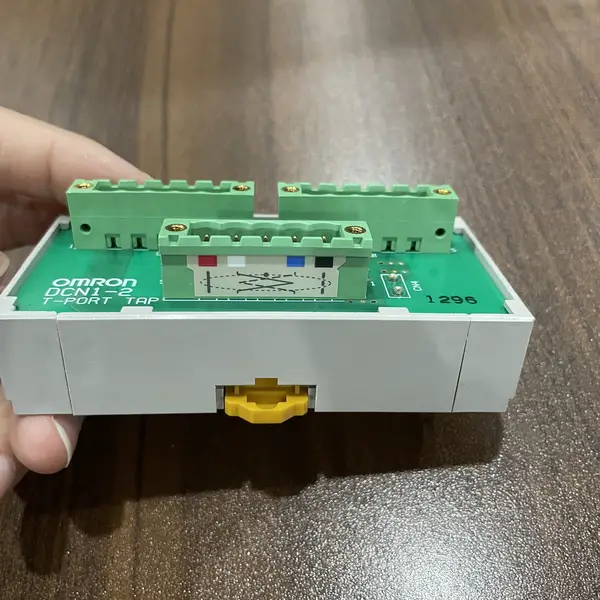

It taps one drop off the trunk cable without cutting the main line. Three orthogonal connectors with screws (XW4B-05C1-V1R-D) carry V+, CAN_H, drain, CAN_L, V- on the standard DeviceNet 5-pole pinout. A standard terminating resistor is fitted on the trunk side, so the tap itself doubles as the end-of-trunk terminator when used at the end of the run.
Rated current between main lines 8 A power / 2 A signal; between main and branch 3 A power / 1 A signal. Insulation 100 MOhm min at 500 VDC; dielectric 500 VAC for 1 minute. DIN rail mounting, vertical orientation, about 103 g, 0 to 55 C ambient. Pairs with the CRT1-OD16 CompoNet slave or DRT2-OD16-1 DeviceNet slave on the downstream drop; the GX-JC06 covers the same junction role on EtherCAT.
Key Features
- DeviceNet T-branch tap for 1 branch line, 3 orthogonal connectors with screws (XW4B-05C1-V1R-D) and standard terminating resistor on the trunk
- Five-pole DeviceNet pinout (V+ red, CAN_H white, drain bare, CAN_L blue, V- black); IDC termination to the thin trunk cable
- Rated current 8 A power / 2 A signal between main lines, 3 A power / 1 A signal main-to-branch; insulation 100 MOhm min at 500 VDC
- DIN rail mount, vertical orientation, side cable entry, about 103 g, 0 to 55 C ambient
- SKU: DCN1-2R
- Series: DCN1-series DeviceNet peripheral taps
Best-Fit Applications
- End-of-trunk DeviceNet drop on a packaging line where the DCN1-2R feeds one remote I/O block and doubles as the 121 Ohm trunk terminator
- Mid-trunk tap on a bottling line DeviceNet run where the DCN1-2R breaks out one branch to a DRT2-ID16S sensor block on the conveyor
- Spare replacement on a DeviceNet retrofit where the original DCN1-2R was lost and the network drawing lists the 3-port body
Buying Checklist
- Pick the DCN1-2R when the cabinet needs a 1-branch DeviceNet tap with orthogonal screw connectors and side cable entry.
- Pick the DCN1-2C instead when the tap needs top cable entry instead of side cable entry on the same 1-branch form factor.
- Pick the DCN1-3NC instead when the network needs a 3-branch tap for more drops at the same physical junction.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | DCN1-series DeviceNet peripheral taps |
| Model / SKU | DCN1-2R |
| Function | T-branch tap for 1 branch line, with standard terminating resistor on the trunk |
| Connectors | 3 orthogonal connectors with screws (XW4B-05C1-V1R-D); side cable entry |
| Pinout | Standard 5-pole DeviceNet (V+, CAN_H, drain, CAN_L, V-) |
| Rated Current | Between main lines 8 A (power) / 2 A (signal); between main and branch 3 A (power) / 1 A (signal) |
| Cable | IDC termination to DeviceNet thin cable (DCA1-5C10 / DCA1-5C10-B) |
| Isolation | Insulation resistance 100 MOhm min at 500 VDC; dielectric strength 500 VAC for 1 minute, leakage 1 mA max |
| Termination | Built-in standard terminating resistor on the trunk (121 Ohm equivalent for end-of-trunk use) |

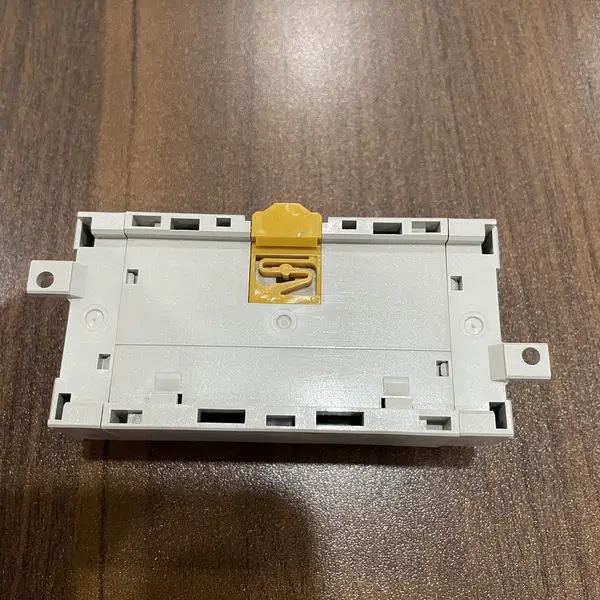

| Mounting / Orientation | DIN rail; vertical orientation |
| Dimensions / Approvals | About 103 g; 0 to 55 C ambient; Omron DeviceNet standard |
FAQ for DCN1-2R
What is the Omron DCN1-2R used for?
It is the DeviceNet T-branch tap for one branch line. Typical uses are end-of-trunk drops on packaging lines, mid-trunk taps on bottling line DeviceNet runs, and spare replacement where the network drawing lists a 3-port orthogonal-connector body.
DCN1-2R vs DCN1-2C - what is the difference?
Both are 1-branch DeviceNet taps with three connectors. The DCN1-2R has side cable entry and orthogonal screw connectors with the cable lock and screw from the top. The DCN1-2C has top cable entry with cable screw and connector screw from the top. Pick the DCN1-2R for side-entry panels; pick the DCN1-2C for top-entry panels.
Does the DCN1-2R include a terminating resistor?

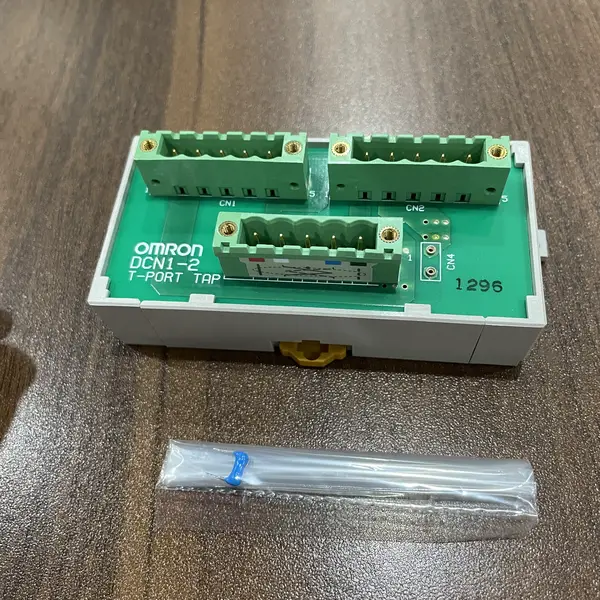

Yes - the DCN1-2R ships with a standard terminating resistor fitted on the trunk side. Use it at the end of the trunk run and remove it if you place the tap mid-trunk with a separate terminator at the far end.
What cable does the DCN1-2R accept?
DeviceNet thin cable only: DCA1-5C10 (gray) or DCA1-5C10-B (blue), outer diameter 7.00 mm, 100 m reel. The IDC contacts in the DCN1-2R pierce the cable jacket without cutting the main line. For thick cable (DCA2-5C10), use the DCA2-5C10 to thin-cable adapter or a different DCN2-series IP67 tap.
