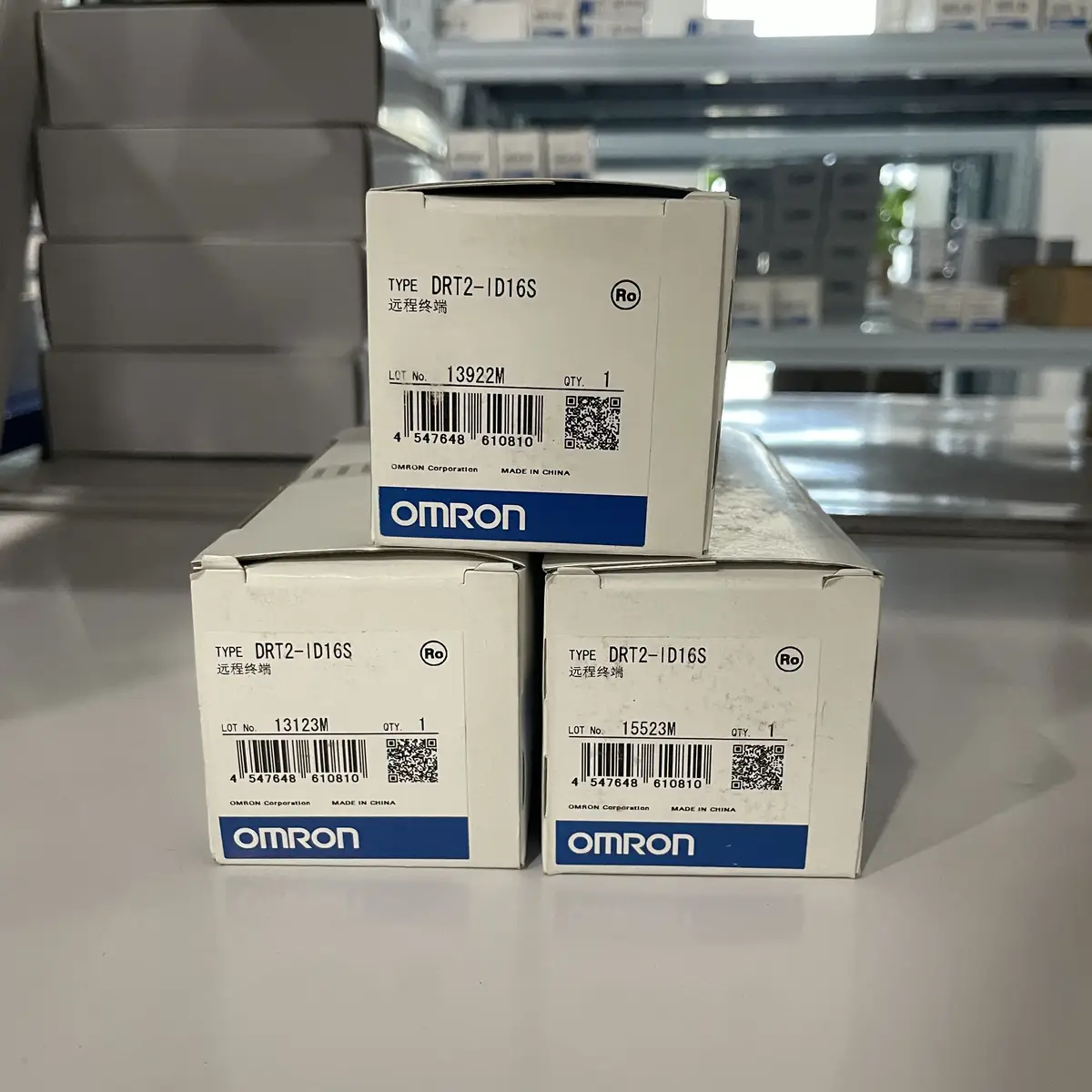

Omron DRT2-ID16S — DeviceNet Slave, 16 NPN Inputs
SKU: DRT2-ID16SUSD 105.00
Omron DRT2-ID16S DeviceNet slave, 16-point NPN input, e-CON sensor connector, IP67. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron DRT2-ID16S is a Smart DeviceNet slave from the DRT2 family, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The block ships with 16 NPN digital inputs on an e-CON industry-standard sensor connector. Each input has a 6 mA typical current draw at 24 VDC, ON voltage 9 VDC min, OFF voltage 5 VDC max, OFF current 1 mA max. ON/OFF response is 1.5 ms max. Sensor power and DeviceNet communications power are supplied from the DeviceNet connector - no separate unit supply needed.
The Smart Slave feature set adds sensor disconnect detection, load short-circuit detection, last-maintenance date stamping, and automatic baud rate detection. Sensor short-circuit detection is grouped in pairs: IN0/IN1, IN2/IN3, IN4/IN5, IN6/IN7, IN8/IN9, IN10/IN11, IN12/IN13, IN14/IN15. IP67 protection, DIN-rail or M4-screw mount, operating -10 to 55 C. For the PNP-input sibling, pick the DRT2-ID16S-1; for an 8-input / 8-output mixed block, the DRT2-MD16S.
Key Features
- DRT2 Smart DeviceNet slave, 16 NPN digital inputs (+ common), e-CON industry-standard sensor connectors
- Communications power 11-25 VDC supplied from DeviceNet connector (no separate unit power supply)
- Sensor disconnect detection, load short-circuit detection, automatic baud rate detection, last-maintenance date
- ON 9 VDC / OFF 5 VDC, 1.5 ms ON/OFF response, IP67, DIN-rail or M4-screw mount, -10 to 55 C
- SKU: DRT2-ID16S
- Series: Omron DRT2-series Smart DeviceNet slave
- Voltage: 9 VDC
- I/O: 16 I/O
Best-Fit Applications
- Cabinet-free I/O on a conveyor where 16 photoeyes wire directly to e-CON plugs and the block bolts to the conveyor frame
- Machine-tool retrofit where 16 limit switches report to a CS1 / CJ2 DeviceNet master and diagnostics run over explicit messages
- Spare replacement on an automotive weld line where the IP67 block survives coolant spray and direct-mount cuts wiring back to the panel
Buying Checklist
- Pick the DRT2-ID16S for a 16-point NPN input DeviceNet slave with e-CON sensor connectors and IP67 protection.
- Pick the DRT2-ID16S-1 instead when the field devices are PNP (sourcing) sensors rather than NPN (sinking).
- Pick the DRT2-MD16S instead when the panel needs 8 inputs and 8 outputs on one DeviceNet node.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron DRT2-series Smart DeviceNet slave |
| Model / SKU | DRT2-ID16S |
| I/O Points | 16 digital inputs, NPN (+ common) |
| I/O Connection | e-CON industry-standard sensor connector (no special tool) |
| Input Voltage / Current | ON 9 VDC min, OFF 5 VDC max, OFF current 1 mA max, 6 mA typical at 24 VDC |
| Communications Power | 11 to 25 VDC from DeviceNet connector, 45 mA max at 24 VDC |
| I/O Power | 20.4 to 26.4 VDC (24 VDC -15% / +10%) |
| ON / OFF Response | 1.5 ms max |
| Smart Slave Features | Sensor disconnect detection, load short-circuit detection, automatic baud rate, last maintenance date |
| Network Protocol | DeviceNet (master / slave), explicit messaging for diagnostics |
| Protection / Environment | IP67, -10 to 55 C operating, DIN-rail or M4-screw mount, 90 g |
FAQ for DRT2-ID16S
What is the difference between DRT2-ID16S and DRT2-ID16S-1?
DRT2-ID16S is the NPN-input version (+ common) for sinking sensors. DRT2-ID16S-1 is the PNP-input version (- common) for sourcing sensors. Both share the same 16-point body and IP67 rating.
Does the DRT2-ID16S need a separate power supply?
No. Both the DeviceNet communications power (11 to 25 VDC) and the I/O sensor power (20.4 to 26.4 VDC) are fed through the DeviceNet connector. A second cable for the I/O supply is only needed when the sensor current draw exceeds what DeviceNet can deliver, which is unusual for 16 photoeyes.
How does DRT2-ID16S detect a sensor short circuit?
Pairs of inputs (IN0/IN1, IN2/IN3, IN4/IN5, IN6/IN7, IN8/IN9, IN10/IN11, IN12/IN13, IN14/IN15) are monitored for total current draw. If the combined current exceeds the threshold, a short-circuit flag is raised and reported back over explicit messaging.
Can DRT2-ID16S mount outdoors?
Yes, the IP67 rating allows outdoor mounting. However, the e-CON connectors should be shielded from direct water spray or submerged conditions. Mounting holes accept M4 screws for direct panel fixing.
What software configures DRT2-ID16S?
CX-Integrator (part of CX-One) sets the node address via the rotary DIP switches on the front and registers the slave on the DeviceNet scanlist. Sysmac Studio also reads the smart-slave diagnostic data when used with a NJ / NX DeviceNet master.
