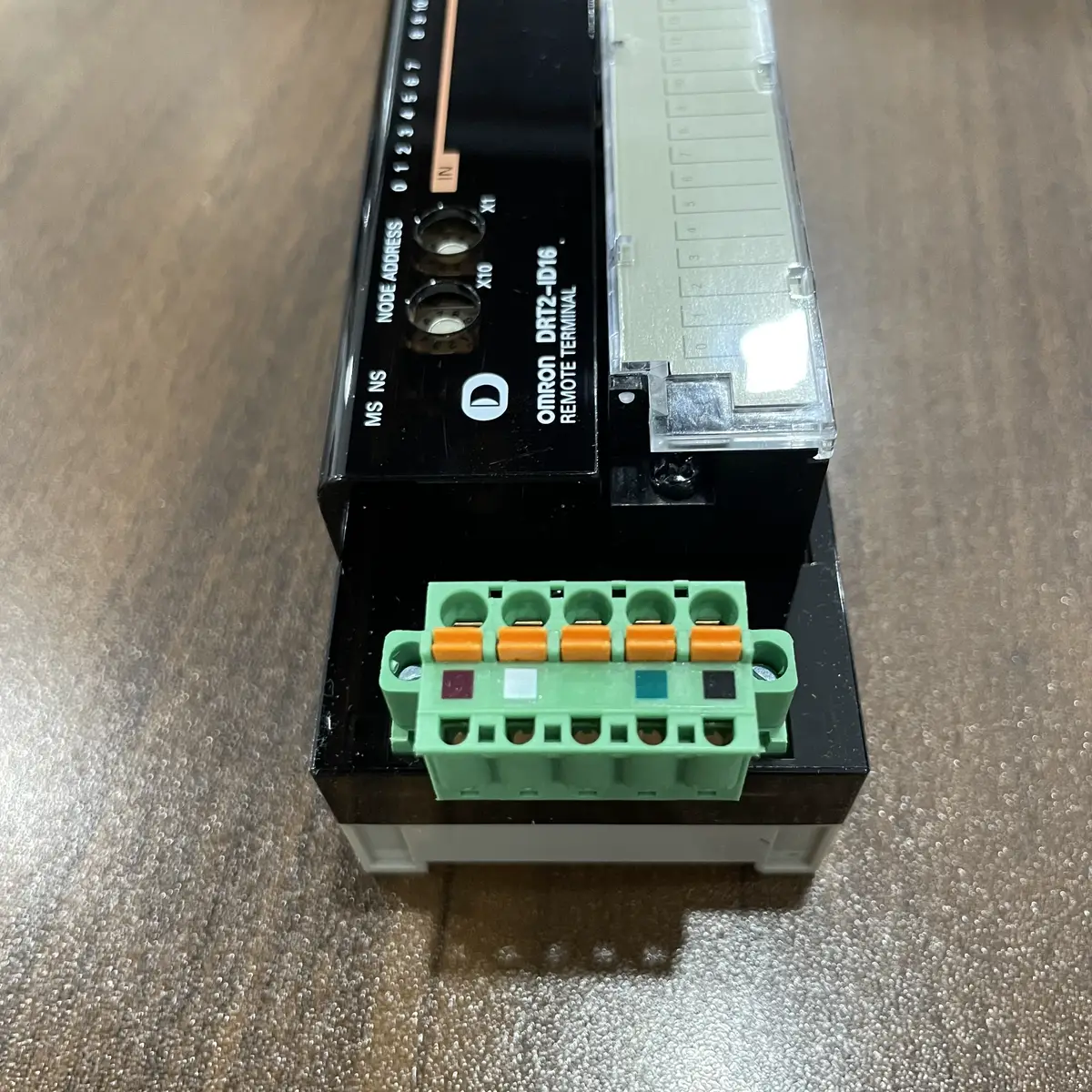

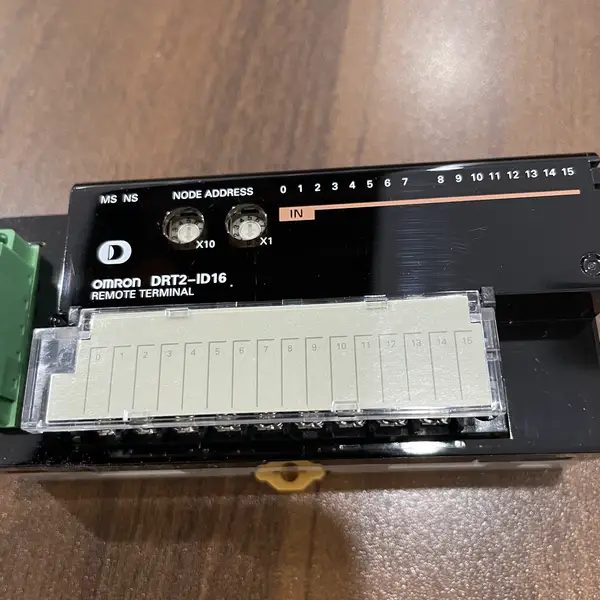

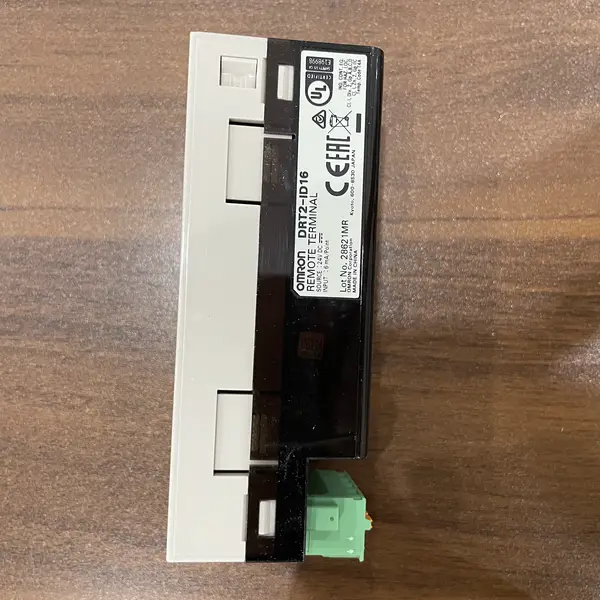

Omron DRT2-ID16 — DeviceNet Slave, 16 NPN Inputs
SKU: DRT2-ID16USD 70.00
Omron DRT2-ID16 DeviceNet smart slave, 16 NPN inputs, 24 VDC, screw terminal, IP20. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron DRT2-ID16 is a 16-point NPN digital input slave for DeviceNet from the DRT2 family, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
Each input detects 24 VDC at 6 mA per point. ON voltage is 15 VDC minimum; OFF voltage is 5 VDC maximum; OFF current is 1.0 mA maximum. ON / OFF delay is 1.5 ms on every channel. All 16 inputs share one common on the NPN body.

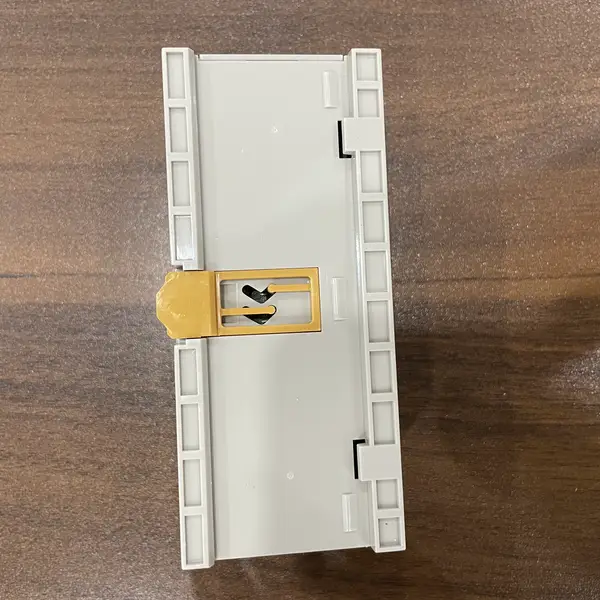

Communication runs on DeviceNet slave at 11 to 25 VDC. I/O power is 24 VDC -15/+10 %. The unit mounts on a 35 mm DIN rail, 50 mm tall x 115 mm wide x 49.7 mm deep, 150 g, IP20, -10 to 55 degC. The -1 suffix (DRT2-ID16-1) is the PNP sibling for panels wired with sourcing sensors. The 8 in / 8 out mixed sibling DRT2-MD16 fits the same DeviceNet trunk.
Key Features
- DRT2 DeviceNet digital input slave, 16 NPN inputs, 24 VDC
- 6 mA per point, 1.5 ms ON / OFF delay, screw terminal block
- DeviceNet slave communication at 11 to 25 VDC, I/O power 24 VDC
- 115 x 50 x 49.7 mm DIN-rail block, 150 g, IP20, -10 to 55 degC
- SKU: DRT2-ID16
- Series: Omron DRT2-series DeviceNet smart slave
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- Conveyor sensor drop on a packaging line where the DeviceNet trunk passes by and the slave picks up 16 photo-eye inputs
- Cell-level I/O on a bottling line where the DRT2-ID16 sits next to a CJ1W-DRM21 master and feeds 16 NPN sensors into the CIO area
- Spare replacement on a DeviceNet retrofit where the original DRT2 failed and the new DRT2-ID16 takes the same node address and wiring
Buying Checklist
- Pick the DRT2-ID16 for a DeviceNet smart slave with 16 NPN inputs and a screw terminal block on the DRT2 platform.
- Pick the DRT2-ID16-1 instead when the panel is wired for PNP sourcing sensors on the same DRT2 body.
- Pick the CRT1-OD16 instead when the cabinet uses CompoNet instead of DeviceNet on the same Omron remote-I/O platform.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron DRT2-series DeviceNet smart slave |
| Model / SKU | DRT2-ID16 |
| Communication | DeviceNet slave |
| Number of Inputs | 16 NPN, 1 common |
| Input Voltage | 24 VDC, ON 15 V min, OFF 5 V max |
| Input Current | 6 mA per point at 24 VDC |
| ON / OFF Delay | 1.5 ms max |
| Comm. Power | 11 to 25 VDC from DeviceNet bus |
| I/O Power | 24 VDC -15/+10 % |
| Expandability | 1 XWT expansion block (XWT-ID08 / ID16 / OD16) |
| Dimensions (W x H x D) | 115 × 50 × 49.7 mm; 150 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for DRT2-ID16
Does the DRT2-ID16 have outputs?
No. The DRT2-ID16 is input-only. For 8 in / 8 out on the same DRT2 body, use the DRT2-MD16. For 16 outputs, use the DRT2-OD16. One XWT expansion block can be attached to add 8 or 16 extra points.
What is the difference between DRT2-ID16 and DRT2-ID16-1?
DRT2-ID16 is NPN (sinking) inputs. DRT2-ID16-1 is PNP (sourcing) inputs. The body, dimensions and DeviceNet interface are the same. Pick the matching version for the sensor wiring in the panel.
Can the DRT2-ID16 power from the DeviceNet cable?
The communications power for the DRT2 logic comes from the DeviceNet cable (11 to 25 VDC). The I/O power (24 VDC) must be supplied separately on the input terminal block.
Is DRT2 still in production?
DRT2 is mature. For new builds, the modern alternative is the NX-series EtherNet/IP remote I/O. For maintenance, DRT2 stock is still available at Omron and at Hengyixin Automation in Xiamen.
