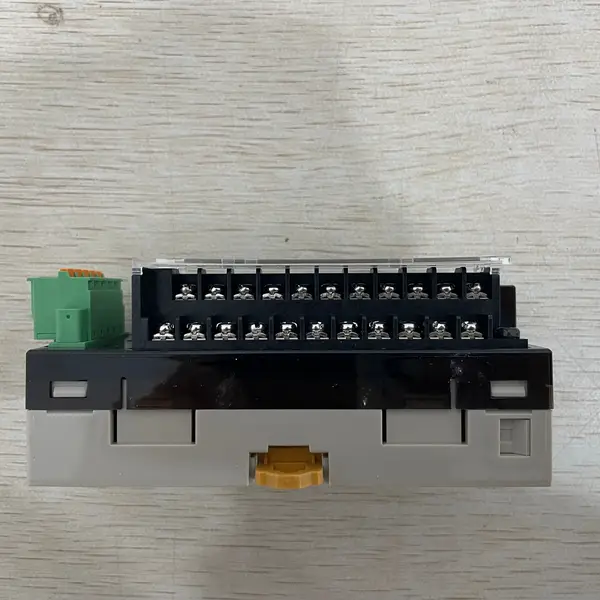

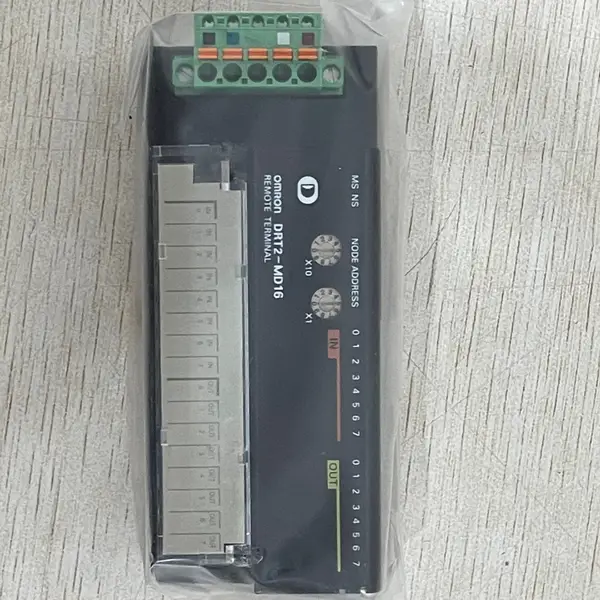

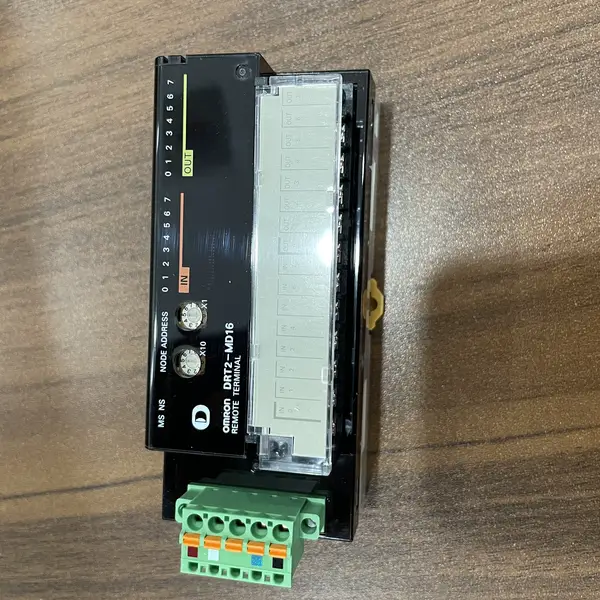

Omron DRT2-MD16 — DeviceNet Slave, 8 In / 8 Out, Screw
SKU: DRT2-MD16USD 100.00
Omron DRT2-MD16 DRT2-series Smart DeviceNet slave, 8 DC inputs + 8 NPN outputs 0.5 A, screw terminals, IP20. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron DRT2-MD16 is the DRT2-series Smart DeviceNet slave with 8 DC inputs and 8 NPN transistor outputs on a screw terminal block, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It mounts on a 35 mm DIN rail next to a DeviceNet master and exposes 8 DC inputs (24 VDC, 6 mA per point, 1.5 ms ON/OFF) and 8 NPN transistor outputs (24 VDC, 0.5 A per point, 4 A per common). Communications power 11 to 25 VDC; I/O power 20.4 to 26.4 VDC.
Screw terminals accept up to 1.5 mm² wire for field-side sensor and actuator wiring. Smart Slave features track power supply status, I/O response time, and operation counters for preventive maintenance. IP20 panel-mount only - for IP67 e-CON sensor plugs pick the DRT2-MD16S sibling. For 16-input only pick DRT2-ID16. For 16 PNP-output pick DRT2-OD16-1.
Key Features
- DRT2-series Smart DeviceNet slave with 8 DC inputs (24 VDC, 6 mA per point) and 8 NPN transistor outputs at 0.5 A per point, 4 A per common
- Screw terminal block for field-side sensor and actuator wiring, accepting up to 1.5 mm squared stranded wire
- Smart Slave diagnostics: power supply status, I/O response time, operation counter, on-time monitor for preventive maintenance

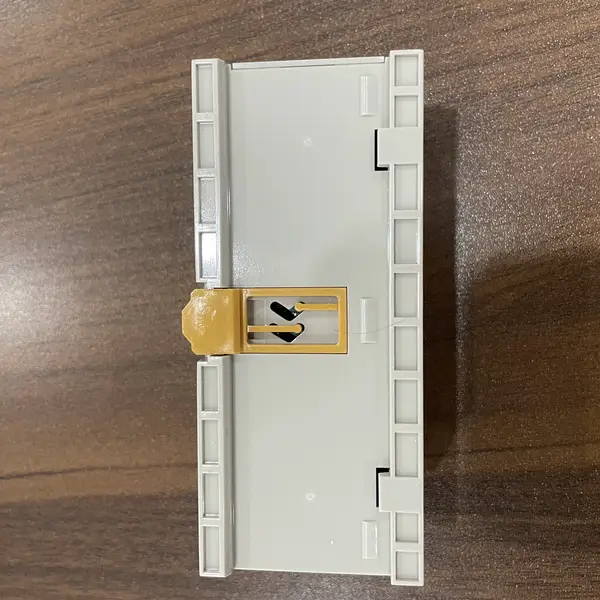

- DIN rail 35 mm or M4 screw mount, 500 VAC dielectric, 90 g, IP20, -10 to 55 C ambient, DeviceNet master via CJ1W-DRM21
- SKU: DRT2-MD16
- Series: DRT2-series Smart DeviceNet Slave (DRT2 family)
- I/O: 16 points
Best-Fit Applications
- Conveyor diverter station where 8 photo-eye inputs feed an NS12-TS01H HMI through a CJ1W-DRM21 master and 8 NPN outputs drive the pneumatic gates
- Semi-automated assembly jig where 8 part-present sensors connect to the screw terminals and 8 outputs control pneumatic clamps and indicator lamps
- Spare replacement on a filling machine where the original DRT2-MD16 was lost and the DeviceNet node address (DIP switches) matches the existing master config
Buying Checklist
- Pick the DRT2-MD16 when the DeviceNet cell needs 8 DC inputs and 8 NPN outputs on screw terminals with Smart Slave preventive-maintenance diagnostics.
- Pick the DRT2-MD16S instead when the field wiring uses pre-wired photo-eye sensor plugs on e-CON connectors instead of screw terminals.
- Pick the DRT2-ID16 instead when the cell only needs 16 inputs and no outputs on the same screw-terminal panel-mount body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | DRT2-series Smart DeviceNet Slave (DRT2 family) |
| Model / SKU | DRT2-MD16 |
| Total I/O | 16 points: 8 DC inputs + 8 NPN transistor outputs |
| Input Specs | 8 inputs, 24 VDC, 6 mA per point at 24 VDC, ON voltage 15 VDC min, OFF voltage 5 VDC max, 1.5 ms ON/OFF; 16 per common; sensor short-circuit detection on adjacent pairs |
| Output Specs | 8 outputs, 24 VDC, 0.5 A per point, 4 A per common, residual 1.2 VDC max, leakage 0.1 mA max, 1.5 ms ON/OFF; load short-circuit detection at 4 A per common |
| Communication | DeviceNet slave; communications power 11 to 25 VDC, 230 mA max at 24 VDC; I/O power 20.4 to 26.4 VDC |
| Connection | Screw terminal block (field-side); M2 DeviceNet connector (comm-side); 35 mm DIN rail or M4 screw mount |
| Isolation / Dielectric | 500 VAC between isolated circuits; IEC 61000-4-4 noise immunity 2 kV on power line |
| Vibration / Shock | 10 to 60 Hz 0.7 mm + 60 to 150 Hz 50 m/s2 for 80 min each axis; 150 m/s2 6 directions 3 times each |
| Smart Features | Power supply status, I/O response time monitor, operation counter, on-time monitor, network voltage monitor, communications error log |
| Dimensions / Approvals | 84 (W) x 50 (H) x 50 (D) mm; 90 g max; IP20; -10 to 55 C ambient; CE, cULus, RCM, KC |
FAQ for DRT2-MD16
What is the Omron DRT2-MD16 used for?
It is the DRT2-series Smart DeviceNet slave with 8 DC inputs and 8 NPN transistor outputs on screw terminals. Typical uses are conveyor diverter stations, semi-automated assembly jigs, and spare replacement on a filling machine where the DeviceNet node address matches the existing master config.
DRT2-MD16 vs DRT2-MD16S - what is the difference?
Both are DRT2 Smart DeviceNet slaves with 8 inputs and 8 outputs. The MD16 uses a screw terminal block and rates the outputs at 0.5 A per point, 4 A per common. The MD16S uses e-CON connectors for pre-wired sensor plugs and rates the outputs at 0.3 A per point, 2.4 A per common. Pick the MD16 for fixed wiring at higher current; pick the MD16S for plug-and-play sensor wiring.
How is the DRT2-MD16 wired to a DeviceNet master?
With the M2 DeviceNet connector on the side. The DeviceNet trunk (CAN_H, CAN_L, V+, V-, shield) carries the comm signal and communications power. Set the node address (0 to 63) with the on-board DIP switches before powering the trunk. The I/O supply connects to the screw terminals on the field-side block.
Does the DRT2-MD16 support PNP sensors?
The DRT2-MD16 inputs are NPN (switch to 0 V). For PNP sensors (switch to 24 V), pick the DRT2-MD16-1 or DRT2-MD16S-1. Same screw-terminal or e-CON body, with PNP-style inputs and NPN outputs.
