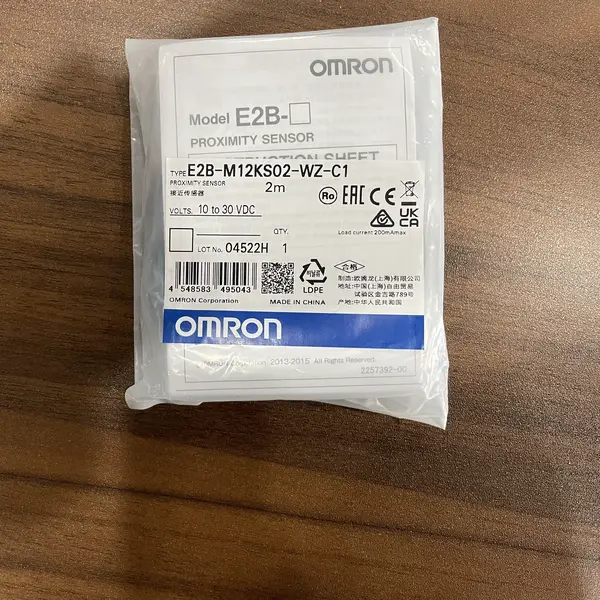

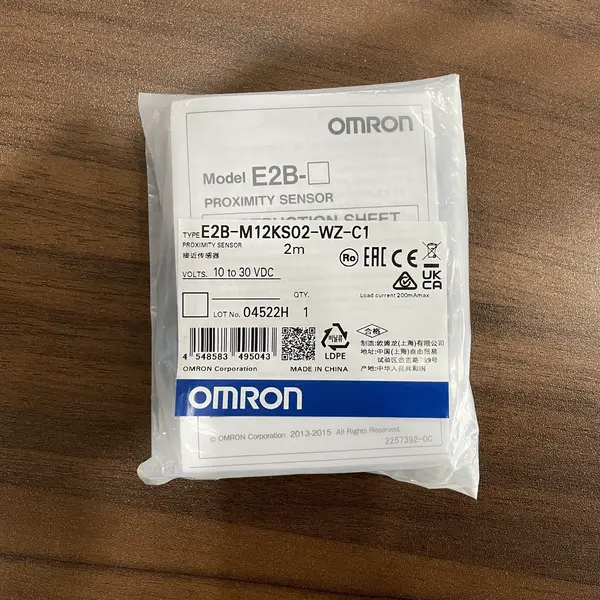

Omron E2B-M12KS02-WZ-C1 2M — M12 Inductive, 2 mm, DC 2W
SKU: E2B-M12KS02-WZ-C1 2MUSD 8.50
Omron E2B-M12KS02-WZ-C1 2M M12 shielded inductive sensor, 2 mm, DC 2-wire NO, 2 m PVC cable. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

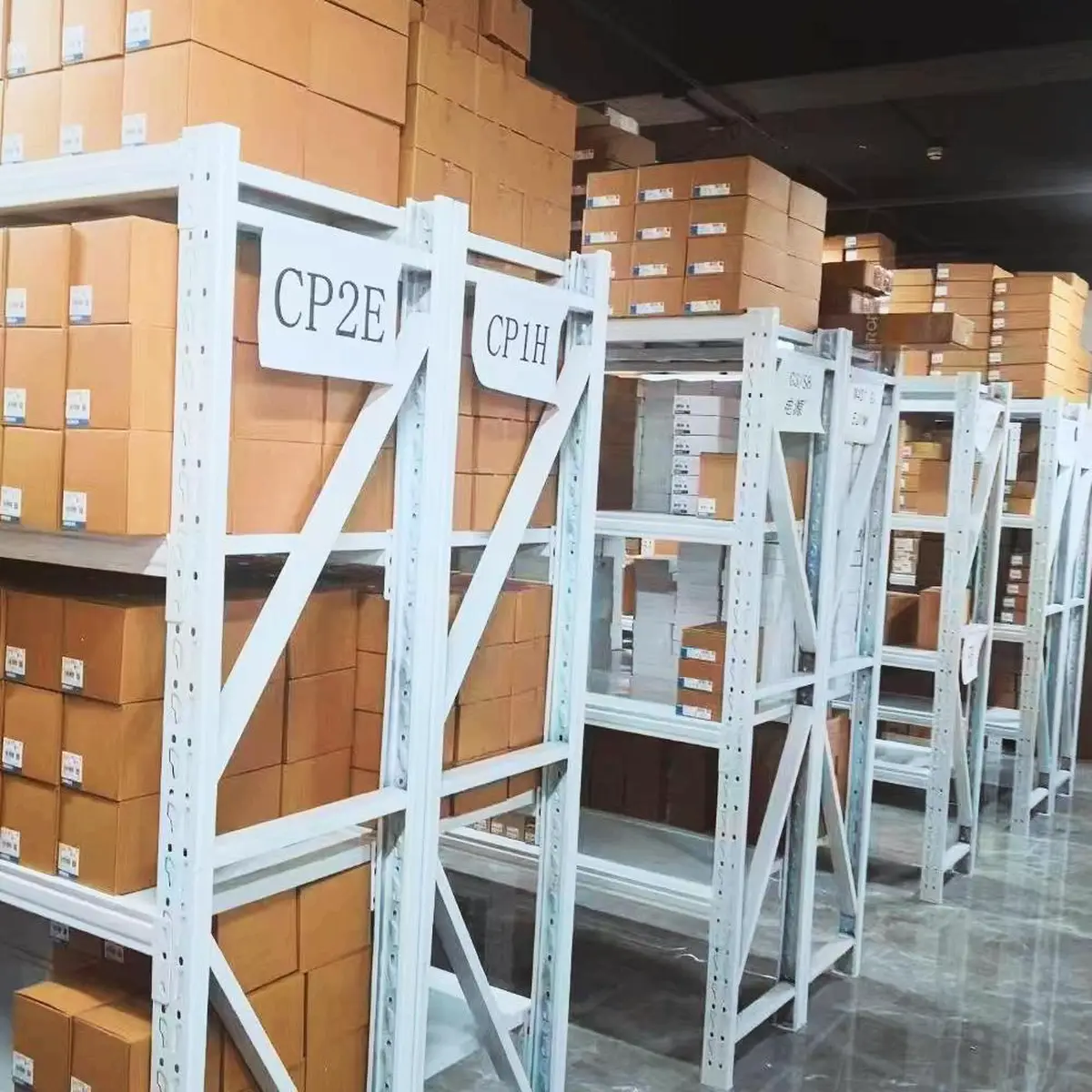

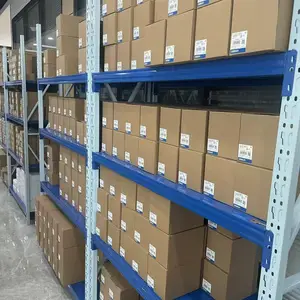

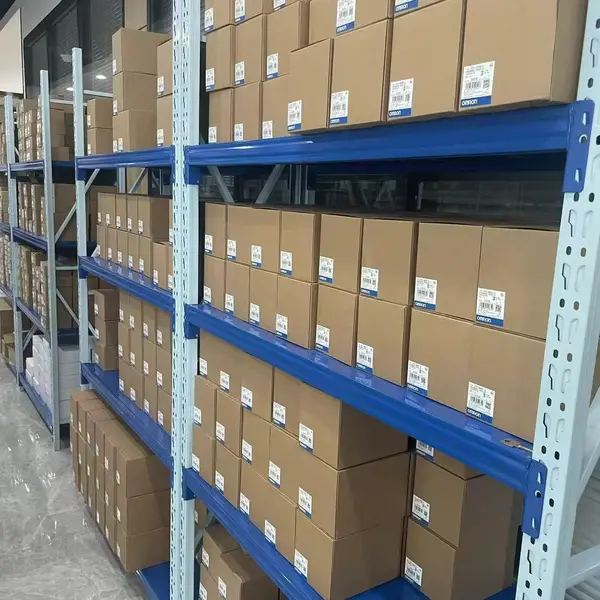

The Omron E2B-M12KS02-WZ-C1 2M is an M12 threaded shielded inductive proximity sensor from the E2B series, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor detects ferrous and non-ferrous metal targets up to 2 mm from the shielded face of an M12 x 1 brass-nickel threaded body. Output is a DC 2-wire normally open (NO) signal, polarity-independent, so the same sensor suits PNP and NPN loads. Supply is 10 to 30 VDC at 200 mA max load, 1 kHz response frequency, IP67.
The 2 m PVC pre-wired cable exits the rear of the 47 mm long standard body. Operating temperature is -25 to +70 C. The yellow operation LED shows the switch state. The E2B-M12KS02-WP-C1 2M sibling is the 3-wire PNP NO version of the same body; the E2B-M12KS02-WZ-C2 2M is the same DC 2-wire with normally closed output.
Key Features
- E2B-series M12 shielded inductive proximity sensor, 2 mm nominal sensing distance, flush mountable
- DC 2-wire normally open (NO), polarity-independent, suits PNP and NPN loads on the same sensor
- 10 to 30 VDC supply, 200 mA max load at 30 VDC, 1 kHz response frequency, yellow operation LED
- M12 x 1 brass-nickel threaded body, 47 mm standard length, 2 m PVC pre-wired cable, IP67, -25 to +70 C
- SKU: E2B-M12KS02-WZ-C1 2M
- Series: Omron E2B-series cylindrical inductive proximity sensor
- Voltage: 10 TO 30 VDC
Best-Fit Applications
- End-of-stroke position check on a small pneumatic cylinder where the 2 mm range and the M12 thread fit the standard mounting bracket
- Tool-present detection on a CNC tool changer that needs a 2-wire sensor to wire directly into an existing 24 VDC input card without polarity care
- Spare replacement on a packaging conveyor where the previous E2B-M12KS02-WP-C1 2M PNP must be swapped to a 2-wire NO unit on the same harness
Buying Checklist
- Pick the E2B-M12KS02-WZ-C1 2M for an M12 shielded 2 mm DC 2-wire normally open inductive sensor on a 2 m PVC cable.
- Pick the E2B-M12KS02-WP-C1 2M instead when the controller expects a 3-wire PNP NO signal on the same M12 shielded body.
- Pick the E2B-M12KN08-WZ-C2 instead when the bracket needs an 8 mm unshielded long-body sensor with normally closed output.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E2B-series cylindrical inductive proximity sensor |
| Model / SKU | E2B-M12KS02-WZ-C1 2M |
| Size | M12 x 1 threaded brass-nickel body, 47 mm standard length |
| Sensing Distance | 2 mm nominal, shielded (flush mountable) |
| Output Type | DC 2-wire normally open (NO), polarity-independent |
| Supply Voltage | 10 to 30 VDC |
| Load Current | 200 mA max at 30 VDC |
| Response Frequency | 1 kHz |
| Indicator | Yellow operation LED on the rear face |
| Cable | 2 m PVC pre-wired, 3-wire-equivalent hookup over 2 conductors |
| Environment | IP67, -25 to +70 C operating, M12 thread mounts in a 12 mm clearance hole |
FAQ for E2B-M12KS02-WZ-C1 2M
What is the Omron E2B-M12KS02-WZ-C1 2M used for?
It is an M12 shielded inductive proximity sensor for metal detection on machine tools, small pneumatic cylinders, and packaging conveyors. The 2-wire DC NO output suits both PNP and NPN inputs without polarity concern, simplifying retrofit wiring.
E2B-M12KS02-WZ-C1 2M vs E2B-M12KS02-WP-C1 2M - what is the difference?
Both are 2 mm shielded M12 sensors on 2 m PVC cables. The WZ-C1 is a DC 2-wire NO device; the WP-C1 is a DC 3-wire PNP NO device. Pick the WZ-C1 for 2-wire retrofits and the WP-C1 for PNP-only PLC inputs.
Does the E2B-M12KS02-WZ-C1 2M need a polarity-aware input?
No. The 2-wire DC design is polarity-independent, so the same sensor works on PNP and NPN loads. Wire the brown lead to +V and the blue lead to the load; the load returns to 0 V.
What is the IP rating of the E2B-M12KS02-WZ-C1 2M?
IP67. The sensor withstands temporary immersion in water and is dust-tight, but is not rated for high-pressure hot water washdown. Operating temperature is -25 to +70 C.
Can the E2B-M12KS02-WZ-C1 2M detect non-ferrous metals?
Yes, but at a reduced sensing distance. The 2 mm range is specified on mild steel; stainless steel, brass, copper, and aluminium trigger at lower distances. The datasheet correction factor should be applied for mixed-metal applications.
