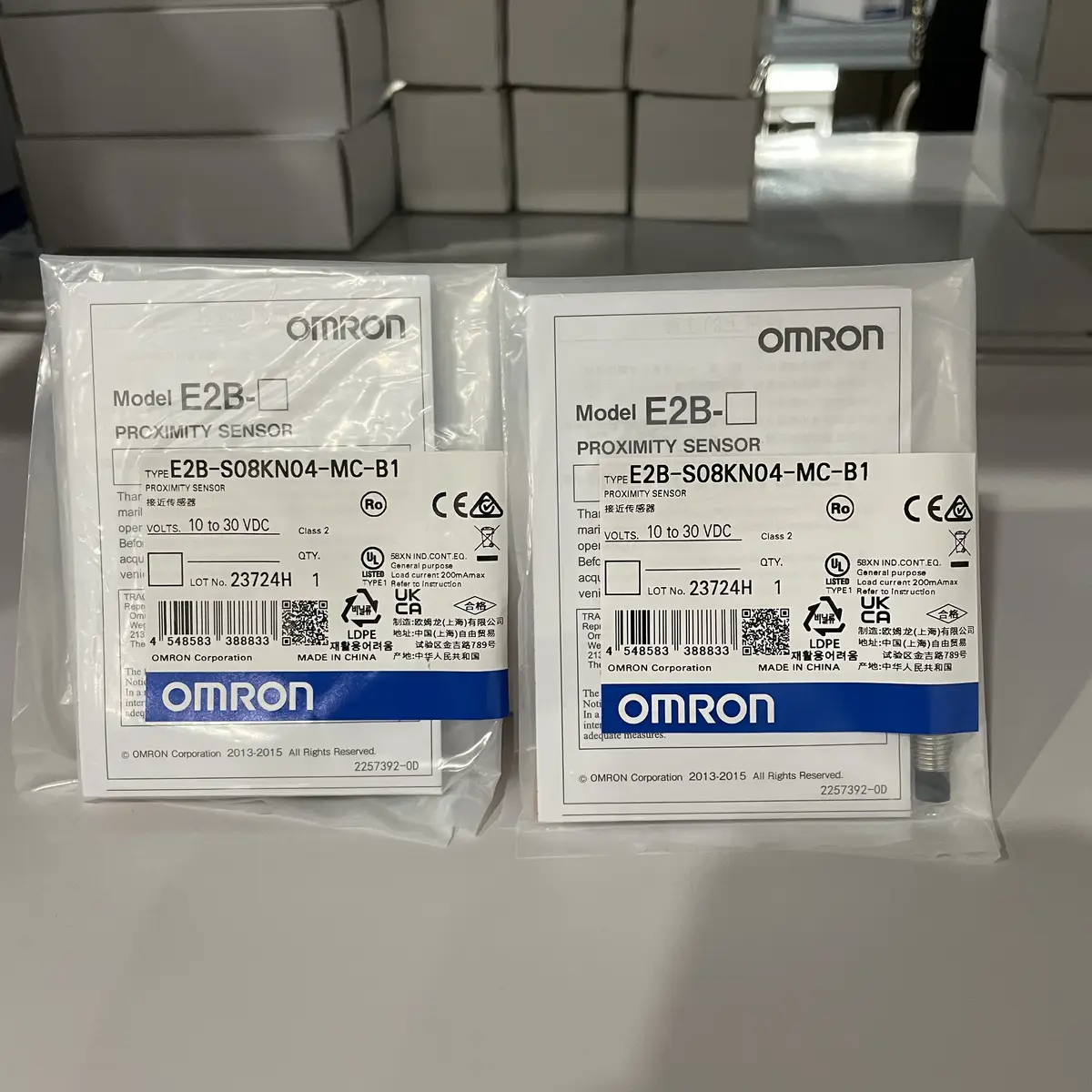

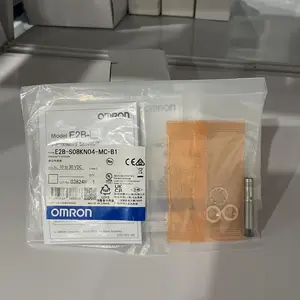

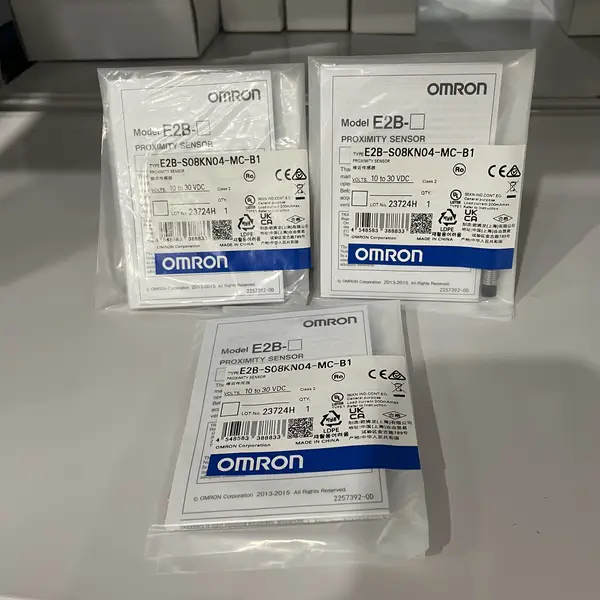

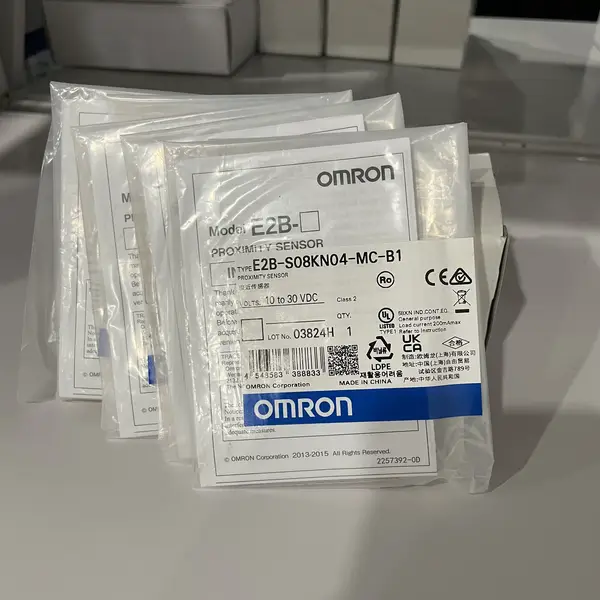

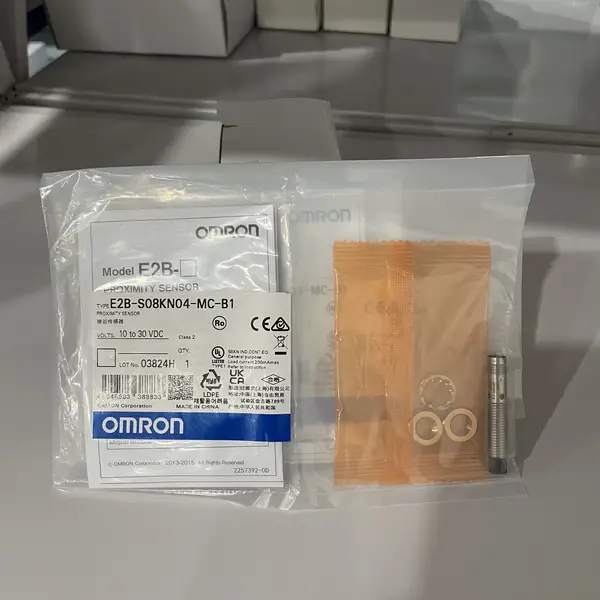

Omron E2B-S08KN04-MC-B1 2M — M8 Inductive, 4 mm, PNP
SKU: E2B-S08KN04-MC-B1 2MUSD 8.00
Omron E2B-S08KN04-MC-B1 2M M8 unshielded inductive sensor, 4 mm, PNP NO, M8 connector + 2 m cable, IP67. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E2B-S08KN04-MC-B1 2M is an M8 unshielded inductive proximity sensor from the E2B family, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor detects ferrous metal at 4 mm. The short stainless-steel body is 44 mm long with a 21 mm thread. The M8 3-pin connector mounts directly; Omron lists no cable for this model, so there is no pigtail to run. Output is PNP normally open, 3-wire, at 10 to 30 VDC with a 200 mA load limit.
A yellow LED on the back of the body shows the output state. The unit is IP67 sealed and runs from -25 to +70 degC, with reverse-polarity and surge protection on the output. Response frequency is 1 kHz. For a shielded M8 2 mm version on the same connector, pick the E2B-S08KS02-MC-B1. For a shielded M12 4 mm NPN with a prewired cable, pick the E2B-M12KS04-WZ-B1 2M.
Key Features
- E2B M8 unshielded inductive proximity sensor, 4 mm sensing distance
- PNP normally open 3-wire output, 10-30 VDC supply, 200 mA max load
- 44 mm stainless-steel short body, 21 mm thread, 2 m pigtail to M8 connector
- IP67 sealed, -25 to +70 degC, yellow operation LED, 1 kHz response
- SKU: E2B-S08KN04-MC-B1 2M
- Series: Omron E2B-series M8 cylindrical inductive proximity sensor
- Voltage: 10 TO 30 VDC
Best-Fit Applications
- End-of-stroke check on a small pneumatic cylinder where the unshielded 4 mm range picks the magnet target through the aluminium head
- Part-present feedback on a vibratory bowl where the M8 connector lets the operator swap the sensor without re-wiring
- Spare replacement on a packaging line where the original M8 sensor failed and the new one drops onto the same bracket and cable
Buying Checklist
- Pick the E2B-S08KN04-MC-B1 2M for an M8 unshielded 4 mm PNP NO inductive sensor with a 2 m pigtail to an M8 connector.
- Pick the E2B-S08KS02-MC-B1 instead when the application needs a shielded 2 mm sensor on the same M8 body.
- Pick the E2B-M12KS04-WZ-B1 2M instead when the panel needs an M12 4 mm shielded NPN sensor with a prewired cable.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E2B-series M8 cylindrical inductive proximity sensor |
| Model / SKU | E2B-S08KN04-MC-B1 2M |
| Sensing Method | Inductive, unshielded (non-flush) |
| Sensing Distance | 4 mm |
| Standard Target | 8 x 8 x 1 mm mild steel |
| Output | PNP normally open, 3-wire |
| Supply Voltage | 10 to 30 VDC |
| Load Current | 200 mA max |
| Response Frequency | 1 kHz |
| Connection | M8 3-pin connector, no cable |
| Protection / Material | IP67; stainless-steel body; -25 to +70 degC |
FAQ for E2B-S08KN04-MC-B1 2M
What metal can the E2B-S08KN04-MC-B1 2M detect?
Ferrous metal at the full 4 mm rated distance. The sensing distance drops on non-ferrous metals (stainless steel, aluminium, brass). Use an 8 x 8 x 1 mm mild-steel target for the published 4 mm spec.
Can this sensor mount in a steel bracket?
Yes, with clearance. The unshielded body needs about one body diameter of free space around the sensing face. For flush mounting in steel, switch to a shielded variant such as the E2B-S08KS02-MC-B1.
What does the B1 in the SKU mean?
B1 = normally open output on the standard wiring pinout. The B2 suffix is normally closed on the same body. The MC suffix marks the M8 3-pin connector; the WP suffix marks a 2 m prewired cable without a connector.
