Omron E2E-X8MD1 2M — M12 Inductive Sensor, 8 mm, DC 2 Wire
SKU: E2E-X8MD1 2MUSD 18.00
M12 brass cylindrical inductive proximity sensor, 8 mm unshielded (non-flush) sensing distance, DC 2-wire polarized NO output
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

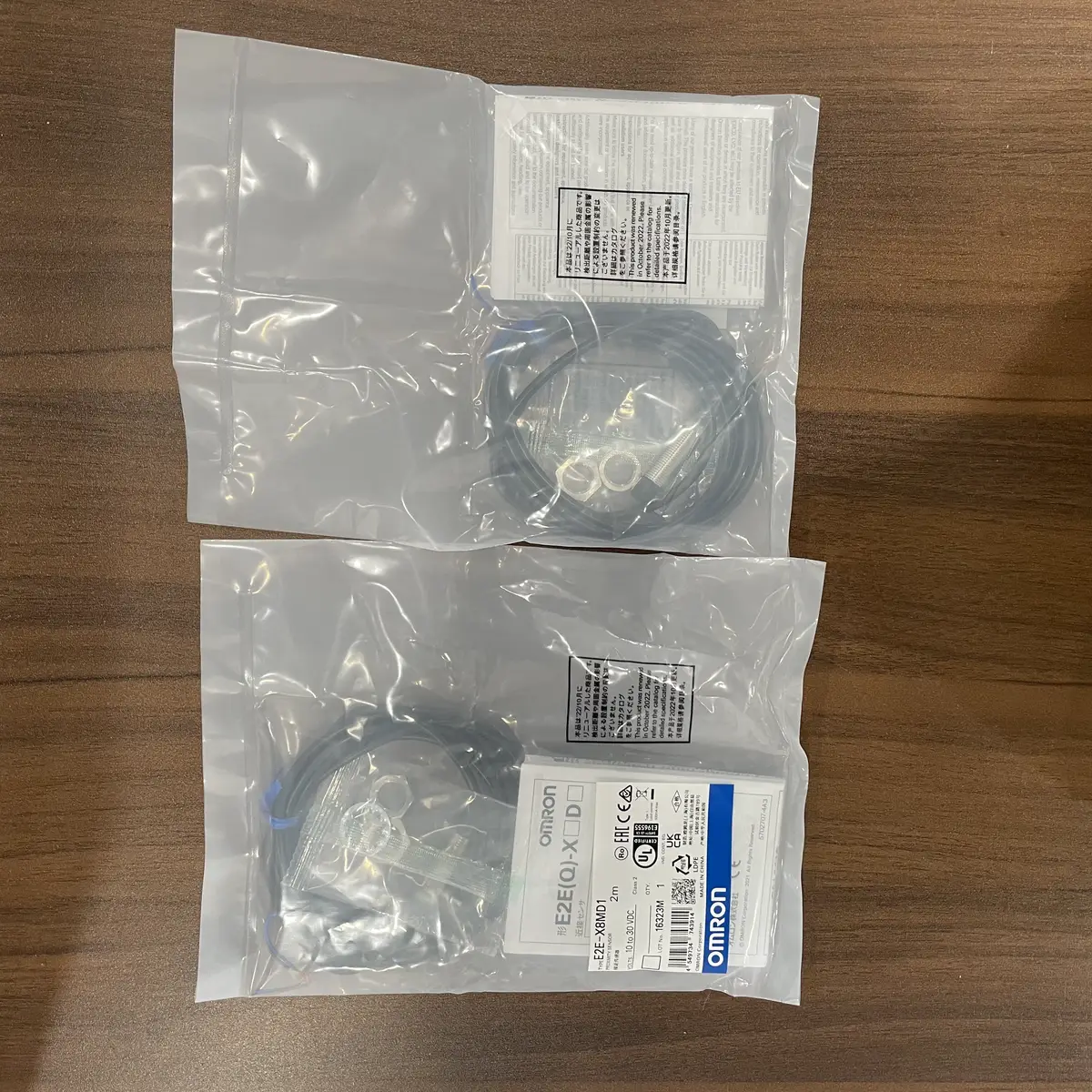

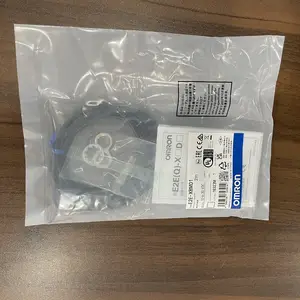

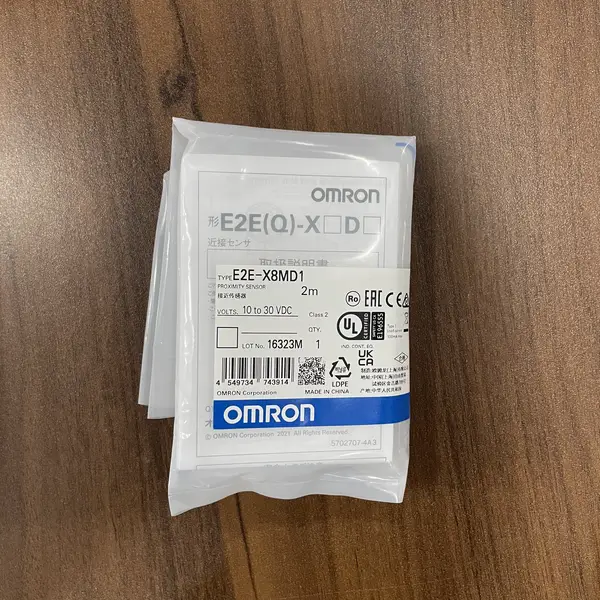

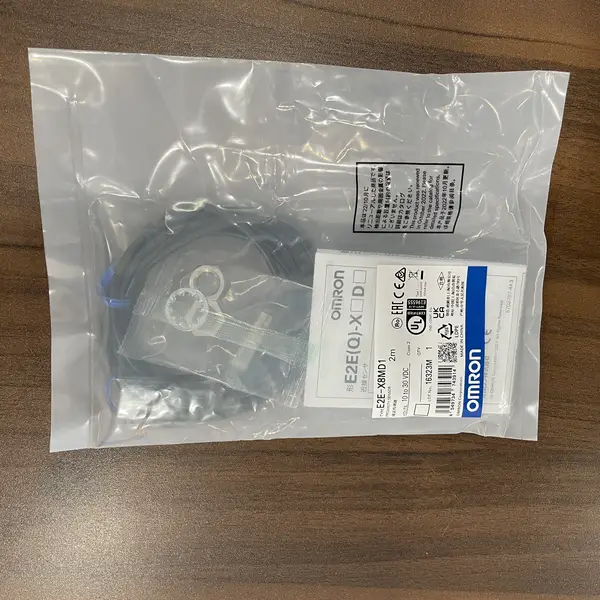

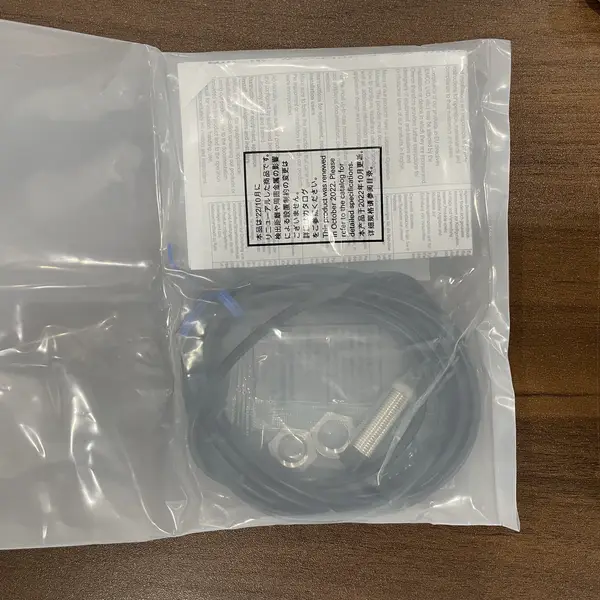

The Omron E2E-X8MD1 2M is the M12 brass-body, 8 mm unshielded (non-flush) inductive proximity sensor with DC 2-wire polarized normally-open output and a 2 m pre-wired oil-resistant PVC cable. manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The E2E is Omron's flagship general-purpose inductive line — the right pick when the application needs reliable metal detection in a DC circuit that is wired like a switch contact rather than like a sensor with separate load and supply. The DC 2-wire form factor is the classic 'limit switch replacement' — the sensor acts like a contact closure (current sinks through the load when a target is detected) rather than a sourcing output stage.
And the leakage current spec (0.8 mA max) is critical for high-impedance loads: if the load is a PLC input with high input impedance (> 10 kΩ), the 0.8 mA leakage may be enough to trigger the input falsely when the sensor is OFF.
Key Features
- 0.8 kHz response frequency
- 8 mm nominal sensing distance
- 12 to 24 VDC supply
- 100 mA max load current
- SKU: E2E-X8MD1 2M
- Series: E2E Standard Cylindrical Inductive Proximity Sensors
- Voltage: 12 TO 24 VDC
Best-Fit Applications
- Pneumatic cylinder end-of-stroke position confirmation on a packaging machine — E2E-X8MD1 2M mounted on the cylinder body, target = piston.
- Tool-position confirmation on a CNC machining center — multiple E2E-X8MD1 2M sensors confirming tool-changer positions with 0.8 kHz response suitable.
- Door-position feedback on a non-safety machine guard — sensor mounted on the cabinet frame, target = ferrous strike plate; for.
Buying Checklist
- Pick E2E-X8MD1-M1 for M12 4-pin connector instead of pre-wired cable
- Pick E2E-X8MY1 2M for DC 3-wire NPN output — pick for PLC inputs with sourcing-input style
- Pick E2E-X14MD1 2M for M18 brass 8 mm unshielded version with longer body for threaded-mount applications
Technical Specifications
| Model | E2E-X8MD1 2M |
|---|---|
| Series | E2E Standard Cylindrical Inductive Proximity Sensors |
| Type | M12 unshielded, DC 2-wire polarized, NO |
| Sensing Distance | 8 mm ±10% (with iron 30×30×1 mm target) |
| Setting Distance | 0 to 6.4 mm (80% of nominal rated) |
| Differential Travel | 10% max of sensing distance |
| Standard Sensing Object | Iron, 30 × 30 × 1 mm |
| Response Frequency | 0.8 kHz (1.25 ms response time) |
| Power Supply Voltage | 12 to 24 VDC, ripple (p-p) 10% max |
| Operating Voltage Range | 10 to 30 VDC |
| Leakage Current | 0.8 mA max (sensor OFF) |
| Control Output | DC 2-wire polarized, 100 mA load max, 30 VDC residual voltage max |
| Sensing Face Material | PBT (polybutylene terephthalate) |
| Operating Temperature | -25 to +70 °C |
| Storage Temperature | -25 to +80 °C |
FAQ for E2E-X8MD1 2M
What does "DC 2-wire polarized" mean on the E2E-X8MD1 2M?
DC 2-wire means the sensor uses the same 2 conductors (brown and blue) for both supply power and load current — there is no separate 'output' wire as there would be on a 3-wire sensor. Polarized means the sensor requires strict polarity: brown = +V (12-24 VDC positive) and blue = 0V (return / load).
Can the E2E-X8MD1 2M drive a relay coil directly?
Yes — the DC 2-wire output can switch up to 100 mA at 30 VDC, which is enough to drive small relay coils directly (a typical 24 VDC relay coil draws ~10-30 mA; a 12 VDC automotive relay coil draws ~150 mA — pick a 24 VDC relay for headroom). Connect the relay coil between the blue wire and 0 V (ground); the brown wire goes to +V supply.
What's the difference between E2E-X8MD1 2M and E2E-X8MD1?
E2E-X8MD1 with no suffix is the connectorized M12 version per the Omron datasheet — but in practice this base SKU is rarely sold without a connector variation. E2E-X8MD1-M1 adds an M12 4-pin connector (prewired pigtail, ~30 cm). E2E-X8MD1 2M (this SKU) has a 2 m pre-wired cable. The electrical specs are identical (8 mm sensing, 0.8 kHz response, 12-24 VDC supply, 100 mA load, IP67 body), only the connection method differs.
What's the sensing distance on non-ferrous metal targets with the E2E-X8MD1 2M?
The 8 mm nominal sensing distance is specified for iron (ST37 / SPCC). Other materials reduce the sensing range by approximately: stainless steel (304) = 0.85× = 6.8 mm; aluminum (6061) = 0.55× = 4.4 mm; brass = 0.55× = 4.4 mm; copper = 0.45× = 3.6 mm. For aluminum bracket detection, mount the sensor at <4 mm; for thin stainless foil detection, mount at <6 mm.
