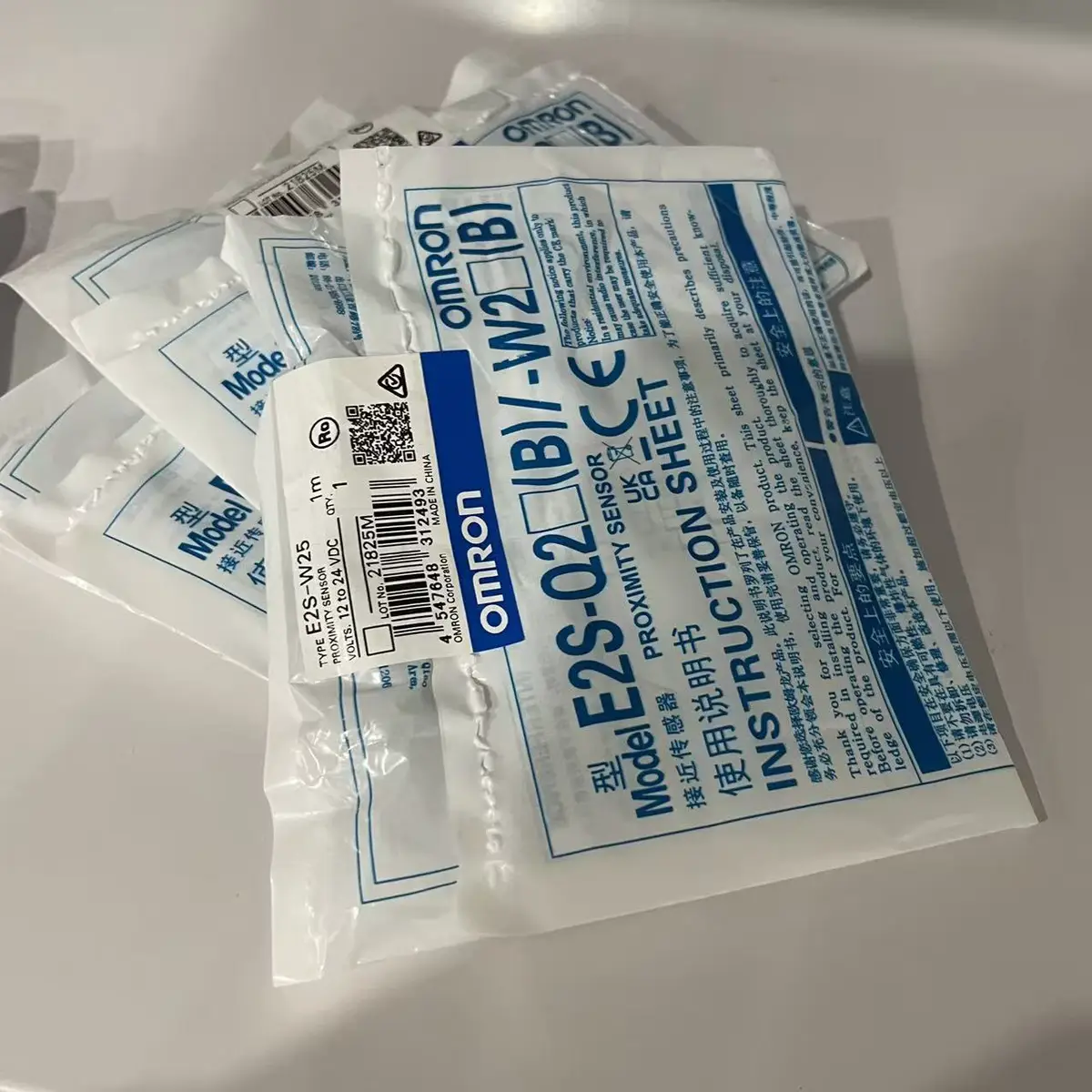

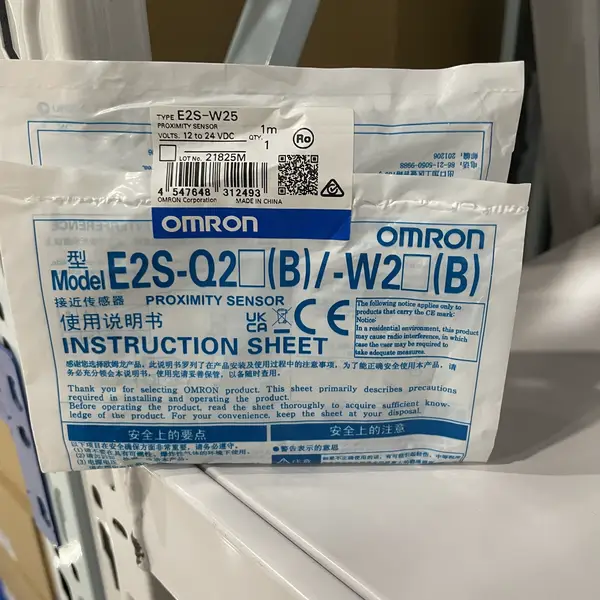

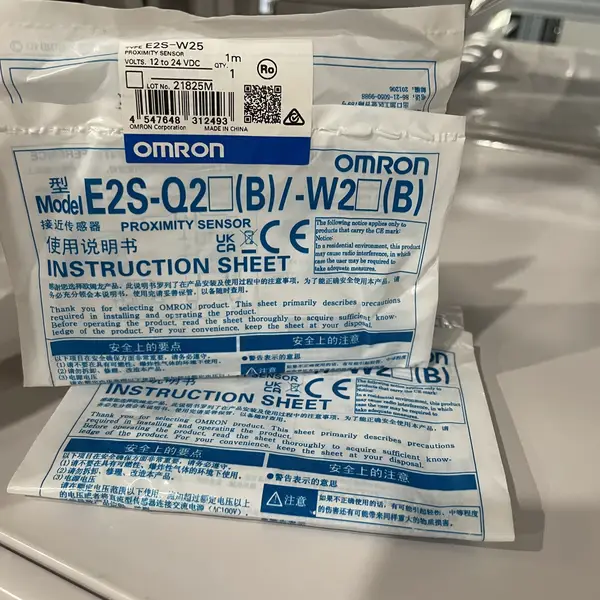

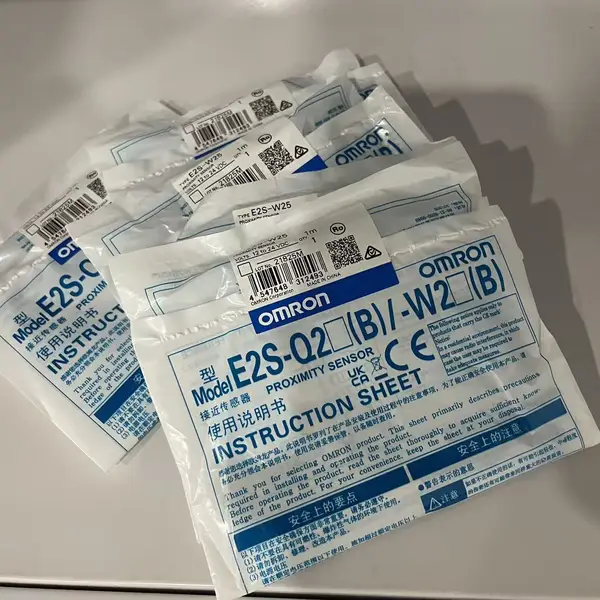

Omron E2S-W25 1M — Miniature Inductive Sensor, 2.5 mm
SKU: E2S-W25 1MUSD 18.00
Omron E2S-W25 1M miniature inductive sensor, 7.4 x 8 x 23 mm, 2.5 mm, PNP NO, 1 m cable. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E2S-W25 1M is a miniature rectangular inductive proximity sensor from the E2S series, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor detects ferrous and non-ferrous metal targets up to 2.5 mm from the top sensing face of the 7.4 x 8 x 23 mm polyarylate housing. Output is PNP normally open on a 3-wire DC circuit. Supply is 10 to 30 VDC, max load 100 mA at 30 VDC, 2 V max residual voltage. Response is 1 kHz with 10% hysteresis.
The 1 m PVC pre-wired cable exits the rear of the rectangular body. Mounting uses an M2.5 or M3 screw through a flat bracket; the yellow operation LED shows the switch state. IP67, -25 to +70 C. The E2S-W23 is the NPN NO version of the same body; the E2B-S08KN04-MC-B1 is the M8 PNP upgrade for higher switching frequency.
Key Features
- E2S-series miniature rectangular inductive proximity sensor, top-surface detection, unshielded, 2.5 mm nominal sensing distance
- DC 3-wire PNP normally open, 10-30 VDC supply, 100 mA max load at 30 VDC, 2 V max residual voltage, 1 kHz response frequency
- 7.4 (W) x 8 (H) x 23 (D) mm polyarylate housing, yellow operation LED, 10% hysteresis
- 1 m PVC pre-wired cable, IP67, -25 to +70 C operating, 35 to 95% RH non-condensing, mounts via M2.5 / M3 bracket screws
- SKU: E2S-W25 1M
- Series: Omron E2S-series miniature rectangular inductive proximity sensor
- Voltage: 10 TO 30 VDC
Best-Fit Applications
- Small parts-present detection on a desktop SMT pick-and-place where the 7.4 x 8 x 23 mm body fits between component feeders
- Top-mounted tool position check on a small robotic gripper that needs a non-flush 2.5 mm sensor on a flat bracket
- Spare replacement on a coin-counting machine where the previous E2S-W23 NPN body must be replaced with a PNP unit on the same wiring harness
Buying Checklist
- Pick the E2S-W25 1M for a miniature rectangular unshielded PNP NO inductive sensor at 2.5 mm on a 1 m PVC cable for tight-mounting fixtures.
- Pick the E2S-W23 instead when the controller input expects an NPN normally open signal on the same 7.4 x 8 x 23 mm body.
- Pick the E2B-S08KN04-MC-B1 2M instead when the bracket needs an M8 shielded PNP NO sensor at 4 mm with higher IP69K washdown rating.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E2S-series miniature rectangular inductive proximity sensor |
| Model / SKU | E2S-W25 1M |
| Size | 7.4 (W) x 8 (H) x 23 (D) mm rectangular polyarylate housing |
| Sensing Distance | 2.5 mm nominal |
| Mounting | Unshielded (non-flush), top-surface detection |
| Output Type | PNP normally open, DC 3-wire |
| Supply Voltage | 10 to 30 VDC |
| Load Current | 100 mA max at 30 VDC, residual voltage 2 V max |
| Response Frequency | 1 kHz |
| Hysteresis | 10% of sensing distance |
| Environment / Mounting | IP67, -25 to +70 C operating, 35 to 95% RH non-condensing, 1 m PVC pre-wired cable, M2.5 / M3 bracket screws |
FAQ for E2S-W25 1M
What is the Omron E2S-W25 1M used for?
It is a miniature rectangular inductive proximity sensor for top-surface metal detection on tight-mounting fixtures. The 7.4 x 8 x 23 mm body fits where M8 or M12 cylindrical sensors do not, such as between component feeders or on a robotic gripper bracket.
E2S-W25 1M vs E2S-W23 - what is the difference?
The E2S-W25 1M is PNP normally open. The E2S-W23 is the NPN normally open version of the same 7.4 x 8 x 23 mm body, same 2.5 mm range, same 1 m PVC cable. Pick the 25 for PNP controllers and the 23 for NPN.
Is the E2S-W25 1M shielded?
No. The sensor is unshielded (non-flush), so it must be mounted with clearance around the sensing face to avoid metal derating the 2.5 mm sensing distance. A flat bracket with M2.5 or M3 screws is the standard mount.
What is the IP rating of the E2S-W25 1M?
IP67. The sensor withstands temporary immersion in water but is not rated for high-pressure hot water washdown. Operating temperature is -25 to +70 C in 35 to 95% RH non-condensing ambient.
Can the E2S-W25 1M detect non-ferrous metals?
Yes, but at a reduced sensing distance. The 2.5 mm range is specified on mild steel; stainless steel, brass, copper, and aluminium all trigger at lower distances. For mixed-metal applications, the published correction factor from the datasheet should be applied.
