Omron TL-W5MB2 2M — Flat Inductive Sensor, 5 mm, PNP
SKU: TL-W5MB2 2MUSD 35.00
Omron TL-W5MB2 2M flat inductive proximity sensor, 5 mm non-flush, PNP NC, 12-24 VDC, 2 m cable. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron TL-W5MB2 2M is a flat-block inductive proximity sensor from the TL-W family, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The housing is 18 x 10 x 30.5 mm heat-resistant ABS with a 5 mm unshielded (non-flush) sensing distance for ferrous metal. Supply is 12-24 VDC nominal (10-30 VDC operating) at 10 mA max. Output is PNP open-collector, normally closed (NC), switching 50 mA at 12 VDC or 100 mA at 24 VDC.
Response frequency is 500 Hz and a red operation LED sits on the housing. Protection circuits cover reverse polarity and surge suppression. IP67 oil-proof rating and -25 to +70 C operating range cover typical machine-panel environments. The TL-W5MB1 2M is the PNP NO sibling. For a cylindrical M12 with the same PNP NO output, pick the E2B-M12KN05-WZ-B1.
Key Features

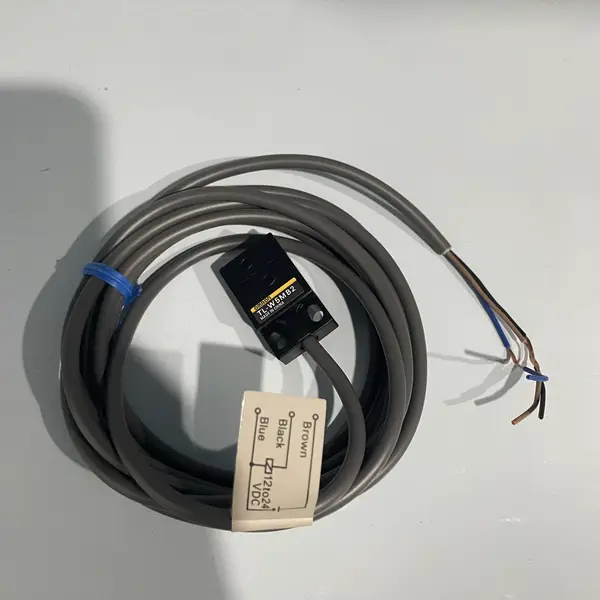

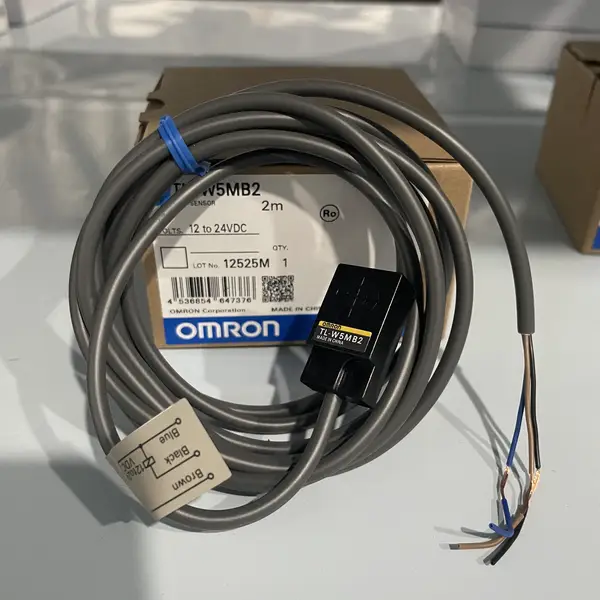

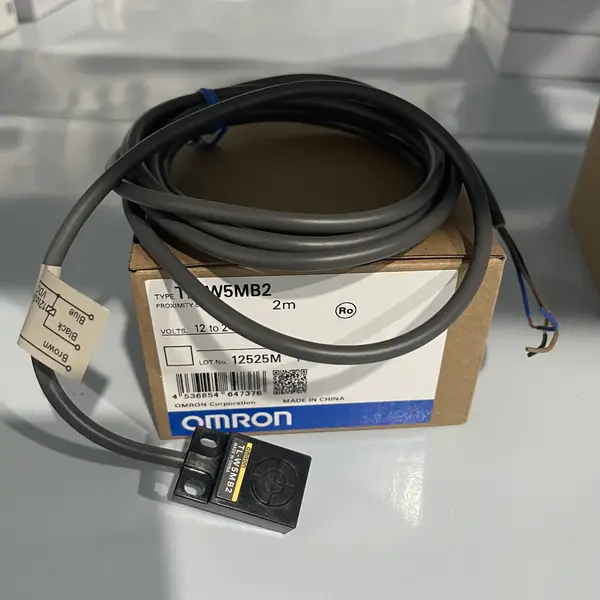

- Flat block inductive proximity sensor, 18 x 10 x 30.5 mm heat-resistant ABS housing, 5 mm non-flush sensing
- PNP open-collector NC output (B2 suffix), 50 mA at 12 VDC or 100 mA at 24 VDC, red operation LED
- 12-24 VDC nominal supply (10-30 VDC operating), 10 mA max, 500 Hz response, reverse-polarity + surge-suppressor protection
- IP67 oil-proof, -25 to +70 C operating, pre-wired 2 m PVC cable, 80 g package weight
- SKU: TL-W5MB2 2M
- Series: Omron TL-W flat inductive proximity family
- Voltage: 10 TO 30 VDC
Best-Fit Applications
- Conveyor jam detector on a tight-clearance track where the 18 mm flat body fits where an M12 cannot
- CNC door interlock where the IP67 oil-proof body tolerates coolant and the 100 mA at 24 VDC drives a safety input
- End-of-arm check on a robotic gripper where the 30 g flat body and 2 m flexible lead fit along the cable chain
Buying Checklist
- Pick the TL-W5MB2 2M for a flat 18 mm PNP NC inductive sensor with a 5 mm non-flush range and a 2 m pre-wired cable.
- Pick the TL-W5MB1 2M instead when the panel needs a PNP NO output instead of NC.
- Pick the E2B-M12KN05-WZ-B1 instead when a 12 mm cylindrical M12 body is fine and the range can drop to 5 mm non-flush PNP.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron TL-W flat inductive proximity family |
| Model / SKU | TL-W5MB2 2M |
| Size / Housing | 18 (W) x 10 (H) x 30.5 (D) mm, heat-resistant ABS |
| Sensing Distance | 5 mm +/- 10%, non-flush (unshielded), ferrous target |
| Output Type | PNP open collector, normally closed (NC, B2 suffix) |
| Load Current | 50 mA at 12 VDC / 100 mA at 24 VDC, 30 VDC max |
| Response Frequency | 500 Hz average |
| Supply Voltage | 10 to 30 VDC (12-24 VDC nominal), ripple 10% max, 10 mA max current |
| Protection | Reverse polarity protection, surge suppressor, IP67 oil-proof |
| Connection | Pre-wired 2 m PVC cable, bare end flying leads |
| Environment | -25 to +70 C operating, 35 to 95% RH, oil-proof |
FAQ for TL-W5MB2 2M
What is the TL-W5MB2 2M output type?
PNP open collector, normally closed. In Omron's TL-W suffix scheme, B = PNP and 2 = NC. The TL-W5MB1 2M is the PNP NO version of the same body.
What is the sensing distance of the TL-W5MB2 2M?
5 mm +/- 10% on a standard iron 18 x 18 x 1 mm target. Recommended setting distance is 0 to 4 mm and differential travel 10% max of sensing distance.
Is the TL-W5MB2 2M oil-proof?
Yes. The ABS housing meets Omron's oil-proof company standard and IP67 per IEC 60529. Operating range is -25 to +70 C, suitable for machine-tool coolant environments.
Does the TL-W5MB2 2M need a shielding plate?
No. The TL-W5MB2 2M is unshielded (non-flush). For flush mounting in metal, pick the shielded TL-W3MB2 2M or TL-W5MB2 2M equivalent with the S (shielded) prefix.
