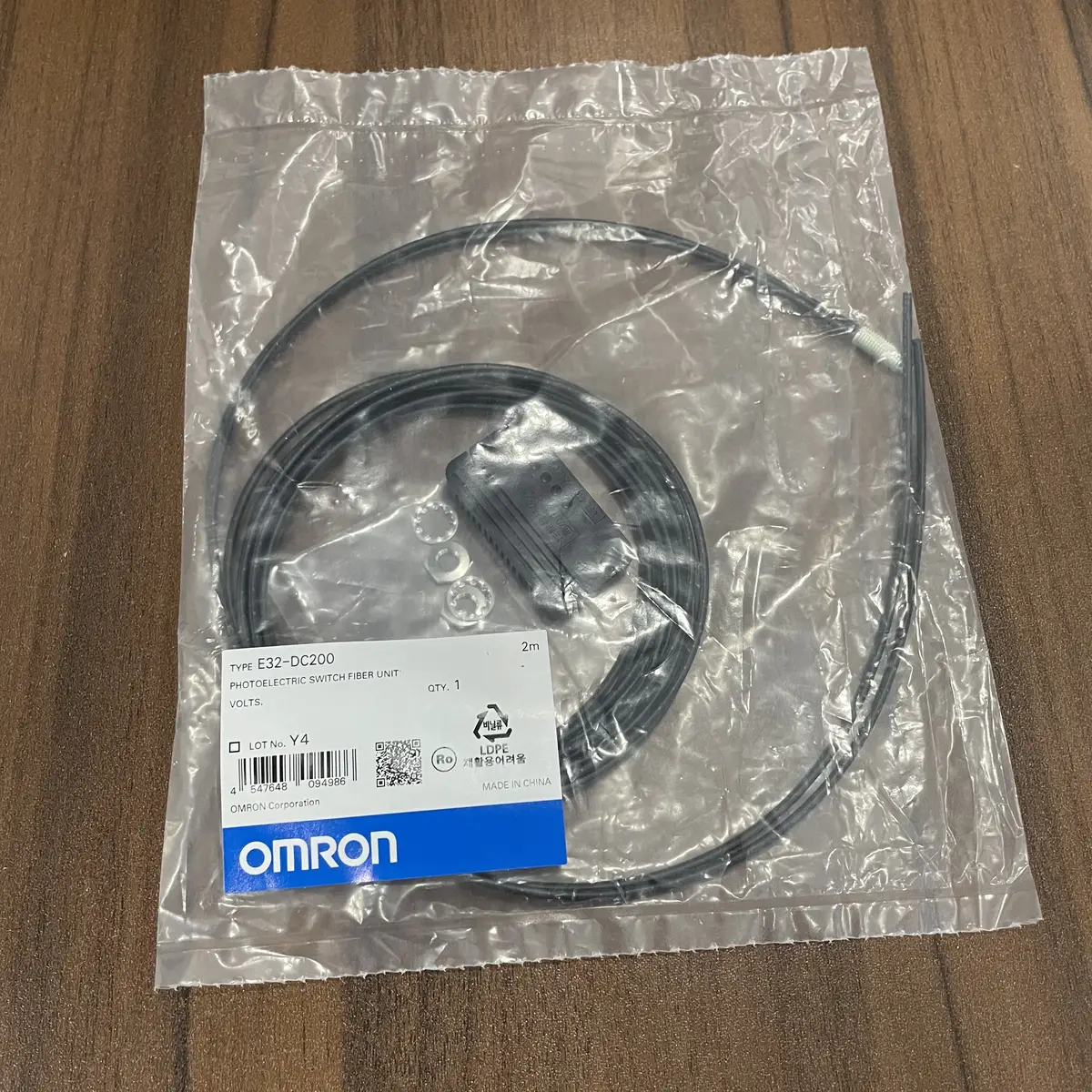

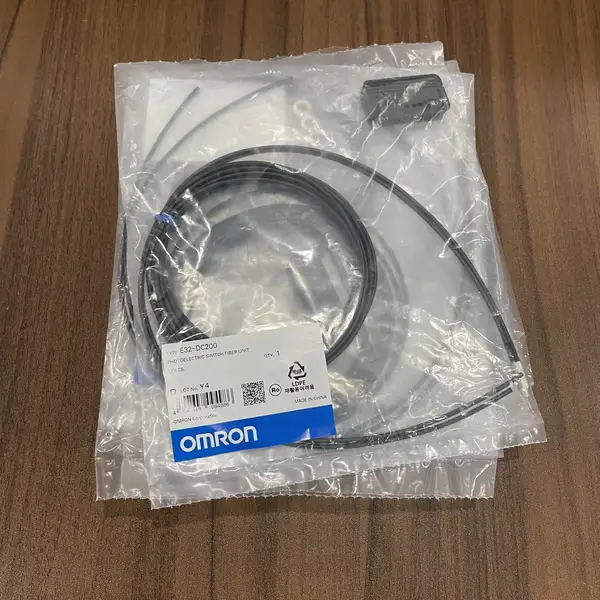

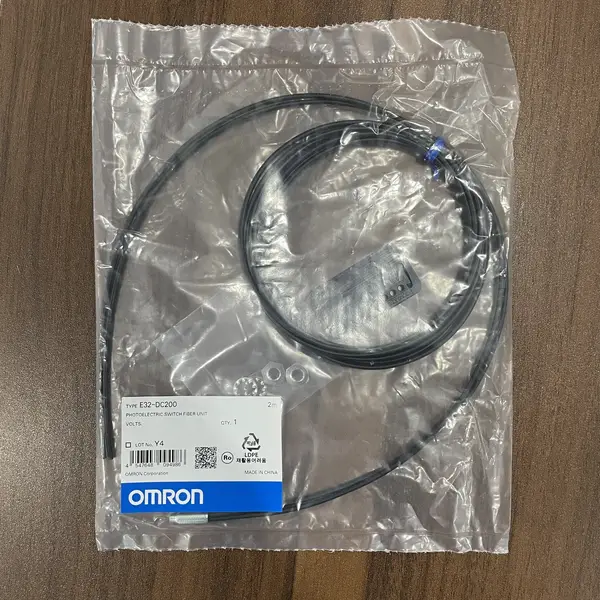

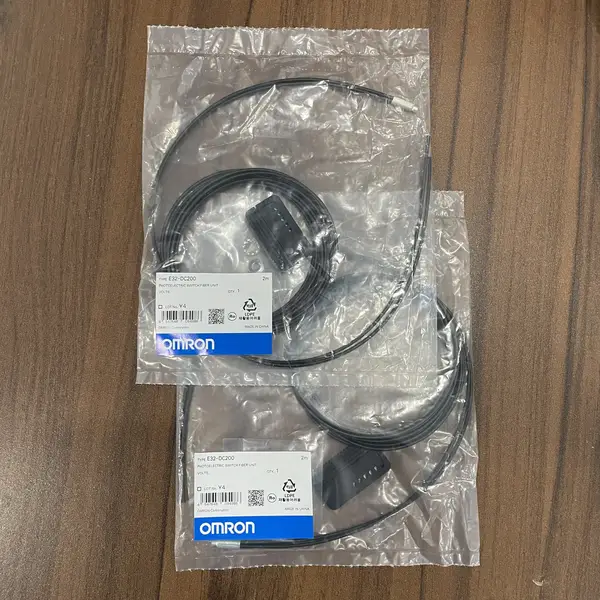

Omron E32-DC200 — M6 Diffuse Fiber Optic Head, 2 m
SKU: E32-DC200USD 11.00
M6 threaded diffuse-reflective fiber optic head, 2 m PVC cable, IP67, 900 mm range with E3X amplifier. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E32-DC200 is an M6 threaded diffuse-reflective fiber optic sensing head with a 2 m PVC cable It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The head screws into a small bracket on the machine and runs a plastic fiber back to an E3X-series amplifier in the cabinet. The amplifier drives the fiber's LED and reads the light reflected back from the target.
The head works with E3X-NA, E3X-HD, E3X-SD, and E3X-ZV amplifiers, all of which accept the same M2.6 fiber-end sleeve. Key specs: Sensing Method Diffuse reflective (light reflects off the target back to the head); Head Shape / Size M6 threaded barrel, axial, 17 mm head length; Sensing Distance 900 mm with E3X-NA / E3X-HD amplifier (varies by target and amplifier); Minimum Detectable Object 5 micron diameter (with E3X amplifier, depends on model); Fiber Material Plastic core, polyethylene sheath; Cable Length 2 m standard (free-cut to shorter length); Bending Radius R25 mm minimum; Sensing Direction Top-view (head faces along the barrel axis).
Key Features
- Top-view sensing surface, R25 mm bending radius
- 900 mm sensing distance with E3X-NA / E3X-HD amplifier
- 2 m PVC-jacketed plastic fiber, cut-to-length
- E32-series M6 threaded diffuse-reflective fiber optic head
- SKU: E32-DC200
- Series: E32-series fiber optic sensing head
Best-Fit Applications
- Detecting clear bottles and labels that confuse standard photoelectric sensors.
- Replacing a damaged E32 head on an existing E3X amplifier setup without rewiring.
- Sensing near a hot zone where the amplifier must stay in the cool cabinet.
Buying Checklist
- Choose E32-DC200F4 if 6 mm is too large and you need an M3 threaded head instead.
- Choose E32-TC200 for through-beam detection with the same M6 body if you need a defined beam path.
- Confirm an E3X-series amplifier is in the panel - the DC200 head has no built-in amplifier.
Technical Specifications
| Series | E32-series fiber optic sensing head |
|---|---|
| Sensing Method | Diffuse reflective (light reflects off the target back to the head) |
| Head Shape / Size | M6 threaded barrel, axial, 17 mm head length |
| Sensing Distance | 900 mm with E3X-NA / E3X-HD amplifier (varies by target and amplifier) |
| Minimum Detectable Object | 5 micron diameter (with E3X amplifier, depends on model) |
| Fiber Material | Plastic core, polyethylene sheath |
| Cable Length | 2 m standard (free-cut to shorter length) |
| Bending Radius | R25 mm minimum |
| Sensing Direction | Top-view (head faces along the barrel axis) |
| Protection Rating | IP67 (IEC 60529), -40 to +70 degC operating |
| Compatible Amplifier | E3X-NA, E3X-HD, E3X-SD, E3X-ZV series |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for E32-DC200
What amplifier does the E32-DC200 head need?
The DC200 is just the fiber optic head - it has no amplifier inside. Pair it with an Omron E3X-series amplifier (E3X-NA, E3X-HD, E3X-SD, or E3X-ZV) that sits in the cabinet and drives the LED. The 900 mm range is the headline number with the E3X-NA / E3X-HD.
Can the E32-DC200 detect clear or transparent objects?
Yes - diffuse-reflective fiber heads often detect transparent bottles, films, and labels that confuse standard photoelectric sensors because they read the weak reflection back through the same fiber. For very clear targets, use the E3X-HD amplifier with its narrow sensing threshold.
Can I cut the E32-DC200 cable to length?
Yes - the fiber is free-cut. Use the Omron E39-F4 fiber cutter for a clean, square cut. A jagged cut or sharp angle can drop the sensing range by half. Trim after routing, then fit the amplifier end with the E39-F9A adapter sleeve.
