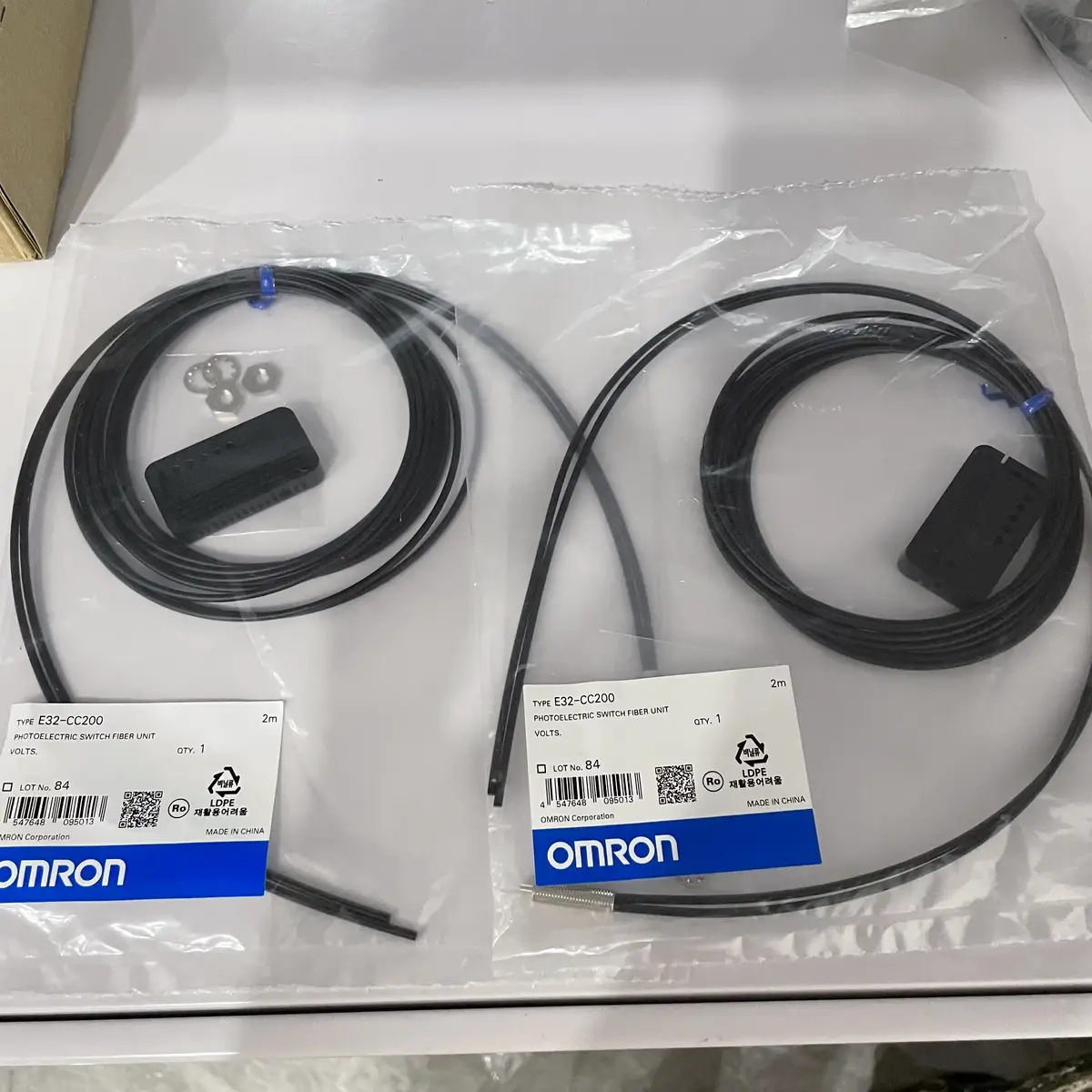

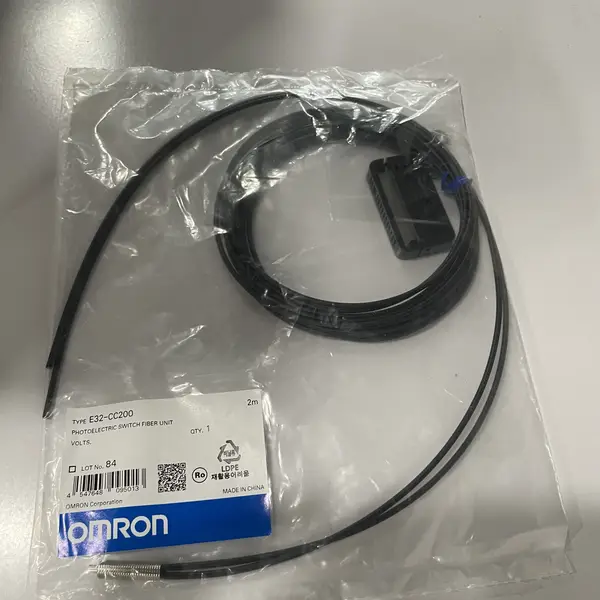

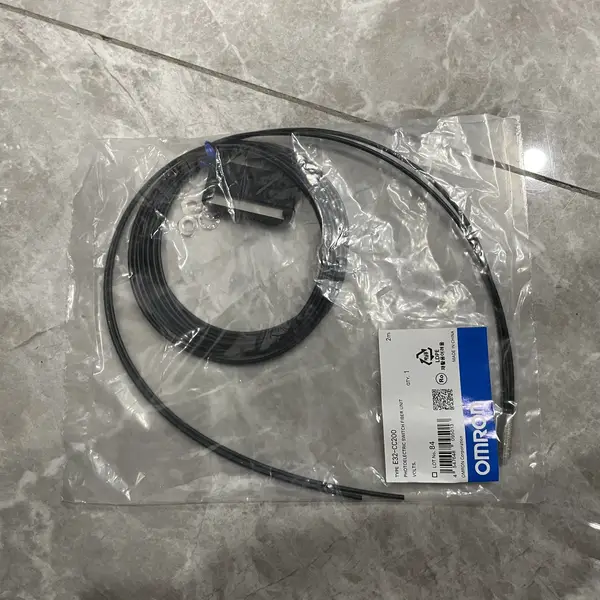

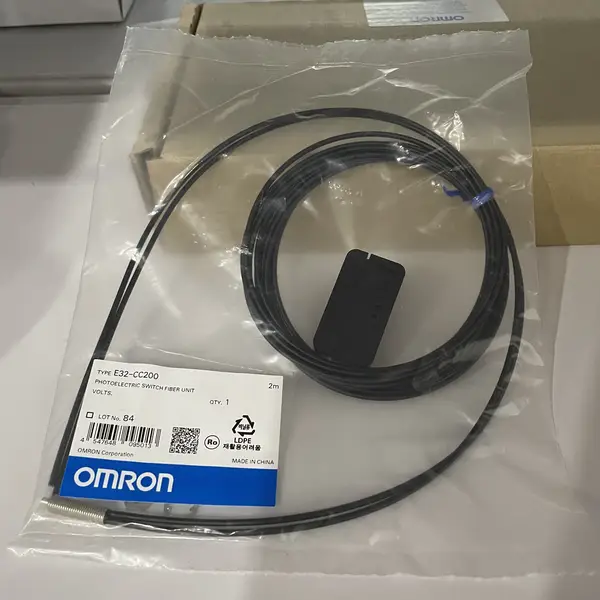

Omron E32-CC200 2M — Fiber Head, Diffuse, M6, 2 m
SKU: E32-CC200 2MUSD 16.00
Omron E32-CC200 2M E32 fiber optic head, diffuse reflective, M6 thread, coaxial, 2 m cable. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E32-CC200 2M is a diffuse-reflective fiber optic sensor head from the E32 precision detection family, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The head has an M6 threaded body with a coaxial optical design that focuses the beam on the spot. The 2 m cable carries plastic-core fiber in a polyethylene sheath with an R25 mm bending radius and can be cut to length. The minimum detectable object is 5 micrometres. Sensing range is up to 2100 mm with the E39-F18 focal lens fitted. Protection is IP67. Operating temperature is -40 to +70 degrees C.
The head clips straight into any E3X-series fiber amplifier. Use the E3X-NA11 for a standard 2-channel NPN amplifier, the E3X-HD41 for a high-resolution digital amplifier, or the E3X-ZV11 for a twin-output digital amplifier. For a 4 mm cylindrical threaded diffuse head, pick the E32-DC200.
Key Features
- E32 diffuse-reflective fiber head, M6 thread, coaxial optical design
- Plastic core, polyethylene sheath, 2 m prewired PVC cable, R25 bending radius
- Minimum detectable object 5 micrometres, IP67, -40 to +70 degrees C
- Free cut to length; sensing range to 2100 mm with E39-F18 focal lens
- SKU: E32-CC200 2M
- Series: Omron E32-series precision detection fiber head
Best-Fit Applications
- Small-part detection on a vibratory feeder bowl where the 5 micrometre minimum object picks out 50 micrometre chips
- Label presence check on a bottling line where the coaxial beam rejects the gloss on the printed label
- Spare fiber head for an existing E3X amplifier panel where the original E32-CC200 2M has fatigued at the M6 thread
Buying Checklist
- Pick the E32-CC200 2M for an M6 diffuse-reflective fiber head with a coaxial beam and 2 m cable.
- Pick the E32-DC200 instead when the panel uses a 4 mm cylindrical threaded diffuse head on the same E3X amplifier.
- Pick the E32-C91N 2M instead when the application needs a side-view fiber head instead of the top-view M6.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E32-series precision detection fiber head |
| Model / SKU | E32-CC200 2M |
| Sensing Method | Diffuse reflective (coaxial) |
| Sensing Head | M6 thread, 10 mm dia., 23 mm length |
| Sensing Distance | Up to 2100 mm with E39-F18 focal lens (depends on amplifier) |
| Minimum Object | 5 micrometres dia. (opaque) |
| Fiber Core | Plastic |
| Cable Length | 2 m |
| Bending Radius | R25 mm min. |
| Free Cut | Yes |
| Operating Temperature / IP | -40 to +70 degrees C; IP67 |
FAQ for E32-CC200 2M
What amplifier does the E32-CC200 2M need?
Any E3X-series fiber amplifier. The standard NPN choice is the E3X-NA11. For higher sensitivity and digital display pick the E3X-HD41. For two independent outputs on one amplifier, pick the E3X-ZV11.
Can the E32-CC200 2M cable be shortened?
Yes. The plastic fiber can be cut to length with the E39-F4 cutting tool and reinserted into the amplifier. The minimum bending radius after cutting is R25 mm; tighter bends will crack the plastic fiber and lose signal.
How small an object can the E32-CC200 2M detect?
Down to 5 micrometres opaque, with the E3X-HD41 high-resolution amplifier and the E39-F18 focal lens fitted. Without the lens and on a basic amplifier, the practical minimum is around 100 micrometres.
Is the E32-CC200 2M waterproof?
Yes. The fiber head is IP67 rated, so it handles wash-down. The amplifier end of the cable is not, so mount the E3X amplifier inside the cabinet.
