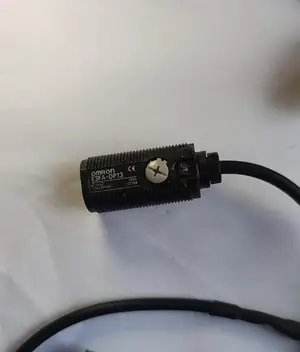

Omron E3FA-DP13 — Diffuse Sensor, 1 m, PNP, M12
SKU: E3FA-DP13USD 9.30
E3FA series M18 diffuse-reflective photoelectric sensor, 1 m range, red LED, PNP, M12 4-pin connector, ABS housing.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3FA-DP13 is a diffuse-reflective photoelectric sensor in the E3FA family, with a 1 m sensing range on white paper and a PNP output on an M12 4-pin connector. The 'DP' marks diffuse / PNP, and the '13' suffix is Omron's 1 m / M12 code, distinguishing it from the 100 mm (DP11), 300 mm (DP21 / DP12), and shorter-range M12 siblings in the E3FA family. The M18 ABS body carries a bright red LED emitter, a large sturdy sensitivity knob, and a visible orange LED for power and output status. It is the standard pick for short- to mid-range part detection on conveyors, feeders, and small assembly stations where an M12 patch cord is preferred.
Why diffuse reflective at 1 m
Diffuse-reflective sensors detect light reflected off the target, so they only need wiring on one side and no reflector opposite the sensor. The 1 m range is the right point for detecting a part on a 600-800 mm wide conveyor, a workpiece on a small index table, or a board exiting a feeder. Targets outside the rated 1 m window may still trigger if highly reflective, so for shiny or mirror-like surfaces the BGS E3Z-LL or a retro-reflective sensor is usually a better fit.
Choosing the right E3FA diffuse variant
E3FA-DP13 is the 1 m PNP M12 version. The 300 mm PNP pre-wired sibling is E3FA-DP12, and the 300 mm PNP M12 sibling is E3FA-DP21. The NPN twin at 300 mm pre-wired is E3FA-DN12. The through-beam pair in the same family is the E3FA-T series. Pick the E3FA-DP13 when 1 m range, PNP output, and an M12 patch cord are the goal.
Before ordering
Set the sensitivity so the target reads strong at the actual installation distance, not at the rated 1 m. Allow for a 30-50% derating on dark or matte surfaces, since the 1 m spec is on white paper. Pick an XS2F-M12 / M12-4A patch cord in the right length. For IP69K washdown environments, move to the E3FB series, the stainless steel M18 equivalent.
Key Features
- E3FA M18 diffuse-reflective photoelectric sensor
- 1 m sensing range on white paper
- PNP open-collector output, Dark-ON / Light-ON selectable
- M12 4-pin connector
- Visible red LED emitter, large orange status LED
- 10-30 VDC supply, 100 mA load max.
- ABS housing, IP67 / IP69K rated
- SKU: E3FA-DP13
- Series: E3FA M18 cylindrical photoelectric sensor
- Voltage: 10-30 VDC
- I/O: 100 I/O
Best-Fit Applications
- Part presence check on conveyors and small feeders
- Workpiece detection at a small index table or pick station
- Box height check on a packaging line in-feed
- Tray or pallet component presence in assembly cells
- Short-range detection on packaging, bottling, and capping lines
Buying Checklist
- Choose E3FA-DP13 for 1 m range, PNP, and an M12 patch cord.
- Choose E3FA-DP12 for 300 mm range with a pre-wired 2 m cable.
- Choose E3FA-DN12 for 300 mm range in NPN with a pre-wired cable.
- Choose E3FA-DP21 for 300 mm range in PNP with an M12 connector.
- Choose the stainless E3FB series when the panel needs IP69K washdown.
- Confirm the actual sensing distance against target colour and reflectivity.
Technical Specifications
| Series | E3FA M18 cylindrical photoelectric sensor |
|---|---|
| Sensing Method | Diffuse-reflective (light-on return) |
| Sensing Distance | 1 m (on 200 x 200 mm white paper) |
| Light Source | Red LED, 624 nm |
| Supply Voltage | 10-30 VDC, ripple 10% p-p max. |
| Current Consumption | 25 mA max. |
| Output | PNP open collector, 100 mA at 30 VDC |
| Response Time | 0.5 ms operate / 0.5 ms release |
| Connection | M12 4-pin connector |
| Operating Temperature | -25 to +55 °C (operating), -40 to +70 °C (storage) |
| Protection Rating | IEC IP67, DIN 40050-9 IP69K |
| Housing / Lens | ABS body, PMMA lens |
Resources & Downloads
FAQ for E3FA-DP13
What is the difference between E3FA-DP12 and E3FA-DP13?
E3FA-DP12 is a 300 mm PNP sensor with a pre-wired 2 m PVC cable. E3FA-DP13 is a 1 m PNP sensor with an M12 4-pin connector. They are at different ranges in the same E3FA family. Pick DP12 for shorter reach and direct panel wiring; pick DP13 for the longer 1 m range and an M12 patch cord.
Is the E3FA-DP13 NPN or PNP?
The E3FA-DP13 is PNP. The 'P' in DP marks PNP, and the 'D' marks diffuse. For the NPN version of a similar M12 diffuse sensor, look at the E3FA-DN twin in the same M12 connector family. Pick the part that matches the input polarity of the target PLC.
Can the E3FA-DP13 detect a black or shiny target?
Yes, with a derating. The 1 m range spec is on white paper. Black rubber or matte surfaces typically read at 50-70% of that, so plan the mounting distance at 500-700 mm. Shiny or mirror-like targets can read erratically; for those, use the BGS E3Z-LL or a polarised retro-reflective sensor instead.
