Omron E3JM-R4M4T-G — Photo Sensor, 4 m, Timer, AC/DC
SKU: E3JM-R4M4T-GUSD 30.00
Omron E3JM-R4M4T-G retro-reflective photo sensor, 4 m, AC/DC relay, built-in timer. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3JM-R4M4T-G is a retro-reflective photoelectric sensor with MSR (mirror surface rejection) and a built-in timer from the E3JM slim-style series, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor detects opaque objects at 100 mm to 4 m when used with the supplied E39-R1 reflector. Light source is a polarised red LED at 660 nm, which rejects false triggers from shiny surfaces. Output is an SPDT relay rated 3 A at 250 VAC. Response time is 30 ms.

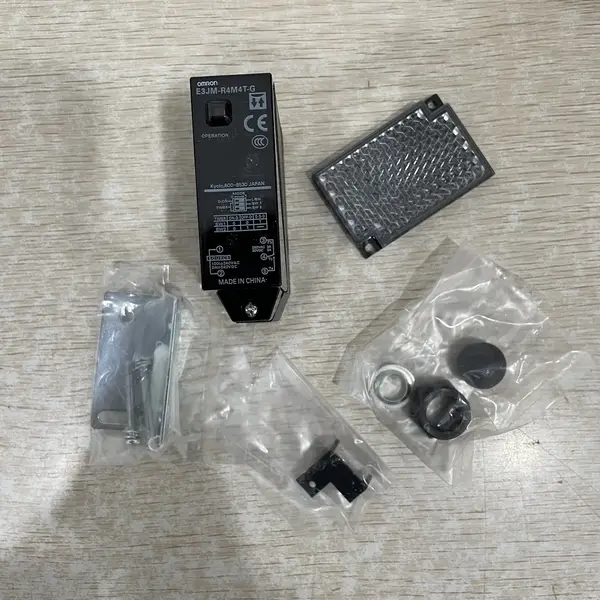

Supply is universal 12 to 240 VDC or 24 to 240 VAC at 50/60 Hz. The built-in timer is adjustable from 0.1 to 5 seconds and selects ON-delay, OFF-delay or one-shot operation. The ABS housing is IP66 and the unit ships with a PG13.5 conduit entry, a mounting bracket and the E39-R1 reflector. For a smaller square-body 6 m AC/DC retro sensor, pick the E3JK-RR12-C.
Key Features
- Retro-reflective photo sensor with MSR and polarised red LED 660 nm
- 4 m sensing range with the supplied E39-R1 reflector, 30 ms response
- SPDT relay 3 A at 250 VAC, Light-ON / Dark-ON selectable
- 12-240 VDC or 24-240 VAC universal supply, built-in timer 0.1-5 s, IP66 ABS
- SKU: E3JM-R4M4T-G
- Series: Omron E3JM-series universal AC/DC photoelectric sensor
- Voltage: 12 TO 240 VDC
Best-Fit Applications
- Box detection on a sortation conveyor where the off-delay timer rides over normal package gaps
- Vehicle loop on an industrial bay door where the 4 m range covers the doorway opening
- Spare drop-in for an existing E3JM panel with the same E39-R1 reflector and bracket mounted
Buying Checklist
- Pick the E3JM-R4M4T-G for a 4 m retro-reflective AC/DC photo sensor with MSR and a built-in timer.
- Pick the E3JK-RR12-C instead when the cabinet needs a smaller square-body 24-240 VAC/DC photo sensor with a 6 m / 10 m range.
- Pick the E3S-DBN21 instead when the panel needs a compact 30 mm retro-reflective sensor on 12-24 VDC only.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E3JM-series universal AC/DC photoelectric sensor |
| Model / SKU | E3JM-R4M4T-G |
| Sensing Method | Retro-reflective with MSR (polarised red LED) |
| Sensing Distance | 100 mm to 4 m with supplied E39-R1 reflector |
| Light Source | Polarised red LED, 660 nm |
| Supply Voltage | 12 to 240 VDC; 24 to 240 VAC, 50/60 Hz |
| Power Consumption | 2 W max |
| Control Output | SPDT relay, 250 VAC 3 A (cos phi = 1) max; 5 VDC 10 mA min |
| Operation Mode | Light-ON / Dark-ON selectable; built-in timer 0.1-5 s (ON / OFF / one-shot) |
| Response Time | 30 ms max operate or reset |
| Protection / Connection | IP66 ABS housing; PG13.5 conduit entry; 25 x 65 x 75 mm |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for E3JM-R4M4T-G
What does the MSR function do?
MSR (mirror surface rejection) polarises the red LED beam and uses a polarising filter on the receiver, so the sensor ignores light bouncing off shiny or reflective surfaces and detects only the beam returning from the dedicated E39-R1 reflector.
How does the built-in timer work?
The 0.1 to 5 s timer adds a delay to the relay output. Select ON-delay, OFF-delay or one-shot operation with the rotary switch on the back. ON-delay starts the timer when the beam breaks; OFF-delay starts the timer when the beam returns.
What supply voltage does the E3JM-R4M4T-G accept?
Universal 12 to 240 VDC or 24 to 240 VAC at 50/60 Hz. The same sensor drops into a 24 VDC PLC cabinet or a 240 VAC relay panel. Power consumption is 2 W max.
