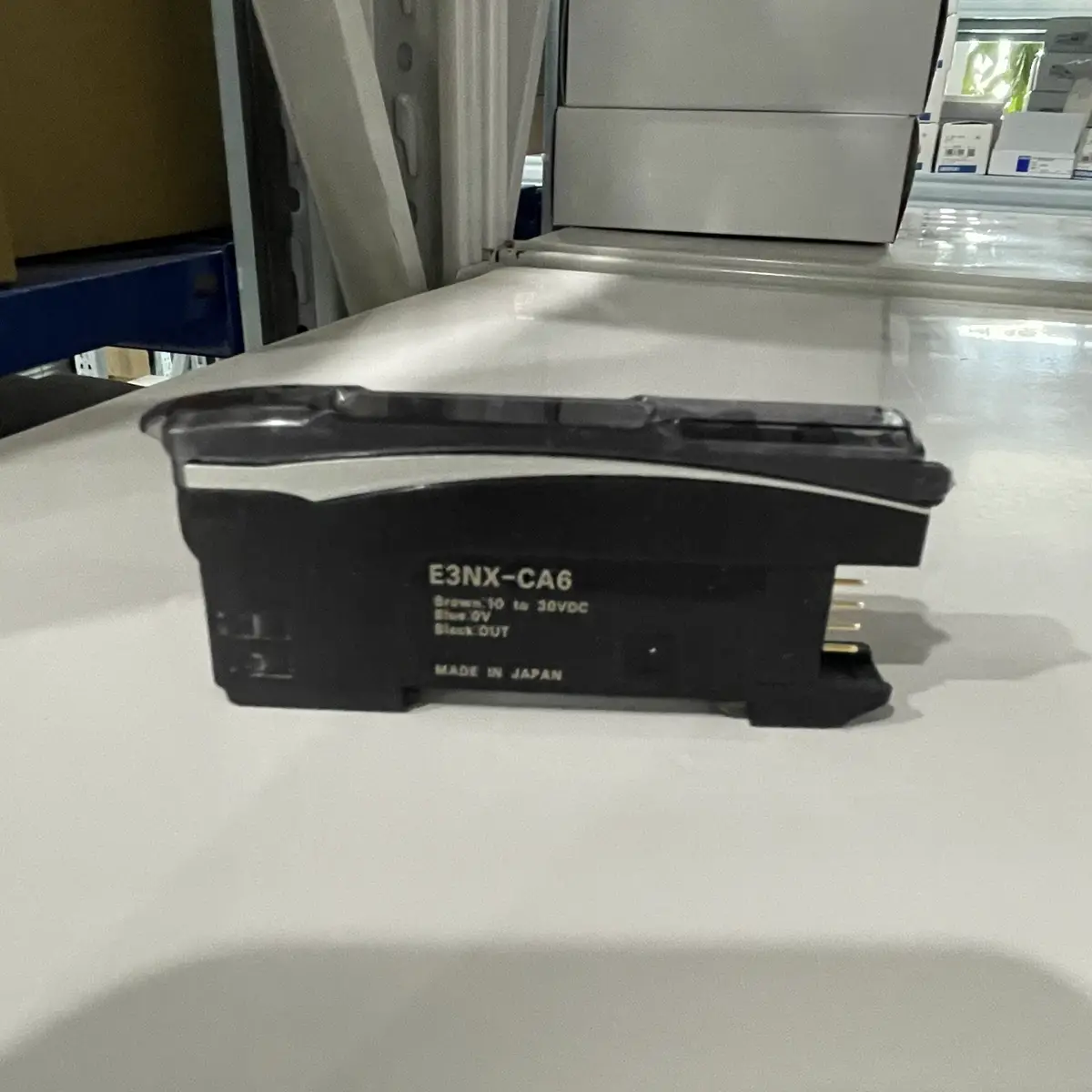

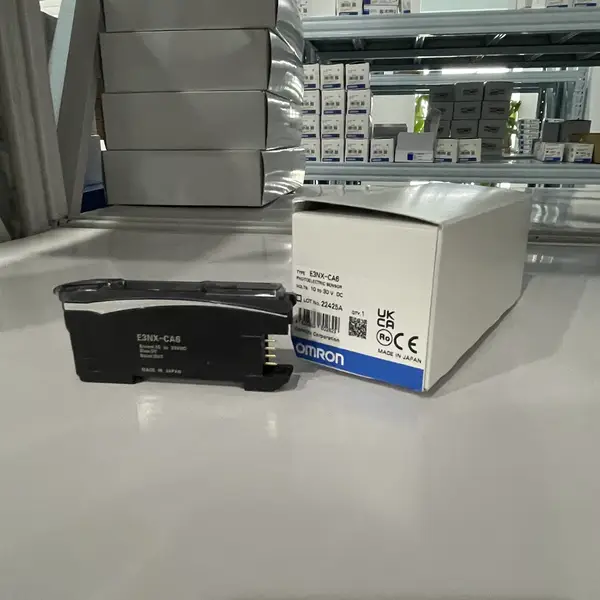

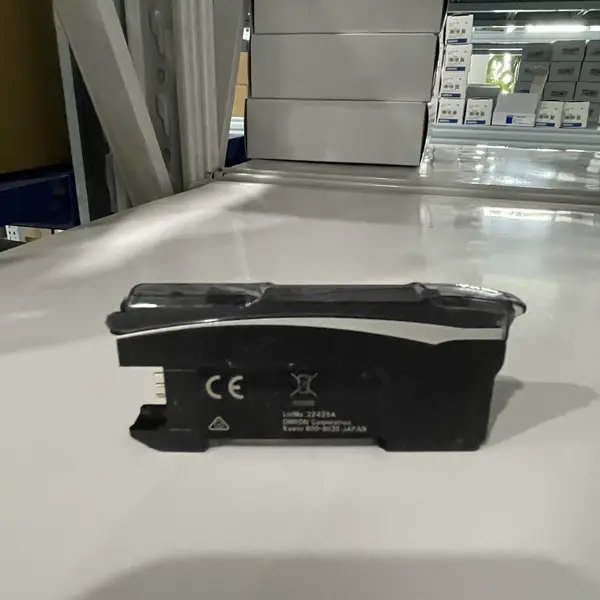

Omron E3NX-CA6 — White-LED Color Fiber Amplifier, NPN
SKU: E3NX-CA6USD 155.00
E3NX-CA standard NPN color fiber amplifier, 2 outputs, wire-saving connector, white LED 420-700 nm, 50 us to 16 ms response.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3NX-CA6 is the standard 2-output NPN color fiber amplifier with a wire-saving connector. It pairs with any E32-series fiber cable (through-beam, diffuse-reflective, or convergent-reflective) and uses a white LED at 420-700 nm to discriminate color and contrast marks on packaging, labels, and registration marks. The wire-saving connector takes a pre-wired E3X-CN[] cordset or an E3NW-ECT Sensor Communications Unit; the bare amplifier does not include a cable. Pick the E3NX-CA6 for a high-speed registration-mark detector where two output channels are needed (for example, OK / NG and a low-light alarm) without a separate external input.
Contrast vs color detection
The E3NX-CA6 supports two sensing modes. Contrast mode (default) discriminates single-channel RGB light intensity -- the right pick for a registration mark on a printed web where the mark and the web differ in lightness. Color mode discriminates the RGB ratio -- the right pick when the mark and the web have similar lightness but different color (for example, a red mark on a yellow web). Switch modes on the front panel without rewiring. Smart tuning (2-point / full-auto / 1-point) sets the threshold in one or two button presses -- 1-point at 1%-99% of the received light is the typical pick.
Response time
Four response modes cover the speed / stability trade-off. SHS (Super High Speed) at 50 us operate / reset is the fastest and is contrast-mode only. HS at 250 us is the typical pick for a high-speed label line. Standard at 1 ms is the default. GIGA at 16 ms is the most stable mode for low-contrast or translucent targets. Mutual interference prevention supports up to 10 amplifiers on a HS / Standard / GIGA rail; the SHS mode count is not specified.
Before ordering
Confirm the fiber cable is the E32-series (the E3NX amplifier does NOT pair with the older E32-DC200 / E32-CC200 cables -- those need an E3X-NA / E3X-HD amplifier). Confirm the load is 100 mA or less per output when 1-3 amplifiers are connected, or 20 mA or less when 4+ are connected. The temperature derating is the practical limit on a multi-unit rail -- 17-30 amplifiers need to stay at or below +40 C ambient. Pick the E3NX-FA11 2M for the newer high-power blue LED family when 40,000x light intensity range is needed.
Key Features
- E3NX-CA-series standard 2-output NPN color fiber amplifier with wire-saving connector
- White LED light source 420-700 nm (RGB three-channel)
- Detection modes: contrast (RGB single-channel) and color (RGB ratio)
- Smart tuning: 2-point / full-auto / 1-point (1%-99%) or manual
- Response: SHS 50 us (contrast only) / HS 250 us / Standard 1 ms / GIGA 16 ms
- Load current 100 mA max per output (1-3 units connected) / 20 mA max (4+ units connected)
- DC 10-30 V supply at 40 mA max (24 V normal) / 30 mA max (ECO ON) / 33 mA max (ECO LO)
- Mutual interference prevention: 10 units max (HS / Standard / GIGA modes)
- 8 BANK memory, OFF / OFF-delay / ON-delay / One-shot / ON-OFF-delay timer, ECO mode
- Ambient light immunity: incandescent <= 20,000 lx / sunlight <= 30,000 lx
- Temperature derating: 1-2 units -25 to +55 C, 17-30 units -25 to +40 C
- Polycarbonate housing, ~75 g unit / ~115 g packaged, CE / UKCA / RoHS
- Pairs with any E32-series fiber cable (E32-C91N 2M, E32-T11N, E32-D11N, etc.)
- SKU: E3NX-CA6
- Series: E3NX-CA Color Fiber Amplifier Units
- I/O: 2 I/O
Best-Fit Applications
- Registration-mark detection on a vertical form-fill-seal packaging line running at 60 m/min
- Color-mark inspection on a label dispenser where a red mark on a yellow web must be detected
- Discriminating two-color print on pharmaceutical blister packaging
- Aluminum-foil packaging registration where the mark and the foil differ in RGB ratio but not in lightness
- Multi-amplifier setup on a sorting conveyor where 4-10 E3NX-CA6 units run in mutual-interference mode
Buying Checklist
- Pick E3NX-CA6 for a standard 2-output NPN color fiber amplifier with wire-saving connector and 50 us to 16 ms response.
- Pick E3NX-CA11 2M instead when a pre-wired 2 m cable and 1 output is enough for a single-channel build.
- Pick E3NX-CA21 2M instead when a pre-wired 2 m cable, 2 outputs, AND 1 external input are needed for a high-function build.
- Pick E3NX-CA0 instead for a Sensor Communications Unit (E3NW-ECT) slave on an EtherCAT valve manifold.
- Pair with an E32-C91N 2M M3 diffuse-reflective fiber for a typical registration-mark detector.
- Pair with an E32-T11N 2M through-beam fiber for a clear-web or transparent-label registration mark.
Technical Specifications
| Series | E3NX-CA Color Fiber Amplifier Units |
|---|---|
| Model | E3NX-CA6 (Standard NPN, wire-saving connector, 2 outputs) |
| Light Source | White LED 420-700 nm (RGB three-channel) |
| Supply / Current | DC 10-30 V at 40 mA max (24 V normal mode) |
| Outputs | 2x NPN open-collector, 30 VDC max, 100 mA max (1-3 units) / 20 mA max (4+ units) |
| Response Time | SHS 50 us / HS 250 us / Standard 1 ms / GIGA 16 ms |
| Detection Modes | Contrast (RGB single-channel) and Color (RGB ratio) |
| Tuning | Smart tuning (2-point / full-auto / 1-point at 1%-99%) or manual |
| Mutual Interference | 10 units max (HS / Standard / GIGA modes) |
| Operating Temperature | 1-2 units -25 to +55 C / 17-30 -25 to +40 C |
| Compatible Fiber | E32-series (E32-C91N 2M, E32-T11N, E32-D11N, etc.) |
| Weight | ~75 g unit / ~115 g packaged, PC housing |
Resources & Downloads
FAQ for E3NX-CA6
What is the difference between E3NX-CA6 and E3NX-CA11 2M?
Both are standard NPN color fiber amplifiers in the E3NX-CA family. The CA11 2M is the pre-wired version with a built-in 2 m cable and 1 output. The CA6 is the wire-saving connector version with no built-in cable and 2 outputs. Pick the CA11 2M for a single-channel build where a 2 m pigtail is fine. Pick the CA6 for a multi-amplifier setup where the E3X-CN[] cordset or E3NW-ECT Sensor Communications Unit sits in the middle of the rail.
What fiber cable does the E3NX-CA6 use?
The E3NX-CA6 uses the E32-series fiber cable family -- through-beam (E32-T11N, E32-T51N), diffuse-reflective (E32-C91N 2M, E32-D11N), or convergent-reflective (E32-L11N, E32-L51N) -- ordered separately. The E3NX-CA6 does NOT pair with the older E32-CC200 / E32-DC200 lead-out fibers (those need the E3X-NA / E3X-HD / E3X-DA amplifier line). The E32 free-cut plastic fiber can be cut to length on site -- do not bend tighter than R25 mm or the fiber breaks.
When do I use color mode vs contrast mode?
Pick contrast mode (default) when the mark and the web differ in lightness -- for example, a black mark on a white web. Pick color mode when the mark and the web have similar lightness but different color -- for example, a red mark on a yellow web. The mode switch is on the front panel and does not require rewiring. Contrast mode is the faster path; color mode is more stable for low-contrast targets. The SHS 50 us response time is contrast mode only.
How many E3NX-CA6 amplifiers can I mount side by side?
Up to 30 on a single wire-saving connector chain. Mutual interference prevention supports 10 units max in HS / Standard / GIGA modes (the SHS mode count is not specified). The temperature derating is the practical limit -- 1-2 units run -25 to +55 C ambient, but a 17-30 unit rail must stay at or below +40 C. The ECO ON mode (30 mA at 24 V) cuts the heat by about 25% vs the normal mode (40 mA at 24 V) and is the typical pick for a densely-packed rail.
