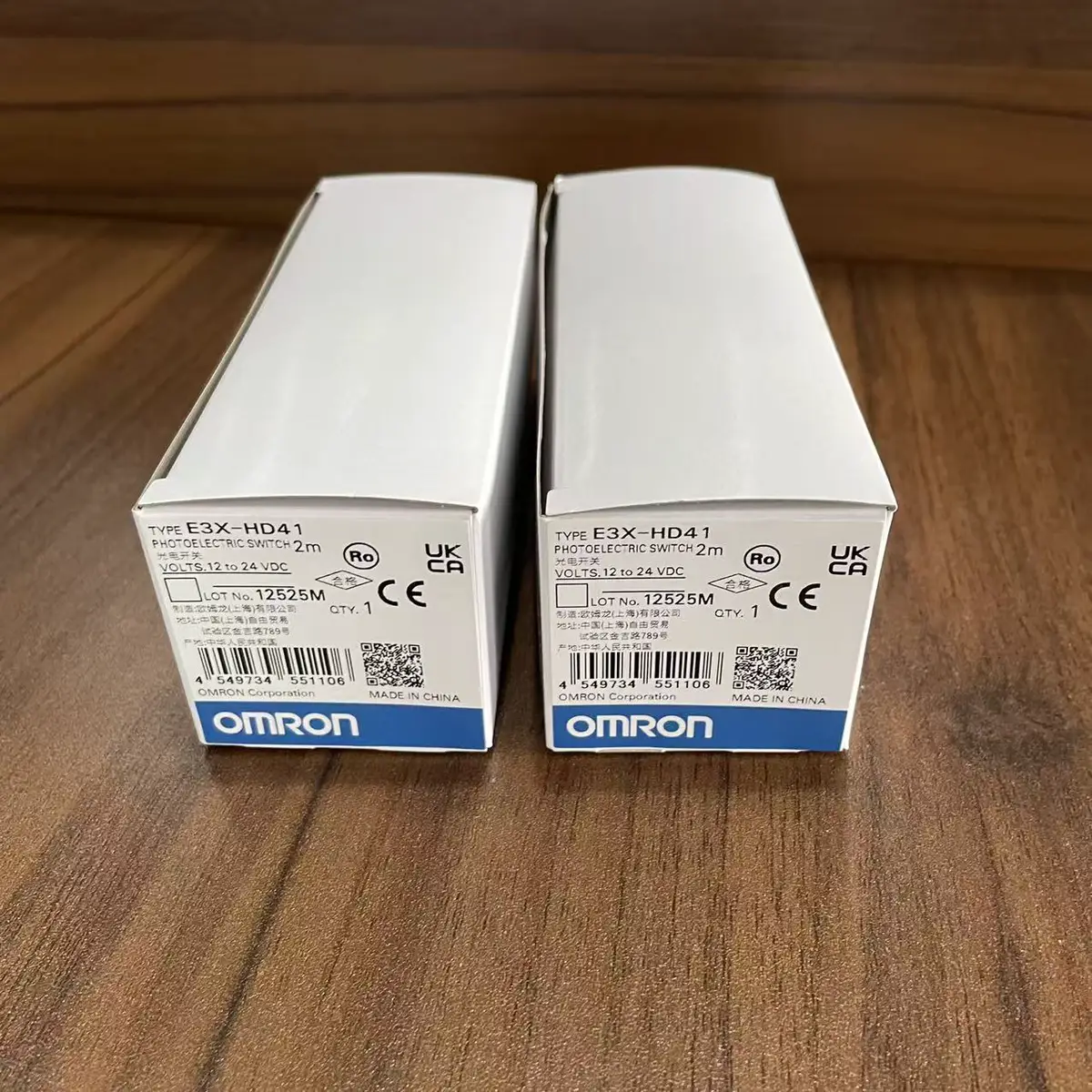

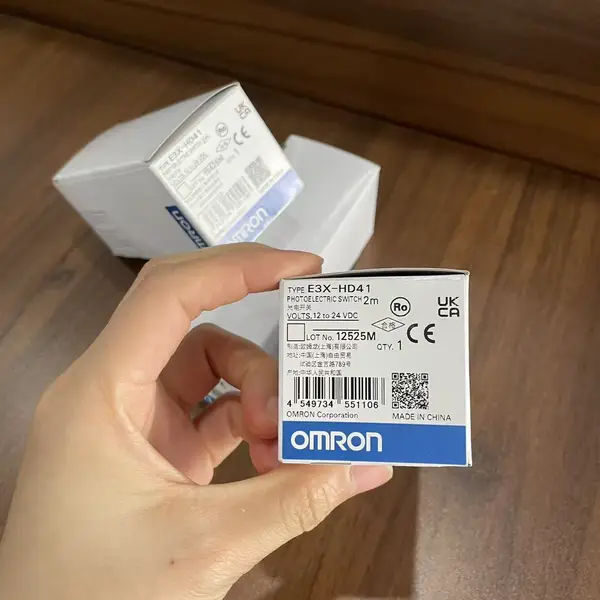

Omron E3X-HD41 — Smart Fiber Amplifier, PNP, 1-Output
SKU: E3X-HD41USD 51.00

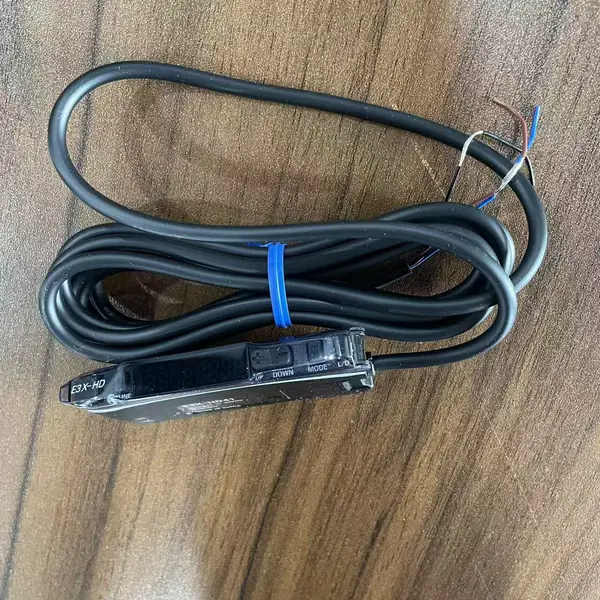

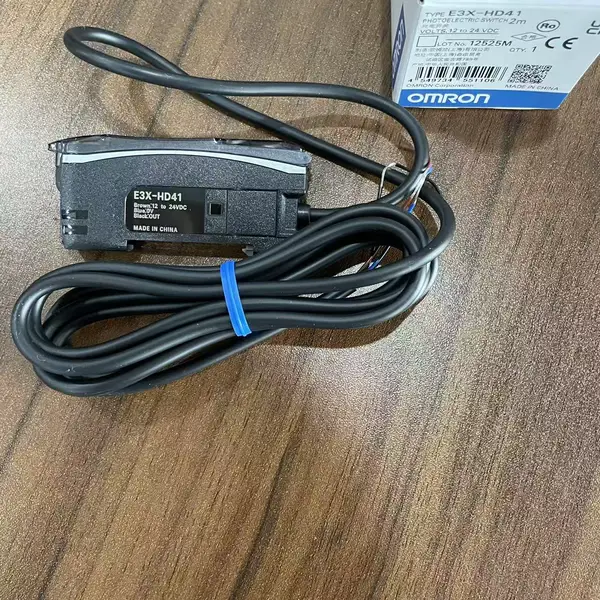

Smart fiber-optic amplifier with red 4-element LED, PNP open-collector output, pre-wired 2 m PVC cable. Compatible with all E32-series fiber-optic cables (through-beam, diffuse, retro-reflective). Smart-tuning teach function, twin 7-segment display.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The E3X-HD41 is the PNP-output variant of Omron's E3X-HD smart fiber-optic amplifier family — a digital amplifier with a twin 7-segment display that simultaneously shows the incident light level (red digits) and the threshold setting (green digits), so an installer can see at a glance whether the sensor has enough margin between 'detected' and 'clear' states. The amplifier accepts any E32-series fiber-optic cable on the front face — through-beam (E32-T), diffuse (E32-D), or retro-reflective (E32-R) — and the same amplifier handles all three sensing modes. The PNP open-collector output sources 24 VDC into the load (sink current max 100 mA) with a typical 1 ms response time suitable for most conveyor and parts-detection applications.
Decoding the E3X-HD41 model number
The E3X-HD41 code: E3X = amplifier-only fiber-optic amplifier (vs E3X-NA which is connectorized); H = High functionality (vs H = standard functionality tier in the E3X family); D = Digital twin display (vs SD or DA single-display older models); 4 = PNP output (1 = NPN, 4 = PNP, 6 = NPN connector, 8 = PNP connector); 1 = 1 output (vs the E3X-MZV@ 2-channel 2-output variant). The pre-wired 2 m version is the most commonly ordered SKU; the E3X-HD8 is the M8 connector version, the E3X-HD6 is the wire-saving connector version, and E3X-HD44 is the M12 connector with double display.
Smart tuning with one button
The E3X-HD41's smart-tuning feature uses one SET button to teach the threshold in two modes: (1) full auto tuning — point the fiber at the target, press SET, point at the background, press SET; the amplifier sets the threshold at the midpoint between target and background incident levels with a 2:1 margin to either edge; (2) position teaching — present a target with the desired boundary condition, press SET for 4 seconds, the amplifier learns the threshold from the maximum incident level seen during the teach. Smart tuning eliminates the potentiometer-adjustment errors that plague older E3X-NA amplifiers.
Twin 7-segment display for diagnostics
The dual red + green 7-segment display on the front face is the key diagnostic feature. The red display shows the incident light level (0-4095 count), updated in real time, so an installer can see the dynamic range between 'target detected' and 'target absent'. The green display shows the threshold setting (also 0-4095). When the red display is above the green display, the output is ON; when below, OFF. The 4-digit resolution lets you set the threshold to within ~0.1 % of full scale, 4× finer than the older E3X-NA's analog bar graph display.
Key Features
- Smart fiber amplifier with PNP open-collector output
- Red 4-element LED light source — same wavelength for thru-beam and diffuse modes
- Pre-wired 2 m PVC 4-conductor cable
- Compatible with all E32-series fiber-optic cables
- Smart tuning with one-button teach: full-auto or position teach modes
- Twin 7-segment display: red digits show incident light level, green digits show threshold
- Up to 4 units can be daisy-chained with auto-emission-frequency offset to prevent mutual interference
- Power supply 12 to 24 VDC ±10 %, ripple 10 % p-p max
- SKU: E3X-HD41
- Series: E3X-HD Smart Fiber Amplifier
- Voltage: 12 TO 24 VDC
- I/O: 1 I/O
Best-Fit Applications
- Label detection on a labelling machine — E3X-HD41 with E32-T14L thru-beam fiber pair detects the gap between labels on a.
- Small-part detection on a precision assembly line — E3X-HD41 with E32-D33 diffuse fiber detects the presence of 2 mm parts.
- Edge detection on a wafer or PCB — E3X-HD41 with E32-T22LR right-angle thru-beam fiber aligns the beam across the wafer.
- Bottle-fill level detection through a transparent bottle wall — E3X-HD41 with E32-L25A11 retroreflective fiber pair detects the level of liquid.
Buying Checklist
- Pick E3X-HD41 for PNP pre-wired 2 m fiber amplifier with twin 7-segment display
- Pick E3X-HD11 if you need NPN open-collector output instead of PNP
- Pick E3X-HD8 if you prefer an M8 connector instead of pre-wired cable
- Pick E3X-HD44 if you need an M12 connector for high-vibration installations
- Pick E3X-ECT communication unit to interface up to 16 amplifiers on EtherCAT — for Sysmac NJ/NX-based systems
- Pick the E32-T@ thru-beam fiber for 5-100 mm through-beam detection of small parts
Technical Specifications
| Model | E3X-HD41 2M |
|---|---|
| Series | E3X-HD Smart Fiber Amplifier |
| Type | Fiber-optic amplifier for E32-series cables, PNP output |
| Connection Method | Pre-wired 2 m PVC cable (4-conductor) |
| Output | 1 x PNP open-collector (24 VDC, 100 mA max load) |
| Light Source | Red 4-element LED, 625 nm |
| Sensing Mode | Through-beam / Diffuse / Retro-reflective (selected by E32 cable choice) |
| Power Supply Voltage | 12 to 24 VDC ±10 %, ripple 10 % p-p max |
| Display Type | Twin 7-segment (red + green) |
| Display Resolution | 0-4095 count, 4-digit |
| Operating Temperature | -25 to +55 °C (no icing) |
| Storage Temperature | -30 to +70 °C |
| Mounting | 35 mm DIN-rail via E39-L143 adapter (2 units per rail segment) |
| Communication Adapter (optional) | E3X-ECT (EtherCAT, up to 16 amplifiers), E3X-CRT (CompoNet), E3X-SRT (Slave Terminal CompoNet) |
| Compatible Connector Sibling | E3X-HD8 (M8 connector PNP), E3X-HD44 (M12 connector PNP) |
Resources & Downloads
FAQ for E3X-HD41
What's the difference between E3X-HD41 and E3X-NA41?
E3X-HD41 is the newer 'high-functionality' digital-amplifier with twin 7-segment display and smart tuning; E3X-NA41 is the older 'advanced' amplifier with single-display and trimmer adjustment. The HD41 has finer threshold resolution (12-bit / 4096 counts vs 8-bit / 256 counts for the NA41), faster smart-teach (one button vs multi-step procedure), and the dual-display showing both incident level and threshold simultaneously. The NA41 is still available for legacy installations where replacement must match exactly.
Can the E3X-HD41 detect a 2 mm small object?
Yes — the E3X-HD41 with an appropriate E32 fiber can detect objects as small as 0.5 mm diameter under controlled conditions. The minimum detectable object size depends on the fiber choice: E32-T11L (M3 thread thru-beam with 1 mm dia ferrule) detects down to 0.3 mm with the high-sensitivity mode; E32-T22 (M4 thread thru-beam with 1.2 mm ferrule) detects down to 0.5 mm; E32-T14L (large M6 thru-beam) detects down to 2 mm at standard sensitivity.
What fiber-optic cable do I pair with the E3X-HD41?
Any of the 100+ E32-series fiber-optic cables work with the E3X-HD41. The choice depends on the application: through-beam pair (E32-T@) for opaque objects — pick the E32-T11L 2M for general use, E32-T22L for longer range (up to 4 m), E32-T14L for 5 mm minimum object detection, E32-T9L for small parts (down to 0.3 mm object), or specialty fibers like E32-T@F (focused beam for 0.5 mm spot) or E32-T@H (heat-resistant to 200 °C).
How do I teach the threshold on the E3X-HD41?
The E3X-HD41 has a one-button smart-tuning teach that takes ~5 seconds. Method 1 (full auto tuning): (1) Point the fiber at the target condition (target present, no background); (2) Press and release the SET button — the red display shows the saved target value with a '00' to 'F' indicator; (3) Point the fiber at the background (no target); (4) Press and release SET again — the amplifier calculates the midpoint threshold with ~2:1 margin to either side.
