Omron E3T-FD11 — 5-30 mm Diffuse, NPN Light-ON, 2m
SKU: E3T-FD11USD 28.00
E3T-series ultra-thin diffuse-reflective photoelectric sensor with built-in amplifier, 5-30 mm range, NPN Light-ON, pre-wired 2 m.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

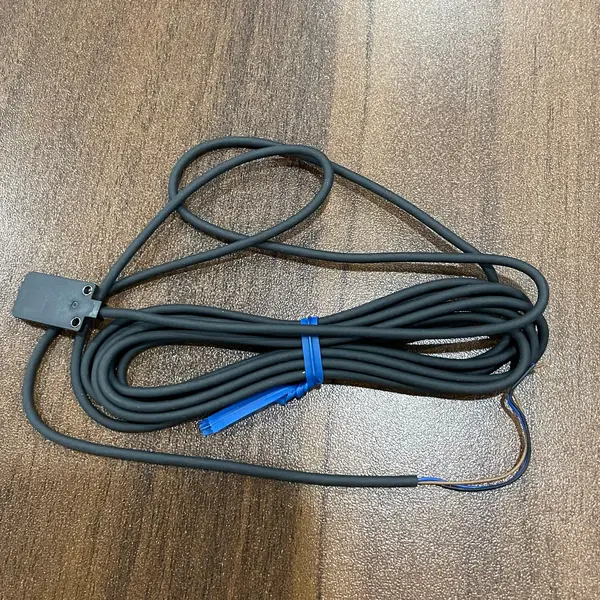

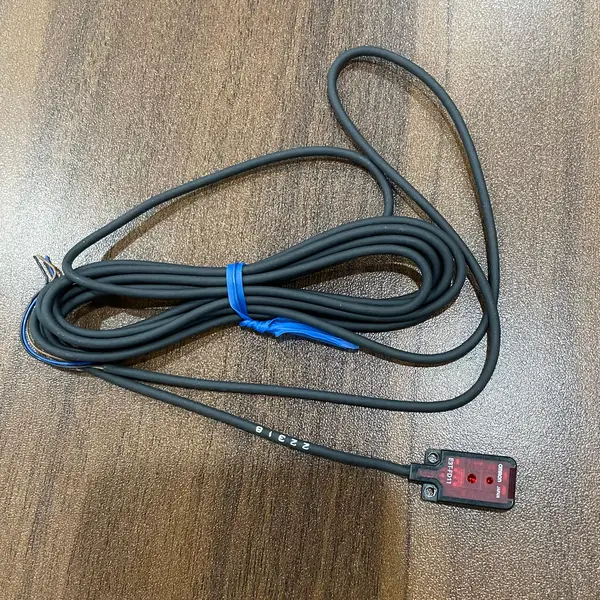

The Omron E3T-FD11 is the side-view diffuse-reflective sensor in the E3T ultra-thin family. It is a self-contained photoelectric switch with the emitter and receiver in the same head, the light source and amplifier built in, and a 2 m pre-wired cable. The 5-30 mm sensing range on white paper is short -- this is a presence / absence sensor for a small part on a feeder track, a chip on a tape reel, a label on a small package, or a connector pin in a test fixture, NOT a long-distance object detector.
Why the side-view body matters here
Pick the E3T-FD11 (side-view) when the sensor mounts through a thin slot in a bracket or a feeder sidewall, where the head has to fit into a 12 mm gap and the cable exits along the same axis as the mounting holes. Pick the E3T-FD21 (top-view sibling) when the head mounts on a flat surface and the cable exits perpendicular to the mounting plane. The side-view and top-view heads are otherwise electrically identical -- the difference is the body shape.
Where the NPN output fits
Pick the E3T-FD11 (NPN, sinking) when the load is a PLC input that expects a sinking signal (most Japanese PLCs, including the CP1L / CP2E / CJ2 / NJ families). Pick the E3T-FD13 (PNP, sourcing) when the load is a European PLC or a safety input that expects a sourcing signal. Pick the E3T-FD12 (NPN, Dark-ON) when the output should be ON when the part is absent (the Light-ON default of the FD11 inverts the logic for a "present = ON" requirement).
Before ordering
The E3T-FD11 is the complete sensor -- no amplifier and no fiber-optic cable needed. The E32 fiber-optic cable family is the accessory for the E3X-NA / SD / HD amplifier line, not for the E3T. For a longer range or a different sensing principle, see the E3T-FT11 (BGS), E3T-ST11 2M (1 m through-beam), E3T-SR41 (0.2 m retro-reflective), or the E3Z family for the M18 threaded body.
Key Features
- E3T-series ultra-thin / ultra-compact photoelectric sensor with built-in amplifier
- 5-30 mm diffuse-reflective sensing range on white paper 50x50 mm

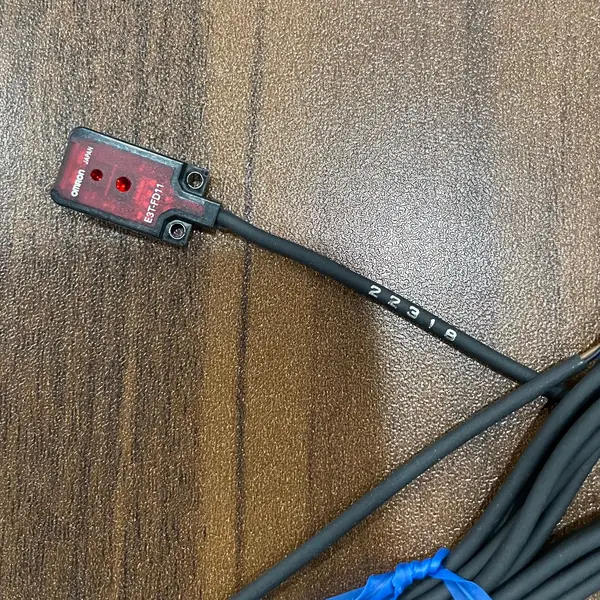

- Side-view ABS plastic head ~20 W x 12 H x 31 D mm with two M3 mounting holes
- Red 650 nm pinpoint LED light source, NPN open-collector Light-ON output
- 50 mA max load at 26.4 VDC, residual voltage 2 V at 10-50 mA / 1 V at < 10 mA
- DC 12-24 V +/- 10% supply at 30 mA or less (emitter 10 mA + receiver 20 mA)
- 1 ms or less response (operate and reset), orange operation LED on the receiver
- Built-in power reverse-connection, output reverse-connection, and load short-circuit protection
- Ambient light immunity 5,000 lx incandescent / 10,000 lx sunlight on the receiver face
- Pre-wired 2 m oil-resistant cable, IP67 ABS housing, -25 to +55 C operating / -40 to +70 C storage
- SKU: E3T-FD11
- Series: E3T-FD11
- Voltage: 12-24 V
Best-Fit Applications
- Small-part presence detection on a feeder track or pick-and-place head
- Chip / component presence on a tape reel or tray loader
- Connector pin position verification in a test fixture
- Label edge detection on a small package or shrink-wrap line
- Ink-mark or registration-mark sensing in a printing / coding station
Buying Checklist
- Pick E3T-FD11 for a 5-30 mm diffuse-reflective sensor with NPN Light-ON output in the E3T ultra-thin side-view body.
- Pick E3T-FD13 instead when the PLC expects a PNP (sourcing) input.
- Pick E3T-FD12 instead when the output should be ON when the part is absent (Dark-ON logic).
- Pick E3T-FD21 (top-view body) when the sensor mounts on a flat surface and the cable exits perpendicular to the bracket.
- Pick E3T-ST11 2M for a 1 m through-beam pair in the same E3T ultra-thin body when the target is small and reflective.
- Pick E3Z-D61 for an M18 threaded diffuse sensor with 1 m range when the mounting space allows the larger body.
Technical Specifications
| Sensing Method | Diffuse-reflective (emitter + receiver in one head) |
|---|---|
| Sensing Range | 5-30 mm on white paper 50x50 mm |
| Light Source | Red 650 nm LED, pinpoint spot |
| Output Type | NPN open collector, Light-ON |
| Load Rating | 50 mA max at 26.4 VDC, residual 2 V at 10-50 mA / 1 V at < 10 mA |
| Supply Voltage | DC 12-24 V +/- 10%, 30 mA or less |
| Response Time | 1 ms or less (operate and reset) |
| Indicators | Orange operation LED on the receiver |
| Protection | Power reverse, output reverse, load short-circuit |
| Ambient Light | 5,000 lx incandescent / 10,000 lx sunlight |
| Connection | Pre-wired 2 m oil-resistant cable |
| Housing / Operating Temp | ABS plastic IP67, -25 to +55 C / storage -40 to +70 C |
Resources & Downloads
FAQ for E3T-FD11
Is the E3T-FD11 a fiber-optic sensor amplifier?
No. The E3T-FD11 is a self-contained photoelectric sensor with the emitter, receiver, amplifier, and output transistor built into one head. The E3X-NA / E3X-SD / E3X-HD amplifier family with E32 fiber-optic cables is a different product line. The E3T-FD11 does not need an external amplifier and does not accept E32 fiber cables -- it is a complete sensor in one housing.
What is the difference between E3T-FD11 and E3T-FD21?
Body shape. The FD11 is the side-view body (~20 W x 12 H x 31 D mm) where the cable exits along the same axis as the mounting holes. The FD21 is the top-view body where the cable exits perpendicular to the mounting plane. Both have the same 5-30 mm range, red LED, NPN output, and 1 ms response. Pick the FD11 for a side-exit cable in a tight bracket; pick the FD21 for a top-exit cable on a flat surface.
Can the E3T-FD11 drive a relay coil?
Not directly. The NPN open-collector output sinks 50 mA at 26.4 VDC, which is enough for a PLC input, an indicator lamp, or a solid-state relay logic input. It is not enough to drive a 250 VAC mechanical relay coil -- use the NPN output to switch an interposing relay (G2R-2-SND DC24(S) or equivalent) if you need to switch a contactor coil or a 250 VAC load.
What is the difference between E3T-FD11 and E3T-FD12?
Logic. The FD11 is Light-ON (output ON when the receiver sees the reflected light from the part). The FD12 is Dark-ON (output ON when no light is reflected -- i.e., the part is absent). Pick the FD11 for a "part present = ON" signal that the PLC interprets as run-permitted; pick the FD12 for a "part absent = alarm" signal that triggers a feeder-empty shutoff.
