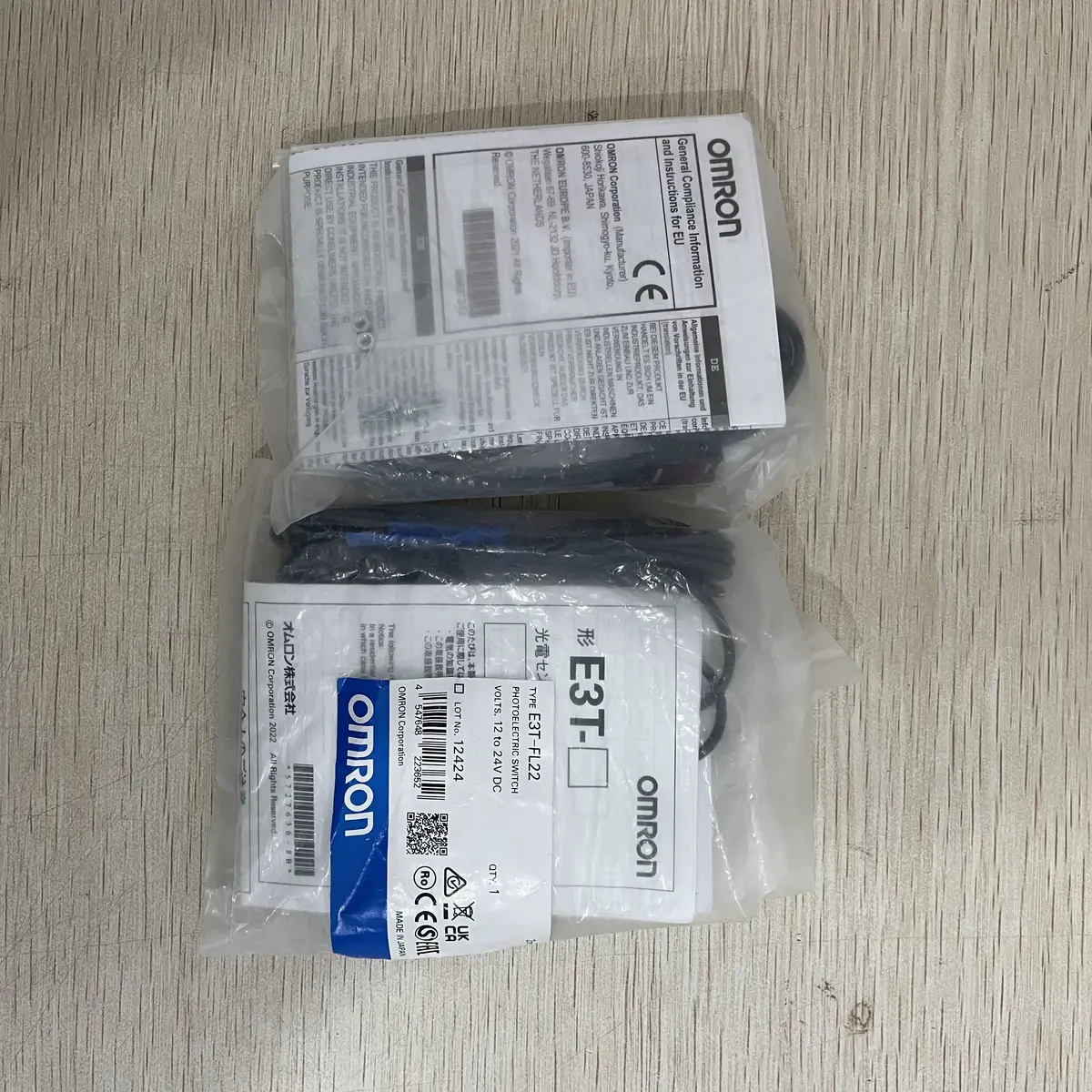

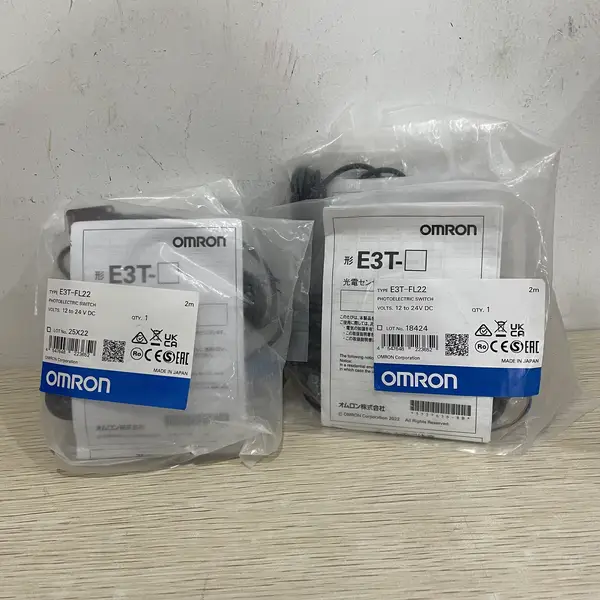

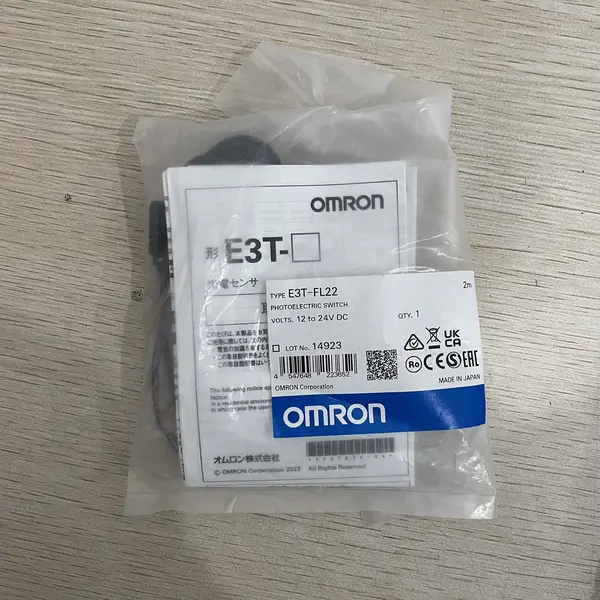

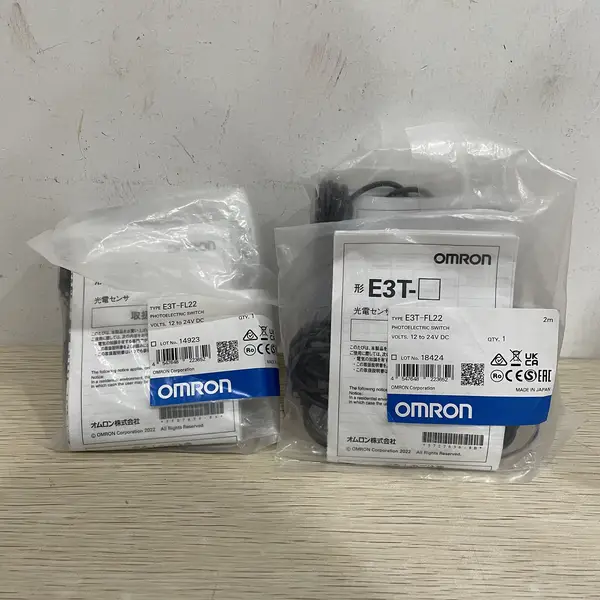

Omron E3T-FL22 — 1 30 mm BGS Reflective, NPN Dark ON
SKU: E3T-FL22USD 42.00
E3T-series ultra-thin BGS-reflective photoelectric sensor with built-in amplifier, 1-30 mm range, NPN Dark-ON, pre-wired 2 m cable.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3T-FL22 is the side-view flat BGS-reflective sensor in the E3T ultra-thin family. manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The optical cutoff focuses the receiver on a fixed depth band, so the sensor sees a small part at the set distance and ignores a fixed background further away. The 1-30 mm range is short -- this is a presence sensor for a chip on a tape reel, a connector pin in a test fixture, a syringe in a nest, or a label edge on a small package, not a long-distance detector.
The E3T-FL22 ships from Xiamen with full datasheet documentation. For an M18 threaded diffuse sensor with 1 m range, pick the E3Z-D61.
Key Features
- DC 12-24 V +/- 10% supply at 20 mA or less
- 1-30 mm focused sensing range on white paper 50x50 mm (background suppression)
- 50 mA max load at 26.4 VDC, residual voltage 1 V or less
- 1 ms or less response (operate and reset), orange operation + green stability LEDs
- SKU: E3T-FL22
- Series: E3T-FL22
- Voltage: 12-24 V
Best-Fit Applications
- Feeder empty / part absent alarm on a small-part bowl feeder
- Chip / component presence detection on a tape reel or tray loader
- Syringe / vial detection in a nest on an aseptic filling line
Buying Checklist
- Pick E3T-FL13 / FL14 (PNP) when the PLC or load expects a sourcing signal.
- Pick E3T-FD11 (diffuse-reflective) when the target is larger or the application tolerates a wider detection window.
- Pick E3T-FL22 for a 1-30 mm BGS-reflective sensor with NPN Dark-ON output in the E3T ultra-thin flat body.
Technical Specifications
| Sensing Method | BGS-reflective (focused-beam reflective with background suppression) |
|---|---|
| Sensing Range | 1-30 mm on white paper 50x50 mm |
| Light Source | Red 650 nm LED |
| Output Type | NPN open collector, Dark-ON |
| Load Rating | 50 mA max at 26.4 VDC, residual 1 V or less |
| Supply Voltage | DC 12-24 V +/- 10%, 20 mA or less |
| Response Time | 1 ms or less (operate and reset) |
| Indicators | Orange operation LED + green stability LED |
| Protection | Load short-circuit, output reverse, power reverse, mutual-interference |
| Ambient Light | 5,000 lx incandescent / 10,000 lx sunlight |
| Connection | Pre-wired 2 m oil-resistant cable (M2 mounting screws included) |
| Housing / Operating Temp | PBT plastic IP67, -25 to +55 C / storage -40 to +70 C |
FAQ for E3T-FL22
Is the E3T-FL22 a fiber-optic sensor?
No. The E3T-FL22 is a self-contained BGS-reflective photoelectric sensor with the emitter, receiver, amplifier, and output transistor built into one flat head. The E32 fiber-optic cable family is the accessory for the E3X-NA / E3X-SD / E3X-HD amplifier line, NOT for the E3T. The E3T-FL22 does not need an external amplifier and does not accept E32 fiber cables -- it is a complete sensor in one housing with a pre-wired 2 m lead.
What is the difference between E3T-FL22 and E3T-FD11?
Sensing method. The FL22 is BGS-reflective with a focused 1-30 mm beam that ignores a fixed background further away. The FD11 is diffuse-reflective over a wider 5-30 mm range that sees any object in the working band, with no background rejection. Pick the FL22 when the target is small and the background is a fixed surface; pick the FD11 when the target is larger or the application tolerates colour and surface sensitivity. Both have the same flat side-view body and the same 1 ms response.
What does Dark-ON mean on the E3T-FL22?
Output logic. Dark-ON means the NPN output is ON (current sinking to common) when the receiver does not see the focused reflection -- i.e. when the target is absent or outside the 1-30 mm focused band. Pick the FL22 (Dark-ON) for a "part absent = alarm" signal that triggers a feeder-empty shutoff or a missing-part reject. Pick the FL11 (Light-ON) instead for the more common "part present = run" signal that the PLC interprets as run-permitted.
Can the E3T-FL22 be mounted with M3 screws?
No. The E3T-FL22 ships with two M2 mounting screws for the flat side-view body. The M3-mount variant is the E3T-FL12M (Dark-ON, NPN, M3 mount) or E3T-FL14M (Dark-ON, PNP, M3 mount). The M3 body is a different head shape with M3 threaded bushings on the side. The electrical specs (range, output, response, supply) are the same; only the body shape and mounting thread change.
