Omron E3T-ST11 2M — 1 m Ultra-Thin Through-Beam, NPN

SKU: E3T-ST11 2M

USD 26.00

Ultra-thin ultra-compact through-beam photoelectric pair in 20 x 12 x 31 mm ABS housing, 1 m range, NPN output, 12-24 VDC, 2 m pre-wired cable.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

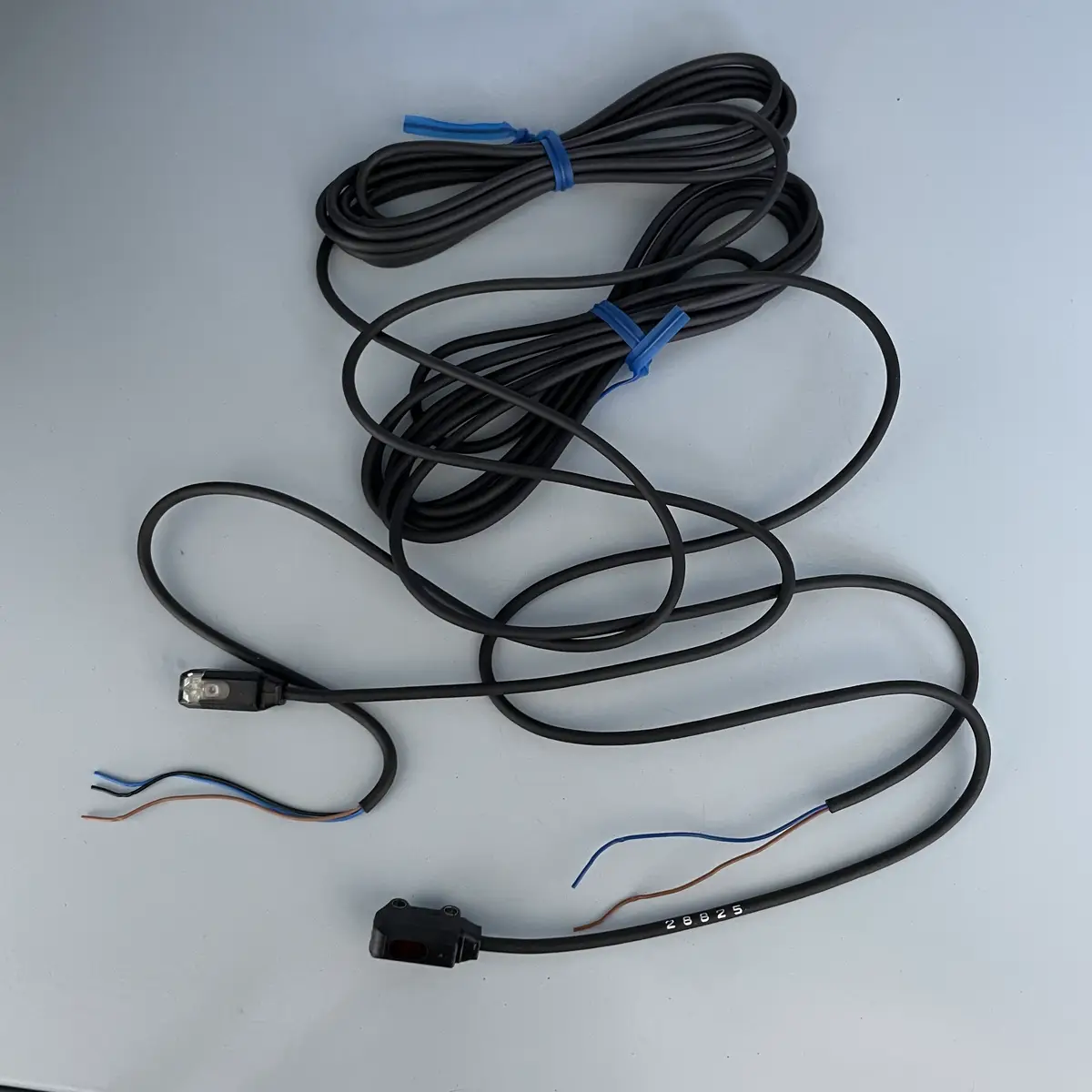

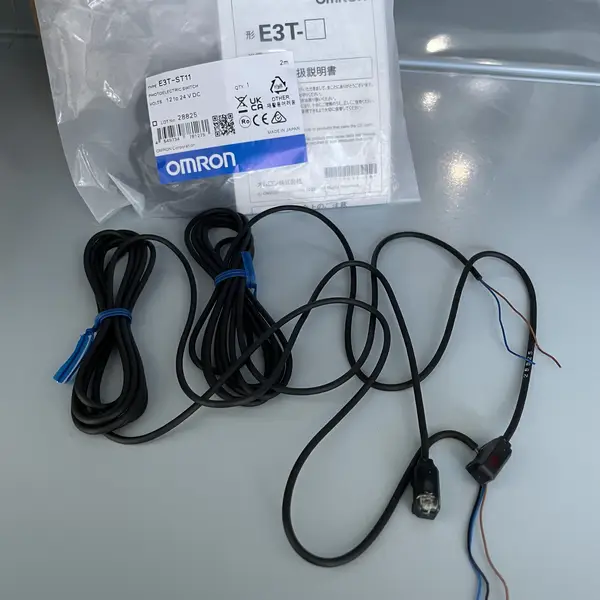

The Omron E3T-ST11 2M is the Light-ON half of the E3T through-beam pair — an emitter and a receiver shipped in matched ultra-thin ABS housings, each 20 mm wide x 12 mm tall x 31 mm long, with 2 m pre-wired leads. The pair covers 1 m on a 2 mm opaque target and runs from a single 12 to 24 VDC supply. The head is small enough to mount inside a feeder track, a slide gate, or a small-part escapement where a standard M18 through-beam barrel physically does not fit.

What the Light-ON / Dark-ON choice actually means

The ST11 is Light-ON — its NPN output conducts when the emitter's red 650 nm beam reaches the receiver (no target in the gap). The ST12 is the identical sensor in Dark-ON mode (output ON when the beam is broken). Pick ST11 for a 'beam intact = run, beam broken = stop' arrangement such as a safety gate monitor. Pick ST12 for the more common 'part present = output on' wiring on a conveyor or pickup station. Both halves draw DC 12-24 V and carry 50 mA sink loads.

When to use the E3T over a bigger through-beam

Pick the E3T when the bracket or the panel cutout physically cannot take an M18 barrel (E3FA-TP11 2M at 15 m) or a square M18 cube (E3S series). The 1 m range is the headline sacrifice — the E3T is a tight-space sensor, not a long-distance beam. If the install is wider than 1 m and you need a small head, the E3T-ST13 covers 5 m in the same ultra-thin housing. For reflective (single-head) mounts the E3T-FD11 covers up to 100 mm diffuse-reflective and the E3T-FL22 covers 5-30 mm BGS-style convergent-reflective in the same slim line.

Before ordering

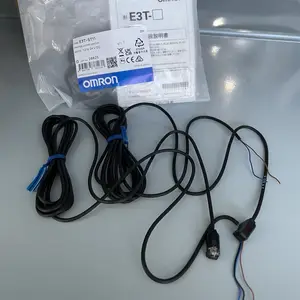

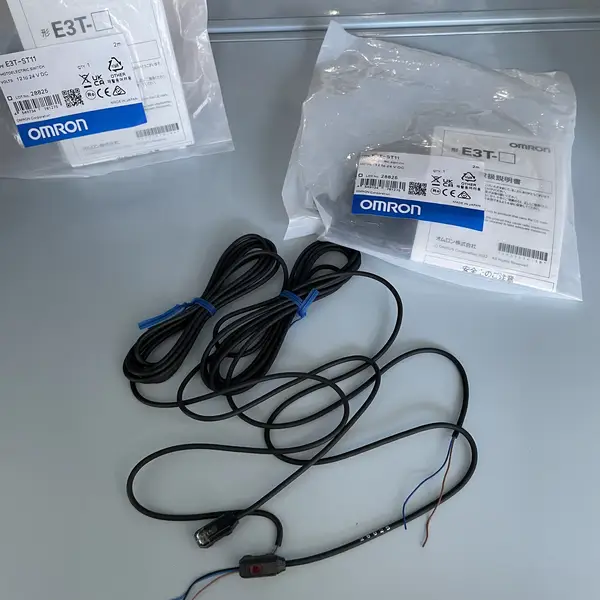

Order one SKU and you get a matched emitter + receiver pair. Confirm the supply is regulated 12 to 24 VDC and the load does not exceed 50 mA at 26.4 VDC (the NPN open-collector sink). Pre-wired 2 m is fine for most panel-mount installs; for M12 or M8 quick-disconnects, the E3T-ST11-M1TJ and E3T-ST11-M3J ship with pigtails at the same 1 m range.

Key Features

  • E3T-series ultra-thin / ultra-compact through-beam photoelectric sensor (matched pair)
  • 1 m sensing range on 2 mm dia. or larger opaque target
  • Light-ON detection (NPN output ON when beam reaches receiver); ST12 is the Dark-ON sibling
  • Red pinpoint LED 650 nm source for visible alignment
  • NPN open-collector output, 50 mA max at DC 26.4 V
  • Output residual voltage 1 V or less
  • 1 ms or less response time
  • DC 12 to 24 V +/-10 % supply, ripple 10 % max
  • Built-in load short-circuit, output reverse-connection, and power-supply reverse-polarity protection
  • Ultra-thin ABS housing 20 (W) x 12 (H) x 31 (D) mm, ~15 g each half, orange operation LED
  • Pre-wired 2 m cable, IP67 rated, -25 to +55 deg C operating (storage -40 to +70 deg C)
  • Ambient light immunity: incandescent 5,000 lx / sunlight 10,000 lx max
  • SKU: E3T-ST11 2M
  • Series: E3T ultra-thin / ultra-compact photoelectric sensor
  • Voltage: 12 TO 24 V
  • I/O: 50 I/O

Best-Fit Applications

  • Small-part detection inside a feeder track or escapement where M18 barrels cannot fit
  • Vibratory bowl outlet trigger where the sensor head mounts between bowl and slide
  • PCB-component presence check at a pick-and-place station with a 10-50 mm gap
  • Label or edge detection on a small diameter roller where the gap is well under 1 m
  • Verification of syringe / pen / pen-cap presence in a tight packaging cell
  • Light-curtain-like beam at a small machining cell entrance where a full safety relay is not required

Buying Checklist

  • Pick E3T-ST11 2M for a Light-ON 1 m ultra-thin through-beam pair on a 2 m pre-wired lead.
  • Pick E3T-ST12 2M instead for the same 1 m range and housing in Dark-ON mode (more common on conveyors).
  • Pick E3T-ST13 for the same ultra-thin head at 5 m long range when the gap is wider.
  • Pick E3T-ST11-M1TJ (or -M3J) when you need an M12 (or M8) quick-disconnect pigtail rather than a pre-wired lead.
  • Do NOT confuse E3T with E3X fiber-optic amplifiers and E32 fibers — E3T is a self-contained through-beam pair, not a fiber amp.
  • Confirm the load is NPN sink and the supply is regulated 12-24 VDC; voltage above 26.4 VDC will damage the receiver.

Technical Specifications

Model E3T-ST11 2M (matched emitter + receiver pair)
Series E3T ultra-thin / ultra-compact photoelectric sensor
Sensing Method Through-beam (separate emitter and receiver)
Sensing Distance 1 m on 2 mm opaque target or larger
Min Target Opaque object 2 mm dia. or larger
Light Source Red LED 650 nm (visible pinpoint spot)
Detection Mode Light-ON (Dark-ON is the E3T-ST12 sibling)
Output Type NPN open collector, 50 mA max at 26.4 VDC, residual 1 V max
Response Time 1 ms or less (operate and reset)
Supply Voltage DC 12 to 24 V +/-10 %, ripple 10 % max
Current Draw Emitter 10 mA or less / receiver 20 mA or less
Protection Load short-circuit, output reverse-connection, supply reverse-polarity
Housing ABS ultra-thin, 20 (W) x 12 (H) x 31 (D) mm
Mass Emitter ~15 g / receiver ~15 g
Indicator Orange operation LED on receiver top
Connection Pre-wired 2 m cable (emitter 2-core, receiver 3-core)
Ingress Rating IP67 (IEC 60529)
Ambient Light Incandescent 5,000 lx or less; sunlight 10,000 lx or less
Operating Temperature -25 to +55 deg C
Storage Temperature -40 to +70 deg C
Humidity 35 to 85 % operating / 35 to 95 % storage
Dielectric Strength AC 1000 V, 50/60 Hz, 1 min between current-carrying parts and case
Approvals UL, CE

FAQ for E3T-ST11 2M

Is the E3T-ST11 2M a fiber-optic sensor?
No. The E3T is a self-contained ultra-thin through-beam photoelectric pair with built-in emitter and receiver. It is not a fiber-optic amplifier and does not accept E32-series fiber-optic cables. If you need a fiber-optic amplifier to read a remote through-beam or reflective fiber head, look at the E3X-NA41 2M (NPN fiber amp) or the E3X-SD / E3X-HD high-function amplifiers instead.
What is the difference between E3T-ST11 and E3T-ST12?
Both are 1 m range, NPN output, ultra-thin through-beam pairs with the same head and cable. ST11 is Light-ON (output conducts when the beam reaches the receiver, no target in the gap). ST12 is Dark-ON (output conducts when the beam is blocked by a target). Most conveyor and pick-and-place applications need Dark-ON (ST12); safety gates and 'beam intact = run' setups use Light-ON (ST11). Same supply, same load, same response, same head — only the logic is flipped.
How small an object can E3T-ST11 detect?
The standard target rating is opaque 2 mm dia. or larger at the rated 1 m range. Smaller targets may pass through the beam without blocking enough light to register reliably, especially at the far end of the range. For very small targets (under 2 mm) close to the receiver, switch to the E3T-FL22 convergent-reflective sensor with a 5-30 mm focal range and a focused spot.
Can I extend the E3T-ST11 2M cable?
Yes, with a normal 2-core (emitter) or 3-core (receiver) shielded cable. Keep the run under around 10 m or the residual voltage plus cable impedance starts to lift and the NPN output may not close reliably at the rated 26.4 VDC. For longer runs, switch to the E3T-ST11-M1TJ (M12 4-pin) or E3T-ST11-M3J (M8 4-pin) variant and use a standard sensor extension cordset.
