Omron E3T-ST13 — E3T Through-Beam Sensor, 1 m, PNP
SKU: E3T-ST13USD 35.00

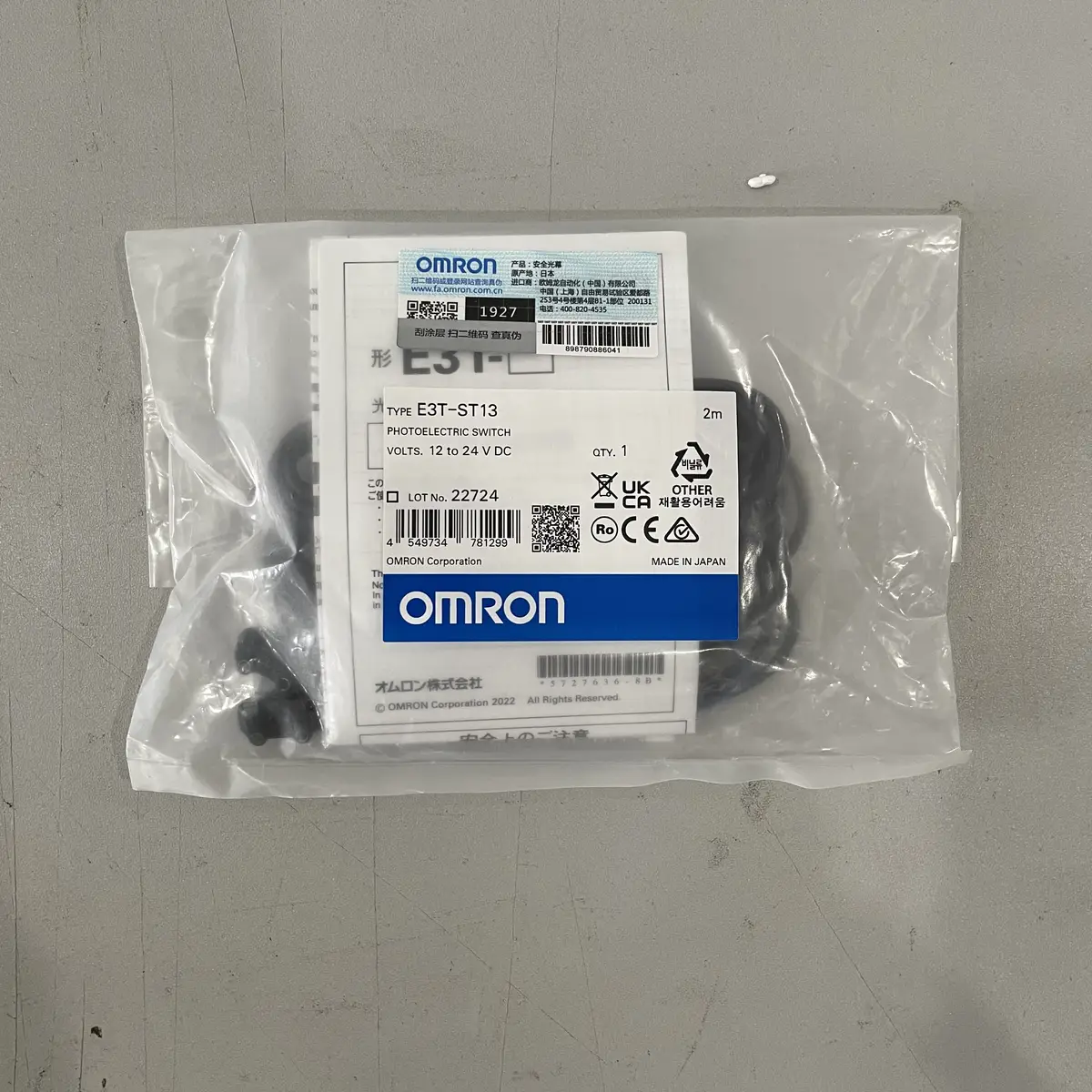

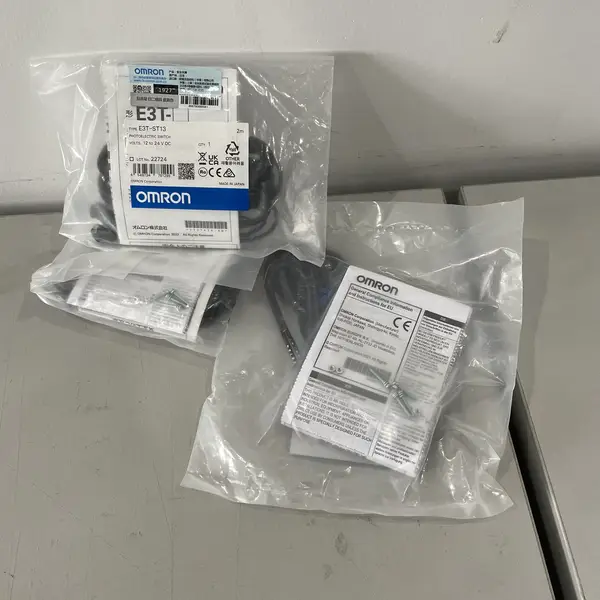

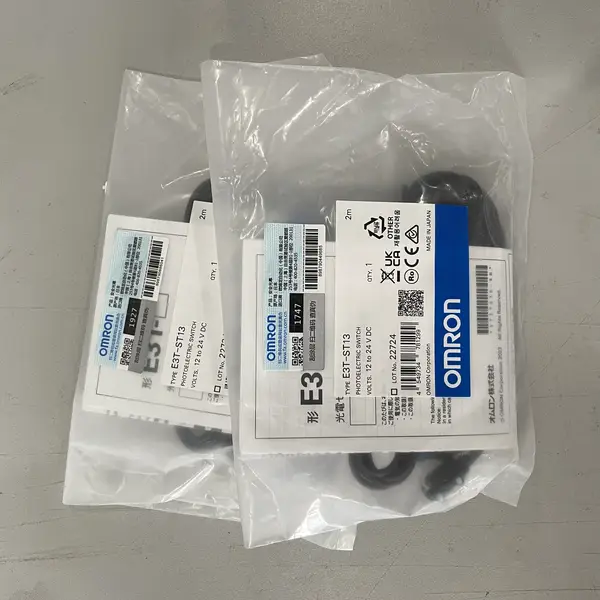

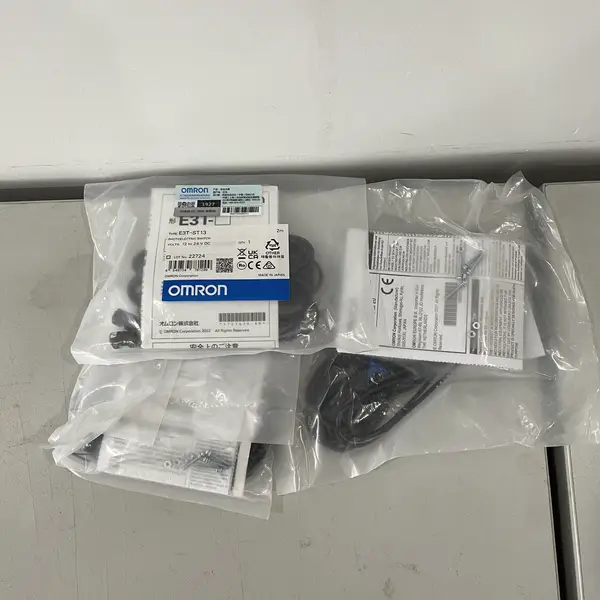

Omron E3T-ST13 E3T side-view through-beam photo sensor, 1 m range, PNP Light-ON, 12-24 VDC, 2 m cable. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3T-ST13 is an ultrathin cuboid through-beam photoelectric sensor from the E3T miniature series, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box. Specifications on this page were checked against Omron's product lifecycle data and distributor listings.
The sensor pairs an emitter and receiver in a side-view housing 7 mm wide, 18.5 mm tall and 9.5 mm deep. It detects opaque objects 2 mm or larger across a 1 m gap. Output is PNP open-collector, Light-ON only, switching up to 50 mA at 26.4 VDC. Response time is 1 ms.
Supply is 12 to 24 VDC with 10% ripple. The PBT housing is IP54 and the unit ships with a 2 m pre-wired cable and M2 mounting hardware. For the same body in Dark-ON, pick the E3T-ST11 2M. For a flat diffuse-reflective body in the same E3T family, pick the E3T-FD11.
Key Features
- E3T ultrathin cuboid through-beam photo sensor, side-view, 1 m range
- PNP open-collector Light-ON output, 12 to 24 VDC, 50 mA, 1 ms response
- Detects opaque objects 2 mm or larger, 7 x 18.5 x 9.5 mm PBT body, IP54
- M2 mounting, 2 m pre-wired cable, ships with mounting hardware
- SKU: E3T-ST13
- Series: Omron E3T-series ultrathin photoelectric sensor
- Voltage: 12 TO 24 VDC
Best-Fit Applications
- Small-part detection on a feeder bowl where the 7 mm wide E3T body fits between the bowl rim and the chute wall
- Edge detection on a thin PCB tab on a pick-and-place line where the 2 mm minimum object spec matches the tab width
- Spare drop-in for an existing E3T cell where the previous E3T-ST13 failed and the wiring is PNP Light-ON at 24 VDC
Buying Checklist
- Pick the E3T-ST13 for an ultrathin 7 mm wide through-beam sensor at 1 m range with PNP Light-ON output.
- Pick the E3T-ST14 instead when the application needs Dark-ON logic on the same 1 m body.
- Pick the E3T-ST13-M5J 0.3M instead when the cabinet needs an M8 pigtail connector instead of a 2 m cable.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E3T-series ultrathin photoelectric sensor |
| Model / SKU | E3T-ST13 |
| Sensing Method | Through-beam (side-view) |
| Sensing Distance | 1 m |
| Minimum Sensing Object | Opaque, 2 mm dia. min |
| Output Type | PNP open collector, Light-ON |
| Supply Voltage | 12 to 24 VDC +/-10%, ripple 10% max |
| Current Consumption | Emitter 10 mA; receiver 20 mA max |
| Response Time | 1 ms max operate or reset |
| Connection | Pre-wired 2 m PVC cable |
| Protection / Dimensions | IP54; 7 (W) x 18.5 (H) x 9.5 (D) mm; PBT housing |
FAQ for E3T-ST13
Is the E3T-ST13 still in production?
Sources disagree on this one. DigiKey - Omron's authorised global distributor - lists the E3T-ST13 as Active (in stock, 93 factory units, 9-week lead time), and OEMstron also lists it Active. Octopart, however, carries an Obsolete flag with a last-time-buy of 2024-03-31 and last-time-delivery of 2024-06-30. We could not find an Omron discontinuation notice for this model, and the E3T family page shows no end-of-production notice. If the machine is running, treat it as orderable and confirm the position with Omron for your region before committing to a long-term plan.
What wire colours does the E3T-ST13 use?
Brown is +V (12 to 24 VDC), blue is 0 V and black is the PNP output. Wire brown to the 24 VDC supply, blue to common and black to a 24 VDC PLC input such as the CP1W-ID211.
What is the minimum object the E3T-ST13 can detect?
Opaque objects 2 mm diameter or larger at the rated 1 m range. For sub-millimetre detection, use the 0.5 mm slit accessory E39-S63 with the emitter and receiver.
