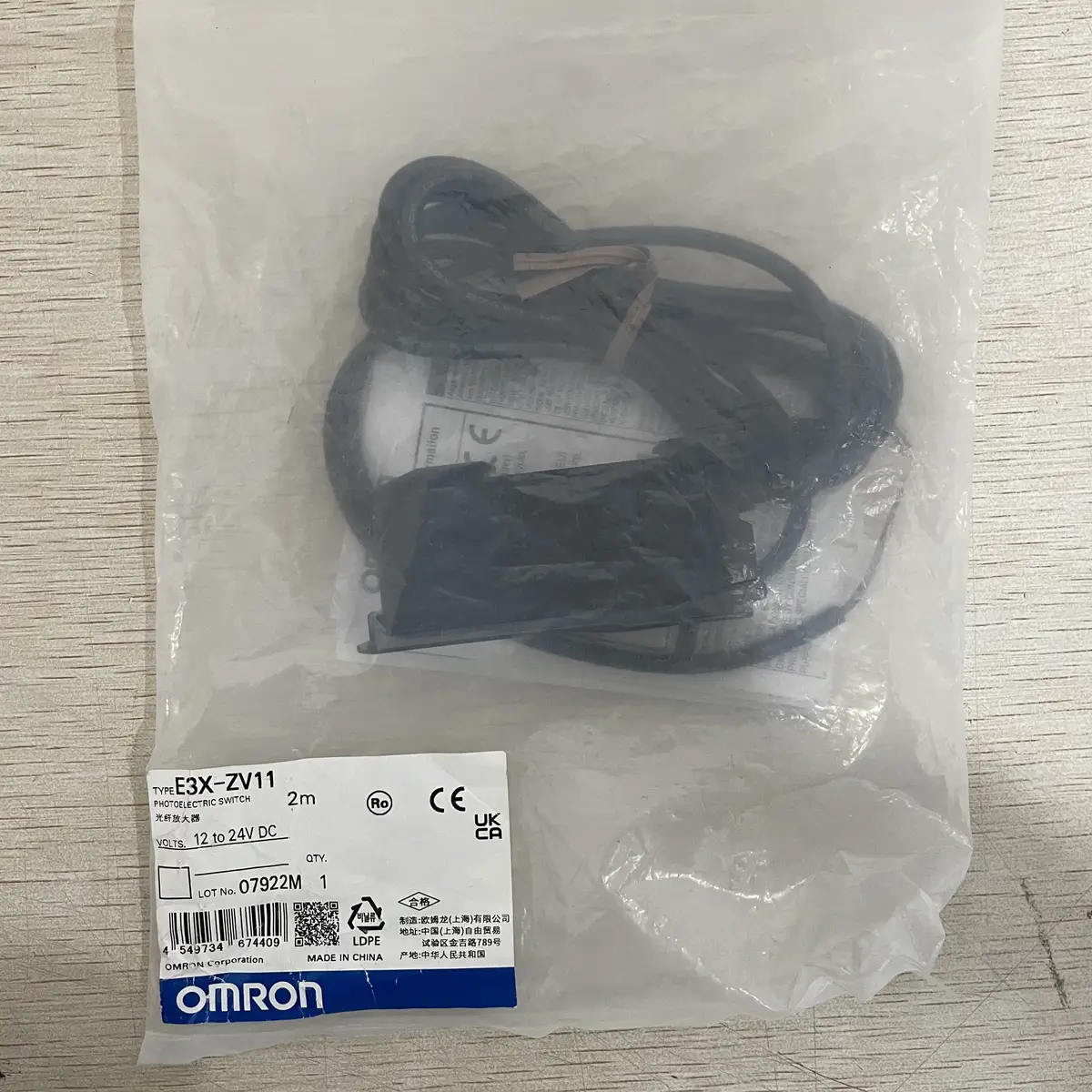

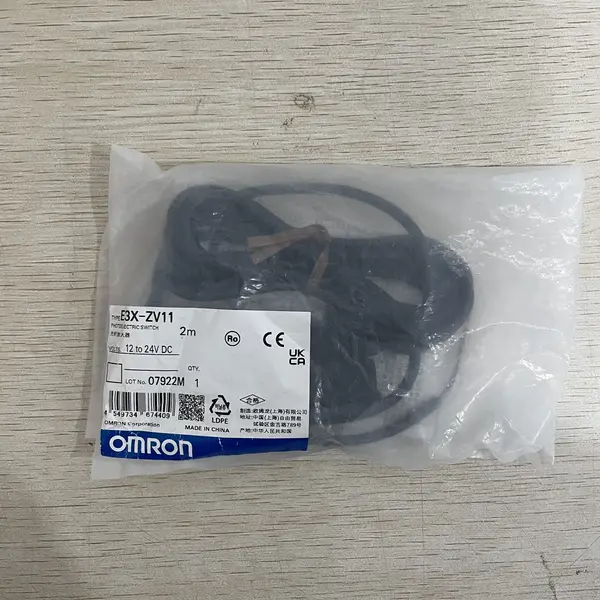

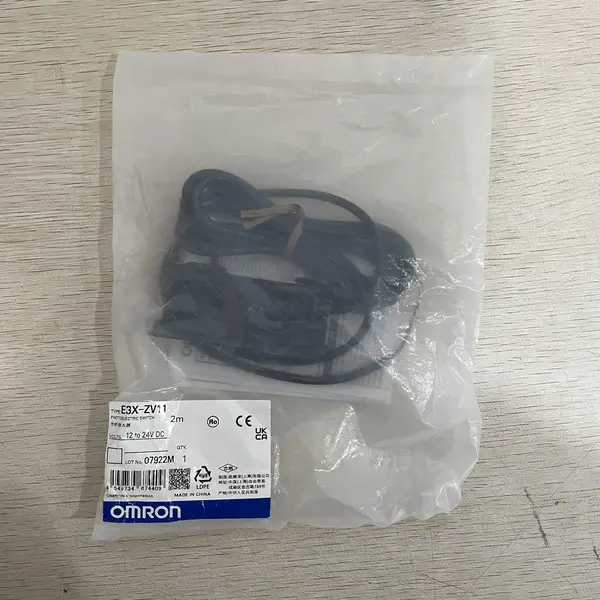

Omron E3X-ZV11 — Industrial Sensor
SKU: E3X-ZV11USD 17.50
Smart 1-channel fiber-optic amplifier with red 4-element LED, NPN open-collector output, pre-wired 2 m PVC cable, 50 µs high-speed response, twin 7-segment display, teach-in button. Compatible with all E32-series fiber cables.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The E3X-ZV11 is the NPN output variant of Omron's E3X-ZV 1-channel Smart Fiber Amplifier family — a cost-optimized amplifier with twin 7-segment display, smart-tuning teach, and a 50 µs response time that makes it the right pick for high-speed counting applications (up to 10 kHz event rates). The amplifier accepts any E32-series fiber-optic cable on the front face and supports through-beam, diffuse, and retro-reflective modes. The NPN open-collector output sinks current (up to 100 mA at 30 VDC) to drive a PLC input, relay coil, or counter directly. The 2 m pre-wired PVC cable terminates at stripped-and-tinned leads (brown = +V, blue = 0 V, black = output, white = not connected).
E3X-ZV vs E3X-HD: when to pick which
The E3X-ZV is positioned below the E3X-HD in the E3X amplifier hierarchy: ZV = cost-optimized 1-channel tier (1 output only), HD = full-functionality 1-channel tier (also 1 output but with more tuning modes), MZV = 2-channel tier (2 outputs + 2 inputs). The ZV has the smart-tuning teach, twin display, and E32 fiber compatibility shared with HD; what the ZV does NOT have: (1) external trigger input (only on E3X-MZV@2 series); (2) high-sensitivity mode and APC (auto-power-control, only on HD); (3) EtherCAT/CompoNet communication adapter support (the HD supports the E3X-ECT, the ZV does not).
50 µs response time — where this matters
The 50 µs (0.05 ms) response time gives a maximum counting rate of 10,000 pulses/sec on a 50 % duty-cycle — twice the speed of the older E3X-NA amplifier, and on par with dedicated high-speed photoelectric counters. Real-world uses: small-part counting on a high-speed filling line (5,000+ parts/min), label-edge detection at high conveyor speeds (10 m/s), pin-marking registration at high production rates (300 ppm stamping line), PCB component presence verification at placement-head rates (50,000+ placements/hr). The output pulse width is also 50 µs minimum — narrow pulses must be widened by the receiving PLC or counter.
Smart tuning, 1-channel operation, and external wiring
Like all E3X-ZV amplifiers, the ZV11 supports one-button smart tuning with the SET button — point the fiber at the target, press SET; point at the background, press SET; the threshold is auto-set at the midpoint. The Light-ON / Dark-ON mode is selected via a separate push button on the front face. The amplifier has 1 output (NPN, sinking) on the pre-wired cable's black conductor. There is no separate external trigger input on the 1-channel ZV@ models — if you need external trigger (e.g. conveyor-encoder synchronization), step up to the 2-channel E3X-MZV@2 series. There is no EtherCAT or CompoNet communication support on any ZV variant.
Key Features
- Cost-optimized 1-channel smart fiber amplifier
- NPN open-collector output
- Ultra-fast 50 µs response time — 10 kHz event-rate maximum
- Red 4-element LED, 625 nm light source
- Pre-wired 2 m PVC 4-conductor cable
- Compatible with all E32-series fiber-optic cables
- Smart tuning with one-button teach
- Twin 7-segment display: red digits show incident level, green digits show threshold
- SKU: E3X-ZV11
- Series: E3X-ZV Smart Fiber Amplifier
- Voltage: 12 TO 24 VDC
- I/O: 1 I/O
Best-Fit Applications
- High-speed small-part counting on a filling line — E3X-ZV11 with E32-T11L fiber pair detecting parts at 5,000+ parts/min, the 50.
- Label-edge detection on a labelling machine — E3X-ZV11 with E32-T22LR right-angle fiber detecting the gap between labels at 10 m/s.
- Pin-marking registration on a stamping line — E3X-ZV11 with E32-T9L high-precision fiber detecting a 0.3 mm registration mark at 300.
- PCB component-presence verification — E3X-ZV11 with E32-D33 diffuse fiber detecting 0402-size components at placement head rates of 50,000+ cph, output.
Buying Checklist
- Pick E3X-ZV11 for NPN pre-wired 2 m fiber amplifier with 50 µs ultra-fast response for high-speed counting
- Pick E3X-ZV41 for the PNP version of this amplifier — pick for PNP/sourcing PLCs
- Pick E3X-HD11 if you need NPN with high-sensitivity mode and EtherCAT support — pick for networked installations
- Pick E3X-HD8 if you prefer an M8 connector instead of pre-wired cable
- Pick E3X-MZV11 if you need 2 channels in one amplifier for panel-space savings
- Pick the E32-T@ thru-beam fiber for 5-100 mm through-beam detection
Technical Specifications
| Model | E3X-ZV11 2M |
|---|---|
| Series | E3X-ZV Smart Fiber Amplifier |
| Type | Fiber-optic amplifier for E32-series cables, NPN output, 1 channel |
| Connection Method | Pre-wired 2 m PVC cable (4-conductor) |
| Output | 1 × NPN open-collector (30 VDC, 100 mA max load) |
| Light Source | Red 4-element LED, 625 nm |
| Sensing Mode | Through-beam / Diffuse / Retro-reflective (selected by E32 cable choice) |
| Power Supply Voltage | 12 to 24 VDC ±10 %, ripple 10 % p-p max |
| Display Resolution | 0-4095 count, 4-digit |
| Operating Temperature | -25 to +55 °C (no icing) |
| Storage Temperature | -30 to +70 °C |
| Mounting | 35 mm DIN-rail via E39-L143 adapter |
| Output ON Time | 50 µs minimum pulse width |
| Certifications | CE, cULus listed, EN 60947-5-2 compliant |
Resources & Downloads
FAQ for E3X-ZV11
What's the difference between E3X-ZV11 and E3X-HD11?
Both are 1-channel smart fiber amplifiers with twin display, but at different price/feature tiers: E3X-HD11 is the higher-functionality tier (~30 % more expensive) with added features: (a) high-sensitivity mode for sub-millimetre object detection; (b) APC (auto-power-control) for compensation when fiber ages; (c) EtherCAT/CompoNet communication adapter support (E3X-ECT); (d) external trigger input (some HD variants); (e) additional tuning modes like 7-step fine-tuning.
Can the E3X-ZV11 do 10 kHz counting?
Yes — the 50 µs response time (1/0.05 ms = 20 kHz theoretical max) handles 10 kHz actual event counting reliably with margin. Note that the 50 µs is the response time of the analog front-end; the digital processing adds ~100 µs of decision time, giving a practical 200 µs decision time per event.
What's the difference between E3X-ZV11 and E3X-MZV11?
E3X-ZV11 (this SKU) is 1-channel with 1 output and no external input. E3X-MZV11 is 2-channel with 2 outputs, allowing two fiber-optic cables per amplifier (saves panel space when you have 2 adjacent detection points). The MZV11 also has 2 external inputs (on the E3X-MZV@2 variants) for trigger / synchronization.
Can the E3X-ZV11 be controlled from a PLC over a network?
No — the E3X-ZV11 does not support any fieldbus communication adapter; the amplifier only has the pre-wired NPN output to communicate with a controller. For networked control where you want to read incident light level, set threshold remotely, and run diagnostics over Ethernet, the E3X-HD@ series supports the E3X-ECT communication unit (up to 16 amplifiers on EtherCAT), the E3X-CRT (CompoNet), or the E3X-SRT (Slave Terminal CompoNet).
