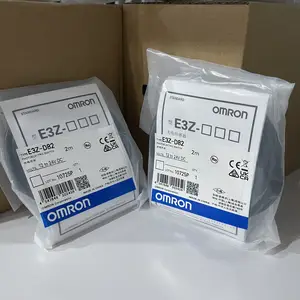

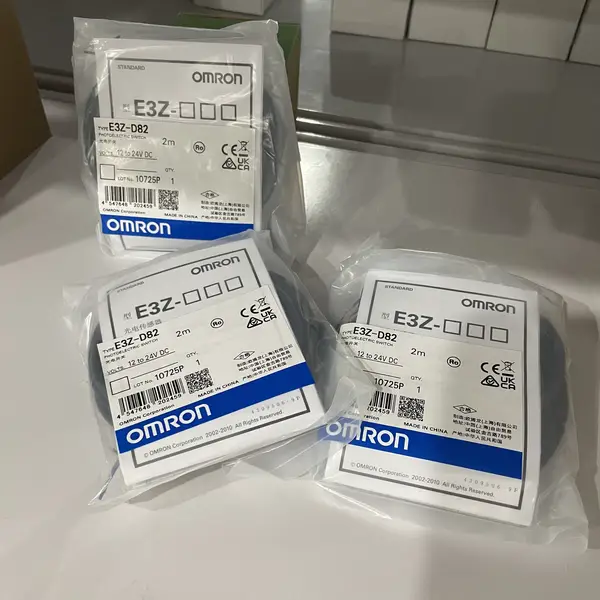

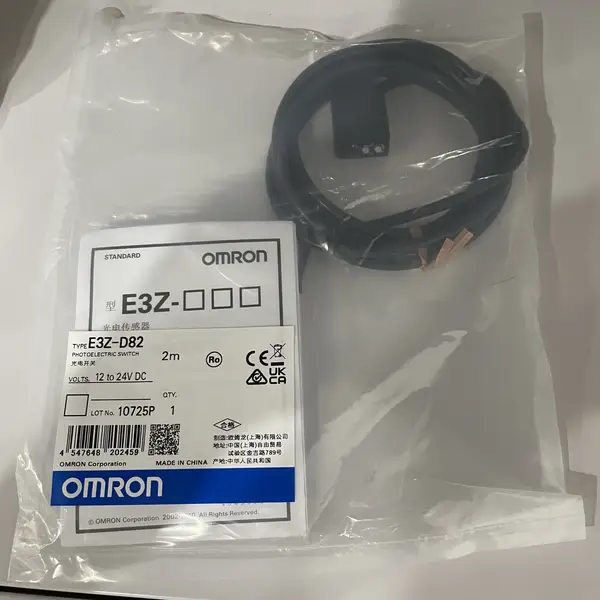

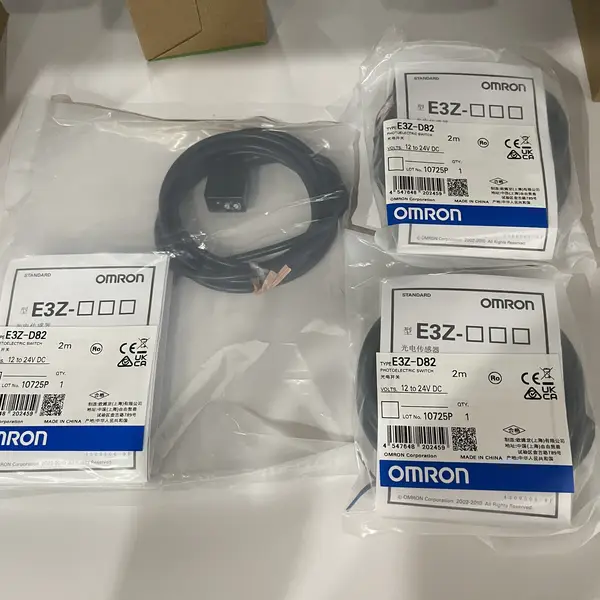

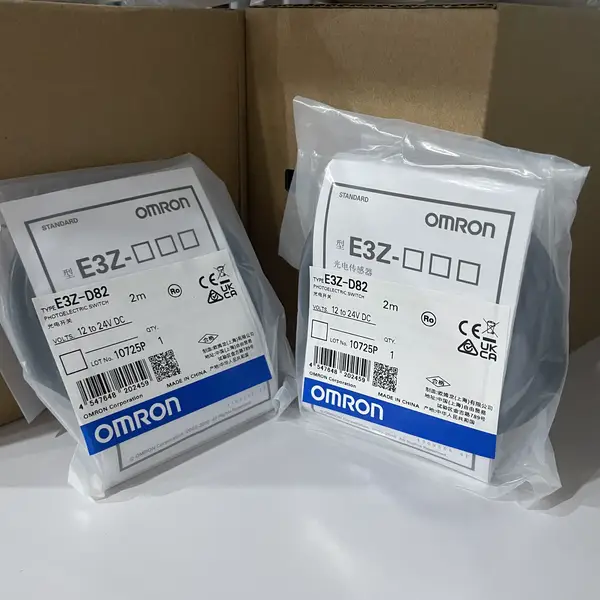

Omron E3Z-D82 — Diffuse-Reflective Sensor, 1 m, PNP, M8
SKU: E3Z-D82USD 23.00
Compact diffuse-reflective photoelectric sensor, 1 m range on 300 × 300 mm white paper, red LED, PNP open-collector output, M8 4-pin connector, IP67, 12-24 VDC.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The E3Z-D82 is the M8-connector variant in the E3Z-D8x long-range (1 m) diffuse-reflective photoelectric family, with PNP open-collector output and a 660 nm red LED emitter. The 1 m sensing distance (rated with a 300 × 300 mm white paper target at 100 × 100 mm to 1 m working range) covers most conveyor-rail, parts-present-at-station, and bin-detection jobs without needing a separate retro-reflective target. The visible-red spot is the key to fast commissioning — you point, see the red dot on the target, and confirm aim before locking down the bracket.
Where the E3Z-D82 fits in the E3Z-D family
The E3Z-D8x family is the long-range (1 m) branch of the E3Z diffuse line: D82 = PNP M8-connector (this SKU), D81 2M = PNP pre-wired 2 m, D86 = PNP M8-connector (catalog -OMI suffix; the EU/US catalog number for the same product), D87 = NPN M8-connector (this SKU's NPN twin). Above the 1 m range the E3Z-D8x offers nothing; below it sits the E3Z-D6x wide-view family (D62 2M = NPN pre-wired 100 mm; D82 2M = PNP pre-wired 100 mm) which is the right pick for short-distance presence checks where you cannot reach 1 m.
M8 4-pin connector pinout, cable choices, and PNP wiring
The E3Z-D82 uses an M8 4-pin male connector on the rear face (the wire-pig-tail version is the E3Z-D82 2M). Pin assignment follows IEC 60947-5-2: pin 1 = +V (brown), pin 2 = not used / no connection (white), pin 3 = 0 V (blue), pin 4 = OUTPUT (black). On PNP versions, pin 4 sources positive voltage toward the PLC input (sourcing output — current flows out of pin 4 into the load).
Sensitivity adjustment, alignment, and application pitfalls
The single-turn trimmer on the rear face sets sensitivity. Mount the sensor 0.5 to 0.8 × the rated 1 m distance from the expected target position (so the target sits firmly inside the detection zone, not at the boundary where ambient-variation can drop out). With no target present, turn the trimmer all the way down — the yellow indicator must turn OFF. Then turn it up slowly until the indicator turns ON reliably with the target present, then add a quarter turn of headroom.
Key Features
- E3Z-D long-range diffuse-reflective photoelectric sensor
- PNP open-collector output, 100 mA max switching current
- Visible 660 nm red LED emitter — spot is visible for fast optical alignment
- Standard M8 4-pin male connector on rear face
- Single-turn sensitivity trimmer on rear face — 300° range
- 1 ms response time
- Operating voltage 12 to 24 VDC ±10 %
- Current consumption 30 mA max
- SKU: E3Z-D82
- Series: E3Z Compact Photoelectric Sensor with Built-in Amplifier
- Voltage: 24 VDC
- I/O: 100 I/O
Best-Fit Applications
- Carton-presence detection on a roller conveyor entry — sensor 0.7 m above conveyor, brown cardboard carton is the reflective target.
- Bin-fill level verification on a vibratory feeder bowl — sensor mounted inside the feeder tooling, target = level of parts.
- Pallet stack-height monitoring at the exit of a stretch-wrap station — E3Z-D82 detects the top of the load
- Door-open verification on a machine guard — E3Z-D82 aimed across the door frame at a reflector on the opposite jamb
Buying Checklist
- Pick E3Z-D82 for a 1 m PNP diffuse sensor with M8 4-pin connector — the IEC 60947-5-2 standard pinout
- Pick E3Z-D82 2M for the same sensor with a pre-wired 2 m cable
- Pick E3Z-D81 2M for a 100 mm short-range PNP pre-wired sensor
- Pick E3Z-D87 for an NPN sinking-output M8-connector variant
- Pick E3Z-D62 for an infrared LED variant — invisible emitter spot for security / theatre applications
- Pick E3Z-T81 / E3Z-T86 for through-beam 30 m range — required for large machinery or safety light curtains
Technical Specifications
| Model | E3Z-D82 |
|---|---|
| Series | E3Z Compact Photoelectric Sensor with Built-in Amplifier |
| Type | Diffuse-reflective, long-range (1 m) |
| Sensing Method | Diffuse-reflective (no reflector, no separate receiver) |
| Sensing Distance | 1 m with white paper 300 × 300 mm (100 × 100 mm at 0.1 m) |
| Light Source | 660 nm red LED, modulated, visible spot |
| Beam Spot Size | 15 mm at 1 m working distance (typical) |
| Output Type | PNP open-collector transistor (sourcing) |
| Output Current | 100 mA max (load current) |
| Output Voltage Rating | 24 VDC max (load supply) |
| Residual Voltage | 2 V max at 100 mA load |
| Leakage Current | 0.1 mA max (output OFF) |
| Operating Voltage | 12 to 24 VDC ±10 % (10 % p-p ripple max) |
| Current Consumption | 30 mA max |
| Operating Temperature | -25 to +55 °C (no condensation / icing) |
Resources & Downloads
FAQ for E3Z-D82
What's the difference between E3Z-D82 and E3Z-D86?
Functionally, none — the E3Z-D82 and E3Z-D86 are the same 1 m diffuse-reflective PNP M8-connector sensor; the D82 is the global catalog number (Omron Industrial Automation) and the D86 is the European-region catalog number suffix (-OMI / E3Z-D86 2M OMI). Both use the same red LED emitter, both have the same 100 mA PNP output, both have the same 1 ms response, both use the same M8 4-pin connector with IEC 60947-5-2 pinout.
What cable do I use with the E3Z-D82 M8 connector?
Use the Omron XS3F-M series M8 4-pin female-to-pigtail cable. The standard PVC variant is XS3F-M421-402-A (2 m PVC, oil-resistant, 4-conductor; wire colors brown = +V, white = pin 2 unused, blue = 0 V, black = OUTPUT per IEC 60947-5-2). For cable carriers or moving-machine applications where the cable flexes continuously, use XS3F-M422-402-A (2 m PUR, oil-resistant, robotic-grade) instead. For right-angle exit where space is tight, use the L-angle variants XS3F-M421-404-A (4 m PVC) or XS3F-M422-404-A (4 m PUR).
Why is the red LED spot visible on the target?
The E3Z-D82 uses a 660 nm visible red LED emitter instead of infrared — the red dot is intentional, not a side effect.
How does the E3Z-D82 fail on shiny or transparent targets?
Diffuse-reflective sensors detect a target when light from the emitter reflects off the target's surface back into the receiver. On shiny surfaces like polished stainless steel, mirror-finish aluminum, or wet/glass surfaces, the light specularly reflects at the same angle as the incident beam — most of the light bounces away from the receiver, and the sensor does not see the target reliably.
